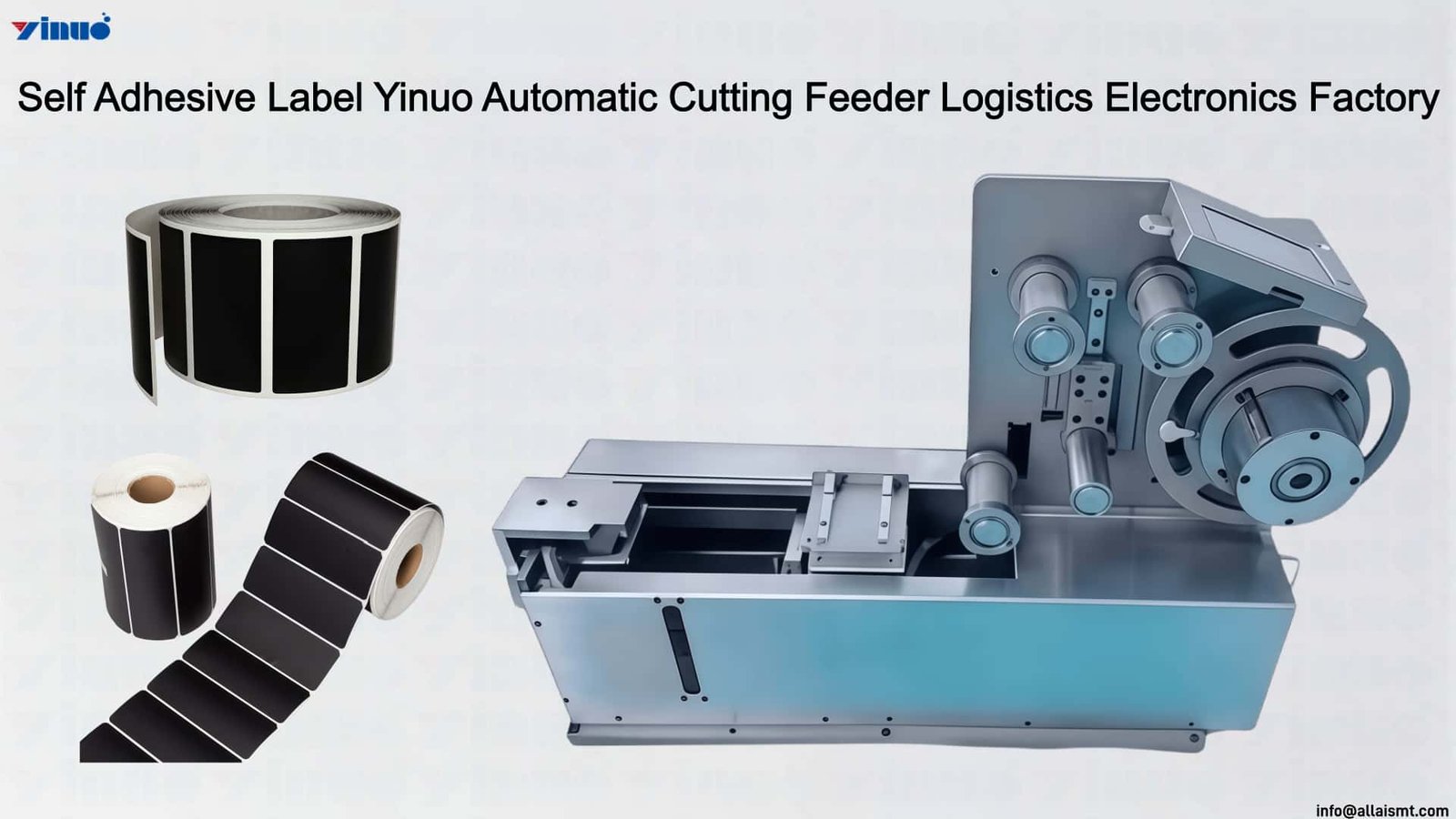

Self Adhesive Label Yinuo Automatic Cutting Feeder Logistics Electronics Factory

Introduction

Processing roll-format adhesive tapes — double-sided, conductive, high-temperature — demands a feeding system that handles each material without compromising its adhesive surface or dimensional accuracy. The Yinuo Automatic Cutting Feeder meets this requirement through a staged clamping protocol that separates the feed phase from the cutting phase. The rear clamp grips the material and pushes it forward into the front clamp aperture while the front clamp remains disengaged, allowing the strip to advance without scraping or compressing the adhesive side against a closed clamp face. This controlled feed motion preserves tape flatness and prevents adhesive transfer that can foul guide surfaces and degrade cut quality over successive cycles.

When the strip reaches its programmed length, the front clamp closes to secure the material and the rear clamp opens, retracting to a configured setback before tightening again. This clamp-switching sequence locks the target segment in a stationary position under the blade, mechanically decoupled from upstream reel tension. A suction nozzle contacts the tape surface to stabilize it during cutting, and the trimming mechanism executes the cut. The front clamp releases immediately afterward, and the nozzle retrieves the finished segment and moves it to the pickup zone — a direct handoff that eliminates dwell between cut and transfer.

This architecture sustains cut-to-cut consistency across varied adhesive tape types, from thin conductive films to thicker high-temperature backings. The feeder’s replaceable blade design enables width reconfiguration through insert swap alone, reducing changeover downtime when production shifts between material specifications. Suitable for double-sided adhesives, conductive adhesives, high-temperature tapes, and other roll-format materials, the Yinuo Automatic Cutting Feeder combines precise material handling with the modular adaptability that high-mix, high-throughput manufacturing requires.

Yinuo Automatic Cutting Feeder

Yinuo Automatic Cutting Feeder Applies Self-Adhesive Labels in Logistics Electronics Manufacturing

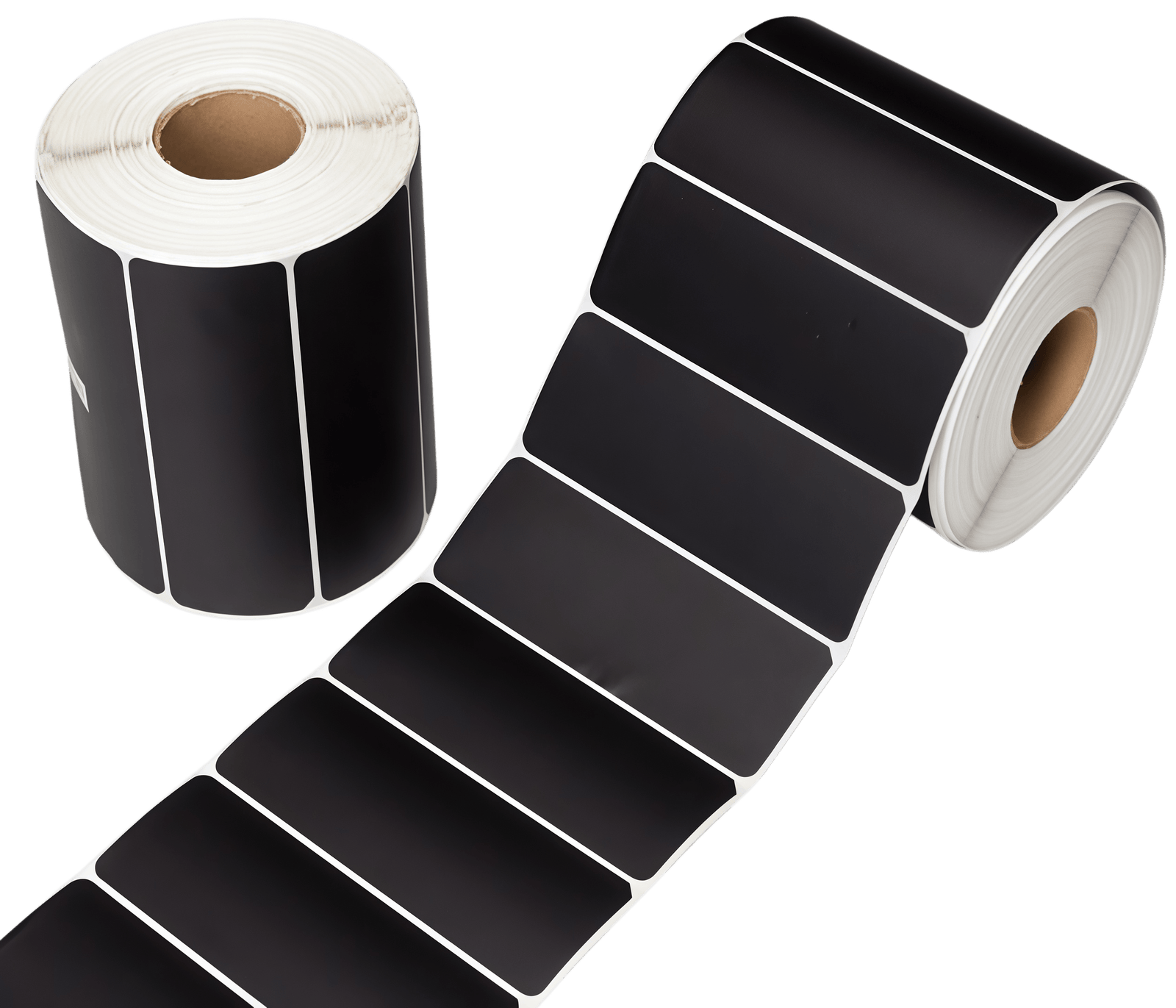

Self-adhesive label processing in the Yinuo Automatic Cutting Feeder relies on a clamp-and-release cycle where only one clamp contacts the strip during material advance. The rear clamp pushes the label strip forward into the front clamp aperture while the front clamp stays retracted. The adhesive side of the label travels through the open front zone without dragging against a closed clamp face, which limits adhesive residue accumulation on internal surfaces and preserves liner integrity through repeated cycles.

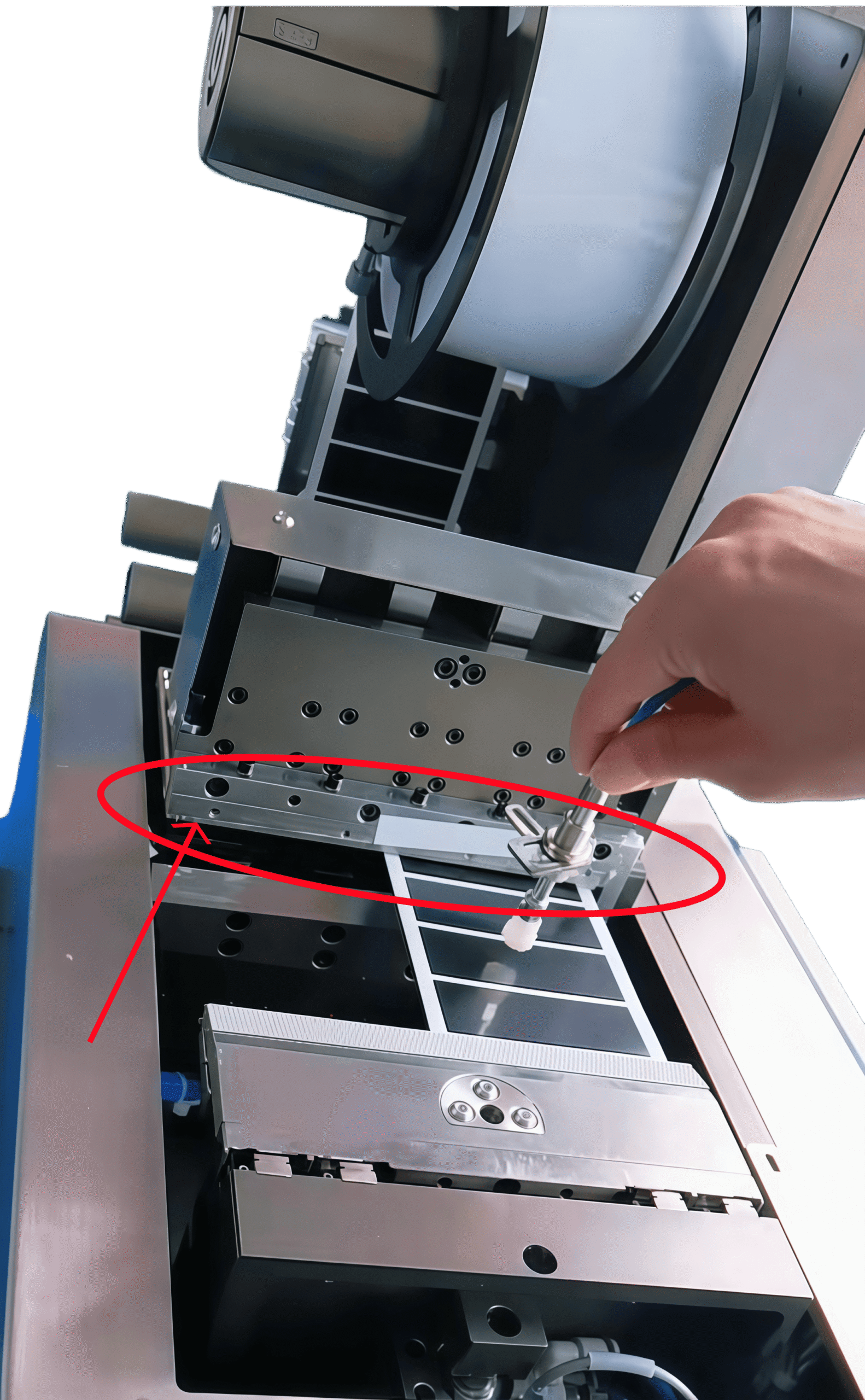

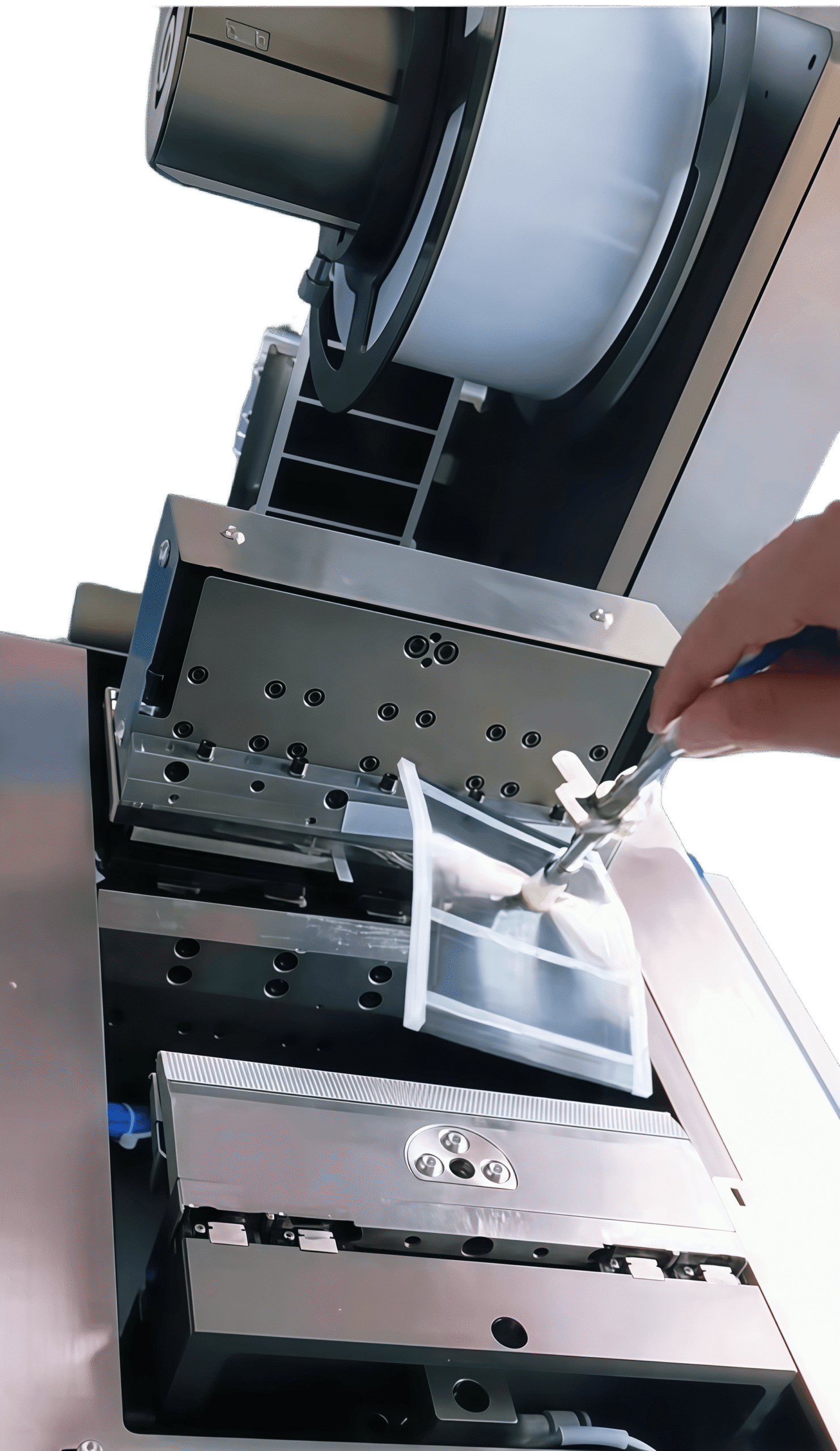

Feed position reached, the front clamp closes and the rear clamp opens, retracting to a configured setback before re-engaging. This clamp reversal locks the strip in place under the blade, separating the cutting zone from tension variations on the reel side. A suction nozzle holds the label face at the cut line, the blade shears through, and the front clamp opens. The nozzle lifts the finished label and transfers it to the pickup station without the cut segment resting against the blade housing.

The feeder accommodates different label widths through interchangeable blade inserts. A single unit serves multiple label formats by swapping the cutting blade rather than the entire feeder assembly. Handling roll-based self-adhesive labels for routing identification, batch marking, product coding, and inventory tracking in logistics electronics operations, the Yinuo Automatic Cutting Feeder addresses adhesive handling, cut accuracy, and format flexibility through its clamp architecture and modular blade design.

Specifications
