Automatically inserts axial lead components (Switch,Socket Transformer Coils,Ports,Capacitors,Resistors,IC,Etc) into PCBs.
4-pitch (2.5 mm/5.0 mm/7.5 mm/10.0 mm)

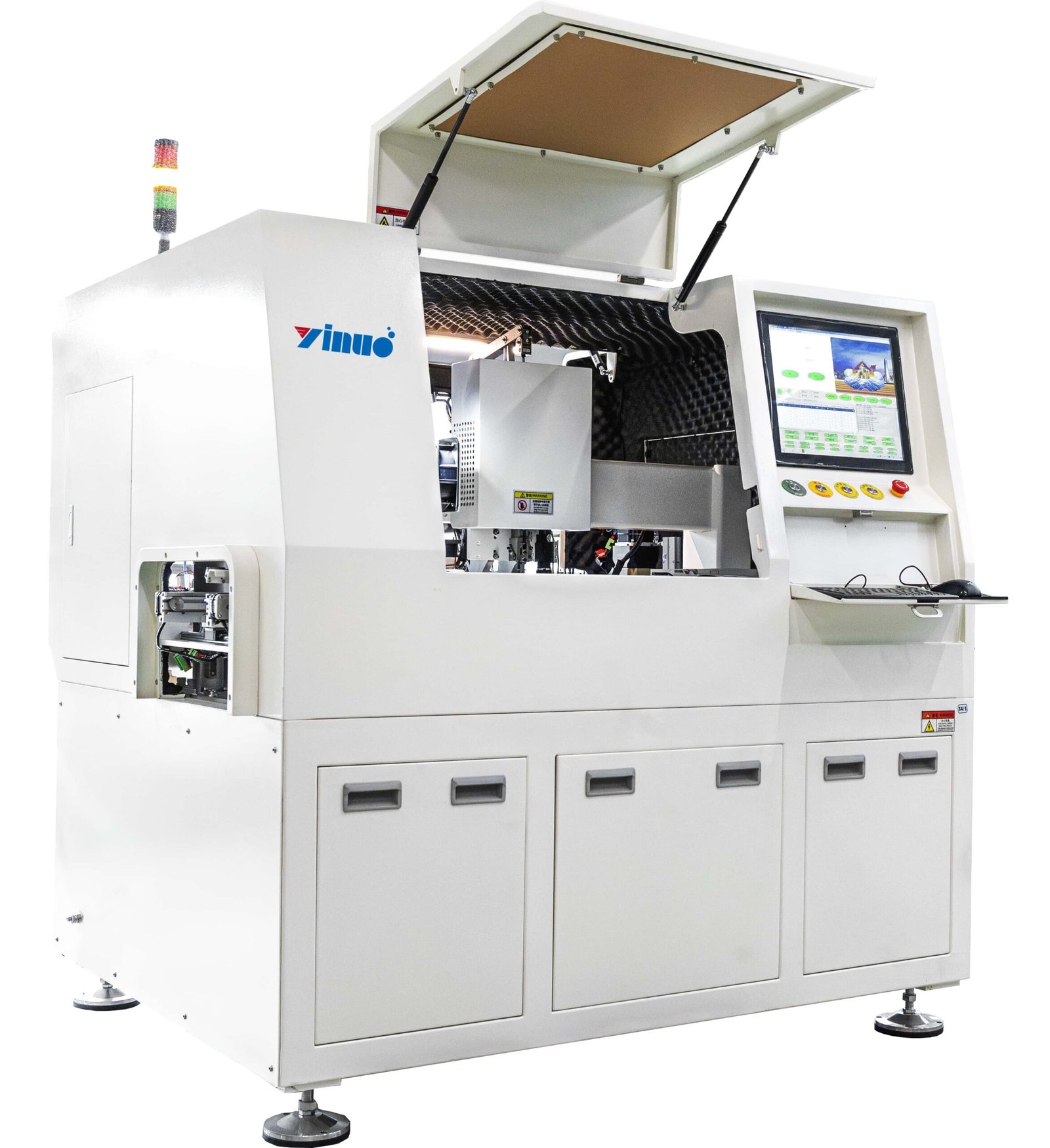

Axial Lead Component Insertion Machine 18000CPH
Supports press-fit terminals, soldered terminals, and crimped connectors.
High-speed machines capable of automatically feeding, aligning, and inserting rivets into PCBs
Insert Connector,Switch,Socket Transformer Coils,Ports,Capacitors,Resistors,IC,Etc

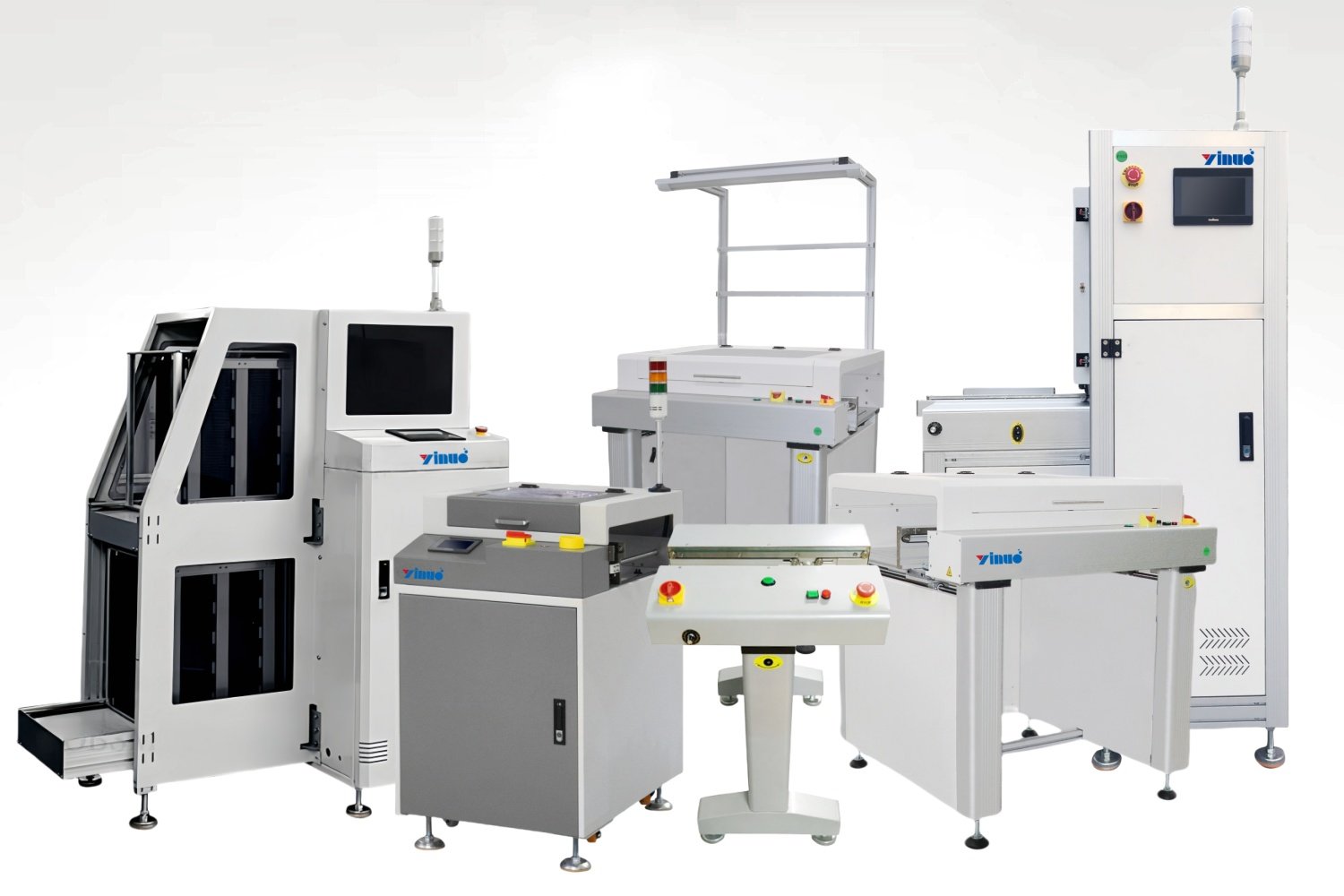

Automate your SMT assembly line with PCB Handling conveyors, PCB loaders and unloaders, PCB Buffers, inspection conveyors, wave soldering conveyors, and more.

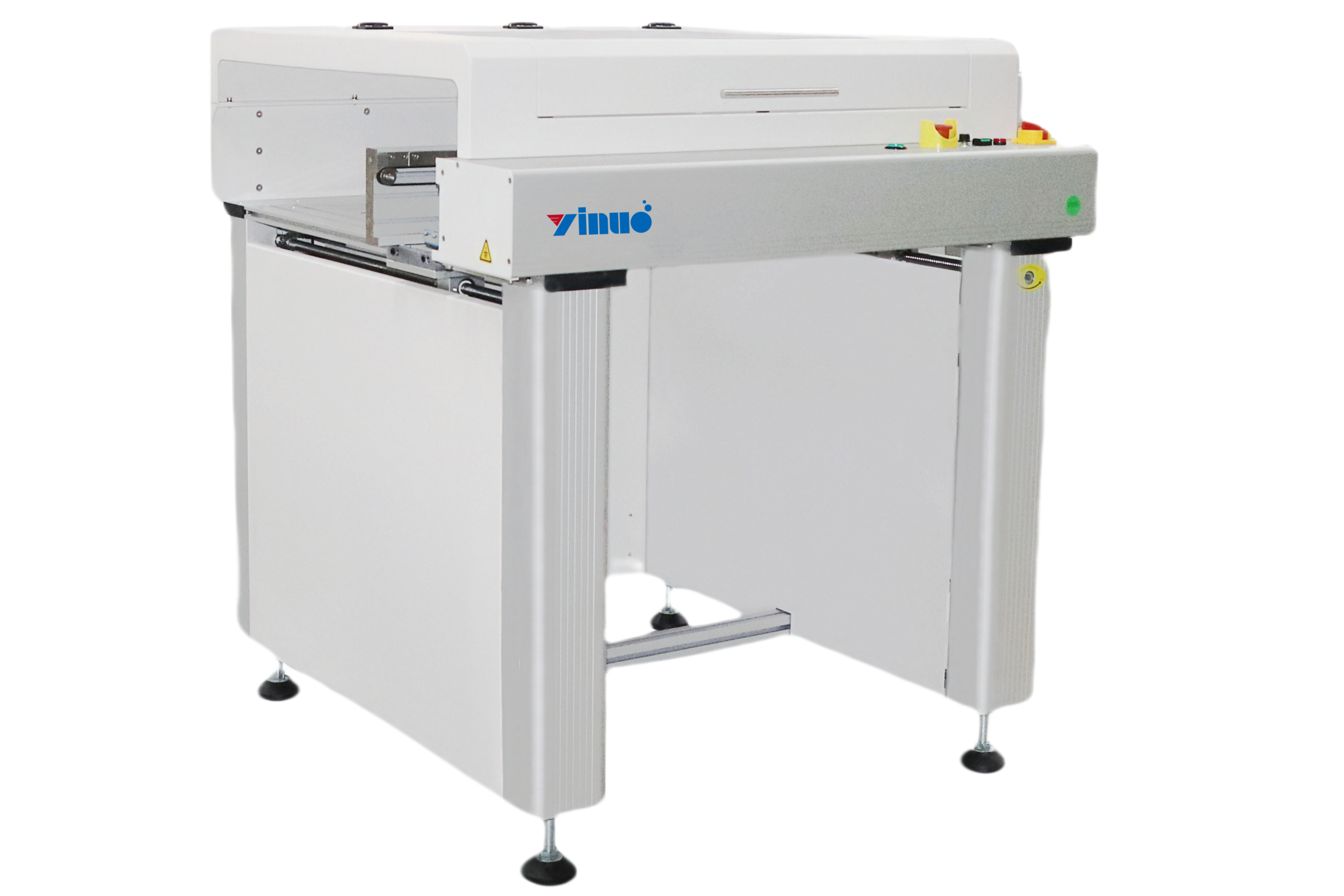

SMT cooling conveyor is mainly used to transfer and cool PCBA after reflow soldering
Equipped with sensors to detect PCB presence, ensuring proper positioning and preventing jams.

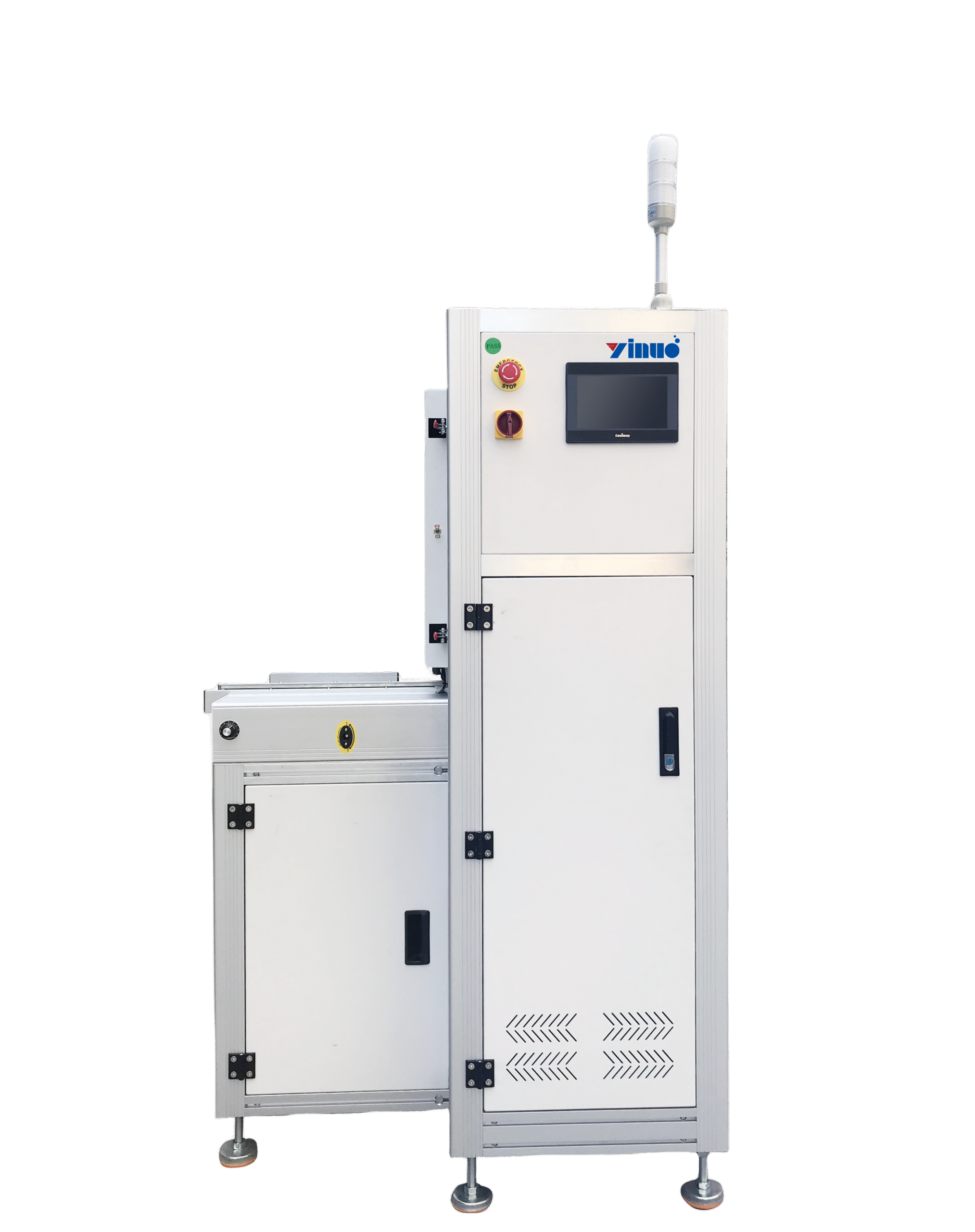

PCB magazine unloader is used for unloading PCBs automatically in SMT&DIP production lines.
For storage the NG borad and flow to the up lever for inspection after the tester(AOI/SPI).
PCB magazine loader is used for loading PCBs automatically in SMT&DIP production line.
It conducts high pressure, high flow spray wash technology. Wash, rinse and dry processes are completed in one chamber. It can wash rosin flux, no-clean flux,water-soluble flux , Solder paste ball and other organic and inorganic polluted materials. It is the best machine for little small batch and multiple specs PCBA cleaning.
Pre-clean wash / Cleaning / Pre-rinse / Rinse / Air Knife Drying / Hot Air Drying
Ultrasonic clean+Spray very good cleaning result, especailly gaps and corners of squeegees.
For small amounts, multi-spec PCB cleaning purposes.
Aqueous based cleaning of stencils and PCBA using high-pressure spray systems,2 stencil capacity
Capable of cleaning a wide range of components including SMT stencils, misprinted PCB and PCBA
SMT ESD magazine surface dusts cleaning system
The THT Feeder is a flexible feeding system that provides consistent and reliable feeding of irregularly shaped components for maximum productivity. It is designed to be compact, easy to integrate and adapt to different component sizes.
Carbon film resistors, metal film resistors, diodes, etc. Usually axial pin package, suitable for tape feeding
Specially designed for feeding radial lead components such as electrolytic capacitors, transistors, LEDs, etc.
Suitable for tube-mounted components (such as IC chips, transistors, etc.).
Multi track vibratory feeder bowl use to loading the loose component online,
SMT tray feeder is a component insertion tray feeder,mainly use for specific tray type component
SMT label feeder, SMT pick and place machine to labeling in the assembly production line
Different wire diameters can create preforms of different sizes, such as 0805, and 0603 packages.

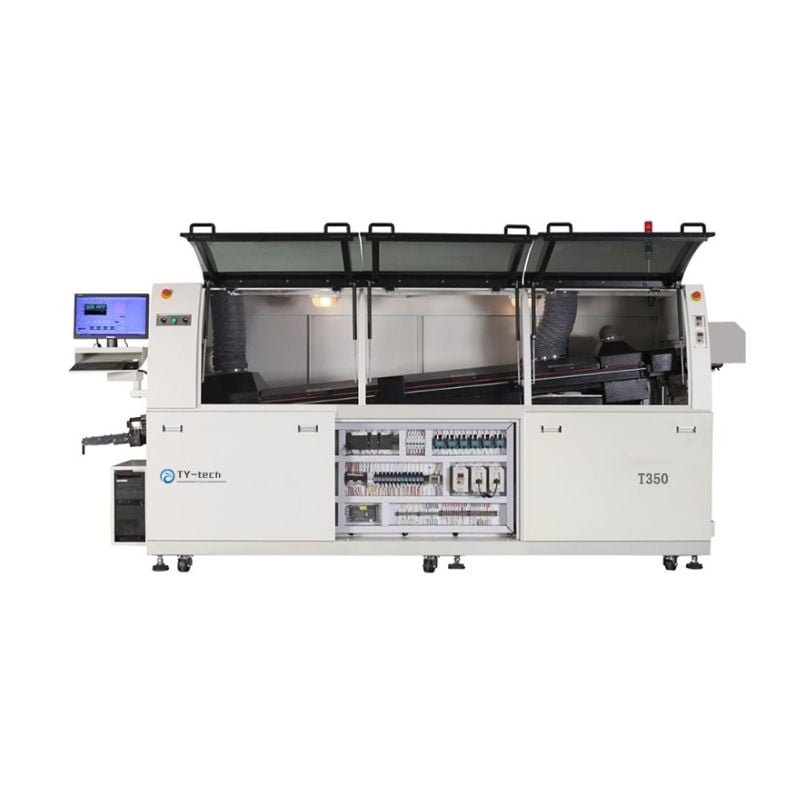

 wave soldering systems are suitable for any customer requirement – from high-end full-tunnel inert gas soldering systems to open atmospheric wave soldering systems. Each model relies on stable processes and reproducible parameters with impressive values in terms of availability, economy and quality to master all wave soldering tasks efficiently and flexibly.
Can be customized up to 610MM width
ESMT is a leading SMT spare parts supplier based in China, offering top-quality SMT electronic parts and services to the electronics manufacturing industry. With a commitment to quality, customer service, and innovation, we are the ideal partner for EMS customers to keep their SMT lines and machines running smoothly and efficiently. Contact us today to learn more about our SMT spare parts and consumables solutions.
