Introduction
Built specifically for FUJI NXT series placement platforms, the FUJI NXT Label Feeder delivers industry-leading label feeding accuracy with a positioning repeatability of ±0.05mm. The feeder incorporates a precision peeling mechanism with adjustable peel force, allowing operators to fine-tune adhesive release for different label materials without causing curling or residue. It features an intelligent tape-end detection system that monitors remaining quantity in real time and triggers early alerts, preventing unexpected line stoppage during high-volume production runs of up to 500,000 placements per shift.
In modern electronics manufacturing, label feeding plays a critical role in traceability, compliance marking, and component identification throughout the assembly process. The FUJI NXT Label Feeder excels in automotive ECU production, and consumer electronics manufacturing where each board requires serial number verification, QR code scanning, or regulatory labeling. Its closed-loop tension control system ensures stable tape advance even at maximum acceleration, making it the ideal choice for mixed-model production environments running 24-hour continuous operation cycles.
Yinuo Electronics is China’s largest custom feeder exporter and manufacturer, with highly competitive pricing, fast delivery, and very reliable quality. Our website is: www.esmte.com | Contact email: info@allaismt.com | Video channel: https://www.youtube.com/@allaismt/videos | WhatsApp: +8613760481664

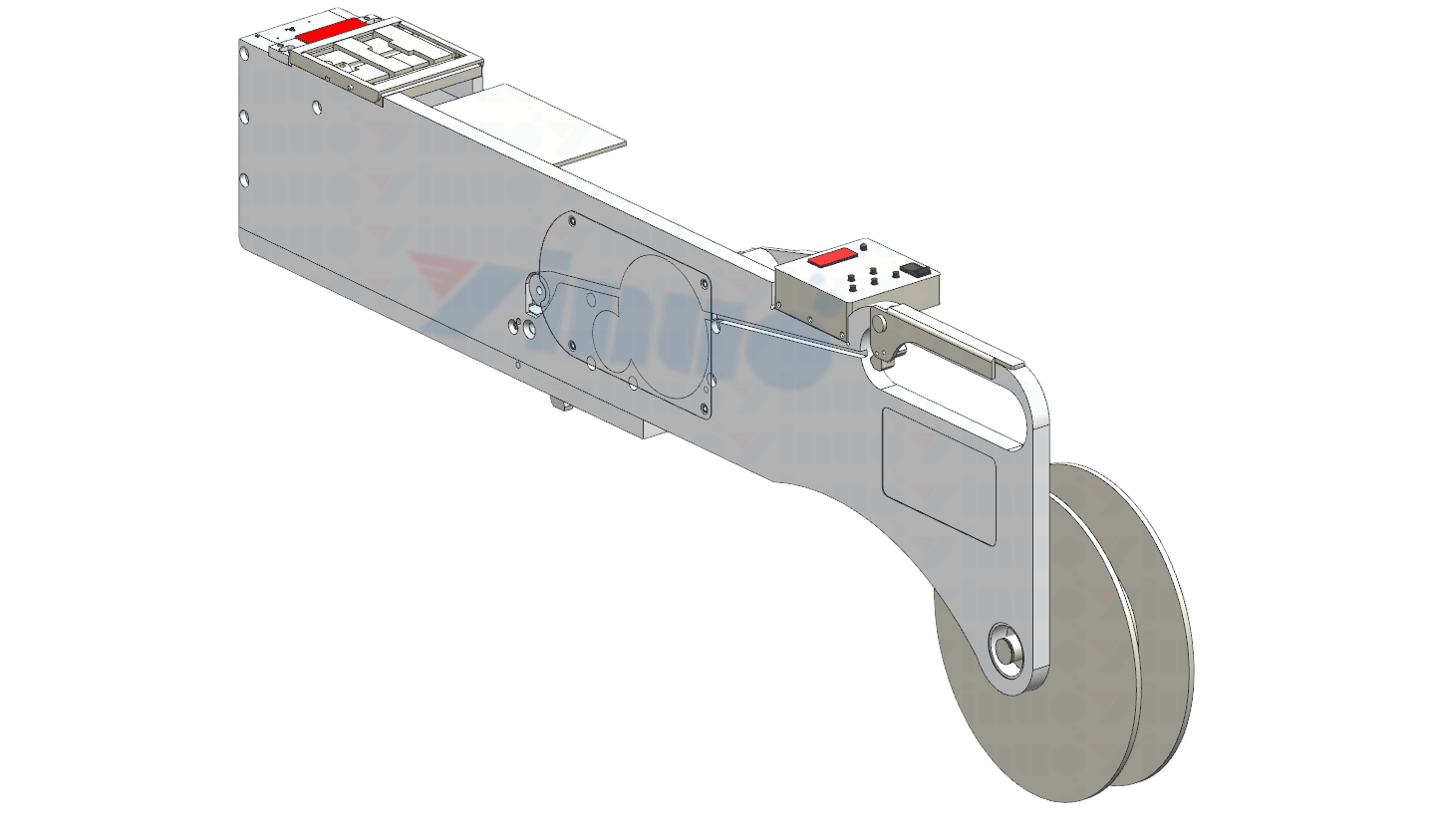

FUJI NXT Label Feeder
FUJI NXT Label Feeder Compatible Machine List
| No. | Machine Model | Series | Description |
| 1 | FUJI NXT H01 | NXT | Single-spindle flexible placement head |
| 2 | FUJI NXT H04 | 4-spindle multi-function placement head | |
| 3 | FUJI NXT H08 | 8-spindle high-speed placement head | |
| 4 | FUJI NXT H12 | 12-spindle high-speed placement head | |
| 5 | FUJI NXT H24 | 24-spindle ultra-high-speed placement head | |
| 6 | FUJI NXT H12S | 12-spindle speed-optimized head | |
| 7 | FUJI NXT H24M | 24-spindle miniaturized component head | |
| 8 | FUJI NXT-II H08 | NXT-II | H08 head module on NXT-II platform |
| 9 | FUJI NXT-II H12 | H12 head module on NXT-II platform | |
| 10 | FUJI NXT-II H24 | H24 head module on NXT-II platform | |
| 11 | FUJI NXT-III H08 | NXT-III | H08 head module on NXT-III platform |
| 12 | FUJI NXT-III H12 | H12 head module on NXT-III platform | |
| 13 | FUJI NXT-III H24 | H24 head module on NXT-III platform | |
| 14 | FUJI AIMEX-III | AIMEX | High-speed platform with NXT feeder support |
| 15 | FUJI I-PULSE S10 | I-PULSE | Multi-function platform with NXT feeder interface |
| 16 | FUJI I-PULSE S20 | Advanced multi-function placement platform | |
| 17 | FUJI CP843 | CP | Legacy platform with NXT feeder compatibility |
| 18 | FUJI XP243 | XP | Legacy platform with NXT feeder modules |
FUJI NXT Label Feeder Machine
FUJI NXT Label Feeder Compatible Label Types
| No. | Label Type | Material | Application |
| 1 | QR Code Label | Paper / PET / Polyimide | Component traceability, automated optical inspection, inventory management |
| 2 | Barcode Label | Paper / Polyester | Serial number identification, production tracking, logistics scanning |
| 3 | UID Label | PET / Polyimide | Unique device identification, medical device compliance, asset management |
| 4 | Aluminum Foil Label | Aluminum foil with adhesive backing | EMI shielding, RF identification, grounding marking |
| 5 | Kapton Label | Polyimide film | High-temperature resistant marking, reflow oven compatible identification |
| 6 | Thermal Label | Thermal paper / Thermal transfer film | Heat-resistant component marking, soldering process identification |
| 7 | Crepe Tape Label | Crepe paper with rubber adhesive | Masking during wave soldering, temporary component protection |
| 8 | Warning / Safety Label | Polyester / Vinyl | High-voltage marking, UL/CE certification, regulatory compliance |
| 9 | Logo / Branding Label | Glossy paper / Foil stamping | Company branding, product model marking, cosmetic identification |
| 10 | Insulation Label | PET / Mylar film | Electrical insulation marking, barrier identification on power circuits |
| 11 | Asset Management Label | Metalized PET / Destructible vinyl | Anti-tamper identification, warranty tracking, equipment serialization |
| 12 | Protective Overlay Label | Transparent PET film | Display protection, connector seal marking, environmental shielding |
Label Tape
Summary
From a reliability engineering standpoint, the FUJI NXT Label Feeder is designed to prevent the two most common label feeding failures — skips and misfeeds — through redundant detection and consistent mechanical force delivery. The motor-driven advance replaces pneumatic systems entirely, removing air supply variability as a failure mode. A dual-sensor verification path confirms label presence at both the pre-peel and post-peel stages, catching errors before they reach the placement nozzle. The adjustable peeling blade accommodates adhesive differences across materials from crepe paper to aluminum foil without causing label curl or residue transfer. For facilities operating continuous shifts in power electronics, or telecommunications assembly, this design philosophy directly reduces defect rates and unplanned downtime.
