Appliance Electronics Protective Film Tape Yinuo Automatic Cutting Feeder Production

Introduction

The Yinuo Automatic Cutting Feeder delivers precision material processing through a staged clamp-and-release protocol that decouples feed-stage tension from cutting-stage fixation. During dispensing, the rear clamp secures the material strip and pushes it forward into the front clamp aperture while the front clamp stays disengaged. This alternating grip pattern prevents the material from experiencing uneven pull forces that can cause substrate stretching, surface marking, or adhesive layer distortion — particularly critical when handling deformable materials such as foam tapes and thin protective films.

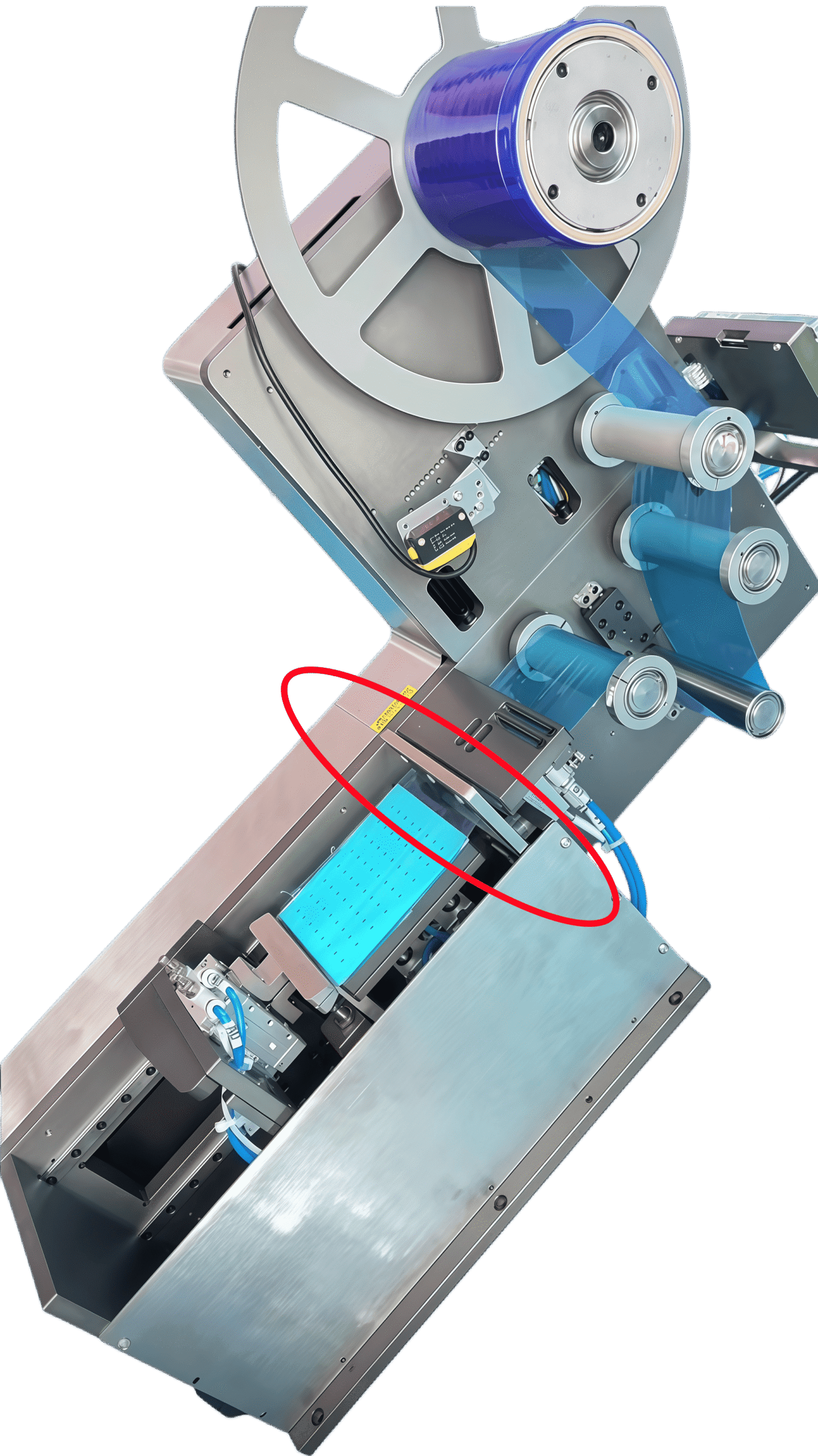

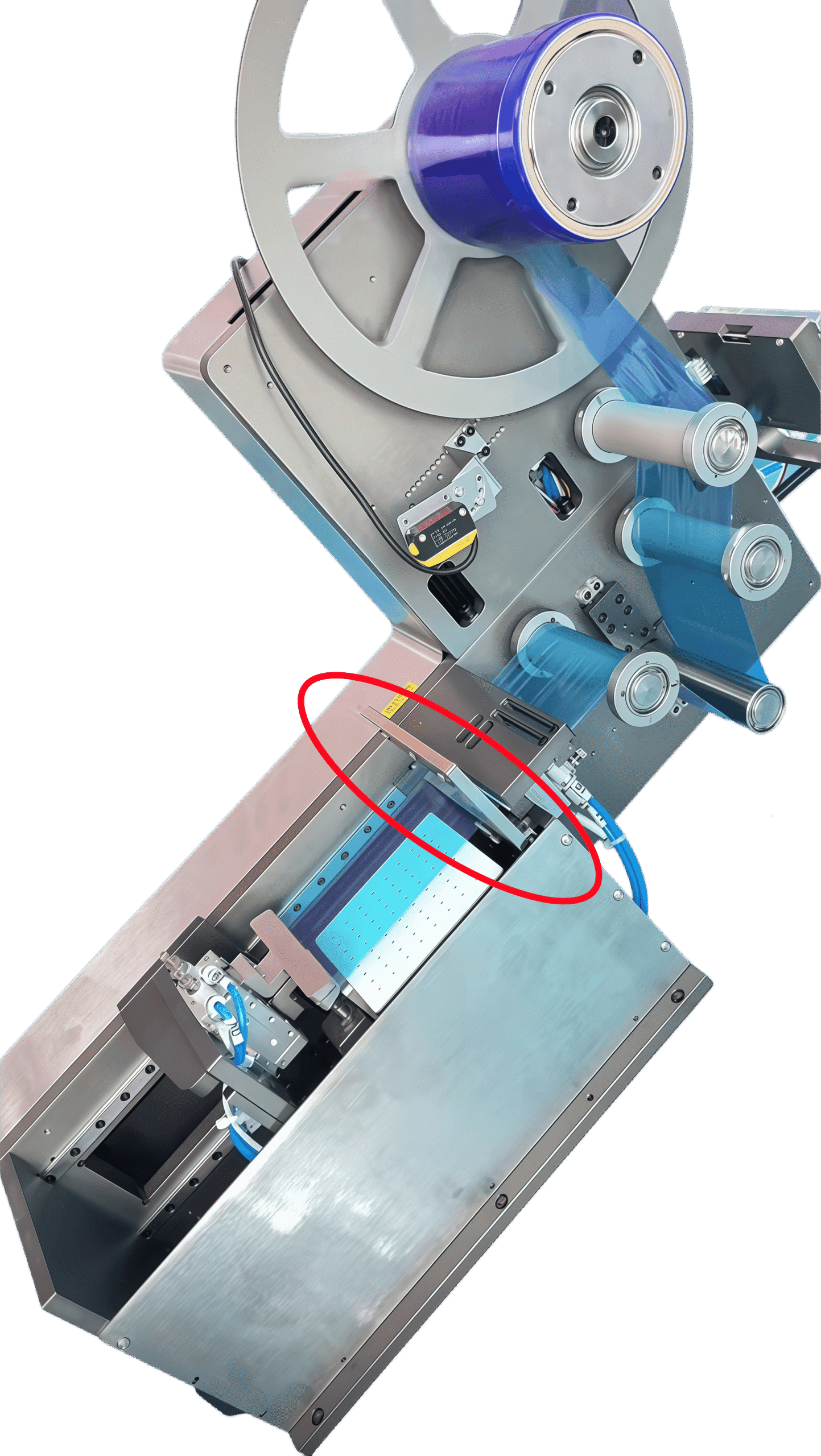

After the material reaches its target position, the front clamp locks and the rear clamp opens, retracting to a user-configurable setback distance before re-engaging. The resulting dual-clamp hold forms a rigid fixation bridge that isolates the cutting zone from reel-side tension variations and take-up inertia. The suction nozzle activates, contacting the material surface at the cut line and providing a third stabilization point that eliminates lateral drift during blade penetration. The cutting unit executes a precise trim with minimal burr formation, and the front clamp releases immediately post-cut, enabling the nozzle to transport the segment to the pickup station without dwell time.

This synchronized cut-to-retrieve handoff minimizes per-cycle duration and supports the throughput demands of modern production lines. The feeder’s replaceable blade design allows width changes through cutting insert swap — a factory can adapt to different material specifications by replacing only the blade rather than the entire feeder assembly, reducing changeover downtime and equipment inventory. Handling masking tapes, labels, protective films, foams, double-sided tapes, conductive adhesives, copper foils, steel sheets, and stiffener materials, the Yinuo Automatic Cutting Feeder delivers the cut precision and operational flexibility required in diverse electronics manufacturing applications.

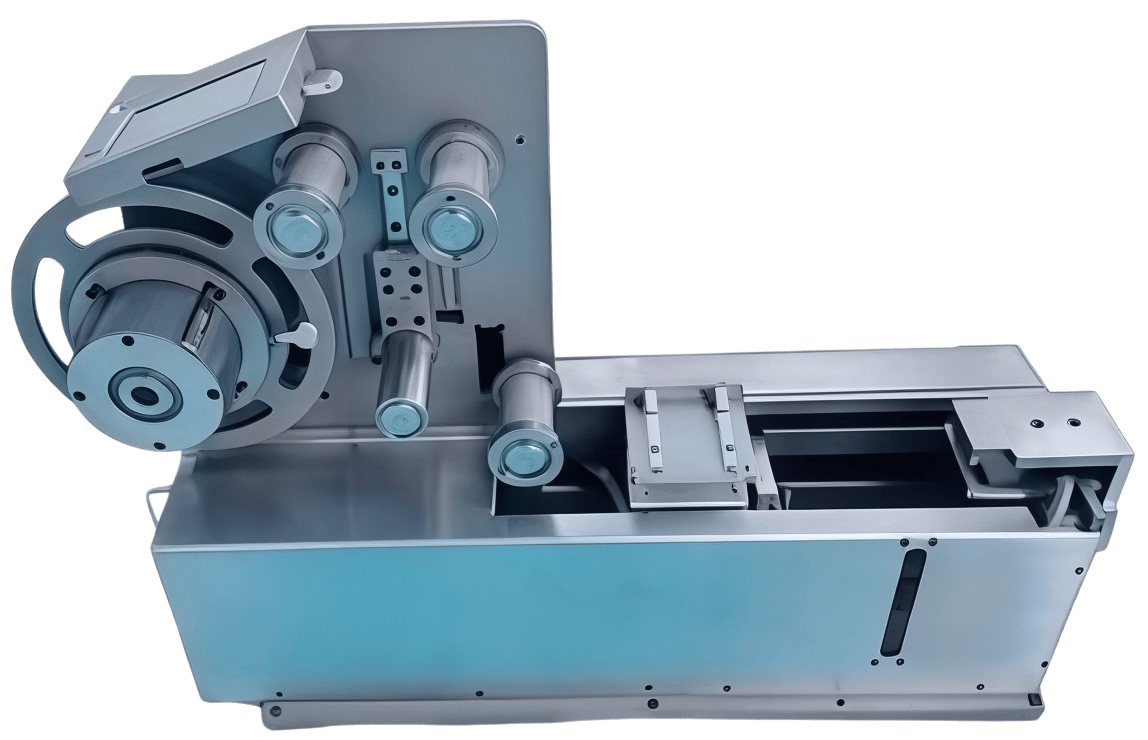

Yinuo Cutting Feeder

Yinuo Automatic Cutting Feeder Applies Protective Film Tape in Home Appliance Electronics Manufacturing

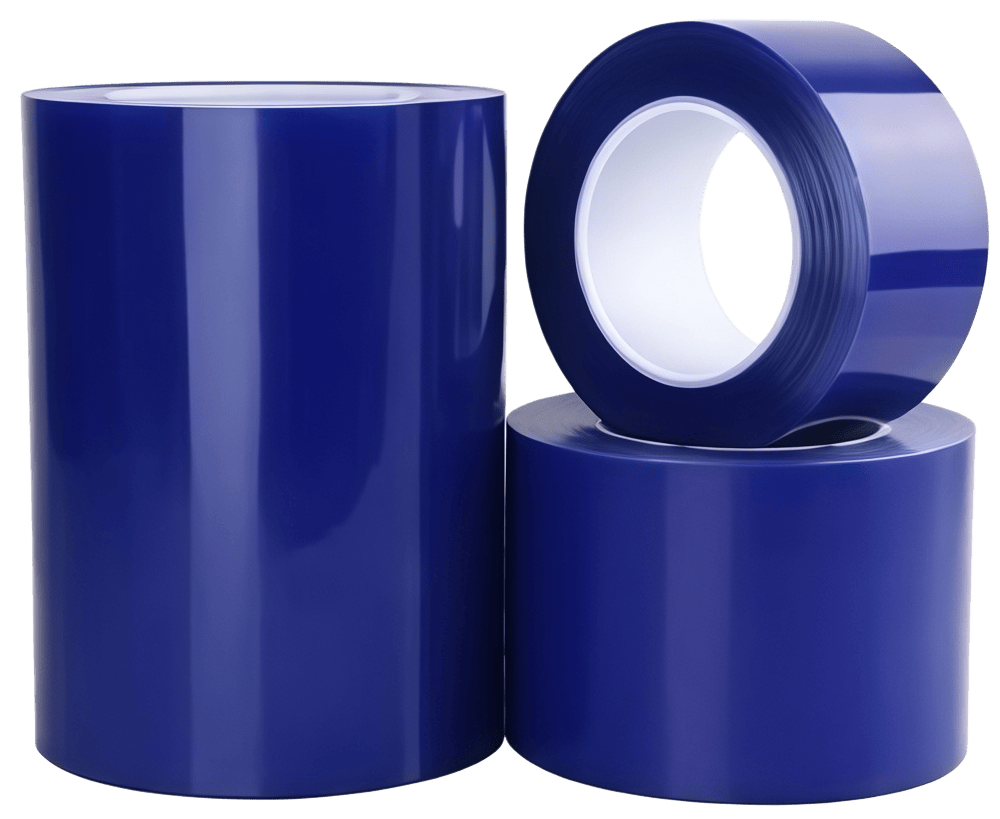

Home appliance electronics manufacturing consumes protective film at numerous stations — display panel masking during bezel bonding, touch surface guarding during adhesive application, and fascia protection during final assembly and packaging. The Yinuo Automatic Cutting Feeder processes these films through a staged clamp-and-release protocol built around independent rear and front clamp actuation. During dispensing, the rear clamp grips the film and feeds it forward into the front clamp aperture while the front clamp stays disengaged, maintaining steady advance speed without surface marking or adhesive-layer disruption. This single-sided grip approach avoids the film deformation that dual-simultaneous clamping can introduce.

After the film reaches its target position, the front clamp locks and the rear clamp releases, retracting to a user-configurable offset before tightening again. This clamp transition establishes a tension-neutral cutting zone — the film segment under the blade is held at both ends, shielded from upstream reel movement and material compliance fluctuations. The suction nozzle activates and grips the film surface, the cutting unit trims with a single clean stroke, and the front clamp opens upon completion. The nozzle then retrieves the segment and transfers it to the application point without dwell delay.

This synchronized cut-and-retrieve sequence sustains rapid cycle rates suited to high-volume appliance production. The feeder’s replaceable blade design enables width changes through cutting insert swap alone — a factory can switch between protective film specifications for different appliance models without replacing the entire feeder assembly, reducing both changeover labor and equipment footprint. Suitable for rolled protective films deployed in display protection, control interface shielding, surface masking, and handling protection throughout home appliance electronics workflows, the Yinuo Automatic Cutting Feeder delivers the cut precision and modular flexibility that efficient, multi-model manufacturing operations require.

Specifications
