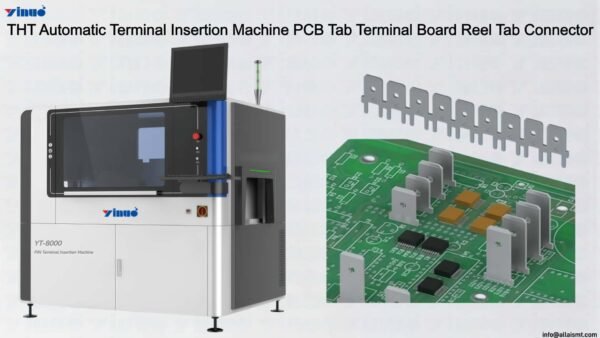

THT Automatic Terminal Insertion Machine PCB Tab Terminal Board Reel Tab Connector

Introduction

The THT Automatic Terminal Insertion Machine streamlines the process of embedding Reel Tab Connectors into PCB Tab Terminal Boards with minimal operator involvement. A motorized reel cradle accepts the connector strip while a dynamic tensioner maintains consistent payout. The feeder indexes each tab to a punching die that separates it cleanly, and a cam-driven shuttle delivers the tab to the insertion station. The PCB Tab Terminal Board is loaded onto a walking-beam conveyor that advances it into the clamp zone. Positional coordinates are locked by a laser-guided alignment sensor, and the insertion ram propels the tab through the board as an opposing clinch die folds the lead flush on the underside — completing a vibration-resistant, electrically sound termination.

This machine outperforms conventional equipment through its adaptive insertion logic. Rather than applying a fixed stroke, the system senses board resistance at every micron of travel and modulates force accordingly, preventing damage to fragile substrates while guaranteeing full seating. Quick-lock tooling brackets slash changeover from hours to minutes, and a touchscreen recipe library recalls all process parameters for any board variant instantly. The frame’s monolithic base absorbs vibration, ensuring that insertion alignment holds steady across extended production runs without recalibration.

In automotive electronics, telecom hardware, industrial controls, and LED assembly, the THT Automatic Terminal Insertion Machine delivers what contract manufacturers need most: consistent output with minimal supervision. It replaces subjective manual labor with deterministic, data-verified automation, slashing defect rates and enabling lights-out operation. For facilities racing to fulfill high-mix, high-volume orders, this machine is the engine that turns production capacity into competitive advantage.

THT Automatic Terminal Insertion Machine

How can the THT Automatic Terminal Insertion Machine be used to insert a Reel Tab Connector into a PCB Tab Terminal Board?

Attaching a Reel Tab Connector to a PCB Tab Terminal Board in the THT Automatic Terminal Insertion Machine involves a precise sequence. The reel is mounted on a mandrel with an electronic brake to regulate strip tension and prevent tangling. A stepper-driven feeder advances the connector strip, presenting each tab to the shear station. After cutting, a vacuum-assisted pick-and-place head moves the tab to the insertion axis. The PCB Tab Terminal Board is conveyed into the work zone and secured by pneumatic clamps. The insertion spindle pushes the tab through its designated hole while a bottom-side anvil clinches the lead, ensuring a gas-tight mechanical and electrical joint before the board advances.

The machine features a closed-loop force feedback system that measures insertion resistance in real time, adjusting for variations in hole diameter, plating thickness, and tab hardness. Its tooling carousel supports multiple insertion heads, allowing for concurrent processing of different tab profiles without halting production. The rigid C-frame construction minimizes deflection, maintaining insertion perpendicularity on thick, multi-layer PCB Tab Terminal Boards. A statistical process control module logs all parameters, providing full traceability for compliance in automotive and industrial applications.

This machine enhances the value proposition for through-hole terminal assembly by removing the variability of manual methods, resulting in repeatable, inspection-ready outcomes that reduce rework and warranty risks. Its modular design allows manufacturers to scale capacity gradually, making it ideal for industries where connection reliability is essential, including consumer electronics and automotive.

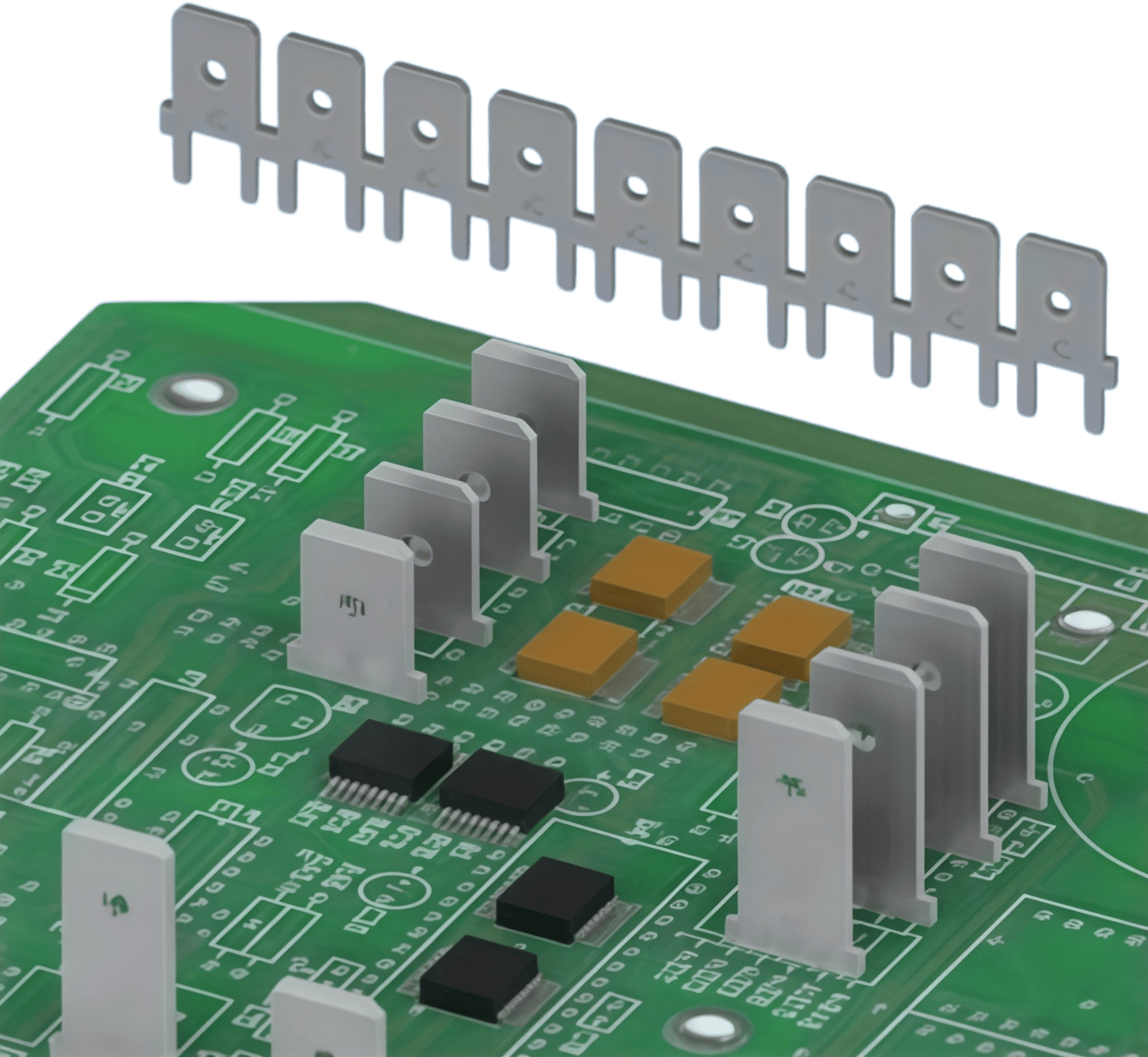

PCB Tab Terminals

Specifications
