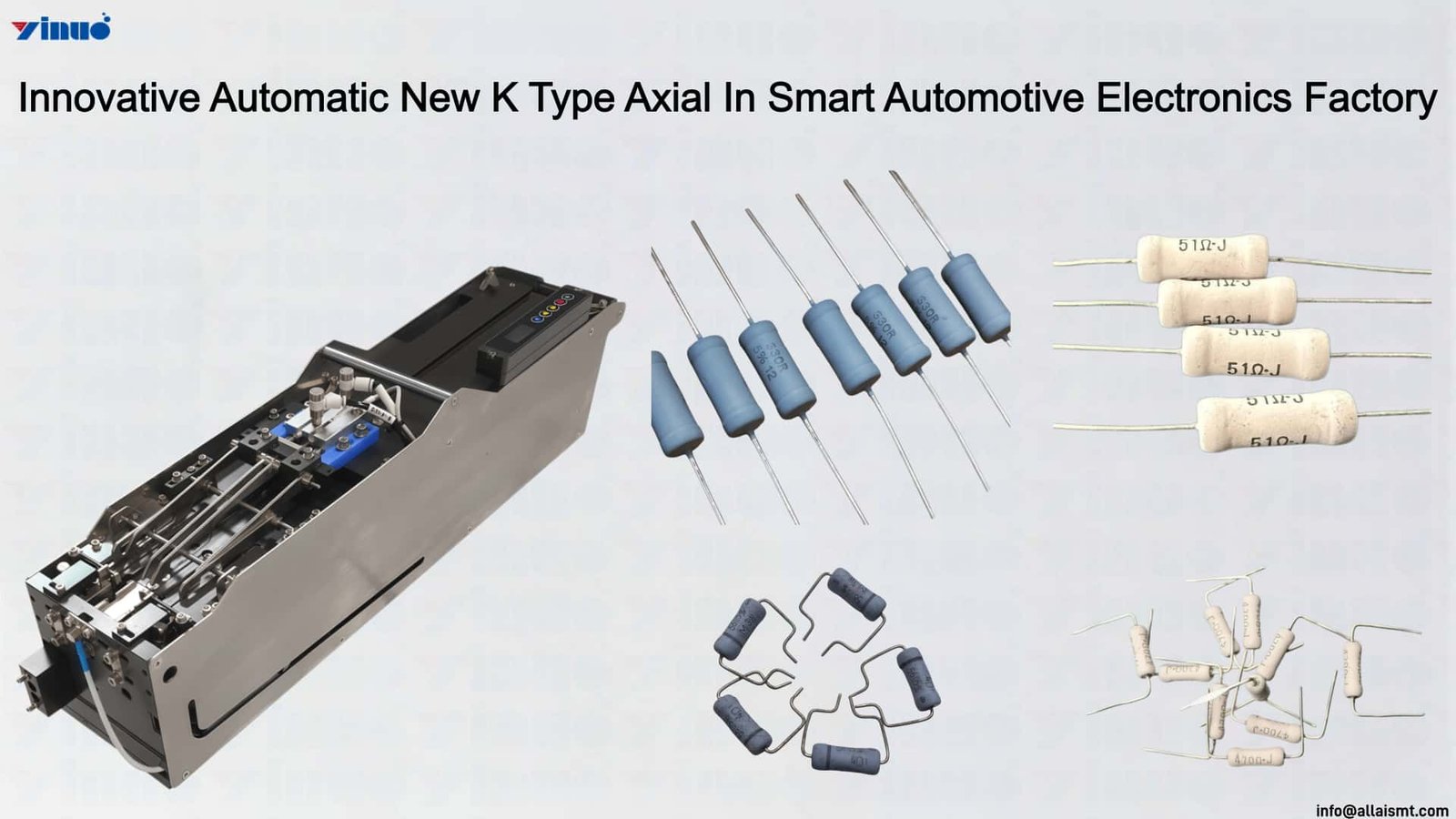

Innovative Automatic New K-Type Axial In Smart Automotive Electronics Factory

Introduction

The Automatic New K-Type Axial Feeder redefines component-feeding fidelity through a precision-driven architecture engineered for high-density through-hole assembly environments. At its core, the K-Type platform leverages a servo-synchronized tape-advance mechanism that meters axial-leaded components—resistors, capacitors, diodes, and inductors—with micron-level positional repeatability. This exceptional indexing accuracy ensures that each component is presented to the downstream insertion head at an invariant spatial reference, virtually eliminating misfeed-induced placement anomalies. The feeder’s rigid chassis, machined from stress-relieved aluminum alloy, dampens vibratory perturbations that would otherwise degrade registration precision during sustained high-cycle operation.

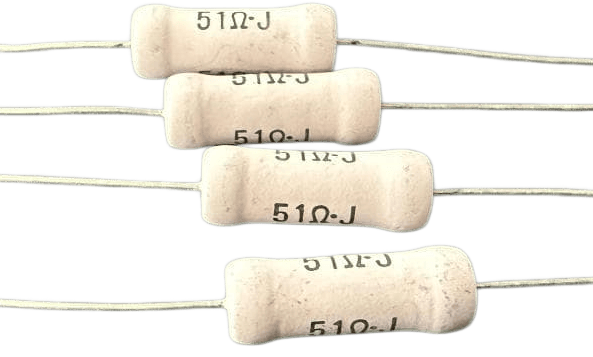

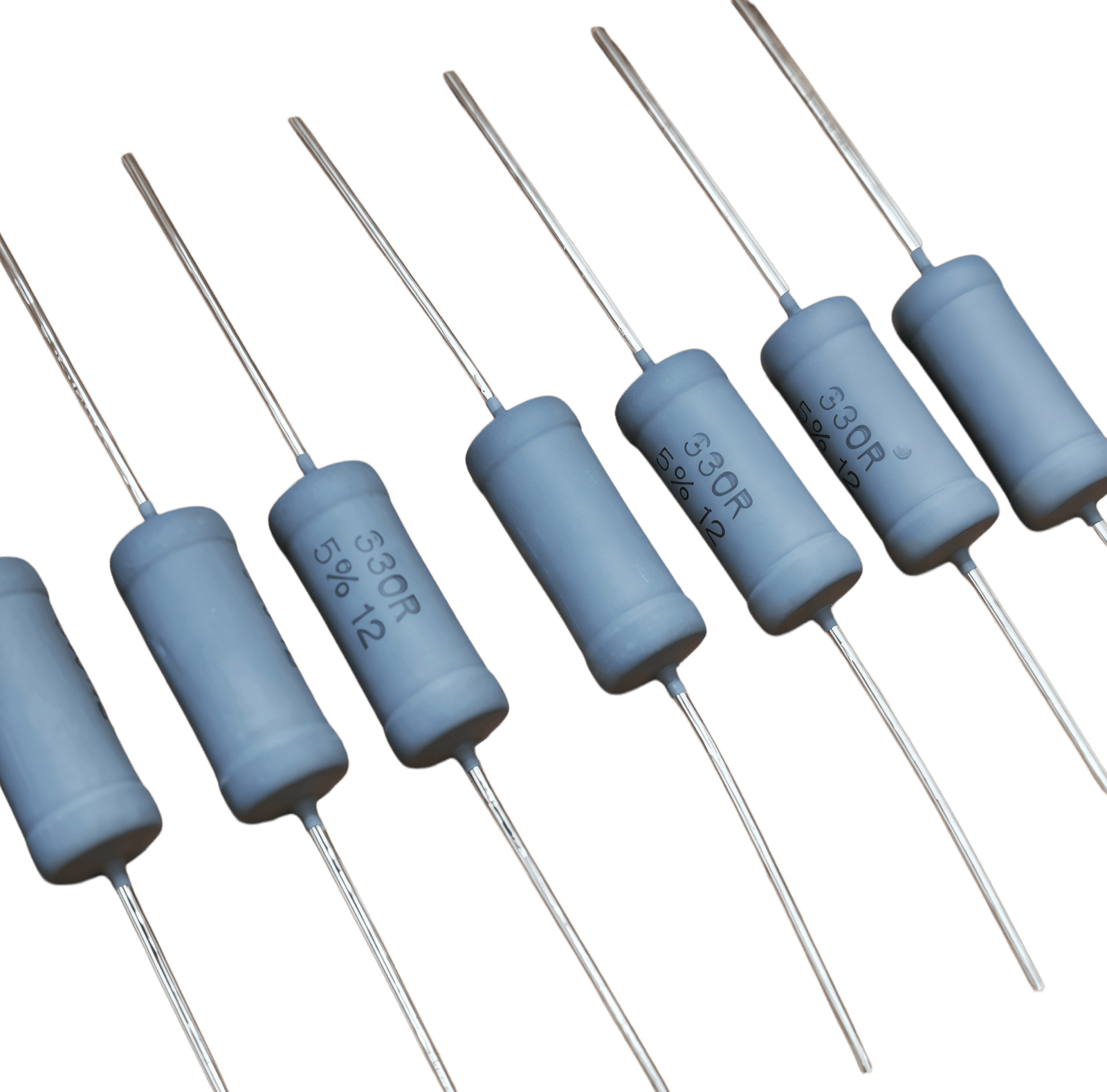

Horizontal component handling constitutes a defining competency of the K-Type feeder. The system ingests tape-bound axial components in their native flat-orientation format and channels them through a guided linear pathway where spring-tensioned hold-down rails maintain coplanar alignment of the component body relative to the lead axis. A pneumatic clamping array secures each component in situ during the transfer phase, preventing rotational drift and ensuring that the body remains perfectly orthogonal to the feed direction. This controlled horizontal presentation is critical for subsequent lead-forming and insertion operations, where even marginal angular deviation can compromise joint integrity.

The angle-cutting subsystem exemplifies the feeder’s integrated processing sophistication. A cam-actuated shear module, positioned at the discharge station, executes simultaneous dual-lead cropping at a programmable bevel angle. Tungsten-carbide cutting blades deliver clean, burr-free severance across a broad range of lead diameters. The cutting angle is servo-adjusted in real time via the CNC controller, allowing on-the-fly reconfiguration between component families without mechanical tooling changes, thereby preserving cycle-time continuity across mixed-product runs.

Automatic New K-Type Axial Feeder

Automatic New K Type Axial Feeder Drives Lean Material Flow In Automotive Manufacturing

The Automatic New K-Type Axial Feeder catalyzes a structural reorganization of the axial-component assembly flow within smart automotive electronics factories by consolidating what were historically fragmented, station-discrete operations into a single integrated processing cell. Conventional axial workflows required separate decoiling, lead straightening, forming, and trimming stations scattered across the line, each introducing inter-process handling, queueing delays, and defect-injection touchpoints. The K-Type collapses this chain into one synchronized motion sequence executed at the feeder itself.

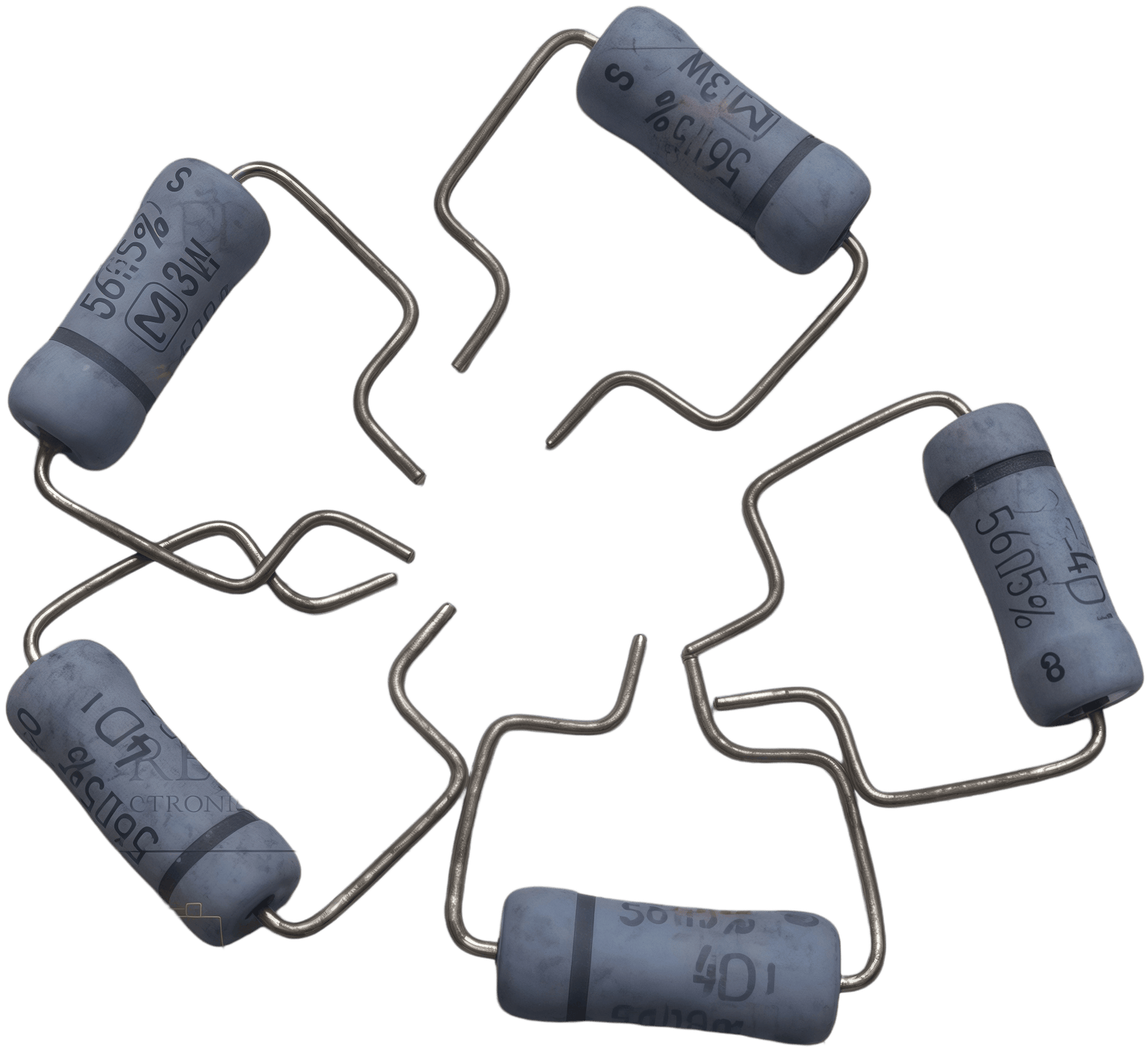

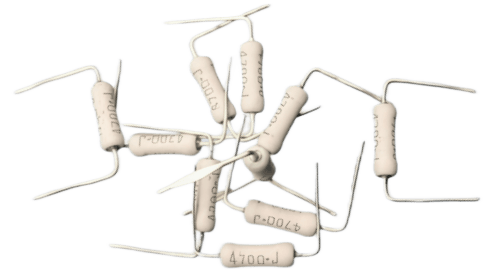

Within this consolidated cell, the feed-form-cut pipeline processes each axial (horizontal-mount) component—resistors, diodes, and inductors critical to automotive control modules—through decoiling, lead-memory erasure, dual-axis horizontal forming, and precision lead shearing, all before the part reaches the pickup window. The tapeless direct-strip architecture eliminates consumable carrier tape and the associated loading and splicing intervals, while the hot-swappable cartridge enables seamless transition between component families without halting the placement platform’s pick cadence. The physical footprint reclaimed by station consolidation can be redirected to value-added assembly capacity or additional inspection density.

The lean transformation extends into material flow. By removing the buffer queues that accumulated between discrete processing stations, the K-Type compresses work-in-process inventory and shortens the interval between component decoil and final placement—reducing the exposure window during which axial leads can sustain handling damage or contamination. The Automatic New K-Type Axial Feeder thereby converts the axial process chain from a serialized, space-consuming liability into a compact, self-contained, and changeover-agile asset aligned with the lean-cell doctrine smart automotive factories pursue.

Specifications

https://www.youtube.com/@allaismt

For more information about the Automatic New K-Type Axial Feeder, please send an email to

info@allaismt.com

We will respond to your inquiry promptly and provide you with detailed information about our products and services.
