ASM SMT Solder Preform Feeder Reliable Component Feeding
Description：The ASM SMT Solder Preform Feeder provides precision feeding for solder preform applications in SMT assembly. Engineered for power module assembly, LED packaging, RF soldering, and aerospace electronics, it ensures stable, accurate delivery to PCB pads during reflow. Adjustable feeding speed and configurable pitch settings optimize performance for specific preform dimensions and line speeds. Its compact design integrates seamlessly into tight workspaces, while quick-load strip changes minimize downtime during material changeovers. By automating the feeding process, it eliminates misalignment and inconsistent joint quality, ensuring every board meets strict industry standards.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The ASM SMT Solder Preform Feeder is an advanced solution designed to automate the soldering process in SMT assembly lines, improving both speed and accuracy. Engineered to deliver solder preforms with high precision, it eliminates manual handling and reduces human error, ensuring consistent and flawless soldering every time. Its robust design makes it suitable for high-volume, high-precision environments, including automotive electronics, telecommunications, and consumer electronics manufacturing.
This feeder streamlines operations by reducing downtime and increasing production efficiency. By automating the feeding process, it minimizes disruptions and maintains a continuous production flow. The feeder’s versatility supports various solder preform types, offering flexibility for diverse production lines and resulting in significant time and cost savings alongside improved output and quality consistency.
Yinuo Electronics is China’s largest custom feeder exporter and manufacturer, offering highly competitive pricing, fast delivery, and exceptional product quality. The company has built a strong reputation for providing reliable solutions that meet the demands of modern manufacturing. For more information on the ASM SMT Solder Preform Feeder, visit www.esmte.com or contact us via email at info@allaismt.com. Explore product demonstrations on our YouTube channel or connect with us on WhatsApp at +8613760481664.
ASM SMT Solder Preform Feeder
Compatible Machine Series
| Feeder Model | Feed Tape Width | Feeder Width | Compatible Machine Series | Key Feature |
|---|---|---|---|---|
| SPF-8 | 8mm | 12mm | SIPLACE X, SX, HM | Ultra-compact for narrow preform strips |
| SPF-12 | 12mm | 16mm | SIPLACE X, SX, HM | Standard narrow-width feeding |
| SPF-24 | 24mm | 24mm | SIPLACE X, SX, HM | For medium-width preform strips |
| SPF-32 | 32mm | 32mm | SIPLACE X, SX, HM | For wider preform strips |
| SPF-44 | 44mm | 44mm | SIPLACE X, SX, HM, D Series | For large solder preform feeding |
| SPF-56 | 56mm | 56mm | SIPLACE X, SX, HM, D Series | For oversized preform applications |
| SPF-D8 | 8mm | 12mm | SIPLACE D Series | Designed specifically for D-Series machines |
| SPF-D12 | 12mm | 16mm | SIPLACE D Series | Designed specifically for D-Series machines |
| SPF-D24 | 24mm | 24mm | SIPLACE D Series | Designed specifically for D-Series machines |
| SPF-D32 | 32mm | 32mm | SIPLACE D Series | Designed specifically for D-Series machines |
| SPF-HD44 | 44mm | 44mm | SIPLACE D Series | Heavy-duty version for high-volume production |
| SPF-HD56 | 56mm | 56mm | SIPLACE D Series | Heavy-duty version for high-volume production |
| SPF-HC32 | 32mm | 32mm | SIPLACE X, SX, HM | High-capacity version with extended tape capacity |
| SPF-HC44 | 44mm | 44mm | SIPLACE X, SX, HM | High-capacity version with extended tape capacity |
| SPF-HC56 | 56mm | 56mm | SIPLACE X, SX, HM | High-capacity version with extended tape capacity |
ASM SMT Solder Preform Feeder Machine
Compatible Components / Materials
| Component/Material | Types | Materials | Use |
|---|---|---|---|
| Solder Preforms | – Solid Preforms | – Tin, Silver, Lead, Lead-free alloys | Used for creating strong and reliable solder joints in PCB assembly |

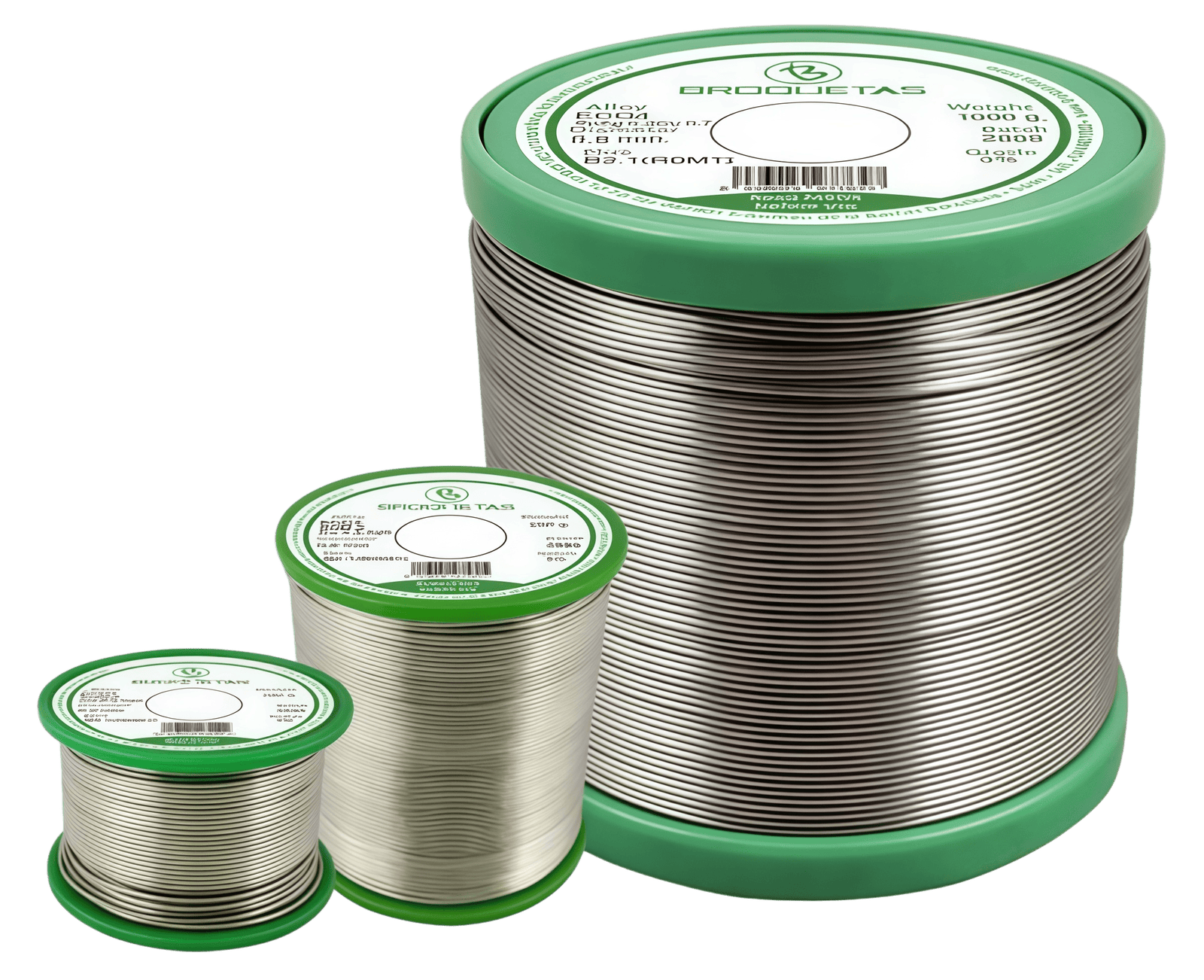

| Solder Wire | – Fine Wire | – Tin, Lead, Lead-free alloys | Used for precise soldering, especially in small or complex components |
| Solder Balls | – Small (0201, 0402, 0603) | – Lead-free alloys, Tin-Silver | Used in fine-pitch soldering and microelectronics |
| Solder Paste | – Flux-based Paste | – Tin, Silver, Lead-free alloys | Applied in surface-mount technology for precise soldering |
| Lead-free Solder Preforms | – Solid Preforms | – Tin-Silver, Tin-Copper, Tin-Bismuth | Environmentally friendly option for soldering without lead |
| Wire Solder Preforms | – Pre-cut Lengths | – Tin, Lead-free alloys | Used for soldering large components where wire soldering is needed |
Component
ASM SMT Solder Preform Feeder Summary
