Introduction

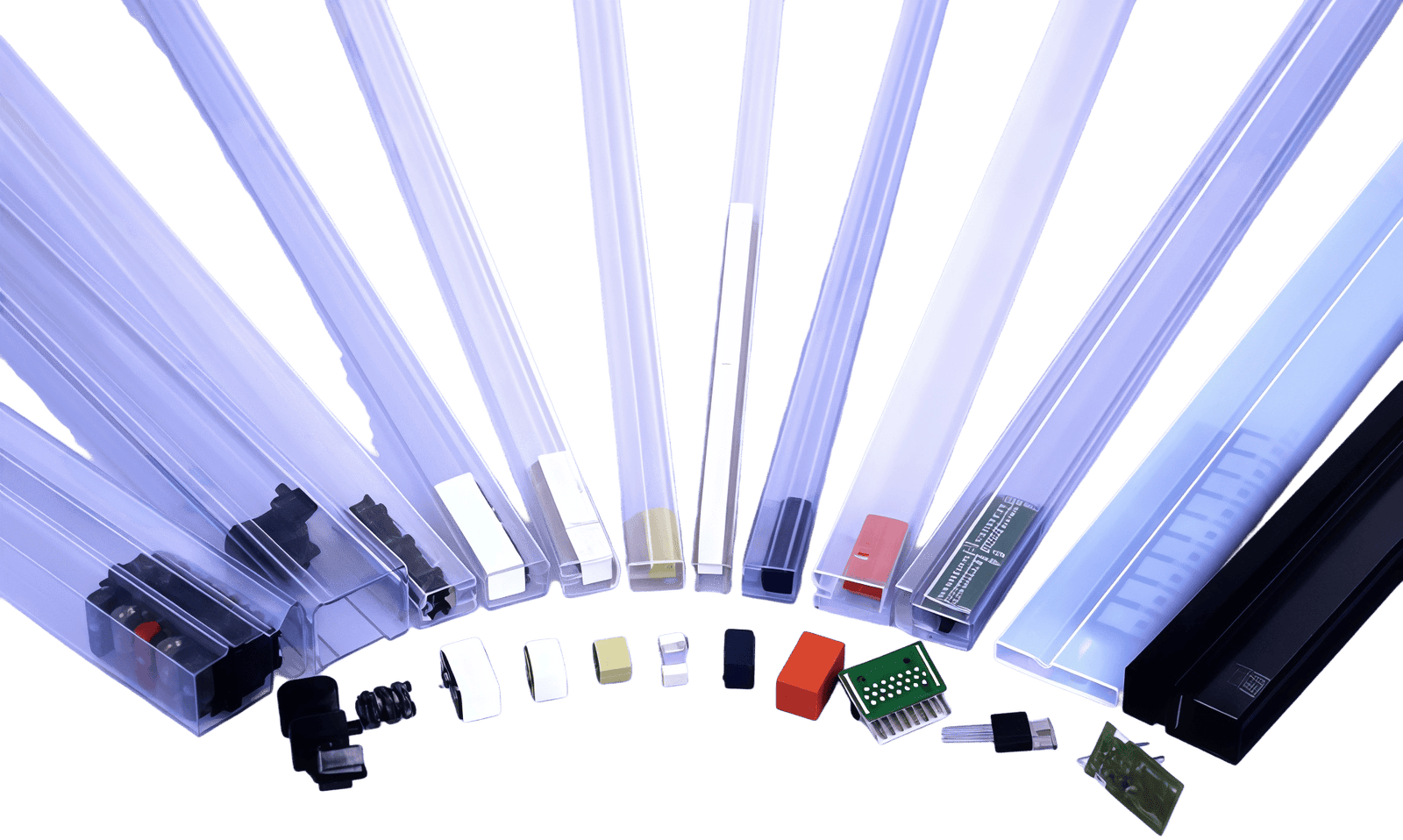

Tube Feeder handles the full spectrum of tube-packaged component families, from compact logic devices to high-power semiconductors housed in reinforced packages. Hand-positioned guides match each tube profile, so one unit serves many part types across a production schedule. When the product mix shifts, the same hardware adapts to the new tube contours through a brief round of manual adjustment, with no equipment swap required.
On the placement platform, the unit works beside tape and tray feeding equipment as an equal participant, letting a single line process mixed packaging formats without offline handling. Tube-fed parts enter the same placement program as reel-fed parts, and the pickup head moves between formats without pause or recalibration. For board builds that rely on one platform to process several packaging types, this parallel capability makes the feeder an indispensable contributor.
Its presentation quality holds at every demand level. The same unit supports first-article assembly in the morning and full-volume output around the clock, maintaining identical component posture and feed rhythm throughout continuous operation. Structural wear resistance absorbs long, heavy cycles without any decline in output quality. Tube Feeder excels in the challenge of parts arriving from multiple packaging channels sharing line time, with every part reaching the pickup point ready for placement.

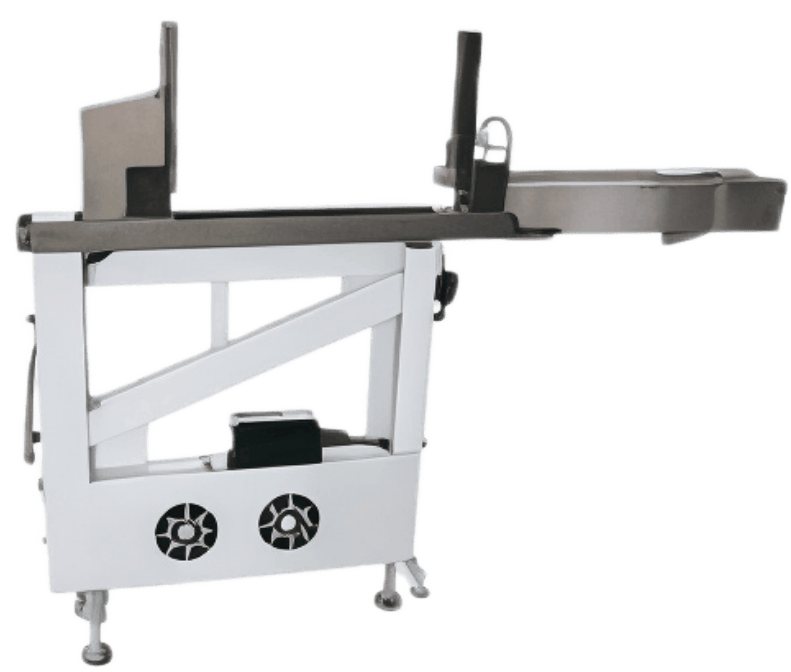

Tube Feeder
Exceptional Tube Feeder Boosts Manufacturing Execution Integration
In a smart robotics electronics factory, the Tube Feeder automatically delivers tube-packaged components to SMT pick-and-place equipment with stable, one-piece-at-a-time feeding. It is suitable for producing servo drive boards, motion control boards, robot controllers, and perception modules, where components such as power semiconductors, gate driver ICs, optocouplers, and precision operational amplifiers must be supplied accurately and continuously.
On servo drive boards, power semiconductors are used to control motors, convert electrical energy, and manage regenerative braking. Gate driver ICs amplify controller signals and drive MOSFETs, IGBTs, or wide-bandgap devices with precise switching timing. Optocouplers provide electrical isolation between power stages and processor circuits, reducing the risk of high-voltage interference. Precision op-amps amplify and filter feedback from current sensors, encoders, force sensors, and temperature sensors, enabling accurate torque, speed, and position control.
A Tube Feeder improves line automation by reducing operator intervention and ensuring that each component reaches the pick-up position correctly. In robot controller and perception module production, it can support the assembly of signal-conditioning, communication, and power-management circuits. When connected with feeder management software, machine vision, and manufacturing execution systems, the Tube Feeder helps achieve better traceability, fewer placement errors, and more flexible production for next-generation robotics.
Specifications
| Model | YN-T2112 (Single Track) | YN-T2112H (Single Track with Cut-off) | YN-T2109 (Dual Track) |
| Dimensions (L×W×H) | 1500×76×1140mm | 1500×76×1140mm | 1500×90×1140mm |
| Weight | 35KG | 95KG | 40KG |
| Operating Voltage | AC 220V | ||
| Air Supply Required | 0.5–0.7Mpa | ||
| Maximum Current | 2A | ||
| Feed Speed | <2s/Pcs | ||
| Operation Panel | 1.54″ OLED Display Screen | ||
| Channel Switching Time | <6s | ||
| Channel | Single Channel （Single/Dual Channel Optional） |
Single Channel （Single/Dual Channel Optional） |
Dual Channel （Single/Dual Channel Optional） |
| Lead Bending Function | Optional（Default: None） | ||
| Forming Function | Optional（Default: None） | ||
| Pre-lift Function | Optional（Default: None） | ||
| Cut-off Function | Optional（Default: None） | Yes | Optional（Default: None） |
| Cut-off Length | Optional（Default: None） | Customizable based on material requirements | Optional（Default: None） |
| Cut-off Pitch | Optional（Default: None） | ±1mm（Adjustable） | Optional（Default: None） |
| Applicable Tube Length | 400–600mm | 400–600mm | 400–600mm |
| Applicable Tube Height | 10mm–45mm | 10mm–45mm | 10mm–45mm |
| Applicable Tube Width | 10mm–40mm | 10mm–40mm | 10mm–28mm |
