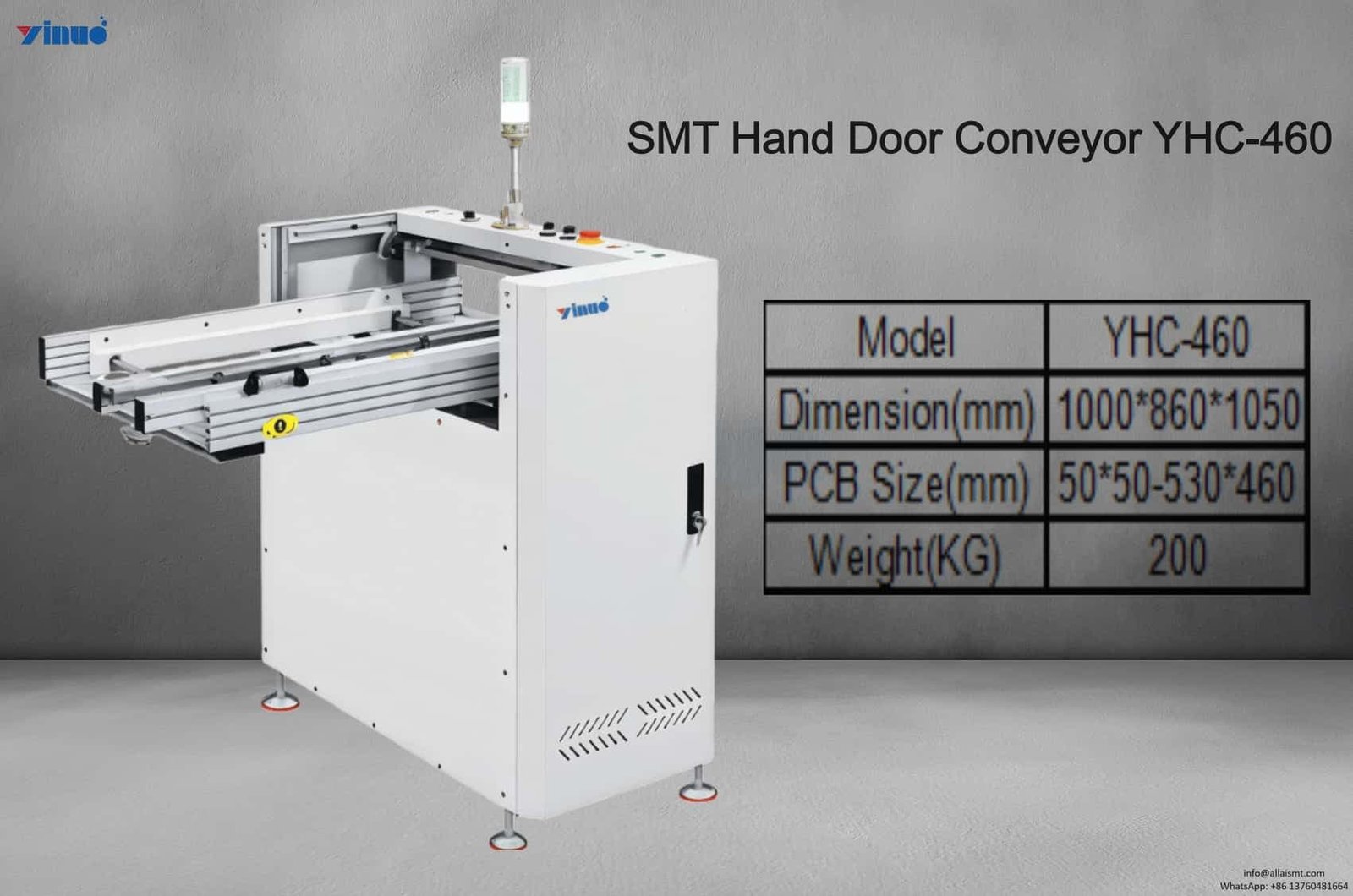

SMT Hand Door Conveyor YHC-460
Description：The SMT Hand Door Conveyor YHC-460 is a compact PCB transfer solution designed for SMT production lines that require manual access for inspection, rework, or sampling. Its hand door structure allows quick operator intervention while maintaining smooth and stable PCB conveying between SMT equipment. With adjustable width and precise alignment, the YHC-460 supports flexible and efficient smartphone and consumer electronics manufacturing.
Min Order Qty：1PC
Lead Time：15 Days
Introduction

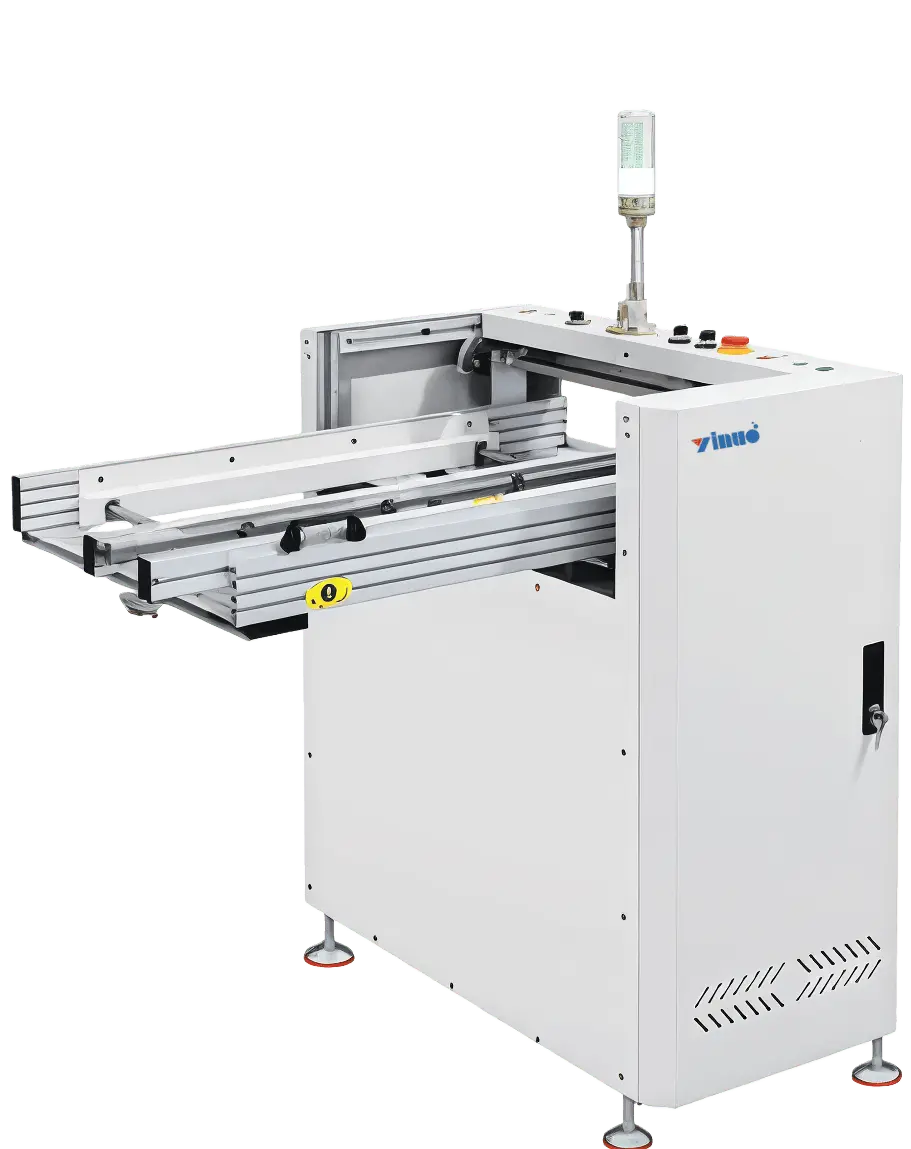

The SMT Hand Door Conveyor YHC-460 is engineered to combine reliable PCB conveying with convenient manual intervention points within SMT lines. The integrated hand door enables fast operator access for inspection or process adjustment without interrupting overall production flow.
Designed for precision and stability, the conveyor provides smooth board transfer between upstream and downstream SMT equipment. Its width-adjustable rails support various PCB formats, making it suitable for high-mix and multi-model production environments.
Ideal for smartphone electronics manufacturing, the SMT Hand Door Conveyor YHC-460 supports semi-automated SMT lines where flexibility, yield control, and process responsiveness are critical to maintaining high production efficiency.
How the SMT Hand Door Conveyor YHC-460 is Applied in Smartphone Electronics Factories
-
Smooth and Consistent PCB Conveying
The conveyor ensures reliable board transfer between upstream and downstream SMT machines, maintaining line stability under high production speeds. -
Protection of High-Value Smartphone PCBs
Stable rail alignment and low-vibration operation protect sensitive components on compact smartphone PCBs during transfer. -
Improves Line Flexibility and Responsiveness

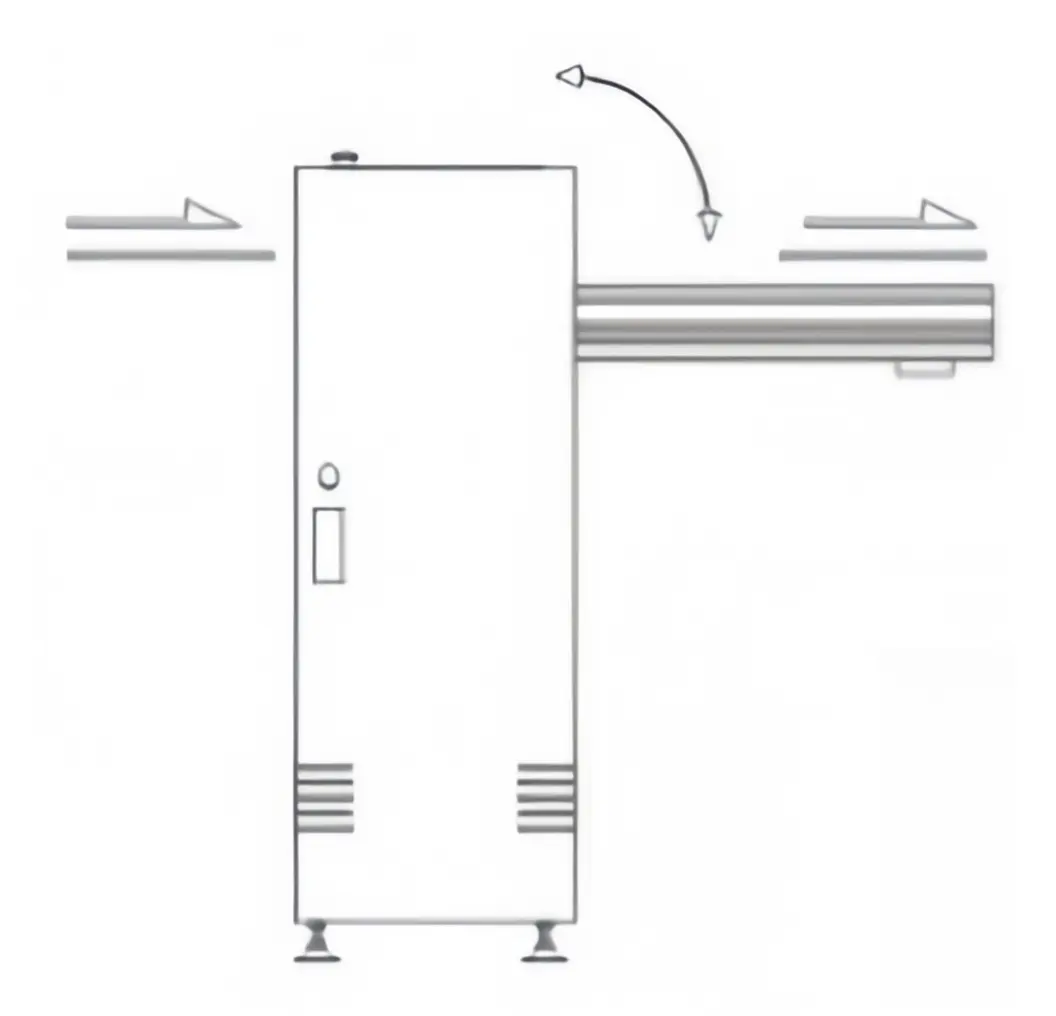

Operators can quickly open the hand door for inspection or rework without disrupting the entire line, reducing downtime. -
Accommodates Diverse Smartphone Product Lines
Adjustable width design allows easy adaptation to different smartphone models and PCB formats. -
Enhances Overall SMT Line Efficiency
By combining stable conveying with convenient manual intervention, the YHC-460 helps optimize productivity in smartphone electronics factories. - Adaptable Design for Multiple Smartphone PCB Sizes
Adjustable width supports different smartphone board dimensions, enabling fast line changeovers and improved production flexibility.
Specifications
| Model | YHC-350 | YHC-460 |
| Dimension(mm) | 1000*730*1050 | 1000*860*1050 |
| PCB Size(mm) | 50*50-445*350 | 50*50-530*460 |
| Belt Type | Oblate Belt | |
| Conveying Speed | 0.5-20M/min or customer specified | |
| Power Supply | AC 1P 110V/220V; Max 100VA | |
| Air Pressure | 4-6bar, 48ltr/min Max | |
| Transport Height | 900±20mm(or customized) | |
| Transport Direction | From left to right or right to left | |
| Weight(KG) | 180 | 200 |
https://www.youtube.com/@allaismt
For more information about the SMT Hand Door Conveyor YHC-460, please send an email to
We will respond to your inquiry promptly and provide you with detailed information about our products and services.
