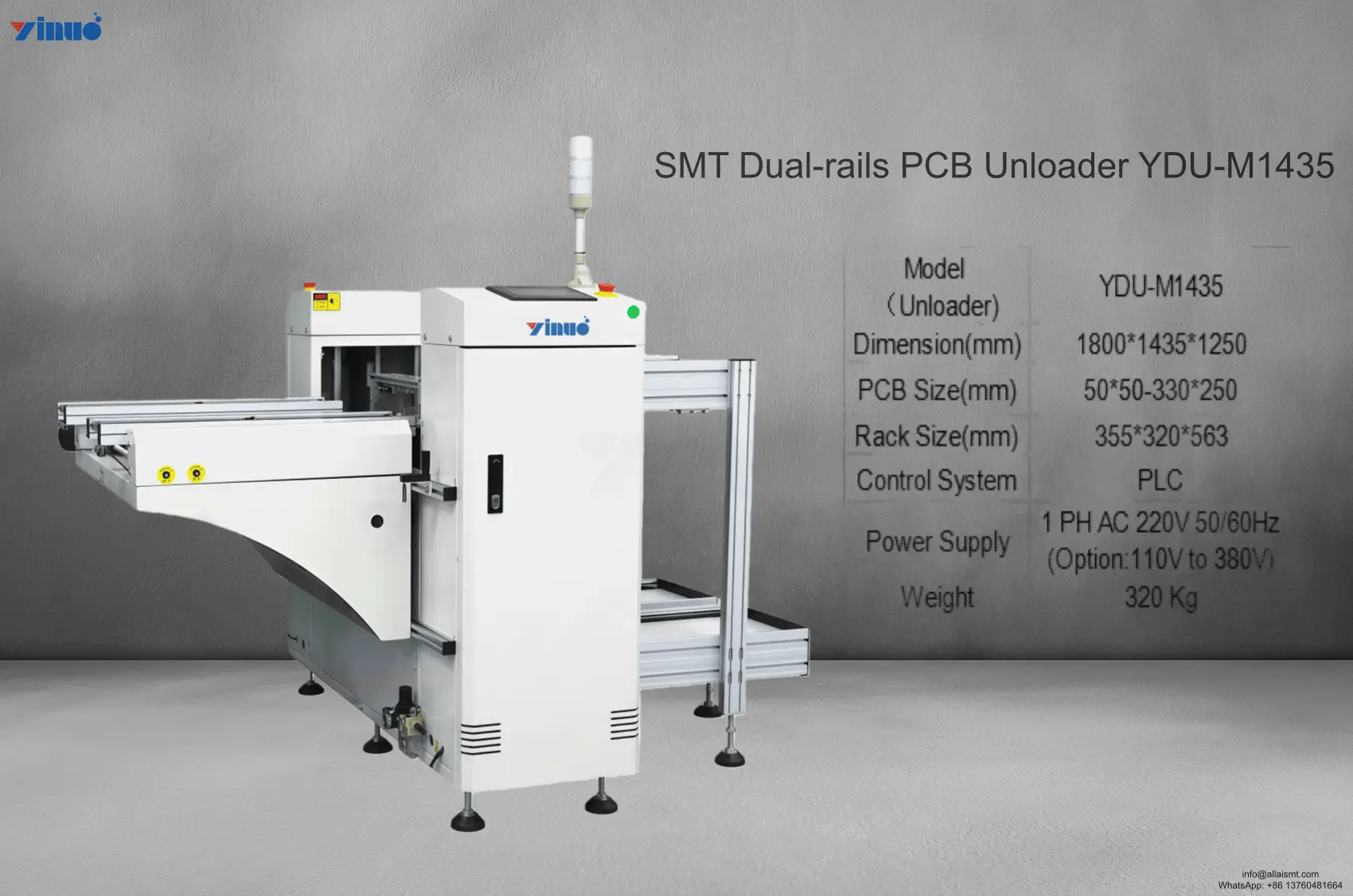

SMT Dual-rails PCB Unloader YDU-M1435
Description：The SMT Dual-rails PCB Unloader YDU-M1435 is a high-efficiency unloading system designed for smooth and reliable PCB handling in SMT production lines. Featuring a dual-rail design, it allows simultaneous unloading of multiple PCBs, improving workflow efficiency and reducing production downtime. Built with precise motion control and a sturdy structure, the YDU-M1435 accommodates various PCB sizes while minimizing the risk of board damage. Its compact design and easy integration make it an ideal solution for modern electronics manufacturing.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
In today’s electronics manufacturing environment, efficient PCB unloading is crucial for maintaining smooth production flow, minimizing downtime, and ensuring high-quality output. The SMT Dual-rails PCB Unloader YDU-M1435 is designed to meet these requirements, providing reliable and high-speed unloading for SMT production lines.
Equipped with a dual-rail system, the YDU-M1435 enables the simultaneous unloading of multiple PCBs, significantly improving production throughput and reducing waiting times between processes. Its precise motion control ensures gentle and accurate handling, minimizing the risk of PCB damage and maintaining consistent product quality. The unloader is compatible with a wide range of PCB sizes, offering versatility for various manufacturing needs.
Constructed with durable materials and a robust structure, the YDU-M1435 provides stable performance even under continuous operation. Its compact design allows for easy integration into existing SMT lines, while the user-friendly interface simplifies operation and maintenance, helping to reduce downtime and improve overall efficiency.
By implementing the SMT Dual-rails PCB Unloader YDU-M1435, manufacturers can achieve smoother PCB transitions, enhanced line efficiency, and maintain high-quality production standards. It is an essential solution for electronics factories seeking precise, reliable, and high-performance PCB unloading equipment.
Key Features
-
Dual-rails structure supporting parallel PCB unloading
-
High-precision sensors ensuring accurate board alignment
-
Smooth conveyor transport preventing PCB scratches
-
Compatible with multi-size PCB formats in SMT lines
-
Strong steel frame for long-term industrial reliability
-
Easy integration with SMT printers, conveyors, and reflow systems
Specifications
| Model （Unloader) | YDU-M1435 | YDU-L1690 | YDU-LL1810 | YDU-XL1950 |
| Dimension(mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 50*50-330*250 | 50*50-445*330 | 50*50-530*390 | 50*50-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Control System | PLC | |||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||
| Weight | 320 Kg | 350 Kg | 380 Kg | 410 Kg |
