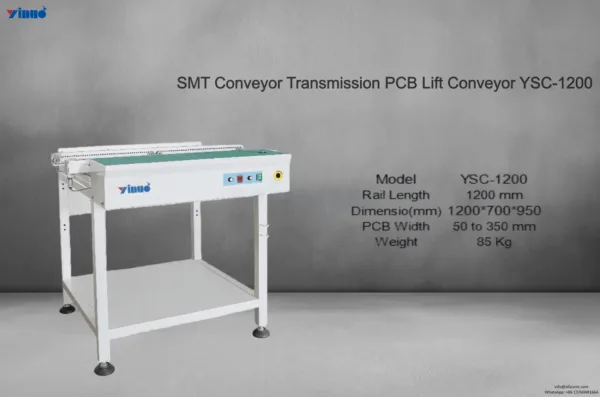

SMT PCB Lift Conveyor YSC-1200
Description：The SMT PCB Lift Conveyor YSC-1200 is a high-efficiency lifting and transfer system designed for SMT production lines. It enables smooth and precise vertical movement of PCBs between different conveyor levels, ensuring stable workflow and minimizing the risk of board damage. Built with a robust structure and reliable drive system, the YSC-1200 accommodates a wide range of PCB sizes. Its compact design allows easy integration into existing SMT lines, improving production efficiency and operational flexibility.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
In modern electronics manufacturing, efficient and precise movement of PCBs between different stages of the production line is essential to maintain high productivity and product quality. The SMT PCB Lift Conveyor YSC-1200 is designed to provide stable and accurate vertical transfer of PCBs, enhancing workflow and operational efficiency in SMT production lines.
The YSC-1200 ensures smooth and controlled movement of PCBs between conveyor levels, minimizing the risk of board damage and maintaining continuous production flow. Its robust construction and reliable drive system guarantee consistent performance, while the design accommodates a wide range of PCB sizes, making it suitable for diverse manufacturing requirements.
Durable and user-friendly, the YSC-1200 features a compact footprint for seamless integration into existing SMT lines. Its intuitive operation and low-maintenance design help reduce downtime, streamline production processes, and improve overall line efficiency.
By implementing the SMT PCB Lift Conveyor YSC-1200, manufacturers can achieve smoother PCB transitions, enhanced production efficiency, and safer handling of sensitive boards. It is an essential solution for electronics factories seeking precise, reliable, and high-performance vertical PCB transfer equipment.
Key Features
-
Designed to bridge height differences in SMT lines
-
Consistent lifting accuracy ensures repeatable performance
-
Wide PCB size compatibility for various board types
-
Integrated safety system prevents lift malfunction
-
Supports modular expansion for future SMT upgrades
Specifications
| Model | YSC-500 | YSC-600 | YSC-1000 | YSC-1200 | YSC-1500 | YSC-2000 |
| Rail Length | 500 mm | 600 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
| Dimension(mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
| PCB Width | 50 to 350 mm | |||||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||||
| Weight | 50 Kg | 50 Kg | 55 Kg | 85 Kg | 125 Kg | 150 Kg |
