Automated Insertion Smart Home Factory Radial Component Supply Module

Introduction

The Radial Feeder Without Cutter (48mm Width) supplying taped radial components at a controlled feed rate without performing severance or forming operations. This functional specialization allows the module to optimize its internal kinematic chain exclusively around tape transport and component positioning, eliminating cutter-related maintenance variables — blade wear, debris accumulation, cutting force calibration — from the component supply equation and reducing the total number of wear components requiring periodic attention.

A precision-engineered tape guide rail set conforms to 48mm radial tape standards, maintaining positive tape engagement from the supply spool through to the presentation window with minimal lateral play. The feeder’s incremental drive mechanism advances tape in exact component-pitch increments synchronized to the host machine’s insertion cycle, and a positive-lock tape retention system holds each component stationary during the transfer window, ensuring the lead array remains precisely aligned for accurate board penetration at the insertion station.

Operational reliability is further reinforced by the absence of cutting residue accumulation zones, a common contamination and maintenance source in cutter-equipped alternatives. The feeder integrates with prevailing SMT platform standards through standardized mounting interfaces and communication protocols, enabling drop-in deployment across established insertion equipment without custom adaptation.

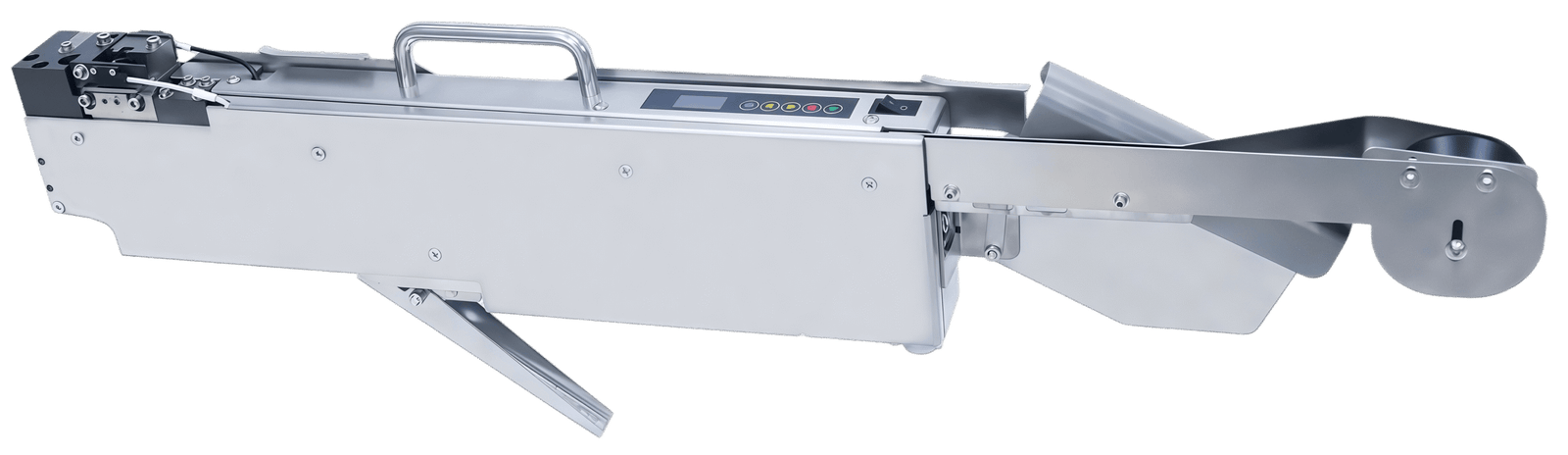

Radial Feeder Without Cutter(48mm Width)

Radial Feeder Without Cutter 48mm Width Smart Home Electronics Assembly Application

Smart home electronics assemblies integrate miniaturized surface mount circuitry with discrete through-hole components selected for thermal dissipation, current-carrying capacity, or high-voltage isolation — properties essential for devices such as smart circuit breakers, connected load controllers, and intelligent power distribution units. The Radial Feeder Without Cutter (48mm Width) supplies these through-hole radial components — film capacitors, power diodes, and aluminum electrolytic bulk capacitors — in a precisely indexed, unsevered tape format, enabling their presentation to the insertion mechanism within a unified production workflow.

By mounting this feeder on pick-and-place machines or comparable specialized equipment, smart home device manufacturers achieve through-hole component placement using established SMT assembly infrastructure, bypassing the conventional requirement for a dedicated radial insertion line with integrated cutting capability. The cutter-free design philosophy is particularly relevant for compact IoT device production, where board layouts intermix SMT and through-hole land patterns within confined zones — the feeder’s streamlined kinematic chain, with fewer wear components and no blade maintenance requirements, sustains dependable supply performance without the servicing overhead that cutter-equipped alternatives impose on high-velocity production schedules.

The feeder’s positive-lock tape retention system and anti-backlash indexing mechanism ensure each radial component is held stationary and precisely oriented during the transfer window, preserving lead perpendicularity for accurate board penetration within space-constrained smart home enclosures. Integration with prevailing SMT platform standards through standardized mounting interfaces enables drop-in deployment across established insertion equipment, giving smart home electronics producers a scalable, low-maintenance radial component supply solution that aligns with flexible manufacturing strategies and evolving product portfolio requirements.
