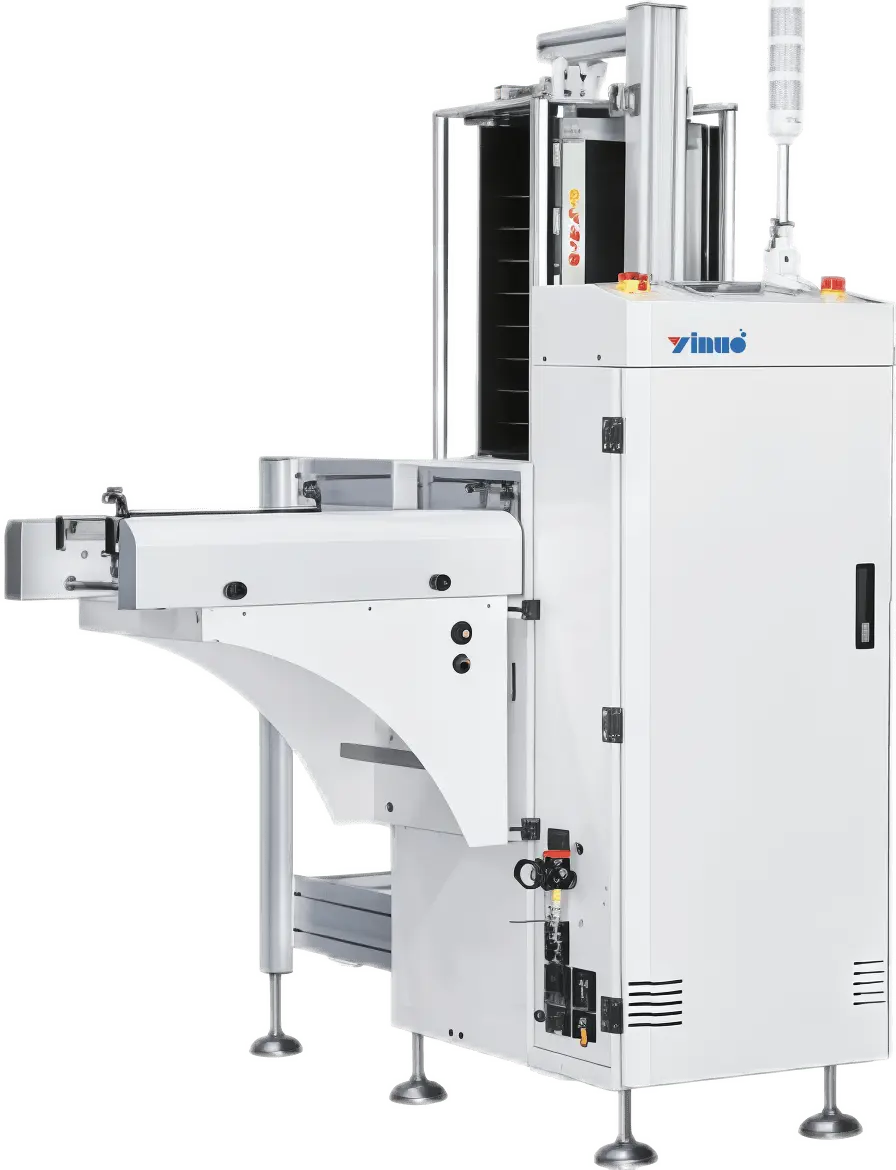

High Quality L Type Unloader YTU-250
Description：The High Quality L Type Unloader YTU-250 is designed to support stable PCB removal at the final stage of electronics assembly lines. Its L-type discharge structure helps guide completed boards away from production equipment in an orderly manner, improving line organization. The unloader is suitable for handling thin and lightweight PCBs commonly used in smartphone electronics. Automated unloading reduces manual contact, helping to protect board surfaces and mounted components after assembly. With a compact footprint and dependable mechanical structure, the YTU-250 fits well into space-limited production environments while maintaining consistent unloading performance throughout extended production shifts.
Min Order Qty：1PC
Lead Time：15 Days
Introduction

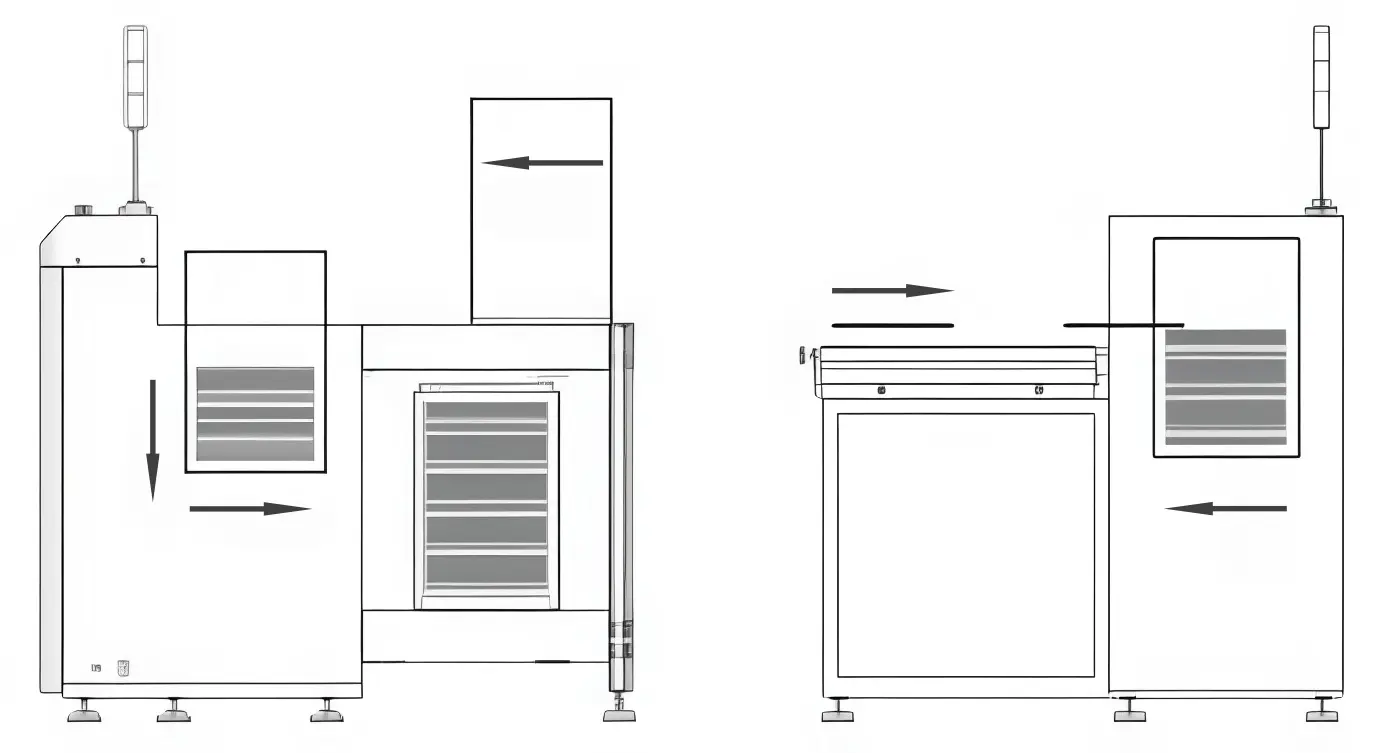

The High Quality L Type Unloader YTU-250 provides an effective solution for handling finished PCBs at the final stage of electronics manufacturing. The L-shaped unloading path creates a clear and orderly exit for assembled boards, helping reduce congestion near production equipment. This design supports clean line management and improves coordination with downstream processes such as testing and visual inspection.
Finished boards are transferred with controlled motion to help preserve component condition after assembly. By minimizing unnecessary movement and manual handling, the High Quality L Type Unloader YTU-250 helps reduce common post-assembly issues such as scratches, board flex, or accidental drops. Automated unloading also lowers operator workload while contributing to more consistent handling results across large production batches.
The system adapts easily to different manufacturing requirements. Simple adjustments allow the unloader to accommodate multiple PCB formats, making it suitable for high-mix production environments. Its compact footprint supports installation in space-limited lines, while the sturdy construction enables long-term operation with minimal interruption. These features make the High Quality L Type Unloader YTU-250 a practical choice for electronics manufacturers seeking reliable end-of-line support.
How to apply the High Quality L Type Unloader YTU-250 in Smartphone Electronics Factories
-
Secure Transfer of Assembled Smartphone PCBs
Finished boards are unloaded with steady support, maintaining component integrity after assembly processes. -
Organized Workflow at Line Completion
Helps smartphone factories keep the final stage of production structured and easy to manage. -
Support for High-Density Electronic Layouts
Handles boards with compact component arrangements commonly found in smartphone electronics. -
Lower Risk of Post-Assembly Damage
Automation reduces the chance of bending, scratching, or accidental drops during unloading. -
Flexible Configuration for Multiple Products
Accommodates a wide range of smartphone PCB sizes, supporting high-mix manufacturing environments. -
Consistent Performance During Long Runs
Delivers stable unloading over extended production shifts, supporting sustained smartphone output.
Specifications
| Model | YTU-250 | YTU-330 | YTU-390 | YTU-460 |
| Dimension(mm) | 1150*1150*1205 | 1350*1350*1205 | 1550*1550*1205 | 1550*1780*1205 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1magazine; Lower Conveyor: 1magazine | |||
| Time Feed PCB | Board up for 8 seconds; Lower board for 10 seconds | |||
| Magazine Replacement Time | Approx. 30 seconds or specify | |||
| Indexing Pitch | 10 . 20 . 30 . 40mm or specify | |||
| Power Supply | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar, 10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 160 | 220 | 280 | 320 |
