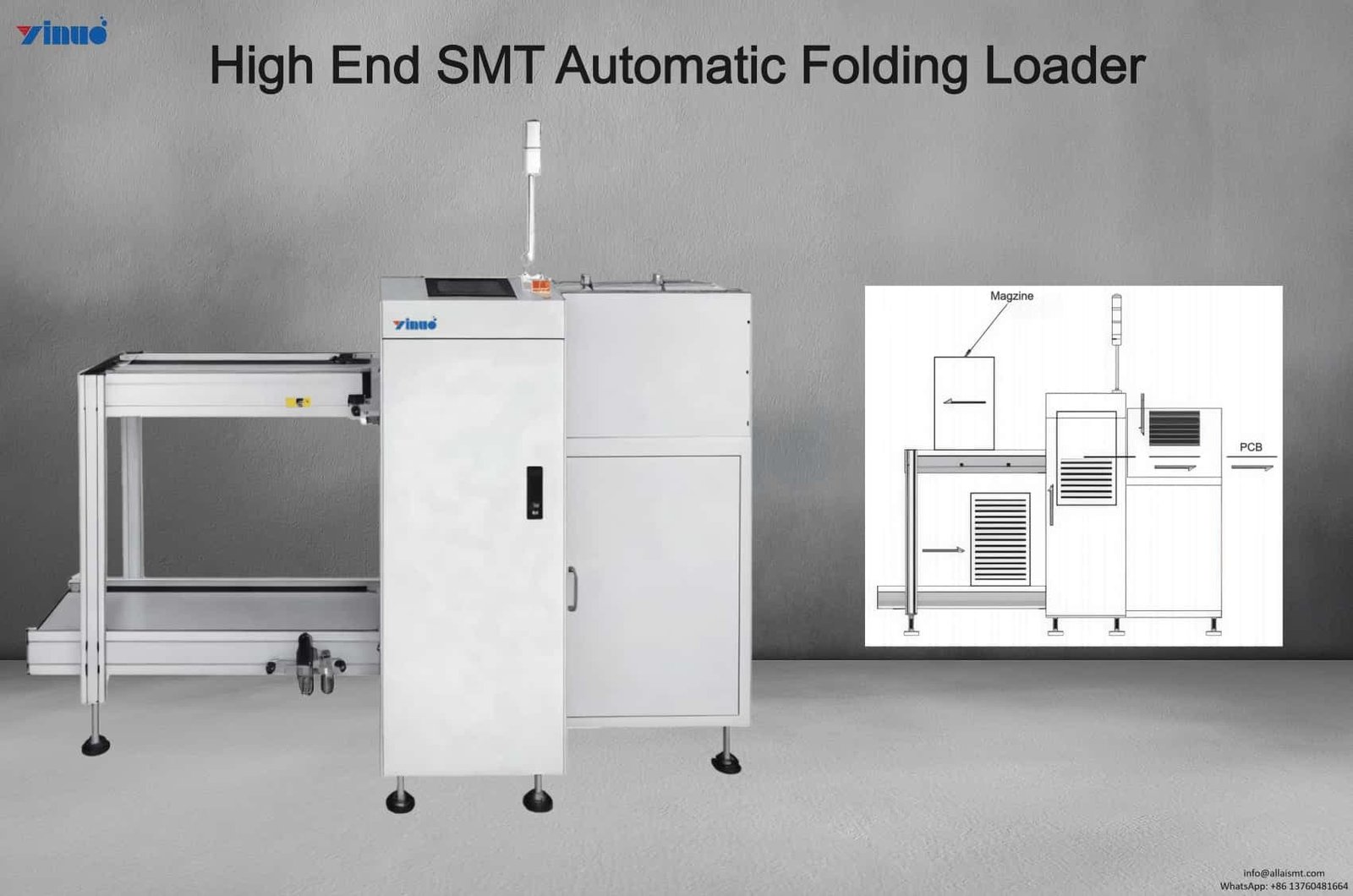

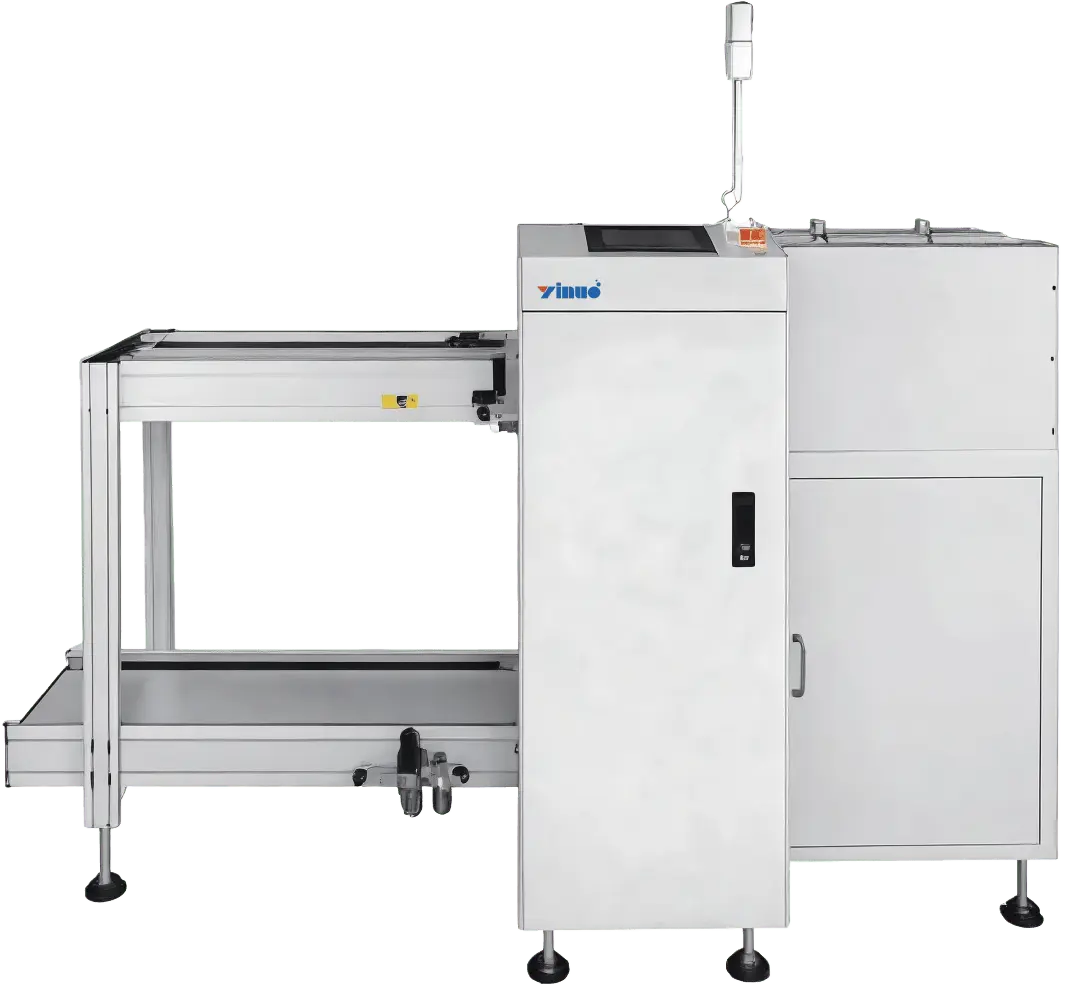

High End SMT Automatic Folding Loader
Description：The High End SMT Automatic Folding Loader offers an automated approach to PCB feeding for modern SMT production systems. Through carefully managed folding and release actions, it delivers circuit boards in a controlled sequence from magazines to placement stations. The equipment supports flexible setup adjustments, allowing quick adaptation to different board formats and product changes. Automated operation reduces operator workload while helping maintain a steady production rhythm. With reliable motion control and accurate alignment performance, the loader enhances overall process stability and supports manufacturers seeking consistent output and improved assembly discipline.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The High End SMT Automatic Folding Loader is engineered to support consistent PCB handling quality in SMT assembly processes where reliability is a key concern. Its automated folding design enables gentle and accurate board transfer, helping preserve the integrity of delicate electronic structures during the loading stage. Proper alignment before placement ensures that downstream processes begin under controlled and repeatable conditions.
From a quality assurance standpoint, the High End SMT Automatic Folding Loader minimizes unnecessary contact between boards and external surfaces, reducing the potential for contamination or physical damage. Its precise positioning capability supports accurate component mounting and helps lower the occurrence of early-stage defects that could affect later inspection and testing results. This contributes to improved overall line yield and reduced rework.
In practical application, the High End SMT Automatic Folding Loader helps streamline daily operations by reducing repetitive labor and lowering the risk of human-induced variation. Operators can focus more on process supervision and optimization rather than routine loading tasks. As a result, the system contributes to improved throughput stability, better resource utilization, and a more organized SMT production structure.
How is the High End SMT Automatic Folding Loader Applied in a Smartwatch Electronics Factory
-
Automated loading for rapid smartwatch model transitions
Parameter adjustment supports frequent product changes. This suits factories producing multiple smartwatch variants on the same line. -
Smooth interaction with intelligent manufacturing systems
The loader connects effectively with modern SMT infrastructure. This improves material flow throughout the smartwatch assembly process. -
Continuous PCB supply under demanding production schedules
Automated folding mechanisms reduce pauses between batches. This helps maintain output targets in high-throughput wearable factories. -
Lower labor involvement in repetitive loading tasks
Automated operation minimizes manual board handling. Skilled workers can focus on process supervision instead of material feeding. -
Improved process visibility through stable board flow
Predictable loading enhances monitoring accuracy. This benefits factories emphasizing data-driven smartwatch manufacturing. -
Expandable production capability for growing wearable lines
The system supports future capacity increases with minimal adjustments. This aligns with evolving smartwatch market requirements.
Specifications
| Model | YF-250 | YF-330 | YF-390 |
| Dimension(mm) | 1850*855*1250 | 2185*935*1250 | 2320*994*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-460*390 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 |
| No. of magazine | Upper Conveyor:1magazine; Lower Conveyor: 2magazine | ||
| Indexing pitch | 10 . 20 . 30 . 40mm or specify | ||
| Maximum PCBs capacity | 400pcs(0.6mm thick PCB) | ||
| Cycle Time | Approx. 12 seconds or specify | ||
| Power Supply | AC 1P 110V/220V; Max 300VA | ||
| Air Pressure | 4-6bar, 30ltr/min Max | ||
| Transport Height | 900±20mm(or customized) | ||
| Transport Direction | From left to right or right to left | ||
| Weight(KG) | 190 | 220 | 260 |
https://www.youtube.com/@allaismt
For more information about the High End SMT Automatic Folding Loader, please send an email to
We will respond to your inquiry promptly and provide you with detailed information about our products and services.
