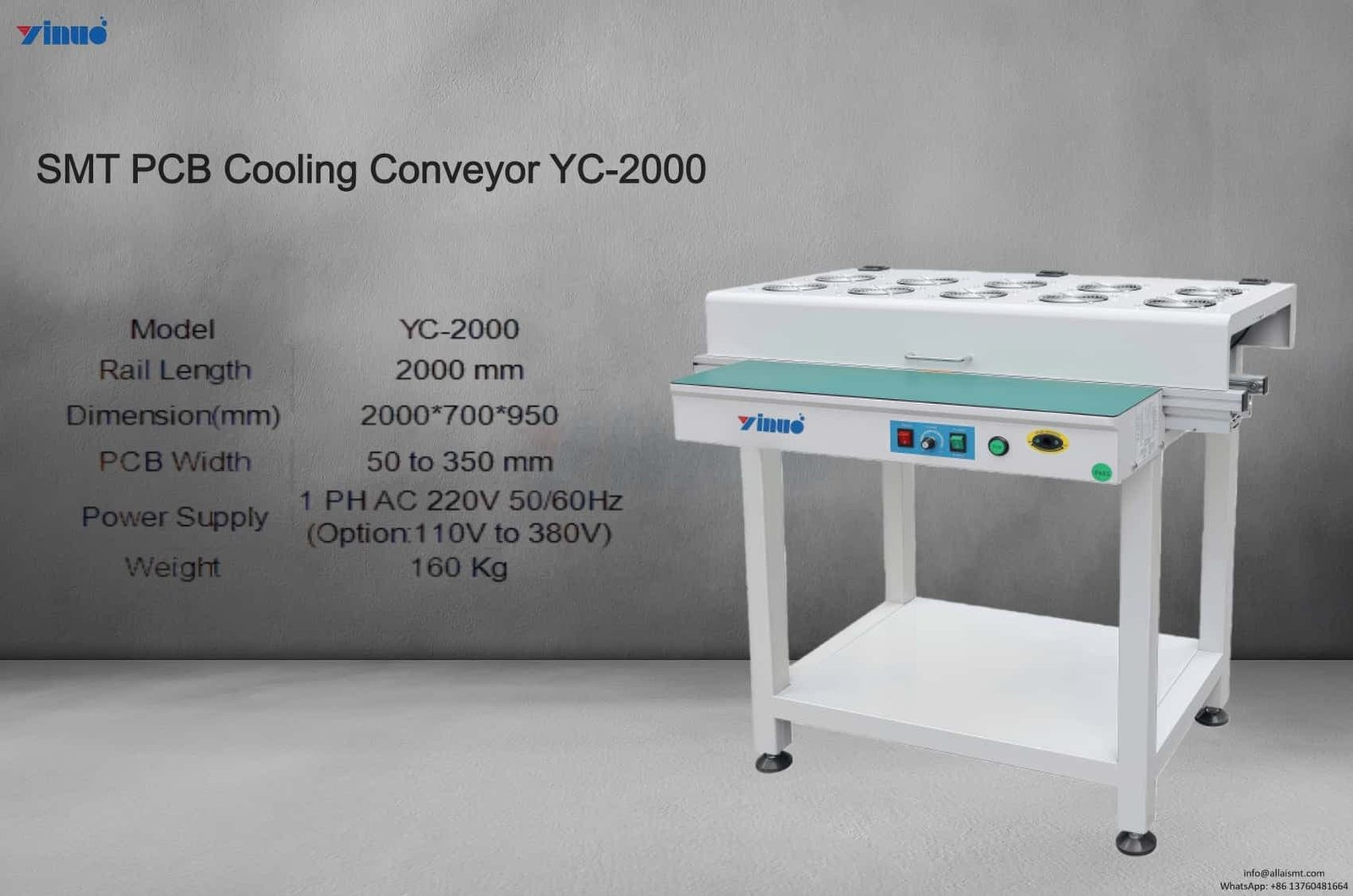

SMT PCB Cooling Conveyor YC-2000
Description：The SMT PCB Cooling Conveyor YC-2000 efficiently cools PCBs after soldering, ensuring stable temperature reduction and protecting delicate components. With adjustable speed control, energy-efficient fans, and a compact, modular design, it seamlessly integrates into SMT lines. Durable and easy to maintain, the YC-2000 improves production efficiency while maintaining consistent product quality.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The SMT PCB Cooling Conveyor YC-2000 is engineered to provide efficient and reliable cooling for PCBs immediately after the soldering process. Designed with advanced airflow dynamics, this conveyor ensures uniform temperature reduction, minimizing thermal stress on delicate electronic components and maintaining the integrity of solder joints.
Its modular design allows seamless integration into existing SMT production lines, supporting a wide range of PCB sizes and thicknesses. The conveyor features adjustable speed control, giving operators precise regulation of cooling time according to the specific requirements of different PCB types. This adaptability improves overall production efficiency while reducing the risk of warping or damage.
The SMT PCB Cooling Conveyor YC-2000 emphasizes both performance and safety. Equipped with energy-efficient fans and low-noise operation, it maintains a comfortable working environment while lowering operational costs. Its intuitive control panel provides easy monitoring and adjustment, ensuring consistent cooling performance throughout high-volume production runs.
Durable materials and robust construction make the YC-2000 suitable for continuous, long-term operation in demanding industrial environments. Regular maintenance is simplified through accessible components and tool-free adjustments, reducing downtime and supporting uninterrupted manufacturing workflows.
In addition, the conveyor’s compact footprint and flexible layout options make it an ideal solution for factories seeking to maximize floor space without compromising production quality. By delivering reliable, uniform cooling, the SMT PCB Cooling Conveyor YC-2000 helps manufacturers enhance product reliability, maintain consistent quality, and optimize SMT line throughput.
Key Features
-
Efficient PCB Cooling – Provides uniform airflow to rapidly reduce PCB temperature after soldering, minimizing thermal stress and ensuring solder joint reliability.
-
Adjustable Speed Control – Offers flexible conveyor speed settings, allowing precise adaptation to different PCB sizes and cooling requirements.
-
Modular Design – Easily integrates into various SMT production lines, supporting quick installation and scalable configurations.
-
Energy-Efficient Operation – Low-noise, high-efficiency fans reduce power consumption while maintaining optimal cooling performance.
-
Durable and Reliable – Constructed with high-quality materials for continuous industrial operation with minimal maintenance.
-
Compact Footprint – Space-saving design ensures effective utilization of factory floor area without compromising cooling efficiency.
Specifications
| Model | YC-500 | YC-600 | YC-1000 | YC-1200 | YC-1500 | YC-2000 |
| Rail Length | 500 mm | 600 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
| Dimension(mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
| PCB Width | 50 to 350 mm | 50 to 350 mm | 50 to 350 mm | 50 to 350 mm | 50 to 350 mm | 50 to 350 mm |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Weight | 60 Kg | 60 Kg | 65 Kg | 95 Kg | 135 Kg | 160 Kg |
