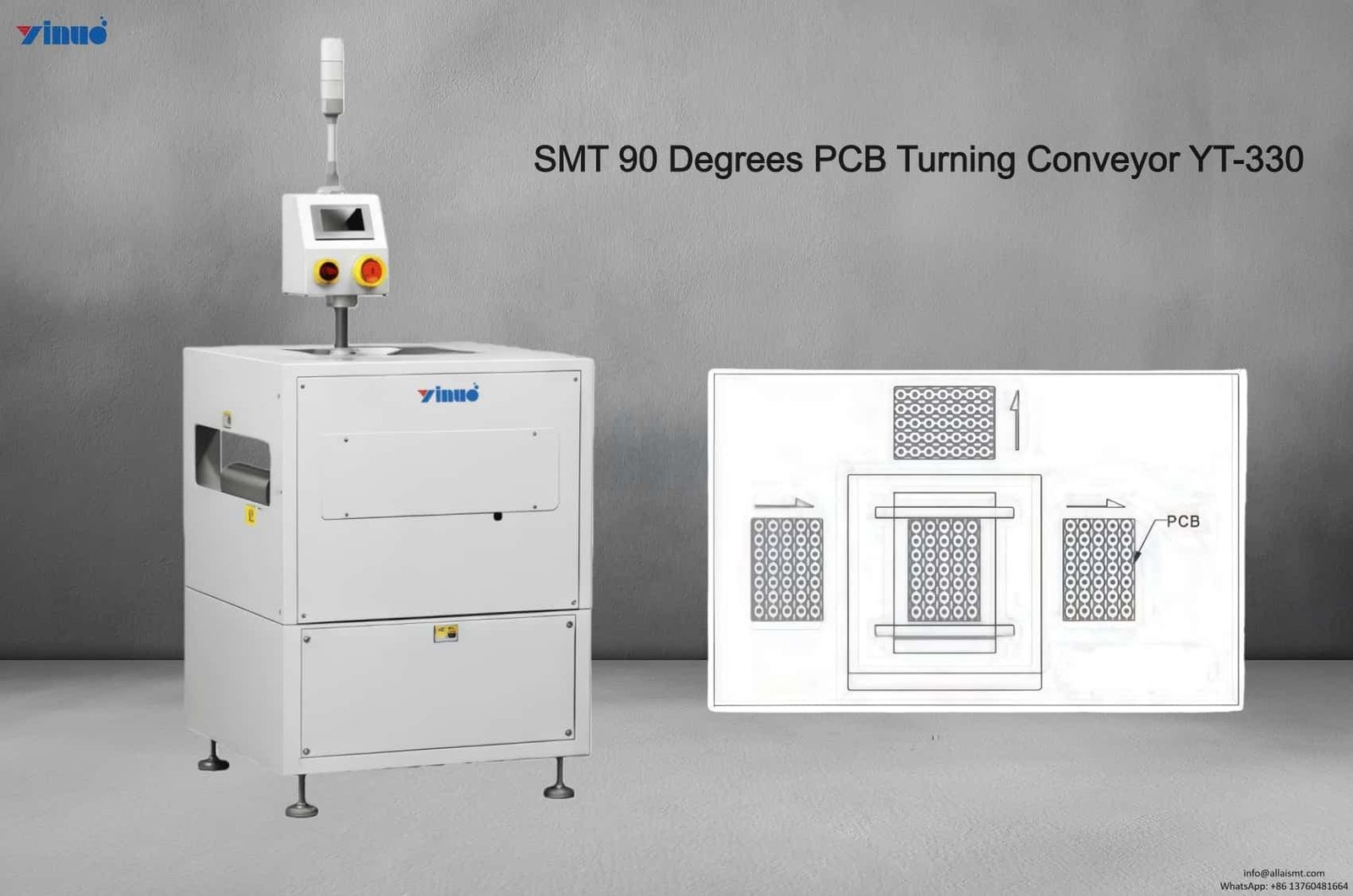

SMT 90 Degrees PCB Turning Conveyor YT-330

Introduction

The SMT 90 Degrees PCB Turning Conveyor YT-330 is a specialized automation device developed to optimize PCB routing in medical electronics SMT lines, focusing on traceability and assembly integrity. By rotating boards 90 degrees between processing stations, it allows compact production layouts while maintaining precise orientation for high-reliability medical components.

The conveyor features finely calibrated guiding systems and smooth rotation mechanisms, ensuring delicate PCBs—such as sensor boards, diagnostic modules, and microcontroller assemblies—are transferred without stress or displacement. Its adjustable configuration supports various board dimensions and small-to-medium batch sizes, meeting the unique demands of medical electronics manufacturing.

Integrated with line monitoring and data capture systems, the SMT 90 Degrees PCB Turning Conveyor YT-330 records PCB movement and operational status in real time, enabling quality control checks, process documentation, and rapid identification of potential deviations. This capability enhances traceability, supports compliance with regulatory standards, and allows informed production decisions to maintain consistent output quality.

Deployed in medical electronics factories, the SMT 90 Degrees PCB Turning Conveyor YT-330 increases line reliability, reduces handling errors, and ensures precise PCB transfer across multiple SMT processes. Its combination of careful component protection, smart tracking, and flexible operation makes it an indispensable solution for high-quality, regulatory-compliant medical electronics production.

How the SMT 90 Degrees PCB Turning Conveyor YT-330 Is Used in Medical Electronics Factories

1. Redirecting PCB Flow Between SMT Machines

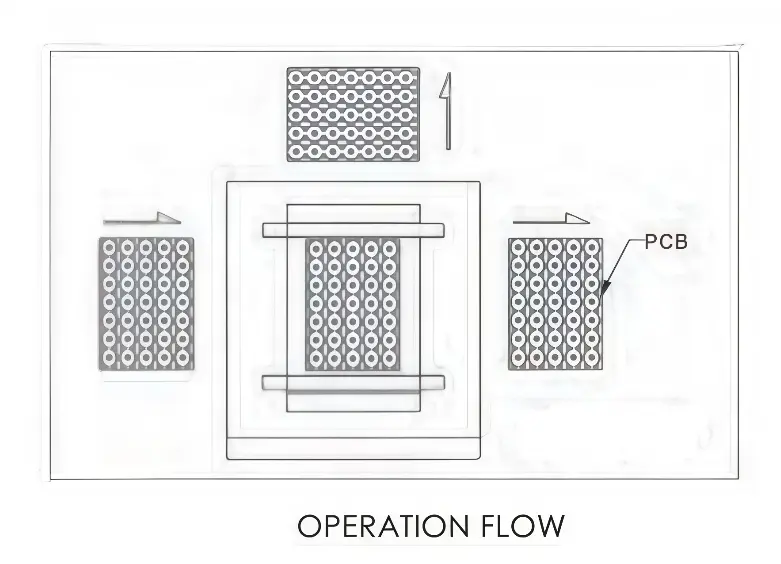

   The YT-330 rotates PCBs by 90 degrees to align boards with downstream equipment, such as pick-and-place machines, inspection stations, or reflow ovens, optimizing production line layout while maintaining strict process control.

2. Ensuring Precise PCB Alignment
   Accurate turning ensures boards are correctly positioned for high-precision assembly, which is critical for medical electronics components such as sensors, microcontrollers, and diagnostic modules.

3. Protecting Sensitive Medical Components
   The conveyor provides gentle handling during directional changes, minimizing mechanical stress and preventing damage to fragile and high-value components.

4. Supporting High-Mix, Low-to-Medium Volume Production
   Medical electronics factories often produce a variety of PCB designs in smaller batches. The YT-330 accommodates multiple board sizes and configurations, maintaining smooth operation across diverse production runs.

5. Integrating Seamlessly with Automated SMT Lines
   Equipped with SMEMA-standard communication, the YT-330 synchronizes with upstream and downstream equipment, supporting automated coordination and minimizing production interruptions.

6. Enhancing Production Reliability and Quality
   By stabilizing PCB flow, reducing alignment errors, and protecting delicate assemblies, the YT-330 helps medical electronics manufacturers maintain consistent throughput, high-quality output, and compliance with strict regulatory standards.
