Introduction
The Offline Automatic Press-fit Machine is a state-of-the-art assembly solution that excels in multi-connector compatibility, making it an ideal choice for manufacturers looking to enhance their production capabilities. Designed to work seamlessly with a variety of connectors from different suppliers, this machine offers unparalleled flexibility, allowing companies to optimize their workflows and reduce operational disruptions.
At its core, the Offline Automatic Press-fit Machine employs precision engineering, ensuring that each connector is accurately inserted with consistent force. This reliability minimizes the risk of defects and enhances the overall quality of electronic assemblies. The machine’s advanced automation features streamline the production process, enabling operators to focus on quality control rather than manual insertion tasks.
In a landscape where efficiency and quality are critical, the Offline Automatic Press-fit Machine stands out as a strategic investment. Its ability to handle a wide range of connectors not only improves production efficiency but also supports manufacturers in adapting to changing market demands. By leveraging this machine’s capabilities, companies can achieve significant cost savings while consistently delivering high-quality products to their customers.

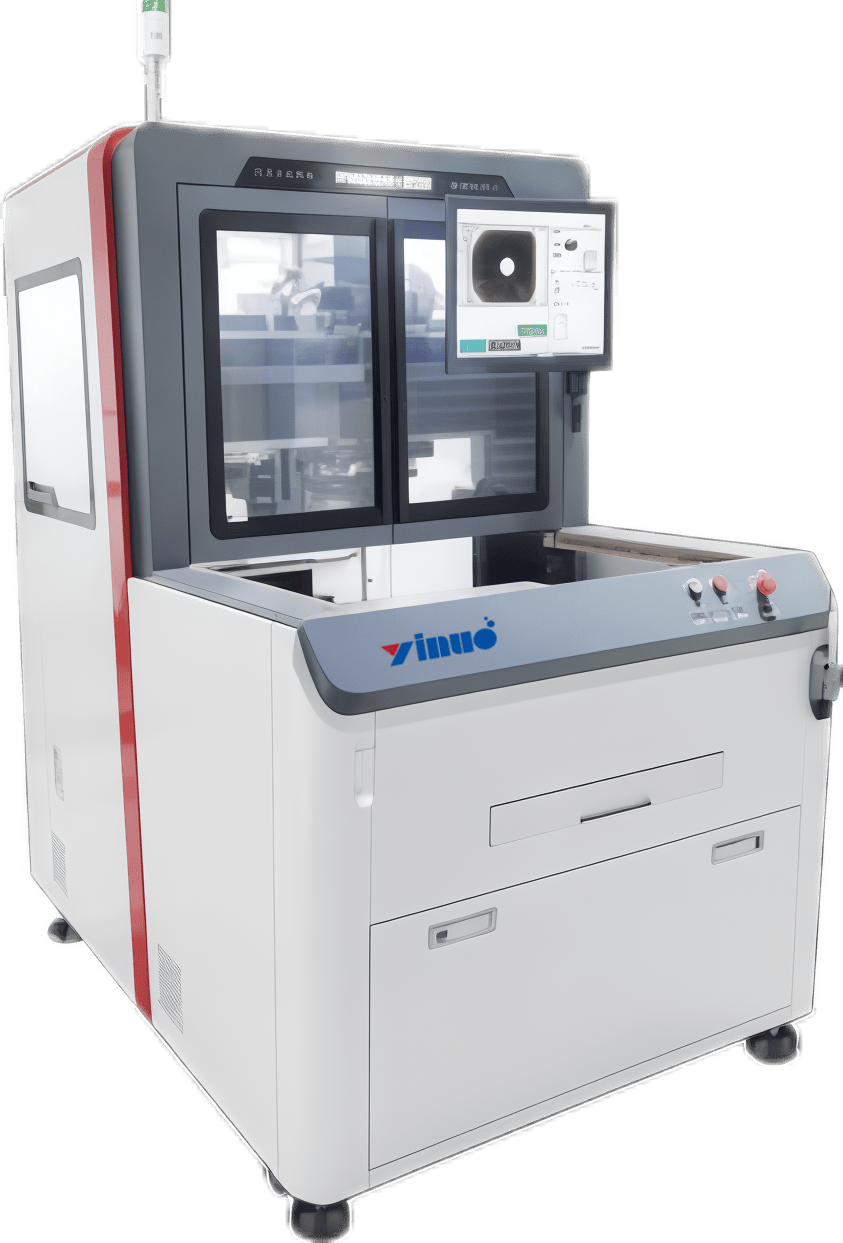

Offline Automatic Press-fit Machine
The Process of Press-Fitting Various PCB Connectors with the Offline Automatic Press-fit Machine
The assembly process for PCB connectors using the Offline Automatic Press-fit Machine begins with the careful positioning of the connectors and the printed circuit board. Once loaded, the machine’s sophisticated alignment system ensures that all components are properly aligned. The press-fit operation is then initiated, where the machine applies controlled pressure to insert each connector into the PCB holes. This process is designed to be both efficient and precise, reducing the risk of misalignment and ensuring that each connector fits securely.
Throughout the insertion process, the Offline Automatic Press-fit Machine monitors critical parameters such as insertion depth and force. This capability allows for adjustments in real-time, ensuring that connectors are seated correctly without excessive force that could lead to damage. The machine’s ability to accommodate multiple connector types further emphasizes its flexibility, making it an ideal solution for manufacturers with diverse product offerings.
In a competitive landscape where speed and quality are paramount, the Offline Automatic Press-fit Machine provides substantial market advantages. Its automation not only improves production efficiency but also enhances product reliability, reducing the likelihood of defects. By adopting this innovative machine, manufacturers can streamline their production processes, decrease operational costs, and improve their responsiveness to market demands. Ultimately, the Offline Automatic Press-fit Machine positions companies to succeed in delivering high-quality electronic assemblies that meet evolving customer needs.

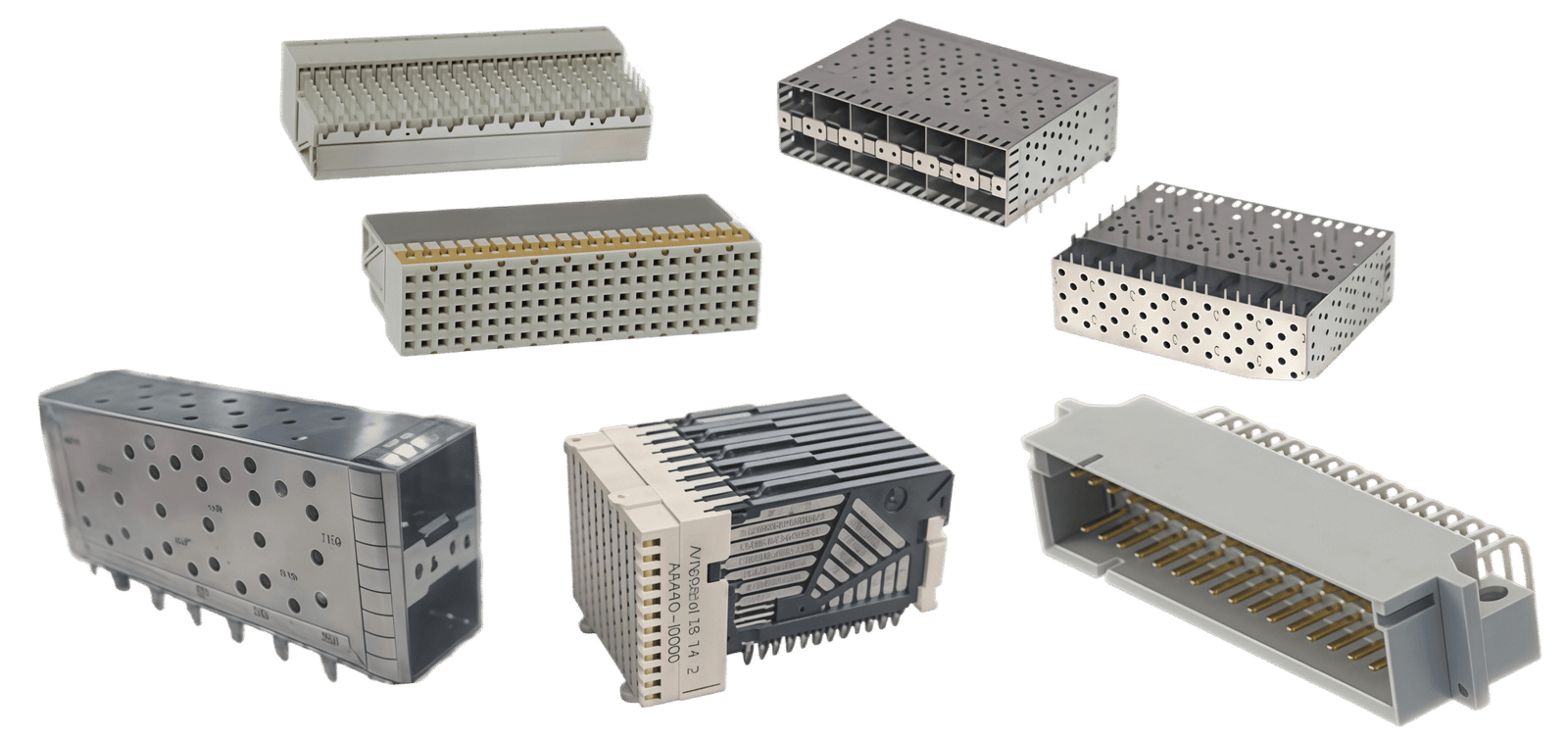

PCB Connectors
Specifications
| Model | YT-1050A | YT-1050B | YT-1050C |
| Max. press force | 3T | 5T | 5T |
| System | Win11 PC | ||
| Effective press stroke | Z-axis Pressing stroke: 100 mm Press-fit space: 150 mm | ||
| Z axis speed | 0.01-50 mm/s | ||
| Positional accuracy | ±0.01mm | ||
| Press force accuracy | Fulfill ±1% in full scale, 5% target value, pressure resolution: 1N, CPK>1.67 ±1% | ||
| Platform horizontal accuracy | 0.1mm (of which within 500×500mm range: < 0.05mm) | ||
| Motion control mechanism | XYZR Servo motor + THK high precision ball screw+guide rail , Z-axis Four guide columns | ||
| PCBA thickness | 0.5-10.0 mm | ||
| Upper tools store and upper tools | Equipped with automatic tooling change function and more than 11 types of tooling libraries capable of automatically changing molds according to programmed settings for different types of connectors. It supports both single tooling and integrated tooling functions simultaneously; | ||
| Worktable max load | 30 kg | ||
| Visual function | Barcode, PCB Mark, Tooling positioning system, visual coord inate alignment and concentricity inspection，laser height detection，3D visual inspection | ||
| Worktable size | 750mm(L)*520mm(W)*60mm(H) Customizable |
750mm(L)*700mm(W)*70mm(H) Customizable |
1200mm(L)*800mm(W)*70mm(H) Customizable |
| IPC | ECO-1818C/250W/I7-6700/8G/1TB | ||
| Safety devices | Electronic safety door, light curtain | ||
| Size/Power | 1550L*1100W*1850H mm AC220V 2.2KW | 1940L*1300W*1950H mm AC220V 4.2KW |
2200(W)*1850(L)*2000(H) mm 220VAC 50Hz 6.2KW |
| Weight | 1700 kg | 2600 kg | 3000kg |
