IC Tube Feeder Maximizing Equipment Utilization in Smartphone Electronics Factory

Introduction

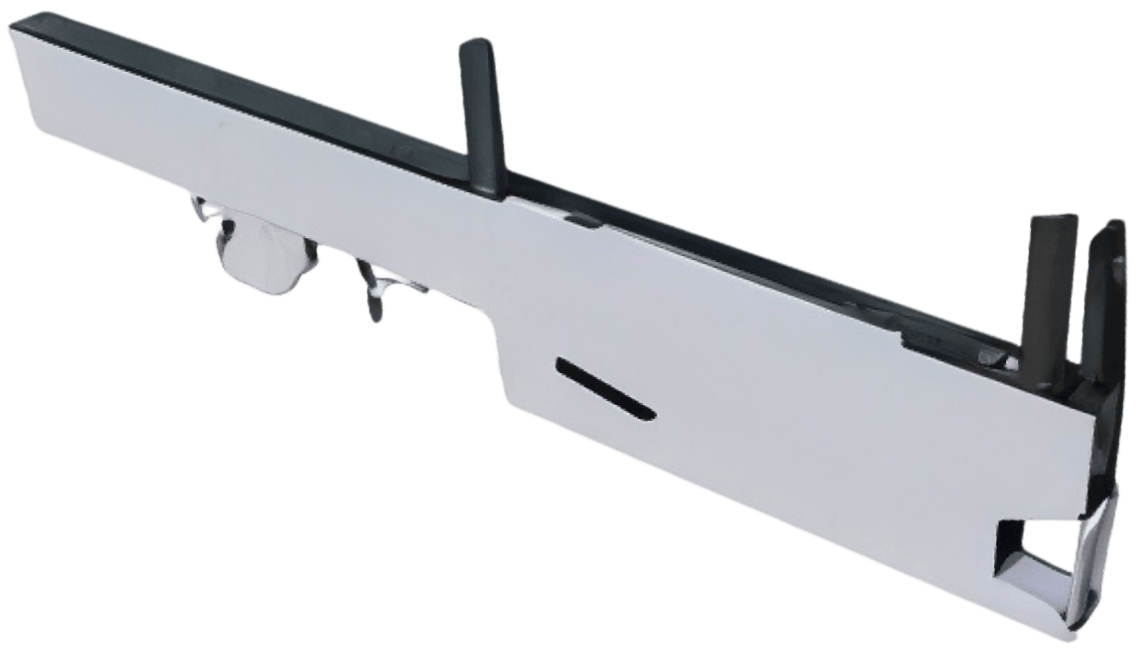

The IC Tube Feeder delivers precision-engineered component flow for integrated circuits in tube packaging, optimized for Panasonic NPM pick-and-place platforms. Its core function is to present ICs—one at a time—at the exact location and orientation required by the placement head, using a gravity-assisted, angled rail system that guides components gently from tube to pickup window. This method eliminates aggressive pushing or vibration that could damage fine-pitch leads or sensitive die surfaces, making it ideal for advanced ICs like QFNs, BGAs, and multi-chip modules used in smartphones, servers, and medical devices. The feeder’s internal geometry is tuned to prevent ICs from tumbling, skewing, or jamming, ensuring each part arrives perfectly aligned for error-free nozzle extraction.

Stacked tube architecture enhances this precision by enabling automatic tube sequencing. As the front tube empties, a fail-safe mechanical release allows the next tube to engage without jarring the remaining components or disrupting feed rhythm. Optical or mechanical sensors detect both component presence and tube depletion, communicating real-time status to the machine’s control system to coordinate nozzle movements and trigger reload alerts only when necessary. This tight integration prevents misfeeds, double-picks, or missed placements that could compromise board quality or trigger machine faults.

The feeder’s performance shines in applications demanding both accuracy and autonomy. Compatibility with JEDEC-standard tubes ensures broad IC support across vendors and package families. Adherence to Panasonic NPM mounting and communication protocols guarantees plug-and-play deployment without calibration overhead. By reducing manual reload frequency and eliminating human-induced variability, the IC Tube Feeder sustains consistent placement quality across thousands of boards, directly improving first-pass yield and overall equipment effectiveness. For high-reliability electronics manufacturers, this feeder is not just an accessory—it is a precision instrument that safeguards component integrity while maximizing production efficiency.

IC Tube Feeder

High-Volume Smartphone Mainboard Production Powered by Reliable IC Tube Feeder Systems

In smartphone electronics factories, the IC Tube Feeder is embedded directly into high-speed SMT mainboard assembly lines, where it serves as the critical link between component storage and precision placement. These lines are organized in a linear flow: solder paste printing → IC Tube Feeder stations → multi-head placement machines → reflow ovens → AOI inspection. The feeder is mounted on the placement machine’s feeder bank, aligned precisely with nozzle pickup coordinates. It accepts JEDEC-standard tubes containing smartphone-specific ICs—such as application processors, PMICs, RF transceivers, and touch controllers—and uses gravity-fed angled rails to present each chip at the exact pickup position.

The production line relies on the feeder’s stacked tube design to maintain uninterrupted flow during long runs of flagship or mid-range models. Each feeder holds two or three tubes per lane, automatically switching to the next tube when the current one empties—without stopping the conveyor or halting placement. Sensors integrated into the feeder communicate real-time status to the line’s central MES, triggering material replenishment alerts before shortages occur. This synchronization allows the entire line to run at full velocity, with minimal operator touchpoints, maximizing equipment utilization and minimizing changeover losses between smartphone variants.

Performance is measured by line uptime and first-pass yield. By eliminating manual tube reloading and preventing misfeeds, the IC Tube Feeder reduces placement errors that could trigger rework or scrap downstream. Its mechanical and electrical compliance with placement machine platforms ensures plug-and-play deployment across multiple lines in the same factory. For smartphone manufacturers, this feeder transforms the SMT line into a continuous, high-precision IC mounting engine—directly enabling mass production of complex mainboards that meet aggressive launch timelines and quality benchmarks.
