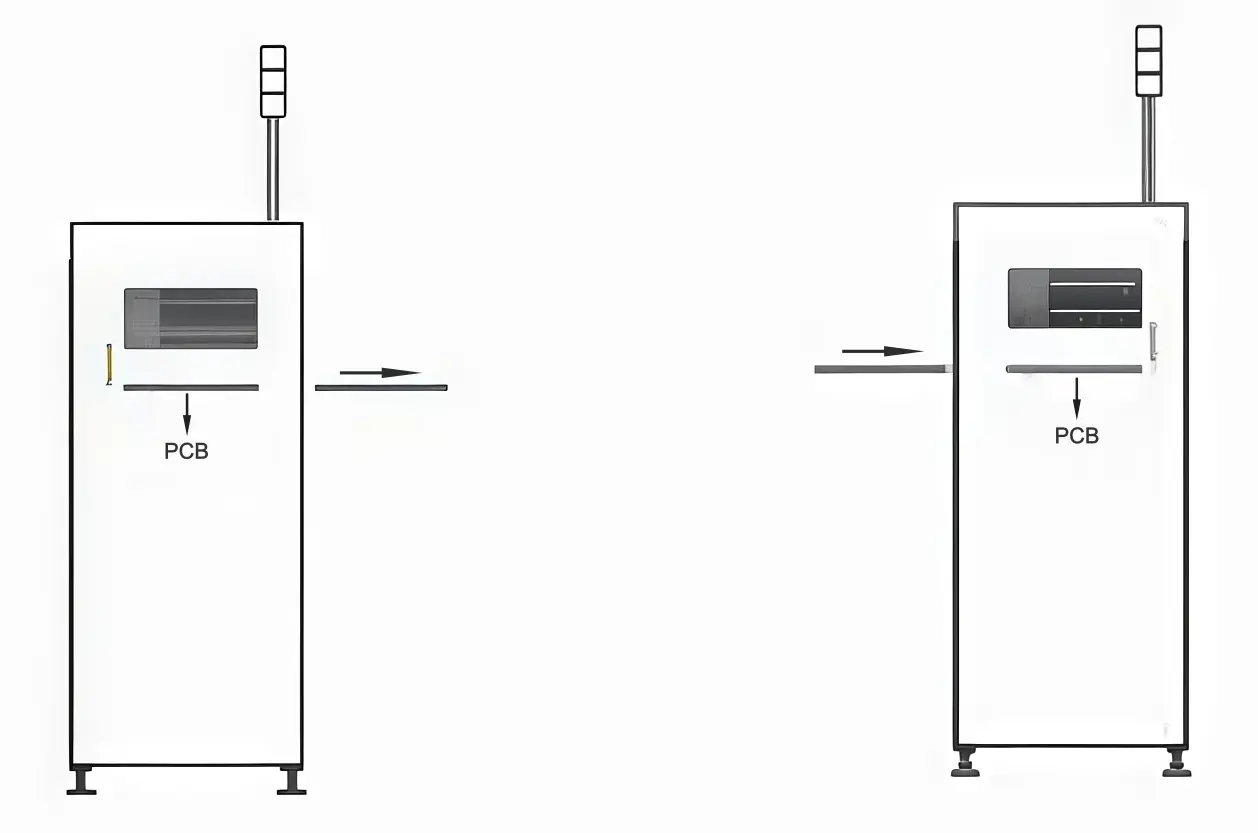

High End SMT Stacked Loader And Unloader
Description：High End SMT Stacked Loader And Unloader is engineered to improve PCB handling efficiency across modern SMT production workflows. By integrating vertical stacking with automated transfer functions, it enables organized board management and continuous material circulation. The system maintains accurate PCB alignment during loading and unloading, helping protect assemblies throughout the process. Its adaptable magazine configuration supports diverse product types and changing production schedules. Designed for extended operation, the equipment enhances line stability, reduces idle time, and supports scalable electronics manufacturing without increasing operational complexity.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
High End SMT Stacked Loader And Unloader offers a comprehensive solution for PCB handling in SMT production lines that require efficient space usage and stable material transfer. The vertical stacking design allows multiple magazines to be managed within a single unit, increasing storage and buffering capability without adding complexity to the conveyor system. This approach supports orderly production flow and helps maintain synchronization across different stages of the SMT process.
The equipment is designed with flexibility in mind, enabling smooth adaptation to various PCB specifications. Magazine adjustment mechanisms allow operators to configure the system quickly for different board widths and lengths. Throughout operation, controlled movement and precise positioning help maintain PCB orientation and reduce handling stress. These features are especially beneficial for maintaining process stability during extended production cycles.
From an operational perspective, High End SMT Stacked Loader And Unloader supports higher levels of automation while reducing manual intervention. By streamlining loading and unloading tasks, it helps manufacturers improve line efficiency and reduce production interruptions. The system’s reliable performance and structured handling logic make it a valuable asset for electronics factories aiming to enhance productivity, maintain consistent quality, and support future production expansion.
High End SMT Stacked Loader And Unloader is Applied in Manufacturing Electronics Factories
-
Vertical Automation for Modern Factories
The High End SMT Stacked Loader And Unloader introduce vertical automation into SMT material handling. This approach supports modern manufacturing electronics factories focused on space optimization. It allows more equipment to be deployed within the same area. -
Consistent PCB Transfer Rhythm
Automated loading and unloading maintain a uniform transfer cadence between processes. This consistency prevents bottlenecks and uneven work-in-progress accumulation. Production flow remains balanced throughout the electronics line. -
Fast Changeover Capability
Tool-free or simplified adjustments enable quick adaptation to new PCB specifications. Manufacturing electronics plants can respond faster to short production cycles. Downtime caused by format changes is significantly reduced. -
Enhanced Board Protection
Gentle handling mechanisms reduce friction and impact during stacking operations. This protects delicate solder joints and mounted components. It is well-suited for high-value electronics assemblies. -
Workforce Efficiency Improvement
The system automates repetitive material handling tasks previously performed by operators. This allows personnel to focus on quality control and process monitoring. Labor resources are utilized more effectively. -
Reliable Support for Mass Production
Built for continuous industrial use, the equipment supports stable operation in high-output environments. It aligns with the reliability demands of manufacturing electronics factories. Long-term production planning becomes more predictable.
Specifications
| Model | YU-460 | YL-460 |
| Dimension(mm) | 550*889*1200 | 503*889*1200 |
| PCB Size(mm) | 50*50-530*460 | 50*50-500*460 |
| Cycle Time | Approx.10 seconds or specify | |
| Maximum PCBs Capacity | 400pcs(0.6mm thick PCB) | |
| Power Supply | AC 1P 110V/220V; Max 100VA | |
| Air Pressure | 4-6bar, 10ltr/min Max | |
| PCB Thickness | 0.6mm Min | |
| Transport Height | 900±20mm(or customized) | |
| Transport Direction | From left to right or right to left | |
| Weight(KG) | 200 | 180 |
