SMT Dual-Track Conveyor
Description：The SMT Dual-Track Conveyor is a high-efficiency PCB transfer solution for smart home appliance electronics factories. Its dual-lane design allows simultaneous handling of two PCBs, increasing line throughput and reducing manual handling. Adjustable rails and precise synchronization ensure stable transfer for various board sizes, protecting sensitive components. Ideal for SMT production lines, it enhances automation, workflow efficiency, and product quality while supporting high-density and mixed-model PCBs. Compact and reliable, it improves production speed, consistency, and overall manufacturing performance.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The SMT Dual-Track Conveyor is a high-performance PCB transfer solution designed for smart home appliance electronics factories. Its dual-lane configuration allows two PCBs to move simultaneously, increasing line throughput and supporting high-efficiency SMT production. By integrating seamlessly between key SMT processes, the SMT dual-track conveyor ensures smooth and continuous board flow, reduces manual handling, and minimizes production interruptions, improving overall workflow stability.
Built to handle a wide variety of smart appliance PCBs, the system supports different board sizes, layouts, and component densities. Adjustable rail widths and independent track control provide flexible integration into diverse SMT lines, accommodating mixed production requirements without compromising alignment or stability. This adaptability allows manufacturers to maintain high production efficiency while easily managing model changes.
To protect sensitive components, the conveyor features precise synchronization and a robust structure that reduces vibration, mechanical impact, and misalignment. The SMT Dual-Track Conveyor ensures safe handling of fine-pitch ICs, connectors, and sensors while maintaining solder joint integrity. Compact and reliable, the Dual-Track Conveyor enhances automation, reduces cycle time, and delivers consistent, high-quality output for high-volume smart home appliance SMT production.
How the SMT Dual-Track Conveyor Is Applied in Smart Home Appliance Electronics Factories

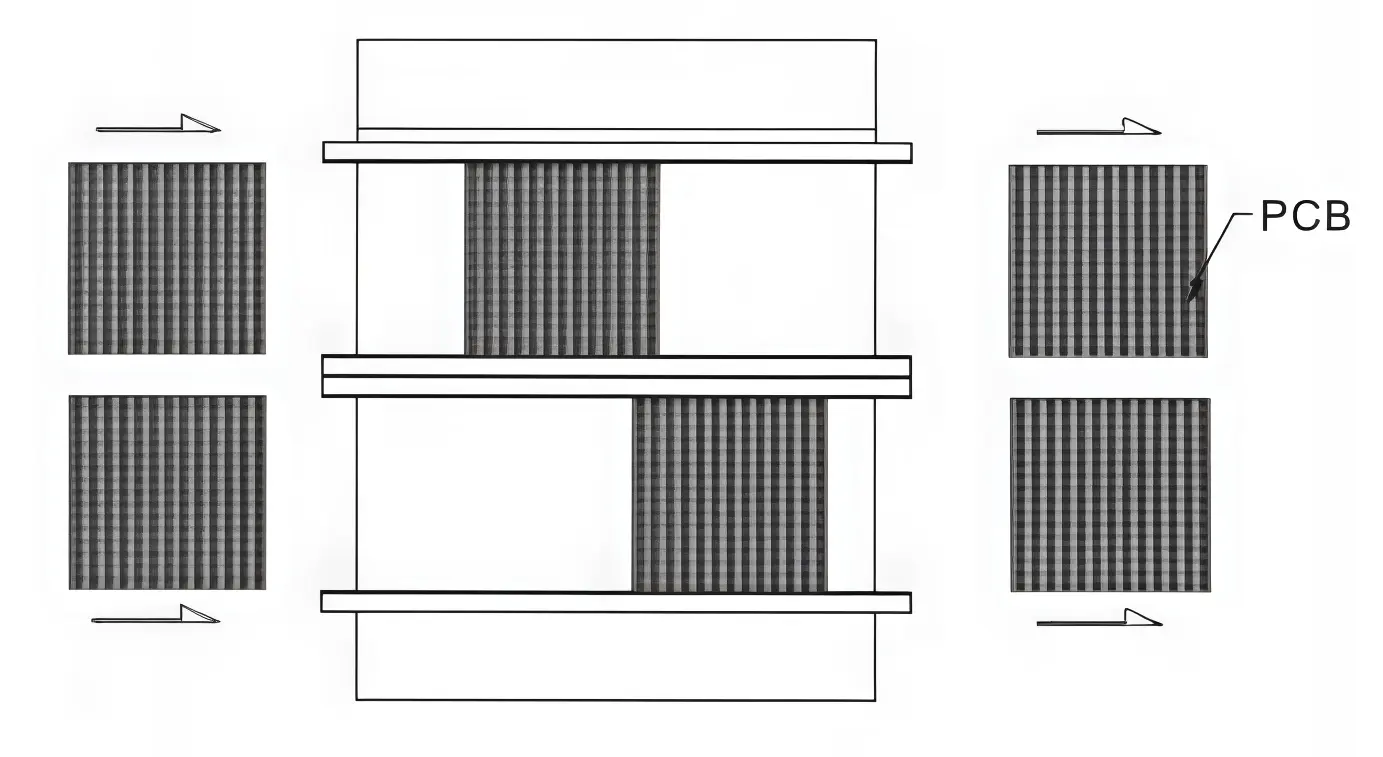

- Simultaneous Dual-Lane PCB Transfer
The dual-track design allows two PCBs to be conveyed at the same time, significantly increasing throughput for smart home appliance SMT production lines. - Efficient Line Layout Optimization
By handling parallel PCB flow, the conveyor helps optimize SMT line layout, reducing floor space usage while improving overall production efficiency. - Support for Smart Appliance Control Boards
It is suitable for various smart appliance PCBs, including control boards for refrigerators, washing machines, air conditioners, and IoT-enabled household devices. - Stable and Synchronized Board Movement
Precise synchronization between both tracks ensures smooth, balanced PCB transfer, minimizing misalignment, vibration, and handling stress. - Flexible Adaptation to Different PCB Sizes
Adjustable rail width and independent track control allow the system to accommodate different board sizes and mixed production requirements. - Improved Automation and Production Consistency
By reducing manual PCB handling, the dual-track conveyor enhances automation levels, stabilizes workflow, and supports consistent quality in smart home appliance electronics manufacturing.
Specifications
| Model | YDC-500 | YDC-500 (With Lifting) | YDC-600 | YDC-800 | |
| Dimension(mm) | 500*1050*920 | 500*1050*920 | 600*1050*920 | 800*1050*920 | |
| PCB Size(mm) | 50*50*-445*320 | ||||
| Belt Type | Round Belt or Oblate Belt | ||||
| Conveying Speed | 0.5-20M/min or customer specified | ||||
| Power Supply | AC 1P 110V/220V; Max 100VA | ||||
| Transport Height | 900±20mm(or customized) | ||||
| Transport Direction | From left to right or right to left | ||||
| Weight(KG) | 80 | 80 | 85 | 90 | |
| Model | YDC-1000 | YDC-1200 | YDC-1500 | YDC-2000 | YDC-2500 |
| Dimension(mm) | 1000*1050*920 | 1200*1050*920 | 1500*1050*920 | 2000*1050*920 | 2500*1050*920 |
| PCB Size(mm) | 50*50*-445*320 | ||||
| Belt Type | Round Belt or Oblate Belt | ||||
| Conveying Speed | 0.5-20M/min or customer specified | ||||
| Power Supply | AC 1P 110V/220V; Max 100VA | ||||
| Transport Height | 900±20mm(or customized) | ||||
| Transport Direction | From left to right or right to left | ||||
| Weight(KG) | 95 | 105 | 110 | 240 | 260 |
