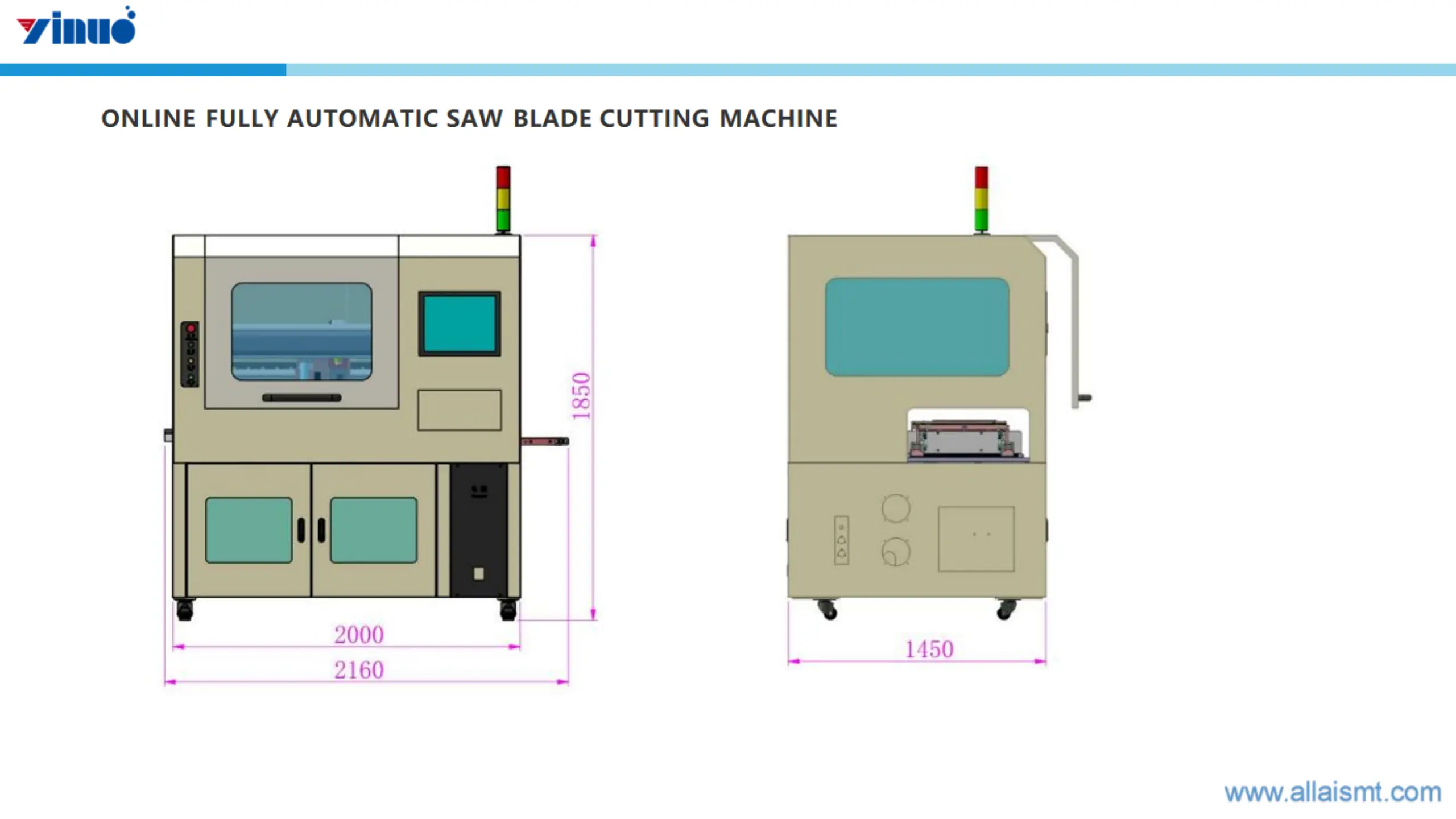

The Y-H800A Online Fully Automatic Saw Blade Cutting Machine represents a breakthrough in modern PCB manufacturing technology. Designed for high-speed and precision cutting, this advanced equipment integrates automation, accuracy, and efficiency, streamlining the production process and significantly reducing manual labor. Its fully online operation ensures continuous processing, minimizing downtime while maintaining consistent quality across every board. Ideal for both small and large-scale production lines, the Y-H800A delivers superior cutting performance, adaptability to various PCB types, and reliability that meets the rigorous demands of today’s electronics industry.
1.Auto Cutting
The online fully automatic saw blade cutting machine significantly enhances cutting quality for various substrates, including aluminum, copper, fiberglass, and FR4 boards. It can automatically cut in both X and Y directions, providing fast, precise, and clean results. Integrated with production lines, it eliminates manual board handling and enables fully unmanned operation. When switching product types, simply replace the tooling and suction cup parts without manual adjustments, saving time and labor. Fixture positioning ensures consistent accuracy for each product, improving overall manufacturing efficiency and productivity.
2.High-efficiency and Convenient

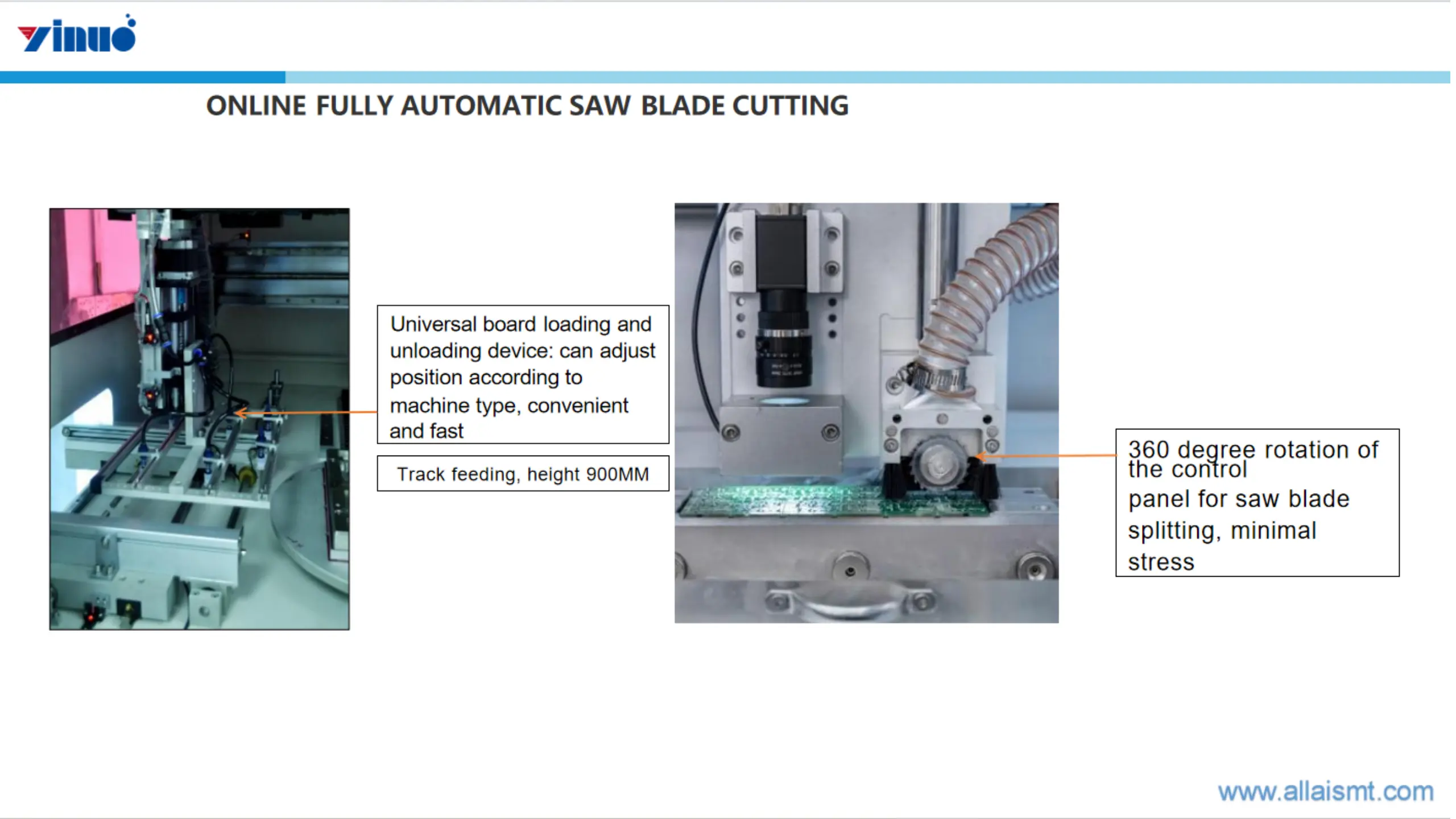

This online fully automatic saw blade cutting system integrates two key functional modules to enhance adaptability and precision. On one side, its universal board loading and unloading device supports position adjustment based on different machine types, enabling fast, flexible material handling—paired with a 900mm-height track feeding mechanism, it streamlines the material transfer process. On the other, the 360-degree rotating control panel minimizes stress during saw blade splitting: this design allows the cutting operation to align with optimal angles, reducing deformation risks for workpieces while improving cutting consistency. Together, these features balance operational efficiency and processing quality, making the system suitable for diverse production scenarios.
High-efficiency and Convenient

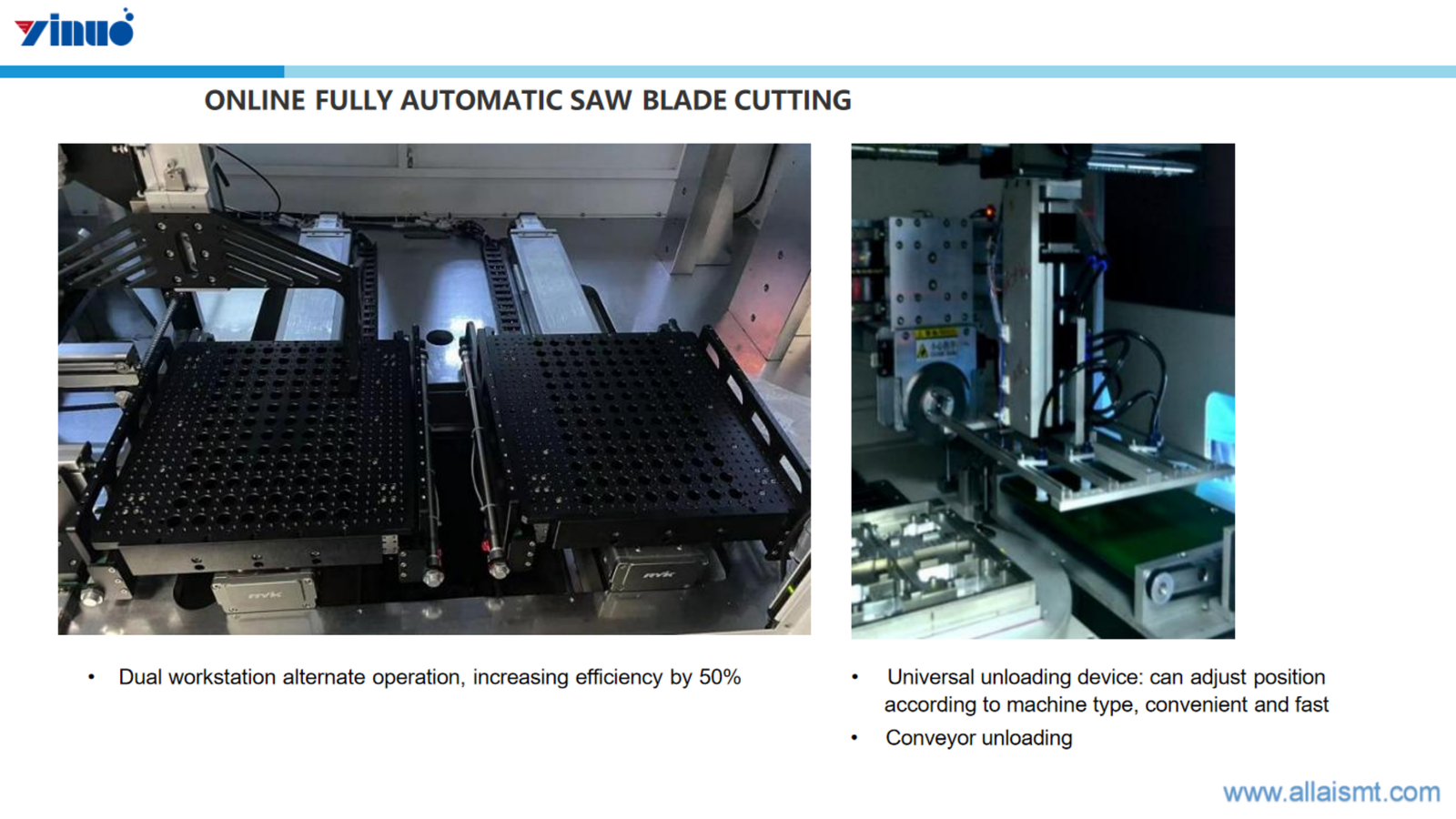

This online fully automatic saw blade cutting machine boosts productivity and flexibility through targeted structural designs. Its dual workstation alternate operation mode elevates efficiency by 50%: while one workstation processes materials, the other can load/unload, eliminating idle time in the production cycle. Complementing this, the universal unloading device supports position adjustment for different machine configurations, ensuring fast, convenient material discharge; paired with conveyor unloading, it enables seamless integration into automated production lines—automatically transferring finished workpieces to subsequent processes. These features make the machine a high-throughput, adaptable solution for continuous industrial cutting tasks.
High-efficiency and Convenient
3.Technical Parameters

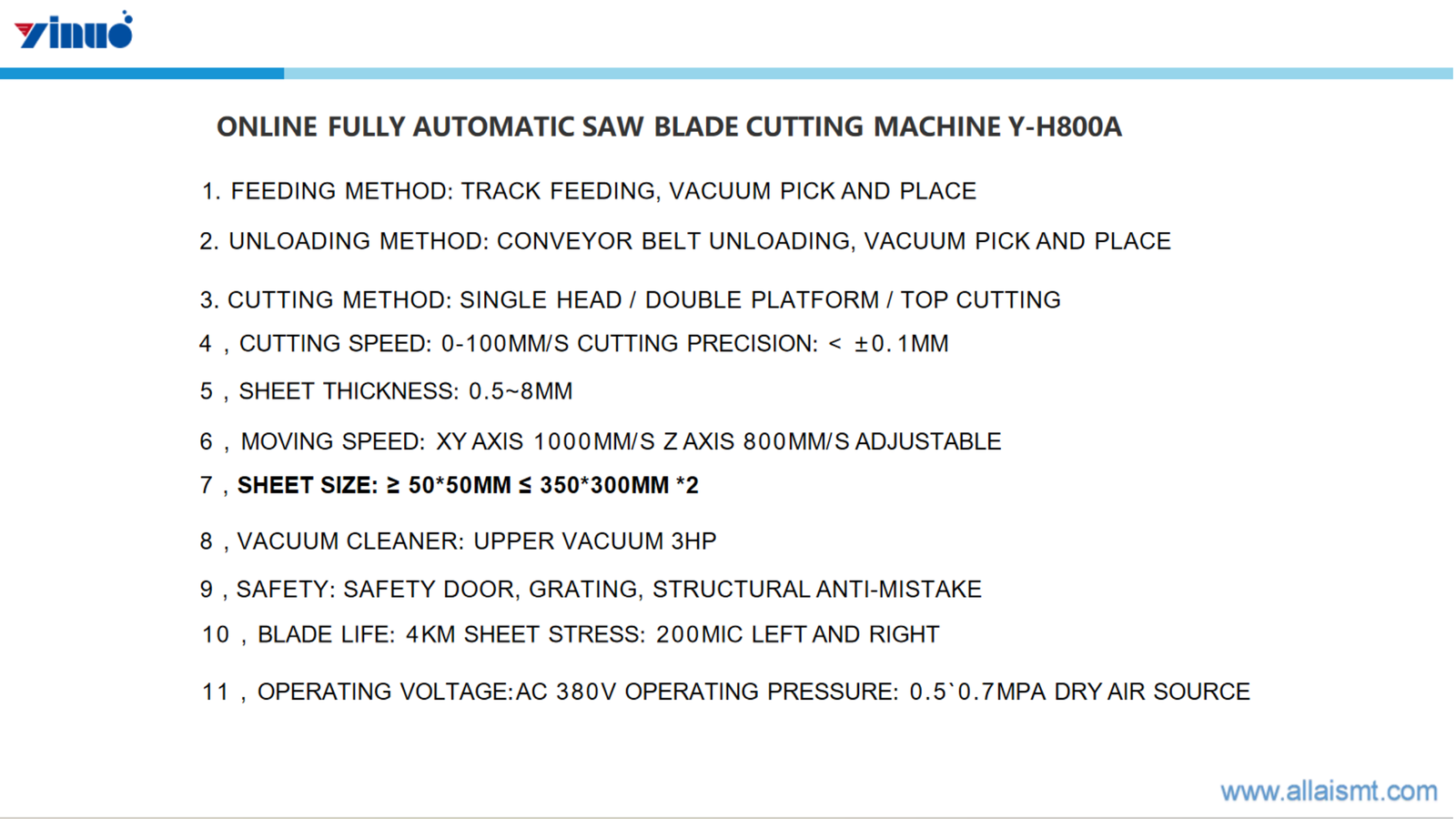

Key Performance Highlights of the Saw Blade Cutting Machine
- Efficiency & Precision: 0-100mm/s cutting speed (±0.1mm accuracy); 1000mm/s (XY-axis) & 800mm/s (Z-axis) motion speeds.
- Versatility: Handles 0.5-8mm-thick sheets (50×50 to 350×300mm×2) via track/vacuum feeding & conveyor unloading.
- Reliability: 4km blade life, 3HP vacuum cleaning, safety safeguards (door/grating), and 380V/0.5-0.7MPa operation.
Technical Parameters

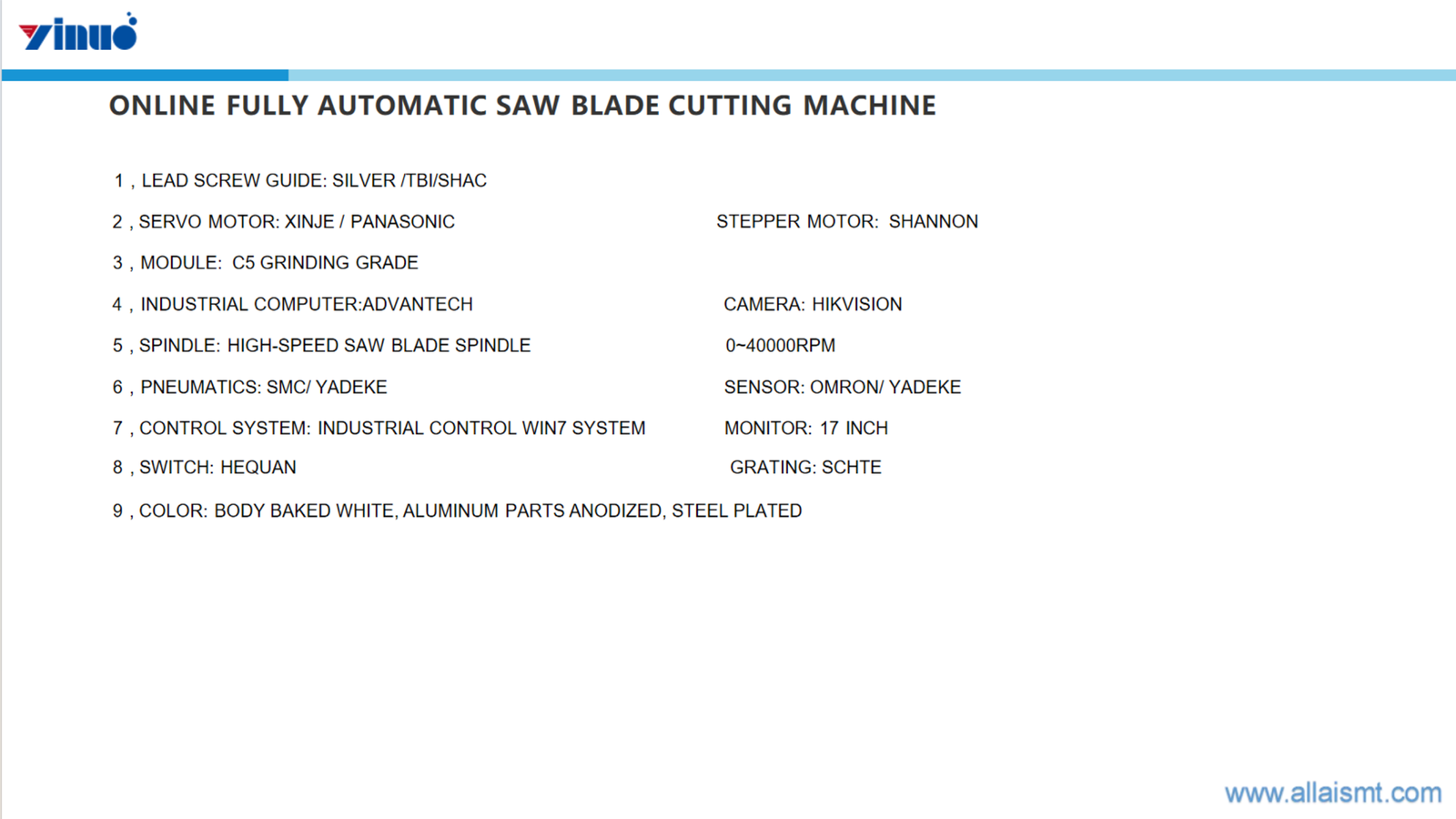

This online fully automatic saw blade cutting machine integrates high-quality components: Silver/TBI/SHAC lead screw guides, Xinje/Panasonic servo motors (Shannon steppers), C5-grade modules, and Advantech industrial computers paired with Hikvision cameras. It features a 0-40000RPM high-speed spindle, SMC/Yadeke pneumatics, Omron sensors, and a Win7 industrial control system (17-inch monitor). Finished in baked white (body) with anodized aluminum/ plated steel parts, it ensures reliability.
Technical Parameters
4.Working Environment
This saw blade cutting machine’s working environment requirements balance specificity and adaptability. Ideally installed in a dust-free room, it can also operate under general conditions, with environmental parameters adjusted seasonally. Key operational limits include an indoor temperature range of -10°C to 40°C, air humidity between 10% and 80%, ambient noise levels of 40dB to 80dB, and vibration speeds restricted to 1mm/s to 5mm/s. These parameters ensure stable performance: the dust-free preference minimizes particle interference with precision cutting, while the temperature, humidity, noise, and vibration bounds prevent component damage or accuracy degradation, making the equipment compatible with standard industrial indoor settings while maintaining operational reliability.
Conclusion
This online fully automatic saw blade cutting system combines adaptable handling, precision-focused design, and high-efficiency configurations to deliver robust performance in industrial settings. Its universal loading/unloading modules, 360° low-stress cutting control, dual-workstation 50% efficiency boost, and conveyor-integrated unloading create a seamless, continuous workflow. Paired with strict environmental compatibility, high-quality componentry, and precise operational parameters, the system balances flexibility, consistency, and throughput—making it a reliable, scalable solution for modern manufacturing’s demand for automated, high-precision saw blade cutting. It not only streamlines production cycles but also upholds strict quality standards for workpiece integrity, positioning it as a valuable asset for integrated industrial production lines.
