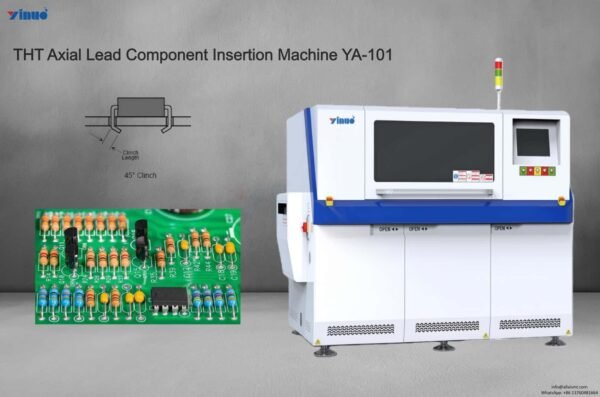

THT Axial Lead Component Insertion Machine YA-101
Description：The THT Axial Lead Component Insertion Machine YA-101 is a high-precision automated solution designed for efficient insertion of axial lead components in PCB assembly. Equipped with advanced feeding and positioning systems, it ensures accurate, consistent placement of resistors, capacitors, and other through-hole components. Its compact design allows seamless integration into production lines or desktop workstations, while improving assembly speed, reducing manual labor, and minimizing errors. The YA-101 delivers reliable performance for high-mix and high-volume THT PCB manufacturing environments.
Min Order Qty：1PC
Lead Time：15 Days
Introduction

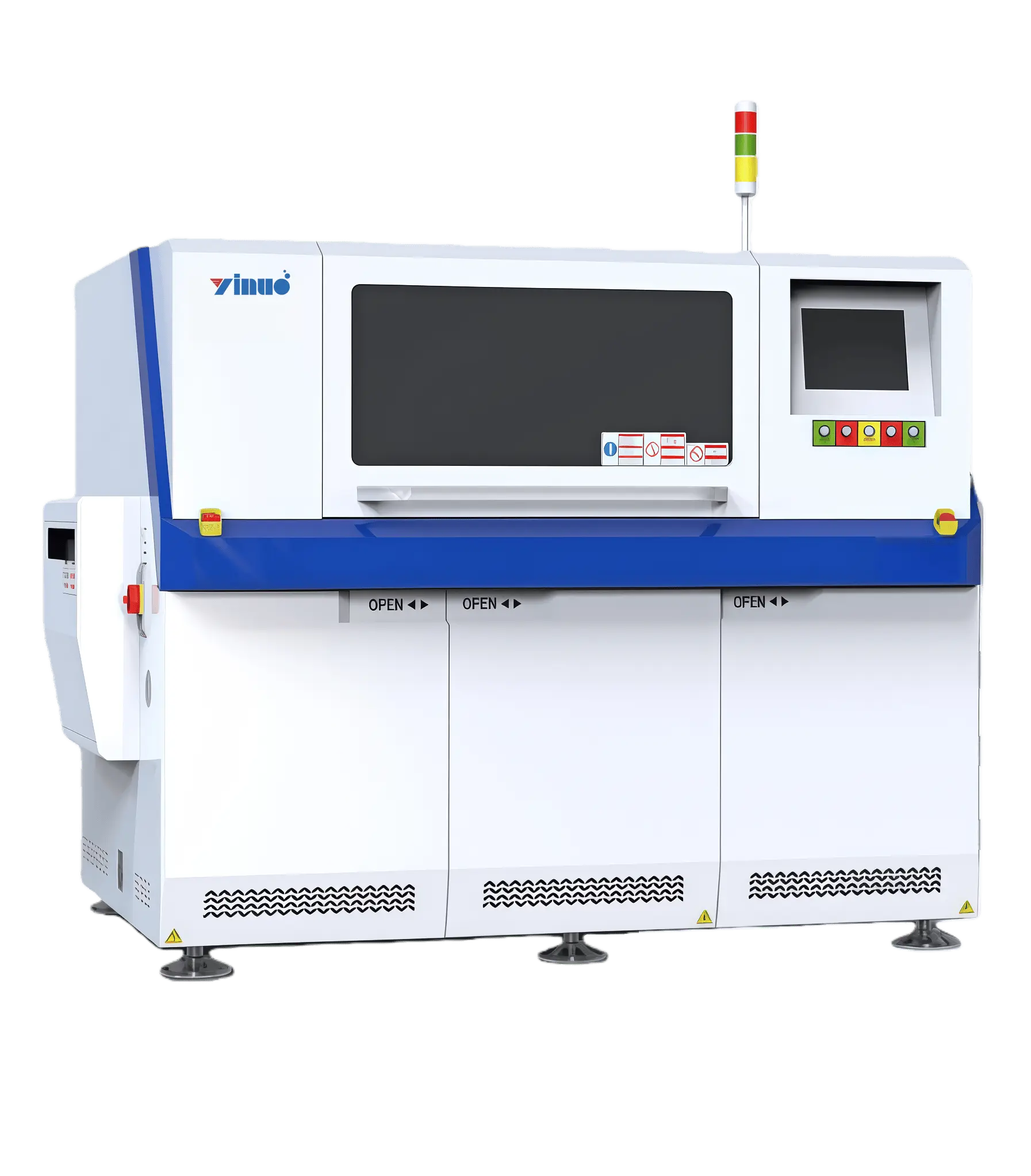

The THT Axial Lead Component Insertion Machine YA-101 is a professional-grade automated solution engineered to optimize through-hole PCB assembly processes. Designed for modern electronics manufacturing, the YA-101 efficiently inserts axial lead components such as resistors, capacitors, and diodes with high precision and consistency, ensuring reliable placement and reducing human error.
Equipped with advanced component feeding and positioning systems, the THT Axial Lead Component Insertion Machine YA-101 guarantees accurate alignment and insertion depth, maintaining PCB integrity and preventing component damage. Its automated operation supports both small-batch and high-volume production, making it ideal for diverse THT assembly lines, R&D labs, and repair centers.
The machine’s compact and ergonomic design allows easy integration into existing production workflows without occupying excessive space. Additionally, its robust construction and stable mechanical framework ensure long-term reliability, minimal maintenance, and vibration-free operation.
With the THT Axial Lead Component Insertion Machine YA-101, manufacturers can achieve faster assembly cycles, improved throughput, and consistent quality for through-hole PCB assemblies. Its combination of precision, efficiency, and user-friendly operation makes it an indispensable tool for modern automated THT electronics manufacturing.
Key Features
-
Automated High-Speed Insertion – Capable of quickly placing axial lead components, significantly enhancing throughput for THT PCB production lines.
-
Precision Alignment System – Integrated sensors and guiding mechanisms ensure exact component positioning, preventing misalignment and soldering defects.
-
Flexible Component Handling – Accommodates various diameters and lengths of axial lead parts, providing versatility for different PCB designs and production needs.
-
Space-Saving Desktop Design – Compact footprint allows installation in limited workspace environments while maintaining easy accessibility for operators.
-
Robust and Reliable Build – Engineered with sturdy materials and stable mechanics to deliver consistent, vibration-free operation and long-term durability.
-
Operator-Friendly Control Panel – Intuitive interface simplifies setup, programming, and monitoring, reducing human error and supporting smooth production workflow.
Specifications

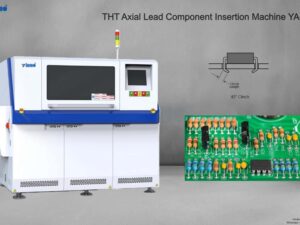

| Model | YA-101 | YA-201 |
| Component Feeder Input | 10pcs (Option:30,40,50,100pcs) | 20pcs (Option:30,40,50,100pcs) |
| Insertion Speed | 25000CPH, Max 0.12s/point (0.14s, 0.16s, 0.18s/point changeable) | |
| Insertion Span | Component: 5~22mm, Jumper：5~26mm | |
| Insertion Recovery | Auto recovery | |
| Insertion Direction | 0~360° direction by 1° increment | |
| Insertion Precision | 0.05mm | |
| PCB Size | 50*50~380*380mm | |
| Insertion Area | 50*50~370*370mm | |
| PCB Fixed | Pin+Clamp | |
| Transport Height | 900±20mm | |
| Transport Time | 3-4s | |
| Power Supply | 1P, 220AC±10%, 50/60HZ | |
| Dimension | L2080*W1750*H1600mm | |
| Feeder Station Size: | 10Feeder:1360*1000*1460mm, 20Feeder:1860*1000*1460mm, 30Feeder:2360*1000*1460mm | |
| Weight | 1300kg | |
