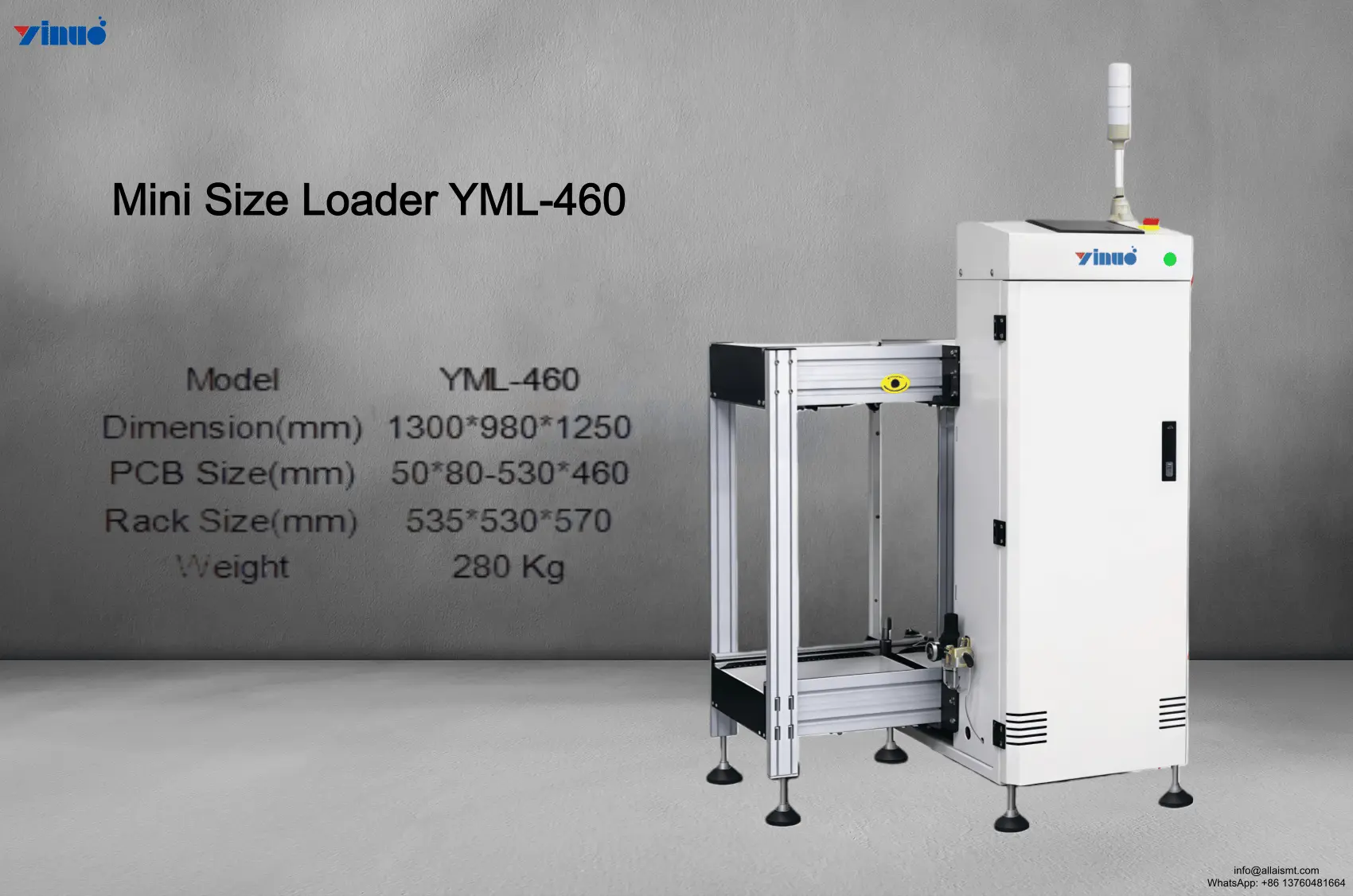

SMT Mini Size Loader YML-460
Description：The SMT Mini Size Loader YML-460 is a next-generation PCB handling solution designed for small-to-medium SMT assembly lines. Its compact design allows installation in tight production spaces while maintaining high loading accuracy. Featuring modular construction, adjustable PCB support, and smooth board transfer, the Mini Size Loader YML-460 minimizes manual handling and production interruptions. ESD protection and robust drive systems ensure safe and reliable operation, making it an ideal choice for high-mix electronics manufacturing where efficiency and precision are critical.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The SMT Mini Size Loader YML-460 is a compact and high-precision PCB handling system engineered for small-to-medium SMT assembly lines. Unlike traditional loaders, the YML-460 emphasizes modularity and adaptability, allowing it to handle various PCB sizes and thicknesses with ease. Its innovative board support and drive system ensure smooth and stable loading, reducing the risk of misalignment or damage during transfer.
Designed for tight production environments, the YML-460 optimizes floor space without compromising performance. The loader integrates seamlessly with upstream feeders and downstream equipment such as pick-and-place machines, reflow ovens, and inspection stations, supporting continuous production with minimal manual intervention.
Equipped with ESD-safe components and high-durability materials, the SMT Mini Size Loader YML-460 protects sensitive electronics while ensuring long-term reliability. Its user-friendly interface and quick-adjust modular design simplify setup, operation, and maintenance, reducing downtime and improving overall line efficiency.
Ideal for consumer electronics, automotive modules, LED assemblies, and other small-to-medium PCBs, the SMT Mini Size Loader YML-460 enhances production speed, maintains consistent product quality, and supports high-mix manufacturing demands, making it a critical component in modern SMT production lines.
Key Features
-
Compact and Space-Efficient Design – Optimized for tight production areas, the YML-460 allows smooth PCB loading without occupying excessive floor space.
-
High-Precision PCB Transfer – Advanced drive and guide systems ensure accurate and stable board positioning, reducing misalignment and defects.
-
Flexible PCB Size Handling – Adjustable width, height, and support settings accommodate a wide range of PCB dimensions for versatile production needs.
-
ESD-Safe and Durable Construction – Protects sensitive electronic components while providing long-term mechanical reliability for continuous operations.
-
Seamless Integration with SMT Lines – Easily interfaces with upstream feeders and downstream pick-and-place, reflow, and inspection equipment for smooth workflow.
-
User-Friendly and Low-Maintenance Operation – Modular design and accessible components allow fast setup, easy adjustments, and minimal downtime, enhancing overall line efficiency.
Specifications
| Model | YML-250 | YML-330 | YML-390 | YML-460 |
| Dimension(mm) | 850*765*1250 | 1170*845*1250 | 1300*910*1250 | 1300*980*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Time Feed PCB | Seconds 6 Approx. or Specify | |||
| Indexing Pitch | 10.20.30.40mm or Specify | |||
| ControlSystem | PLC | |||
| Transport Height | 900±20mm (or Customer Specified) | |||
| PCBDirection | L to R or R to L | |||
| Communication | SMEMA for Both In & Out | |||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||
| Weight | 120 Kg | 180 Kg | 220 Kg | 280 Kg |
