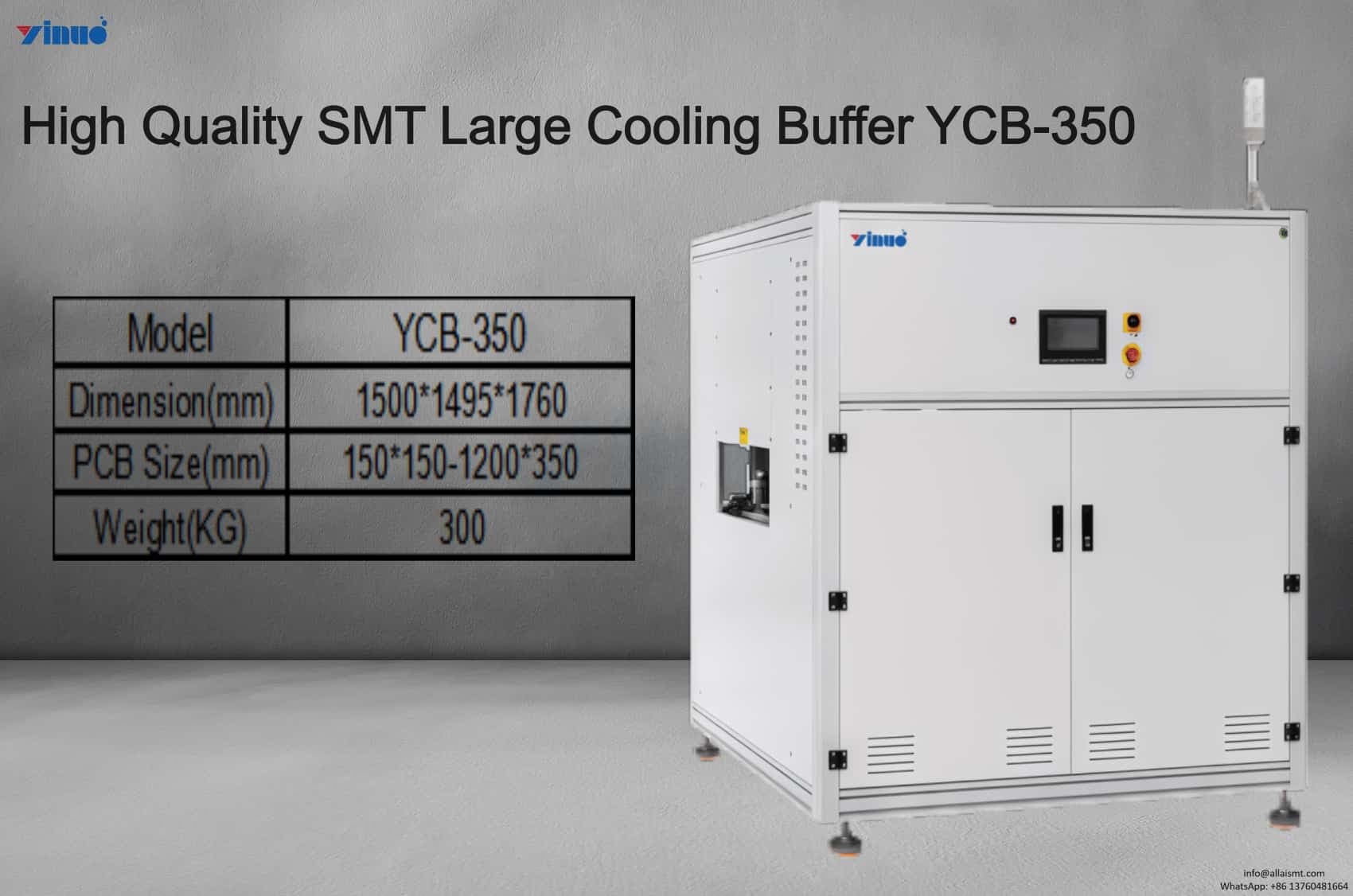

High Quality SMT Large Cooling Buffer YCB-350
Description：High Quality SMT Large Cooling Buffer YCB-350 delivers engineered cooling management for precision-driven SMT manufacturing. Positioned after reflow ovens, it introduces a regulated temperature descent that preserves solder integrity and protects thermally sensitive components. The system combines durable conveyor mechanics with optimized heat dissipation pathways to ensure stable and even thermal reduction. Adjustable configuration settings enable flexible adaptation to various PCB specifications, making it suitable for multi-product production lines. By reinforcing thermal stability and line synchronization, YCB-350 contributes to improved yield performance and structured process efficiency.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
High Quality SMT Large Cooling Buffer YCB-350 is developed to provide systematic temperature transition management after reflow soldering. By extending PCB travel time within a controlled cooling environment, it ensures gradual thermal reduction that protects sensitive electronic components and stabilizes solder microstructure formation. This process significantly reduces risks of warpage and micro-fractures in precision assemblies.
Constructed with an industrial-grade conveyor mechanism, the High Quality SMT Large Cooling Buffer YCB-350 guarantees smooth and vibration-free board transfer. Adjustable width settings enable flexible adaptation to different PCB dimensions, supporting both small-format consumer electronics boards and larger industrial control assemblies. Its optimized airflow and cooling layout contribute to uniform thermal distribution across complex board geometries.
In addition to improving solder joint reliability, the High Quality SMT Large Cooling Buffer YCB-350 functions as a strategic buffer between reflow ovens and downstream inspection stations. This decoupling capability helps maintain continuous production flow, reducing line stoppages and increasing operational efficiency within modern SMT manufacturing facilities.
Practical Application of High Quality SMT Large Cooling Buffer YCB-350 within Smart Wearable Assembly Facilities
-
Mitigation of Thermal Shock Effects
Smart wearable products integrate compact RF modules and battery management ICs. The YCB-350 introduces gradual cooling intervals that reduce thermal shock, enhancing solder joint durability. -
Support for High-Density Component Placement
Dense SMT placement increases localized heat concentration. The extended cooling path inside YCB-350 allows uniform heat dissipation, reducing localized stress zones across the PCB. -
Production Rhythm Optimization
In wearable assembly lines producing smartwatches or fitness trackers, maintaining takt alignment is essential. The YCB-350 smooths process transitions, ensuring balanced material flow between key SMT stages. -
Improved Cosmetic Quality of Final Products
Wearables require high aesthetic standards. Controlled cooling reduces solder discoloration and surface inconsistencies, supporting premium visual quality. -
Reduced Rework and Maintenance Interruption
By stabilizing PCB temperature before downstream handling, the YCB-350 lowers defect occurrence rates. This contributes to reduced rework cycles and more predictable maintenance schedules. -
Scalable Configuration for Product Diversification
As wearable models evolve rapidly, production lines must adapt efficiently. The YCB-350 supports adjustable rail widths and parameter settings, enabling quick transition across multiple product specifications.
Specifications
| Model | YCB-350 |
| Dimension(mm) | 1500*1495*1760 |
| PCB Size(mm) | 150*150-1200*350 |
| Cycle Time | About 10s |
| PCB Capacity | 24 Pieces (25mm apart) or user specified. |
| Power Supply | AC 1P 110V/220V; Max 3000VA |
| Air Pressure | 4- 6bar,30ltr/min Max |
| Transport Height | 900±20mm(or customized) |
| Transport Direction | From left to right or right to left |
| Weight(KG) | 300 |
