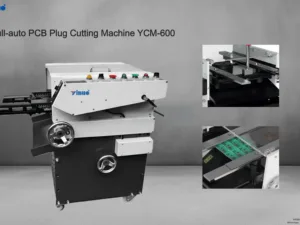

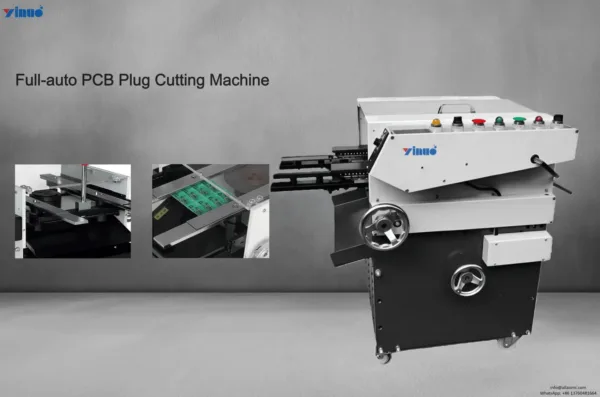

Full-auto PCB Plug Cutting Machine

Introduction

The Full-auto PCB Plug Cutting Machine is an advanced automation solution developed to streamline the trimming and shaping of through-hole component leads on PCBs. By delivering precise, uniform lead lengths and consistent bending angles, it ensures components are positioned accurately for optimal soldering performance, whether in wave or selective soldering operations.

Optimized for modern PCBA production lines, this machine reduces dependency on manual labor while enhancing line efficiency. Its fast and accurate cutting mechanism prevents common assembly issues such as misaligned leads, solder bridging, and uneven component heights, ensuring higher first-pass yield and consistent product quality.

Built with durable materials and engineered for continuous operation, the Full-auto PCB Plug Cutting Machine accommodates a wide range of PCB dimensions, thicknesses, and component types. It is particularly suitable for high-density automotive electronics, consumer gadgets, LED assemblies, and industrial control boards, supporting diverse manufacturing needs.

By automating the lead cutting process, the machine not only accelerates production but also reduces operational costs and minimizes rework. It represents a reliable, precise, and cost-effective solution for electronics manufacturers aiming to maintain consistent assembly quality in high-volume PCBA operations.

Application of Full-auto PCB Plug Cutting Machine in Automated PCBA Assembly Factories

• Automatic Lead Trimming After Insertion
  The machine accurately cuts and shapes component leads immediately after automated insertion, ensuring uniform lead length and proper alignment for subsequent soldering processes.

• Improving Wave and Selective Soldering Quality
  By producing consistent lead heights and angles, it prevents solder defects such as bridging, insufficient solder, and misalignment, enhancing overall assembly yield.

• Integration with Automated Production Lines
  The cutting machine can be seamlessly linked with pick-and-place or insertion equipment, enabling fully automated PCBA workflows and reducing manual labor requirements.

• Enhancing Throughput and Efficiency
  With high-speed, precise operation, the machine supports high-volume production, reducing bottlenecks in automated assembly lines and maintaining consistent output quality.

• Supporting Mixed and High-Density PCBs
  The system can handle different PCB sizes, thicknesses, and component types, making it suitable for factories producing multiple product lines simultaneously.

• Reducing Rework and Operational Costs
  Consistent lead cutting minimizes defects and the need for manual corrections, lowering labor costs and improving overall process efficiency in automated PCBA assembly.

Specifications
