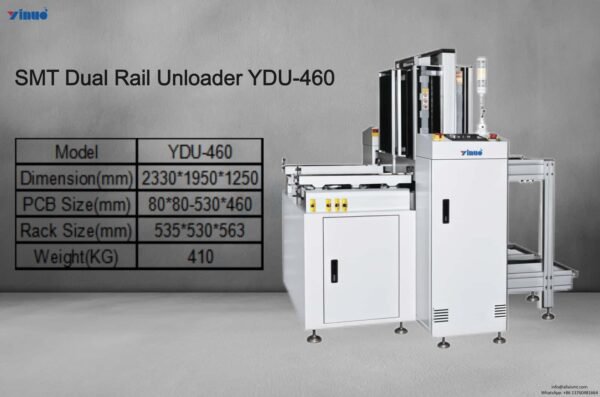

SMT Dual Rail Unloader YDU-460
Description：The SMT Dual Rail Unloader YDU-460 is a high-efficiency automation solution for electronics manufacturing factories. Handling two PCB lanes at once, it transfers finished boards from SMT conveyors into magazines, boosting throughput and reducing manual labor. Efficiency-driven lifts and synchronized rails provide smooth, vibration-free handling, protecting sensitive ICs, connectors, and surface-mounted devices. The system supports multiple PCB sizes and magazine types, enabling quick line changeovers. Built with industrial-grade components, the YDU-460 ensures consistent, long-term performance, offering factories a scalable and reliable PCB unloading solution.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
The SMT Dual Rail Unloader YDU-460 is a next-generation automation solution designed to optimize PCB unloading in electronics manufacturing factories. Positioned at the end of SMT production lines or between critical stages, it simultaneously manages two conveyor lanes, increasing throughput while reducing the need for manual intervention and minimizing workflow interruptions.
Equipped with efficiency-driven lifting modules and synchronized rail systems, the YDU-460 delivers smooth, vibration-free handling of delicate PCBs. Sensitive components such as ICs, connectors, and densely populated surface-mounted devices are protected from mechanical stress, ensuring consistent assembly quality and maintaining board integrity.
The system integrates with downstream inspection and validation processes, automatically collecting and staging finished boards. Its configurable design accommodates various PCB sizes and magazine formats, allowing rapid adaptation for high-mix production lines. Constructed with industrial-grade materials and engineered for longevity, the SMT Dual Rail Unloader YDU-460 ensures stable, long-term operation, providing electronics manufacturers with a scalable and efficient solution for modern PCB handling.
How the SMT Dual Rail Unloader YDU-460 is Applied in Electronics Manufacturing Factories
- Enhanced Dual-Lane Throughput
The Dual Rail Unloader YDU-460 is deployed at the end of SMT lines in electronics factories, managing two PCB lanes concurrently. This setup accelerates board unloading, reduces manual intervention, and maintains steady production flow even during high-volume operations. - Gentle and Controlled Board Handling
With efficiency-focused lifting modules and synchronized rails, the YDU-460 transfers delicate PCBs with minimal vibration. Sensitive components such as ICs, connectors, and surface-mounted devices remain safeguarded, ensuring structural integrity and consistent assembly quality. - Integrated Post-Process Coordination
The system works in conjunction with downstream inspection and validation processes, automatically collecting and staging finished boards. Intelligent signaling prevents line congestion and downtime, supporting uninterrupted production cycles. - Adaptable Board and Magazine Management
The YDU-460 accommodates multiple PCB sizes and magazine formats, enabling rapid adjustments for mixed-product lines. Its modular design allows production lines to switch between products without compromising handling accuracy. - Industrial-Grade Durability
Built from heavy-duty components with engineered longevity, the YDU-460 ensures continuous operation over extended periods, delivering stable performance and high-capacity throughput for modern electronics manufacturing facilities.
Specifications
| Model | YDU-250 | YDU-330 | YDU-390 | YDU-460 |
| Dimension(mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 80*80-330*250 | 80*80-445*330 | 80*80-530*390 | 80*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1 magazine; Lower Conveyor:1 mazagine | |||
| Magazine Replacement Time | Approx.30 seconds or specify | |||
| Indexing Pitch | 10.20.30.40mm or specify | |||
| Power Supply | AC1P110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar,10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 320 | 350 | 380 | 410 |
