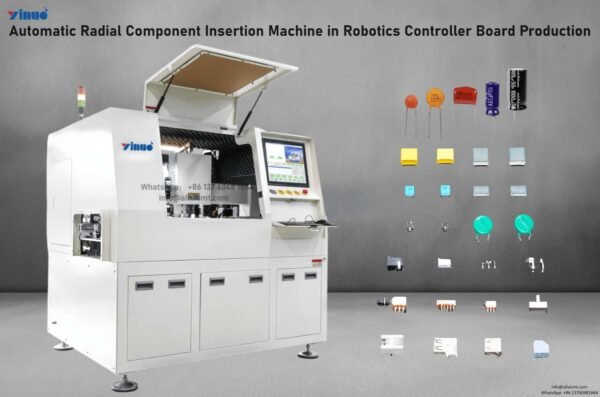

Automatic Radial Component Insertion Machine in Robotics Controller Board Production
Description：Automatic Radial Component Insertion Machine in Robotics Controller Board Production is developed to reinforce manufacturing accuracy in intelligent automation systems. Controller boards serve as the command core of robotic equipment, and precise radial component mounting is critical to ensuring reliable power management and signal conditioning. This machine applies optimized insertion sequencing and mechanical stabilization to maintain consistent component seating and board integrity. Its adaptable configuration accommodates varying PCB dimensions and component specifications common in robotics applications. By delivering predictable cycle times and repeatable insertion performance, the system supports scalable production while preserving the quality standards required in modern robotics electronics manufacturing.
Min Order Qty：1PC
Lead Time：15 Days
Introduction
Automatic Radial Component Insertion Machine in Robotics Controller Board Production is engineered to reinforce manufacturing accuracy for intelligent automation hardware. Controller boards serve as the command center of robotic platforms, and any deviation in component placement can compromise system responsiveness. This Automatic Radial Component Insertion Machine applies calibrated insertion dynamics to ensure vertical alignment and consistent penetration depth across every PCB.
Featuring modular feeder units and adaptable tooling configurations, the system accommodates varied board dimensions and component specifications commonly found in industrial and service robotics. Its integrated quality verification protocols detect insertion anomalies in real time, reducing defect propagation to downstream soldering stages.
The Automatic Radial Component Insertion Machine enhances production continuity by stabilizing cycle consistency and improving equipment utilization rates. For robotics manufacturers seeking dependable assembly infrastructure, this insertion platform contributes to robust controller board construction capable of sustaining continuous operation in demanding industrial applications.
Deployment of Automatic Radial Component Insertion Machine for Robotics Controller PCB Production
-
Energy Buffer Circuit Integration
Precisely mounts large-capacitance radial components that stabilize transient current in motor startup sequences. Strengthens voltage resilience within robotic drive systems. -
Programmable Insertion Profiling
Allows parameter customization for diverse component materials and lead diameters. Ensures controlled compression and accurate seating across controller board variants. -
Minimal PCB Deflection Control
Incorporates stable support tooling to reduce board flex during insertion. Protects fine-pitch circuitry and microcontroller interfaces. -
Production Scalability Enablement
Designed to maintain stable takt time as order volumes expand. Suitable for robotics manufacturers transitioning from pilot builds to mass deployment. -
Error-Proofing Through Mechanical Validation
Detects abnormal insertion resistance and positional deviation in real time. Prevents defective boards from advancing to final assembly stages. -
Enhanced Electrical Path Continuity
Guarantees consistent lead-to-hole contact prior to soldering. Improves overall conductivity reliability in robotic controller applications.
Specifications
| Model | YRM-1000 | YRM-1400 | YRM-2000 |
| Component Feeder Input | 10PCS | 14PCS | 20PCS |
| Core Machine Size | (LxWxH)1800x1600x1800mm | ||
| PCB Size | (Min)50 mm x50mm、(Max)400mm x 450mm | ||
| PCB Thickness | 0.79-2.36MM | ||
| Dispensing Head | 20 | ||
| Technical Documents | 1 | ||
| Triple Span | 2.5mm/5.0mm/7.5mm/10.0mm | ||
| The Theory of Speed | 18000PCS/H | ||
| Insert Direction | 0°-360°, 1°increasment | ||
| Servo Motor Drived Insertion Head | 13.0mm | ||
| Clinch Type | Clinch base “N” type | ||
| Clinch Length | 1.5-2.2mm(adjustable) | ||
| Clinch Degree | 10º-35º(adjustable) | ||
| DELL LCD Monitor | 1 | ||
| Build in UPS | 1 | ||
| Indutrial-control Computer | 1 | ||
| Adjustable Fixture | 1 | ||
| Sequencer Module | 2 | ||
| Coordinate Correction | Machine vision systems | ||
| Control System | English or Chinese version interface | ||
| Components Require | standard tape packed radial leads components | ||
| Components Available | Capacitor, Transistor, LED lights, Key Switch,Resistor, Connectors, Fuse Block and other vertical tape packed materials | ||
| Air Pressure | 0.6MPA, 0.3m3/minutes | ||
| Circumstance Temperature | 10° C. to 35° C. | ||
| PCB Transfer Mode | Manual, machine non stop | ||
| Weight | 1500KG | ||
