YA-4000 THT Axial Insertion Machine Axial Resistor SMT Line Integration

Введение

YA-4000 THT Axial Insertion Machine streamlines axial component mounting on through-hole circuit boards by unloading, trimming, shaping, inserting, and clinching each part within a single coordinated cycle. Whether components arrive on tape, in bulk tubes, or on reels, the machine’s versatile feeding module accepts them all without hardware modification. Axial leads are cut to programmed lengths, bent to the required span, driven into PCB through-holes, and then clinched underneath — all before the board exits the insertion zone, ensuring every component stays firmly seated for subsequent soldering.

Operational flexibility defines the YA-4000 THT Axial Insertion Machine experience. Insertion span, depth, and sequence are fully configurable through the touchscreen controller, enabling rapid adaptation to diverse product designs. A twin-head arrangement processes two insertion points concurrently, elevating hourly throughput well beyond single-head alternatives. Onboard diagnostics monitor every cycle for missing inserts or lead deformation, halting operation only when corrective action is needed. The compact footprint fits easily into existing line layouts, and intuitive software minimizes operator training time. We built YA-4000 to perform reliably shift after shift with straightforward upkeep.

The commercial relevance of the YA-4000 THT Axial Insertion Machine is clear in sectors where axial components are irreplaceable — automotive control units, industrial power supplies, consumer appliances, and communication infrastructure all demand robust through-hole connections that surface-mount technology cannot replicate. By automating axial placement, our YA-4000 helps manufacturers shrink labor dependencies, elevate board-level quality, and respond faster to volume fluctuations. Combined with competitive acquisition costs and our dedicated aftermarket support, the machine represents a pragmatic upgrade path for any operation seeking stronger throughput and tighter process control.

Automatic Axial Insertion Machine

How the YA-4000 THT Axial Insertion Machine Operates Within Consumer Electronics Facilities

Consumer electronics production lines channel boards through a fast-paced sequence — solder paste, pick-and-place, reflow — and the YA-4000 THT Axial Insertion Machine slots in precisely where through-hole components enter the workflow. As boards exit reflow carrying surface-mounted ICs and passives, the YA-4000 receives them and inserts axial resistors and related components into designated through-holes. Its conveyor interface synchronizes with upstream SMT equipment, ensuring boards arrive at insertion position on cue, then depart toward wave soldering with zero manual intervention between stages.

Product performance centers on speed and versatility. The YA-4000 THT Axial Insertion Machine processes axial components across a broad pitch range using motorized insertion heads that adjust travel distance electronically — no mechanical reset required between board families. A vision-assisted alignment check verifies component orientation before each insertion, catching feed errors that would otherwise propagate into solder defects. Bulk and tape feed options run concurrently, letting operators load the next resistor specification while the current one is still running, effectively eliminating feed-related downtime on multi-value boards.

The market value for consumer electronics manufacturers lies in the YA-4000’s ability to handle product diversity cost-effectively. Short product lifecycles and frequent design revisions define this sector — the YA-4000’s rapid recipe loading and toolless format changes keep pace with that reality. Lower changeover cost per board variant means factories accept smaller batch sizes profitably, a critical capability as brand owners push for faster model refreshes. The machine pays for itself through reduced labor, fewer defects, and the capacity to scale output on demand.

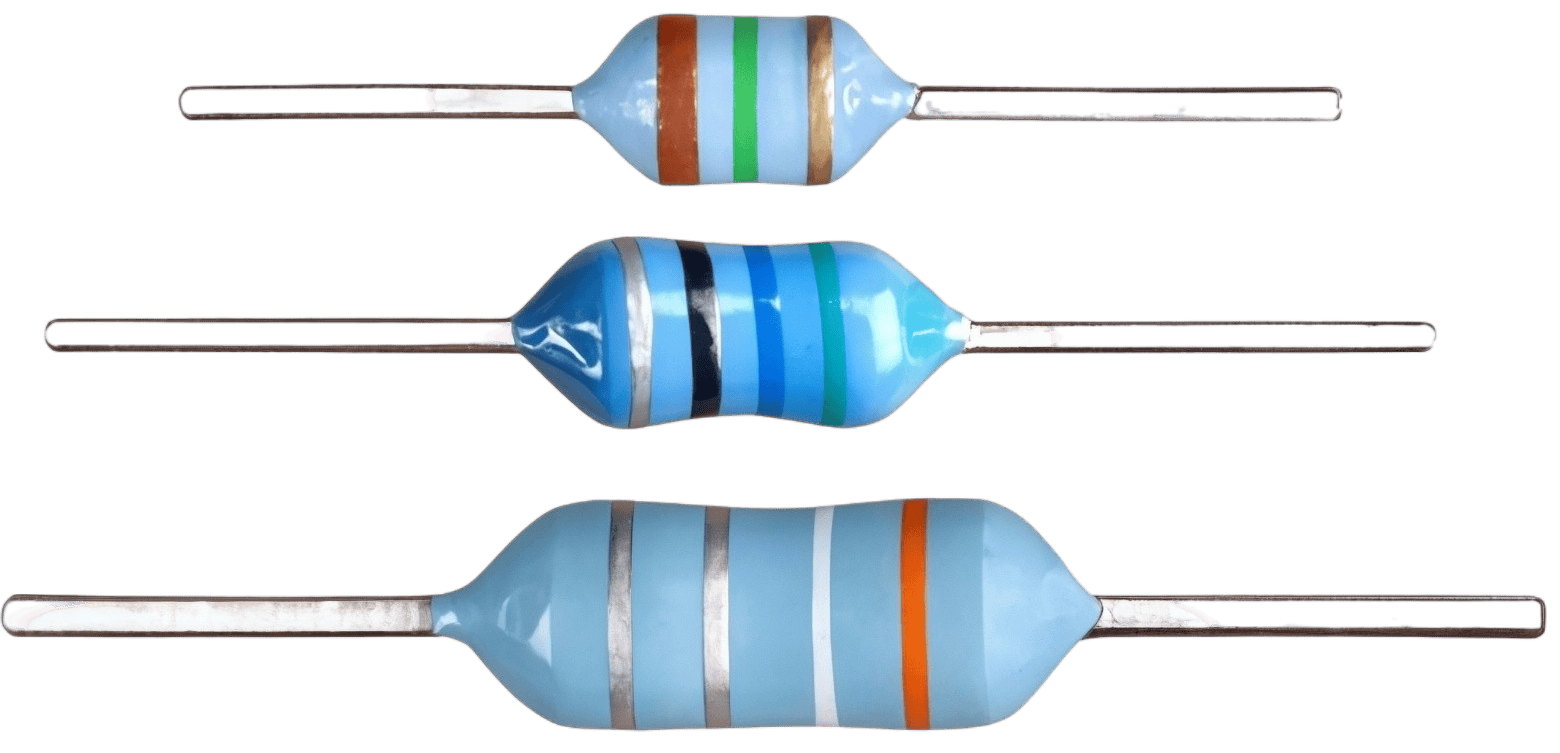

Axial Resistor

Технические характеристики

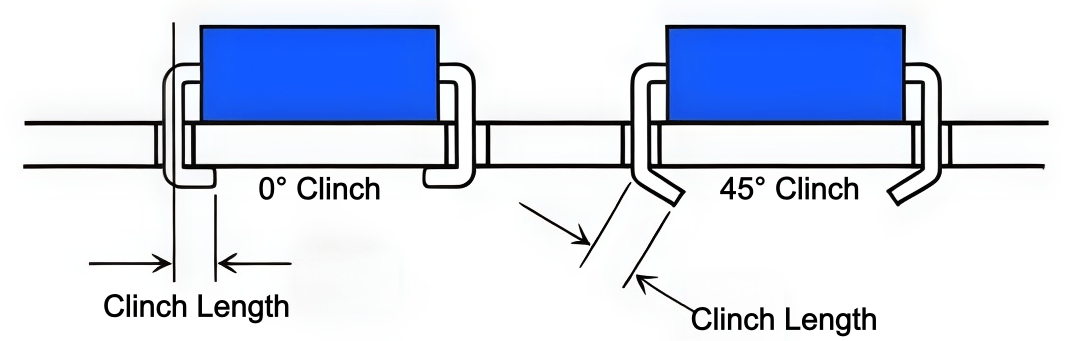

Axial Component
