Он YA-4500 THT Automatic Axial Insertion Machine automates the placement of axial leaded components onto PCB assemblies with efficient, uninterrupted operation. The machine accepts components from standard taped reels and loose-feed formats, processing them through a forming and cutting station before inserting leads into pre-drilled board positions. This integrated approach eliminates separate forming operations and minimizes component handling, which helps preserve lead integrity and reduces the risk of bent or damaged terminals during assembly.

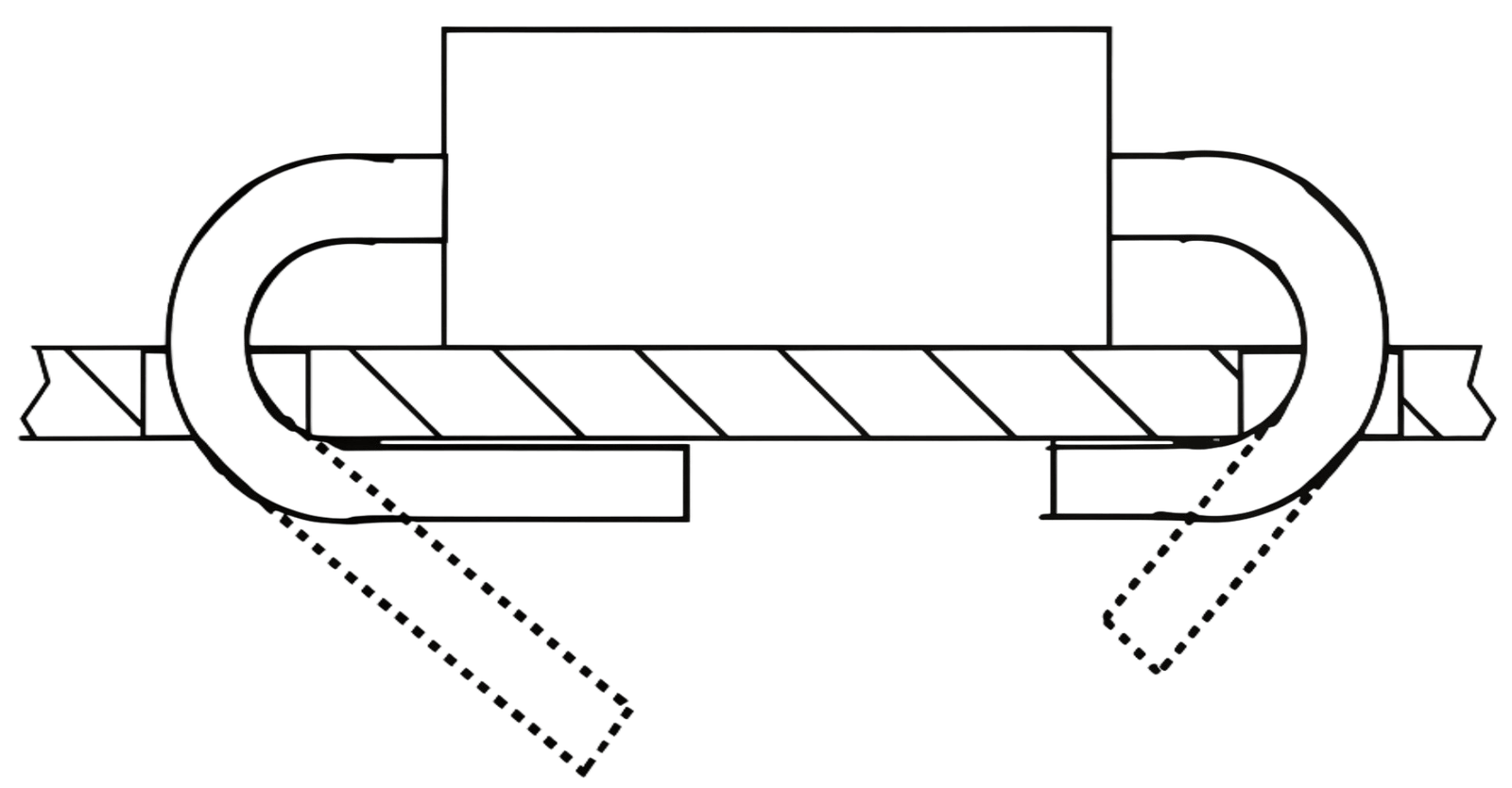

A servo-controlled insertion head governs the downward motion, ensuring each component seats at the correct depth with controlled force. Lead span width and clinch angle are adjustable, allowing the YA-4500 to accommodate varied board layouts and component sizes within the axial family. The automatic clinching mechanism bends leads outward against the PCB underside, locking each part in place so the board can move through wave soldering without components shifting or falling out. Tooling change between different axial body sizes requires minimal downtime, making the machine suitable for facilities running mixed product batches.
In automotive electronics manufacturing — particularly ECU, BCM, and power distribution modules — as well as in industrial automation, telecom systems, power electronics, consumer appliances, and LED lighting assemblies, the YA-4500 provides a straightforward path to higher axial insertion throughput. We back the machine with technical support, spare parts availability, and integration guidance drawn from years of through-hole automation experience, helping production teams deploy the system quickly and maintain it with confidence over the long term.

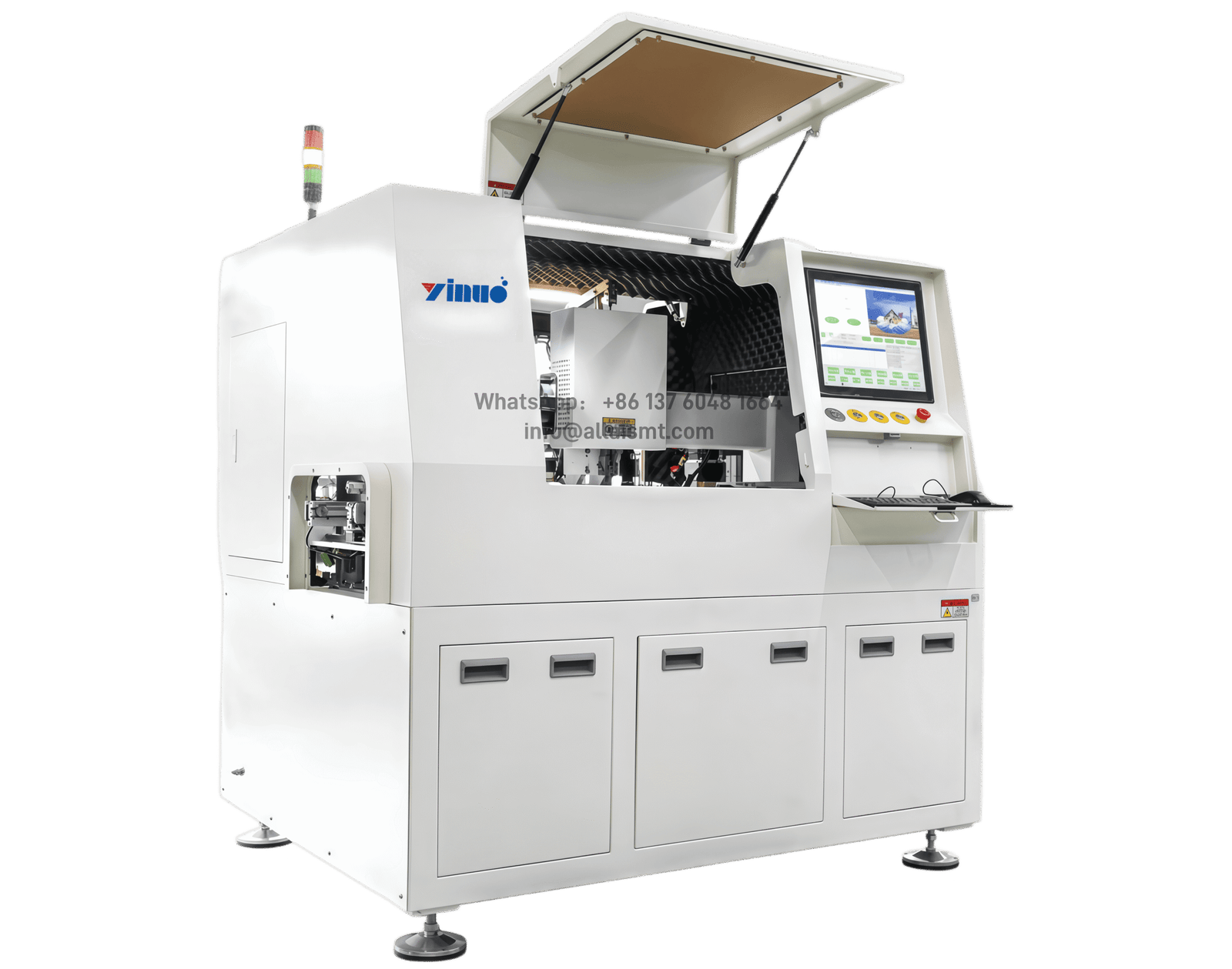

YA-4500 THT Automatic Axial Insertion Machine
YA-4500 THT Automatic Axial Insertion Machine Applications in Automotive Electronics Manufacturing
The YA-4500 THT Automatic Axial Insertion Machine automates the placement of axial leaded components onto PCB assemblies with efficient, uninterrupted operation. The machine accepts components from standard taped reels and loose-feed formats, processing them through a forming and cutting station before inserting leads into pre-drilled board positions. This integrated approach eliminates separate forming operations and minimizes component handling, which helps preserve lead integrity and reduces the risk of bent or damaged terminals during assembly.
A servo-controlled insertion head governs the downward motion, ensuring each component seats at the correct depth with controlled force. Lead span width and clinch angle are adjustable, allowing the YA-4500 to accommodate varied board layouts and component sizes within the axial family. The automatic clinching mechanism bends leads outward against the PCB underside, locking each part in place so the board can move through wave soldering without components shifting or falling out. Tooling change between different axial body sizes requires minimal downtime, making the machine suitable for facilities running mixed product batches.
In automotive electronics manufacturing — particularly ECU, BCM, and power distribution modules — as well as in industrial automation, telecom systems, power electronics, consumer appliances, and LED lighting assemblies, the YA-4500 provides a straightforward path to higher axial insertion throughput. We back the machine with technical support, spare parts availability, and integration guidance drawn from years of through-hole automation experience, helping production teams deploy the system quickly and maintain it with confidence over the long term.
Технические характеристики
| Модель | YA-4000 | YA-4500 | YA-4800 |
| Входной разъем для подачи компонентов | 10PCS | 14PCS | 20PCS |
| Core Machine Size | (LxWxH)1800x1600x1800mm | ||
| Размер печатной платы | (Min)50 mm x50mm、(Max)400mm x 450mm | ||
| Толщина печатной платы | 0.79-2.36MM | ||
| Dispensing Head | 20 | ||
| Technical Documents | 1 | ||
| Triple Span | 2.5mm/5.0mm/7.5mm/10.0mm | ||
| The Theory of Speed | 18000PCS/H | ||
| Insert Direction | 0°-360°, 1°increasment | ||
| Servo Motor Drived Insertion Head | 13.0mm | ||
| Clinch Type | Clinch base “N” type | ||
| Clinch Length | 1.5-2.2mm(adjustable) | ||
| Clinch Degree | 10º-35º(adjustable) | ||
| DELL LCD Monitor | 1 | ||
| Build in UPS | 1 | ||
| Indutrial-control Computer | 1 | ||
| 1500КГ | 1 | ||
| Sequencer Module | 2 | ||
| Coordinate Correction | Machine vision systems | ||
| Система управления | English or Chinese version interface | ||
| Components Require | standard tape packed radial leads components | ||
| Components Available | Capacitor, Transistor, LED lights, Key Switch,Resistor, Connectors, Fuse Block and other vertical tape packed materials | ||
| Air Pressure | 0.6MPA, 0.3m3/minutes | ||
| Circumstance Temperature | 10° C. to 35° C. | ||
| PCB Transfer Mode | Manual, machine non stop | ||
| Масса | 1500KG | ||
