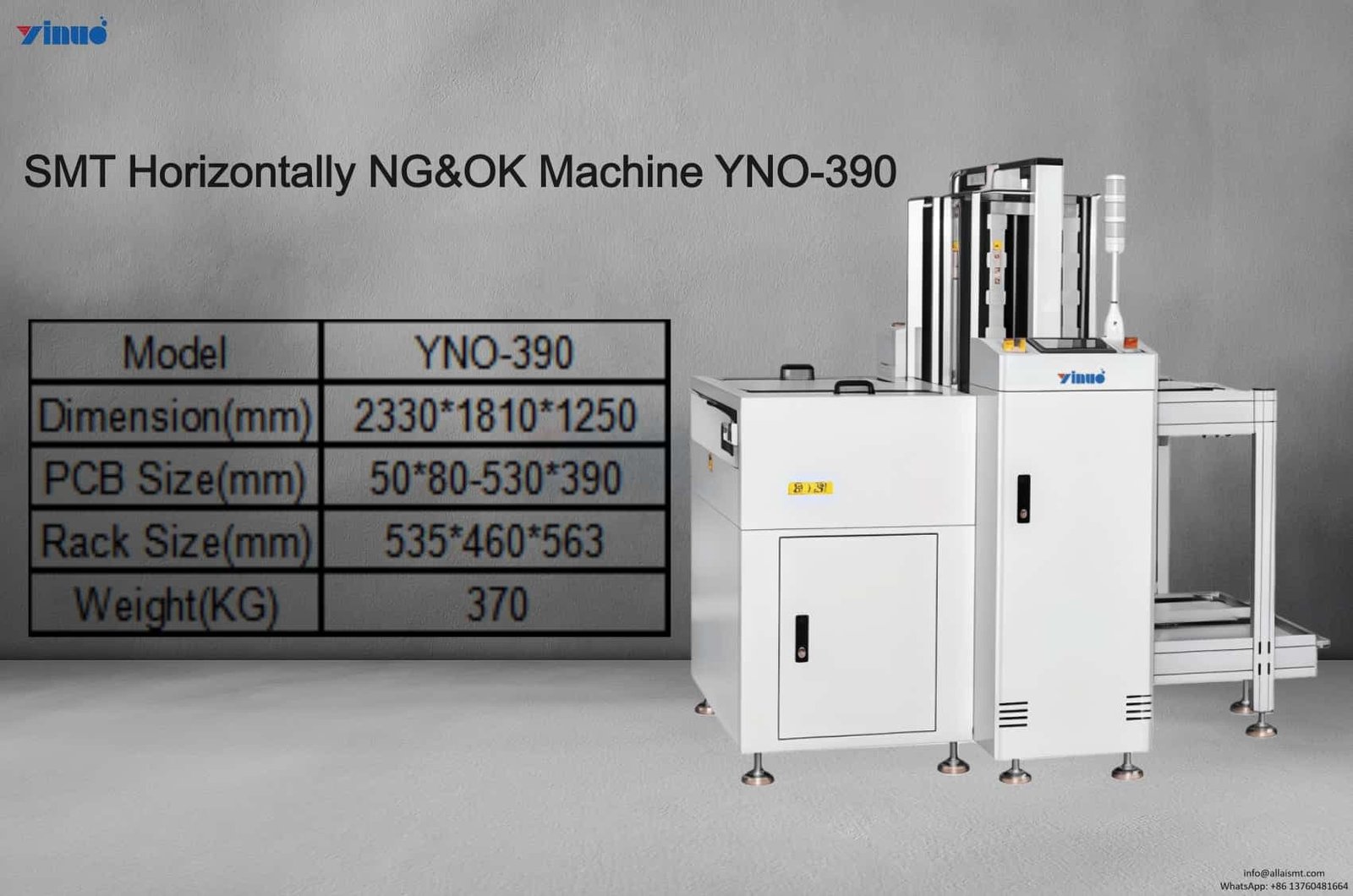

SMT Horizontally NG&OK Machine YNO-390
Mô tả: Cái SMT Horizontally NG & OK Machine YNO-390 is an automated solution designed for precise PCB sorting and handling in LED lighting electronics factories. Installed after inspection or testing stations, it separates NG and OK boards using a stable horizontal transfer mechanism, ensuring smooth workflow and accurate classification. By reducing manual handling, the machine improves production efficiency, prevents board mixing, and protects sensitive components, making it ideal for reliable and high-quality LED lighting manufacturing.
Số lượng đặt hàng tối thiểu: 1 chiếc
Thời gian giao hàng: 15 ngày
Giới thiệu
Cái SMT Horizontally NG & OK Machine YNO-390 is an automated system for efficient PCB sorting and handling in LED lighting electronics factories. Installed after AOI, SPI, or functional testing, it separates NG and OK boards along horizontal paths, ensuring accurate classification and smooth production flow.
With controlled motion and guided transfer, the YNO-390 minimizes vibration and mechanical stress, protecting sensitive and densely populated PCBs essential for reliable LED lighting products.
Automating NG and OK separation reduces labor, prevents board mixing, and improves process consistency, supporting strict quality standards.
Compact and easy to integrate with existing SMT lines, the SMT Horizontally NG & OK Machine YNO-390 enhances workflow efficiency, safeguards PCB quality, and ensures dependable production outcomes in LED lighting electronics factories.
How the SMT Horizontally NG & OK Machine YNO-390 Is Applied in LED Lighting Electronics Factories
-
Post-Inspection PCB Sorting
Installed after AOI, SPI, or functional testing stations, the YNO-390 automatically separates OK and NG PCBs, ensuring accurate classification for LED lighting assembly lines. -
Stable Horizontal Board Transfer
The machine uses a horizontal conveying mechanism to smoothly guide OK boards to the next process while directing NG boards to a designated output, maintaining orderly and continuous workflow. -
Protection of Sensitive LED Components
Controlled motion and guided transfer minimize vibration and mechanical stress, protecting delicate LED chips, SMD components, and densely populated PCBs. -
Reduced Manual Handling
Automation reduces labor dependency, lowers human error, and prevents misclassification or board mixing. -
Process Consistency and Efficiency
Continuous NG and OK separation ensures stable production flow, improving overall process consistency in LED lighting factories. -
Support for Quality Control and Traceability
Automated sorting allows defective boards to be tracked and recorded easily, supporting strict quality standards and regulatory compliance for LED lighting products.
Thông số kỹ thuật
| Người mẫu | YNO-250 | YNO-330 | YNO-390 | YNO-460 |
| Kích thước (mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1 magazine; Lower Conveyor:1 mazagine | |||
| Magazine Replacement Time | Approx.30 seconds or specify | |||
| Indexing Pitch | 10.20.30.40mm or specify | |||
| Power Supply | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar,10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 310 | 340 | 370 | 400 |
