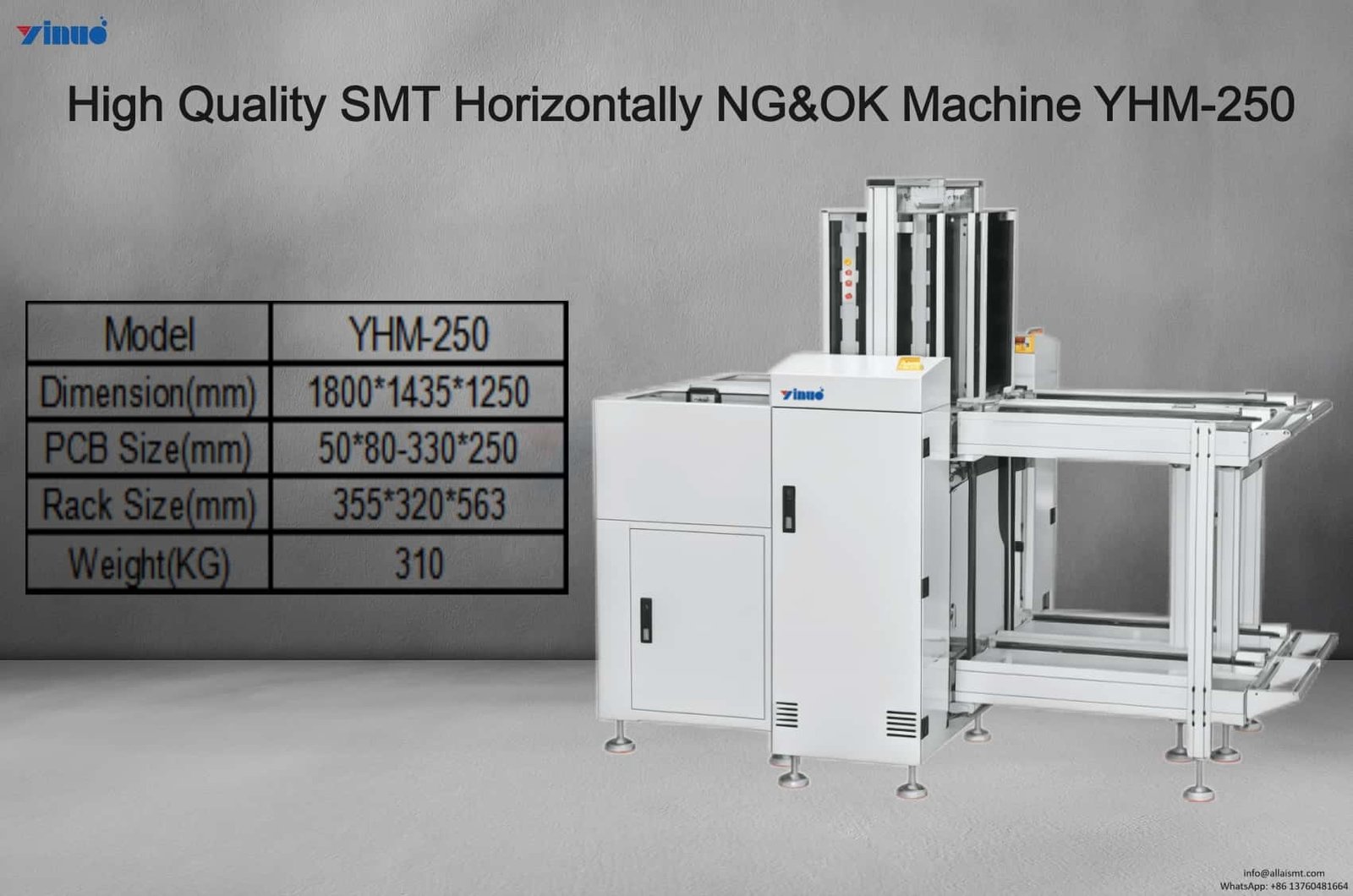

High Quality SMT Horizontally NG OK Machine YHM-250
Sự miêu tả:High Quality SMT Horizontally NG OK Machine YHM-250 is developed to support precise PCB handling and quality routing in modern SMT production lines. The machine focuses on reliable separation of acceptable and defective boards after inspection, helping factories maintain clear process control. Its horizontal transfer structure is especially suitable for thin and fine-pitch smartphone PCBs, reducing mechanical stress during movement. YHM-250 supports stable communication with inspection systems, enabling automatic response to quality judgments. By reducing manual sorting and misrouting risks, it improves operational discipline and traceability. The compact design allows easy integration into existing smartphone SMT layouts where space efficiency and process clarity are critical.
Số lượng đặt hàng tối thiểu: 1 chiếc
Thời gian giao hàng: 15 ngày
Giới thiệu
Cái High Quality SMT Horizontally NG OK Machine YHM-250 provides precise board handling and automated defect separation for modern SMT production lines. It efficiently directs acceptable boards to the next process while isolating defective ones, reducing human error and preventing contamination of downstream assembly. This ensures a smoother production flow and consistent product output, particularly in smartphone PCB assembly where accuracy is essential.
Its horizontal transfer system is designed to maintain stability during board movement, minimizing bending or mechanical stress that can occur during rapid line operations. The controlled transport mechanism protects components and prevents alignment issues, supporting reliable assembly of delicate electronic boards. Operators can rely on the machine for steady performance during continuous production cycles.
Integration into existing SMT lines is simple due to the compact footprint and adaptable structure. The High Quality SMT Horizontally NG OK Machine YHM-250 communicates with inspection devices to automatically respond to board status, while its configuration flexibility allows rapid adjustment to different PCB sizes or models. By automating NG/OK sorting, it improves production efficiency, reduces rework, and helps factories maintain organized, traceable operations.
How High Quality SMT Horizontally NG OK Machine YHM-250 is Applied in a Smartphone Electronics Factory
-
Clear Separation of Quality Status
High Quality SMT Horizontally NG OK Machine YHM-250 directs acceptable and nonconforming boards into independent paths. This ensures only verified PCBs move forward to sensitive smartphone assembly stages. -
Gentle Handling for High-Density Designs
Horizontal movement minimizes stress on fine-pitch and multi-layer smartphone boards. Signal integrity and pad alignment remain intact during transfer. -
Continuous Data-Driven Flow
The machine responds directly to inspection signals in real time. This supports fast decision-making in smartphone SMT environments with frequent inspection points. -
Reduced Manual Sorting Dependency
Automated NG/OK routing replaces operator-based judgment. Human handling errors are reduced while maintaining consistent quality standards. -
Fast Adaptation to Line Reconfiguration
The system integrates smoothly when smartphone lines are adjusted for new products. Changeovers can be completed with minimal downtime. -
Improved Yield Monitoring
Separated outputs make defect trends easier to identify. Production teams gain clearer insight into recurring issues on smartphone PCBs.
Thông số kỹ thuật
| Người mẫu | YHM-250 | YHM-330 | YHM-390 | YHM-460 |
| Kích thước (mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1magazine; Lower Conveyor: 1magazine | |||
| Magazine Replacement Time | Approx. 30 seconds or specify | |||
| Indexing Pitch | 10 . 20 . 30 . 40mm or specify | |||
| Power Supply | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar, 10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 310 | 340 | 370 | 400 |
