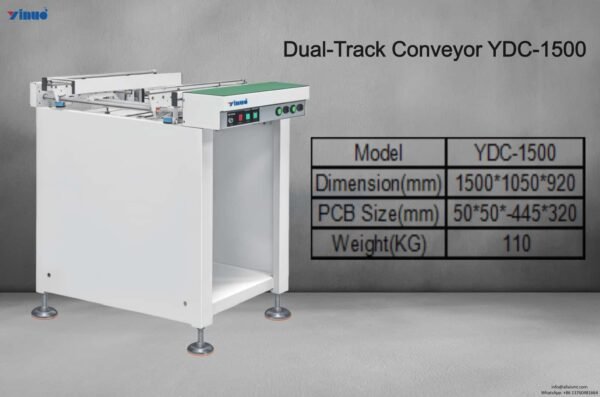

SMT Dual-Track Conveyor YDC-1500
Mô tả: Cái SMT Dual-Track Conveyor YDC-1500 delivers efficient PCB transport for medical electronics production. Its dual-lane system moves two boards simultaneously, enhancing SMT line throughput. Equipped with precise track control and seamless stage transitions, it ensures the safe handling of high-density medical PCBs while supporting varied board sizes and automated workflows.
Số lượng đặt hàng tối thiểu: 1 chiếc
Thời gian giao hàng: 15 ngày
Giới thiệu
Engineered for medical electronics production, the SMT Dual-Track Conveyor YDC-1500 offers a high-efficiency solution for PCB transport. Its dual-lane system allows two boards to move simultaneously, boosting throughput on SMT lines. The conveyor is perfectly suited for medical device control boards, diagnostic instrument PCBs, and wearable medical electronics.
Featuring precise track guidance and synchronized conveyor operation, the YDC-1500 ensures smooth transitions between printers, pick-and-place machines, and reflow ovens. This reliable mechanism protects high-density and sensitive medical PCBs from vibration or damage, maintaining consistent product quality across the production line.
Adjustable width and track spacing allow the conveyor to handle a variety of PCB sizes, supporting flexible multi-product and mixed-line manufacturing. Fully compatible with upstream and downstream automation, it enables continuous unmanned operation, reducing manual handling and improving overall line efficiency.
With a modular design for easy maintenance and long-term durability, the SMT Dual-Track Conveyor YDC-1500 helps medical electronics factories enhance automation, increase throughput, and maintain stable, high-quality production.
How the SMT Dual-Track Conveyor YDC-1500 is Applied in Medical Electronics Factories
-
Optimized for Medical Electronics SMT Lines
The dual-track design allows simultaneous transfer of two PCBs, ideal for medical device control boards, diagnostic instrument PCBs, and wearable medical electronics, significantly increasing line throughput. -
Ensures Smooth Process Handover
Seamlessly connects printers, pick-and-place machines, and reflow ovens, maintaining stable PCB flow between critical SMT processes and minimizing line stoppages. -
Handles High-Density and Sensitive PCBs Safely
Precision track control and synchronized conveyor movement prevent vibration or damage, protecting delicate components such as sensors, ICs, and connectors commonly used in medical electronics. -
Supports Flexible PCB Sizes
Adjustable conveyor width and track spacing accommodate various board dimensions, supporting multi-product and mixed-line production in medical electronics manufacturing. -
Enhances Automation Efficiency
Compatible with upstream and downstream automated equipment, enabling continuous unmanned operation and reducing manual handling for consistent, high-quality production. -
Low Maintenance, High Reliability
Modular design allows quick component replacement and easy maintenance, ensuring long-term stable operation in high-demand medical electronics production environments.
Thông số kỹ thuật
| Người mẫu | YDC-500 | YDC-500 (With Lifting) | YDC-600 | YDC-800 | |
| Kích thước (mm) | 500*1050*920 | 500*1050*920 | 600*1050*920 | 800*1050*920 | |
| PCB Size(mm) | 50*50*-445*320 | ||||
| Belt Type | Round Belt or Oblate Belt | ||||
| Conveying Speed | 0.5-20M/min or customer specified | ||||
| Power Supply | AC 1P 110V/220V; Max 100VA | ||||
| Transport Height | 900±20mm(or customized) | ||||
| Transport Direction | From left to right or right to left | ||||
| Weight(KG) | 80 | 80 | 85 | 90 | |
| Người mẫu | YDC-1000 | YDC-1200 | YDC-1500 | YDC-2000 | YDC-2500 |
| Kích thước (mm) | 1000*1050*920 | 1200*1050*920 | 1500*1050*920 | 2000*1050*920 | 2500*1050*920 |
| PCB Size(mm) | 50*50*-445*320 | ||||
| Belt Type | Round Belt or Oblate Belt | ||||
| Conveying Speed | 0.5-20M/min or customer specified | ||||
| Power Supply | AC 1P 110V/220V; Max 100VA | ||||
| Transport Height | 900±20mm(or customized) | ||||
| Transport Direction | From left to right or right to left | ||||
| Weight(KG) | 95 | 105 | 110 | 240 | 260 |
https://www.youtube.com/@allaismt
For more information about the SMT Dual-Track Conveyor YDC-1500, Vui lòng gửi email đến
