YT-7500 THT Rivet Pin Insertion Machine PCB Rivet Pin Production Line Automation

Введение

Он YT-7500 THT Rivet Pin Insertion Machine delivers a streamlined approach to PCB rivet pin mounting in through-hole assembly lines. Equipped with a high-efficiency feeding system and an optimized insertion mechanism, the YT-7500 handles rivet pins with repeatable placement accuracy across varying board thicknesses. Its servo-driven platform ensures smooth stroke control, reducing mechanical wear while maintaining stable throughput during extended production runs.

Built for production line integration, the YT-7500 features quick-change tooling that accommodates multiple rivet pin specifications without lengthy reconfiguration. The compact footprint allows seamless placement into existing SMT and THT workflows, while the intuitive HMI provides real-time monitoring and error tracking to minimize downtime. A vibration-suppressed frame structure further enhances operational stability, keeping pin deviation within tight tolerances even at elevated cycle rates.

In the broader electronics manufacturing landscape, the YT-7500 THT Rivet Pin Insertion Machine addresses the growing demand for reliable through-hole interconnect solutions in automotive electronics, industrial control systems, and power equipment. By automating the rivet pin insertion process, it eliminates the irregularities of manual placement and reduces rework rates downstream of wave soldering. For contract manufacturers and OEMs seeking to strengthen PCB assembly quality without sacrificing line efficiency, the YT-7500 represents a practical and cost-effective upgrade to their production capabilities.

YT-7500 THT Rivet Pin Insertion Machine

How the YT-7500 THT Rivet Pin Insertion Machine Is Applied in Automotive Electronics Factories

Он YT-7500 THT Rivet Pin Insertion Machine automates the critical step of rivet pin placement within through-hole PCB assembly processes. Powered by a closed-loop servo system, the YT-7500 achieves repeatable insertion depth and positional accuracy across continuous production cycles. Its force-regulated press head adapts to varying pin diameters and substrate materials, maintaining secure pin seating without overstressing the board surface or copper layers surrounding the mounting holes.

Operational flexibility defines the YT-7500’s design philosophy. A motorized pin guide rail enables swift changeovers between rivet pin sizes, while the touchscreen controller stores multiple program profiles for instant recall during batch transitions. The machine’s reinforced base plate absorbs mechanical resonance, keeping vibration transfer to a minimum and preserving alignment during rapid-cycle operations. Additionally, a built-in pin presence sensor confirms successful insertion before the board advances, adding a layer of in-process quality verification.

For electronics manufacturers serving the automotive, industrial automation, and telecommunications sectors, the YT-7500 THT Rivet Pin Insertion Machine converts a traditionally manual rivet pin process into a controlled, data-capable operation. The result is measurably lower pin-related defects after wave soldering, reduced reliance on skilled manual labor, and improved line utilization rates. As through-hole interconnects remain essential in power-handling and high-reliability board designs, the YT-7500 positions production facilities to deliver uniform quality at scale — a clear advantage in competitive contract manufacturing environments.

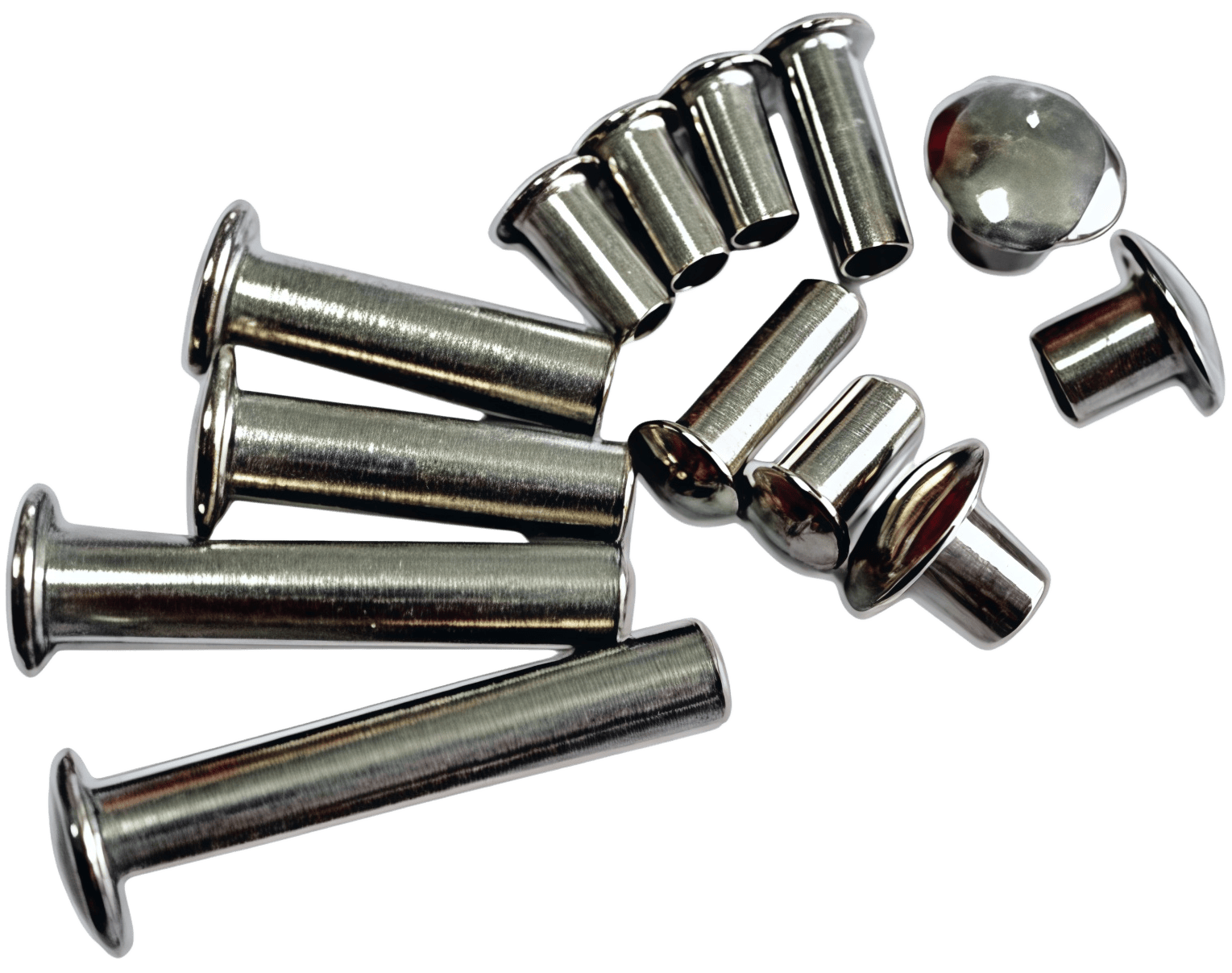

Rivet Pin

Технические характеристики

https://www.youtube.com/@allaismt

For more information about the YT-7500 THT Rivet Pin Insertion Machine, Пожалуйста, отправьте электронное письмо по адресу:

info@allaismt.com

Мы оперативно ответим на ваш запрос и предоставим вам подробную информацию о наших продуктах и услугах.
