導入
In modern electronics manufacturing, precise and efficient PCB handling is essential for maintaining high productivity and product quality. The YINUO SMT 90 Degree Unloader 信頼性の高い 90 度の PCB 転送を提供するように設計されており、SMT 生産ライン内でのシームレスな方向変更を可能にします。.
The unloader ensures stable and accurate PCB handling, minimizing the risk of board damage while maintaining continuous workflow. Its robust construction and dependable drive system guarantee consistent performance, and the system is compatible with a wide range of PCB sizes, making it adaptable to various manufacturing requirements.
Compact and user-friendly, the YINUO 90 Degree Unloader integrates easily into existing SMT lines. Its intuitive operation and low-maintenance design reduce downtime, streamline production processes, and enhance overall line efficiency.
実装することにより YINUO SMT 90 Degree Unloader, メーカーは、よりスムーズなPCB搬送、生産効率の向上、そして繊細な基板のより安全な取り扱いを実現できます。これは、精度、信頼性、そして高性能を兼ね備えた垂直PCB搬送装置を求める電子機器工場にとって理想的なソリューションです。.
Key Features of SMT 90 Degree Unloader
- Efficient 90-degree PCB rotation, enabling smooth directional changes in SMT production lines for improved layout flexibility.
- Stable aluminum alloy structure ensuring durability and vibration-free PCB transfer.
- Adjustable conveyor speed, allowing precise control for different SMT assembly requirements.
- High-accuracy sensors for PCB detection, preventing jams and ensuring continuous, reliable unloading performance.
- Wide PCB size compatibility, making the 90 Degree Unloader suitable for various electronic manufacturing applications.
- Space-saving compact design, ideal for optimizing SMT production floor layout.
- Easy integration with SMT conveyors, loaders, and unloaders, enhancing overall SMT automation efficiency.
- Low-maintenance system, reducing downtime and improving long-term production stability.

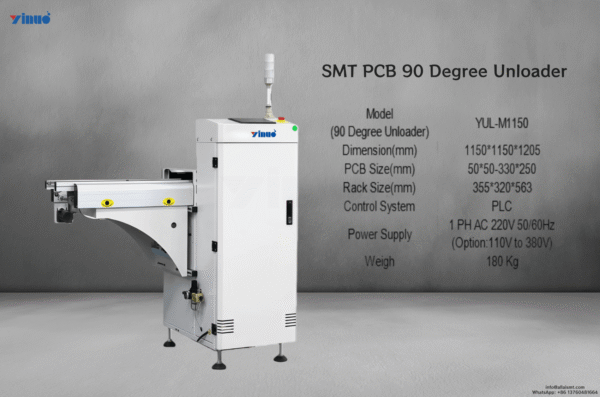

仕様
| モデル （90度アンローダー） |
YUL-M1150 | YUL-L1350 | YUL-LL1550 |
| 寸法(mm) | 1150*1150*1205 | 1350*1350*1205 | 1550*1550*1205 |
| PCBサイズ(mm) | 50*50-330*250 | 50*50-445*330 | 50*50-530*390 |
| ラックサイズ(mm) | 355*320*563 | 460*400*563 | 535*460*563 |
| 制御システム | PLC | ||
| 電源 | 1 PH AC 220V 50/60Hz（オプション：110V～380V） | ||
| 計量する | 180キロ | 240キロ | 300キログラム |
https://www.youtube.com/@allaismt
For more information about these SMT 90 Degree Unloader, please send an email to
お問い合わせには速やかに対応し、弊社製品およびサービスに関する詳しい情報を提供させていただきます。.
