Computer-Leiterplattenbestückung mit intelligentem Dual-Line-DIMM-Steckplatz-Zuführer für 2309407-5 DIMM-Steckplätze

Einführung

A complete DIMM Slot assembly process involves several connected operations, from connector preparation to PCB inspection. The Intelligent Dual Line DIMM Slot Feeder occupies the material supply stage immediately before automated insertion, giving DIMM sockets a defined route toward the board assembly area. Sockets required by the current production order are placed into the feeder, where the internal mechanism directs them along two separate routes. The connectors advance toward their respective output areas, ready for pickup by the insertion equipment. Once transferred to the PCB, each DIMM Slot is positioned according to the board layout and its terminals are inserted through the prepared holes.

One of the practical strengths of the feeder is its ability to separate connector supply from direct operator handling. Production personnel do not need to repeatedly place individual sockets at the insertion head during normal operation. Instead, the machine maintains a continuous supply of prepared connectors and releases them from controlled positions. Two feeding routes also provide additional flexibility when the assembly process involves multiple socket groups or repeated connector placement. After insertion, the PCB enters the soldering process, followed by AOI or electrical verification. This creates a defined production chain in which the feeder handles connector delivery while downstream equipment completes board assembly and quality inspection.

For electronics factories, the equipment can be introduced into server motherboard assembly, AI computing hardware production, storage appliance manufacturing and communication board production. A server production line may use the feeder to supply DIMM Slots for memory sections positioned around the processor area. An AI computing board line can apply the same process when several memory connectors must be installed before soldering and inspection. Storage appliance factories can use the equipment for controller and server boards, while communication electronics plants can apply it to network computing hardware. Through dual-route feeding, controlled connector release and coordinated interaction with insertion equipment, the Intelligent Dual Line DIMM Slot Feeder provides a dedicated method for handling DIMM Slots within automated through-hole PCB manufacturing.

Intelligent Dual Line DIMM Slot Feeder

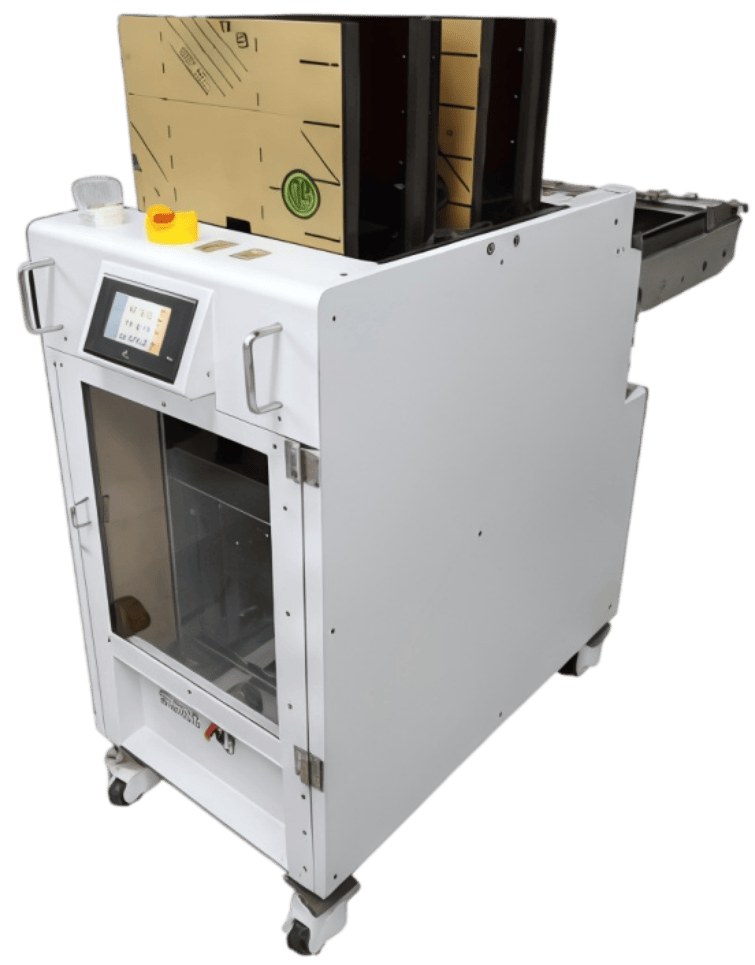

Intelligent Dual Line DIMM Slot Feeder for 2309407-5 Connector Feeding and THT Assembly in Computer Motherboard Factories

In a computer electronics factory, the Intelligent Dual Line DIMM Slot Feeder can serve as a dedicated supply unit for 2309407-5 DIMM Slot installation on motherboard production lines. The process starts when the 2309407-5 connectors are prepared according to the current motherboard work order and placed into the feeder supply section. The machine then directs the DIMM Slots into two separate feeding routes, where mechanical guides control their movement toward the insertion area. As each connector reaches the discharge position, the downstream insertion mechanism can pick it up and place it onto the specified memory interface of the PCB. The connector terminals pass through the prepared through-holes, completing the mechanical placement before soldering.

This application is particularly relevant to desktop computer motherboard factories producing boards with two or more memory sockets. The dual-line structure allows 2309407-5 DIMM Slots to be delivered through separate routes, giving the production line an additional material-handling path for repeated connector insertion. During operation, the feeder manages socket direction and movement before the connector reaches the pickup point. This reduces the need for operators to repeatedly arrange individual DIMM Slots beside the insertion station. The controlled discharge arrangement also helps the insertion head receive the connector from a defined position, creating a more orderly transition between component supply and THT assembly.

Computer electronics factories can introduce the Intelligent Dual Line DIMM Slot Feeder into desktop motherboard lines, gaming computer motherboard lines, office PC production lines and workstation board assembly. On a gaming motherboard line, for example, 2309407-5 DIMM Slots can be supplied before automated insertion, followed by soldering and AOI inspection. On workstation boards, the same feeding process can support repeated memory connector installation across different production orders. Its two independent feeding routes, guided connector transport, controlled discharge and automated material delivery make the feeder suitable for computer PCB production where DIMM Slot installation is a recurring part of the THT assembly process.
