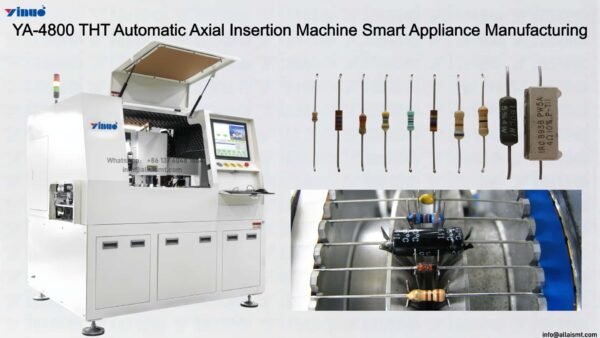

YA-4800 THT Automatic Axial Insertion Machine Smart Appliance Manufacturing

การแนะนำ

เดอะ YA-4800 THT Automatic Axial Insertion Machine fills the through-hole axial insertion step in appliance PCB assembly lines. The machine is compatible with axial components supplied on tape, including the resistor family, the diode family, jumper wires, zero-ohm resistors, axial capacitors within specified size limits, and axial inductors. The machine processes these components by extracting them from tape, forming the leads to the board hole spacing, cutting excess lead length, inserting the component, and clinching the leads on the opposite side of the board.

The machine’s production rate depends on board size, component count, and program optimization. Each insertion cycle consumes a fixed machine time, and the overall board time is the sum of cycles plus table movement between insertion points. Operators load bare PCBs, start the program, and remove populated boards after the cycle completes. Tape reels are replaced when depleted. The machine signals tape low and tape out conditions to prompt the operator. This workflow allows one operator to manage multiple insertion machines or to combine machine operation with other assembly tasks in the same production cell.

For smart appliance manufacturing, the YA-4800 is used in facilities producing PCBs for refrigerators, washing machines, air conditioning units, dishwashers, and countertop appliances. These products contain PCBs with axial components in power conversion, motor drive, and protection circuits. The machine supports appliance manufacturers by automating a process step that was previously manual, allowing production volume to scale without a proportional increase in assembly labor. The ability to program different board layouts also supports manufacturers who produce multiple appliance models on shared production lines.

Automatic Axial Insertion Machine

The YA-4800 THT Automatic Axial Insertion Machine in Home Appliance Electronics Manufacturing

A home appliance electronics factory integrates the YA-4800 THT Automatic Axial Insertion Machine into the PCB assembly line where through-hole axial components are required. The machine accepts taped axial parts fed from reels or ammunition packs. These components, covering the full axial range from resistors and diodes to jumpers, capacitors, and inductors, are automatically processed and inserted into boards for washing machines, air conditioners, refrigerators, and small kitchen appliances. The machine operates between the SMT placement area and the wave soldering station, forming the through-hole insertion link in the assembly chain.

The YA-4800 delivers its advantages through automated mechanical execution of tasks that would otherwise require manual labor. The tape advance system indexes each component to the pickup position. The lead forming mechanism sets the insertion span. The cutting station trims leads to length. The insertion head places the component into the board. The clinch unit anchors the leads from below. All of these actions occur in a timed machine cycle, without variation between cycles or between boards. The control interface allows operators to select programs, monitor cycle count, and respond to alerts. Setup between board types involves loading the new program and swapping tape reels, which can be completed within a short changeover window.

The market value for appliance manufacturers comes from the machine’s role in supporting production scalability. As appliance factories grow output or add product models, the demand for through-hole assembly capacity increases. Adding manual insertion operators scales linearly with volume and introduces training and quality management requirements. The YA-4800 provides a capacity increment that is not tied to proportional labor increases. One machine handles a defined insertion workload, and additional capacity can be added by installing additional units. This modular approach to through-hole automation allows appliance manufacturers to match insertion capacity to production requirements without restructuring the entire assembly floor, supporting both current production needs and future expansion planning.

Resistors

ข้อกำหนด
