การแนะนำ
เดอะ Servo Semi-automatic Press-fit Machine is designed to revolutionize the assembly process in high-volume manufacturing environments. Utilizing advanced servo motor technology, this machine ensures precise control during press-fit operations. The servo system applies consistent force, minimizing the risk of component damage and enhancing assembly integrity. The intuitive user interface allows for quick adjustments and programming, making it suitable for various applications, including PCB connector assembly.
Adaptability is a key strength of the Servo Semi-automatic Press-fit Machine. It handles different sizes and types of components seamlessly, which is essential for manufacturers with diverse product lines. This versatility enhances operational efficiency and reduces downtime, as the machine can transition swiftly between tasks. Additionally, robust construction ensures durability and reliability during continuous operation.
Productivity and quality control see significant improvements with the Servo Semi-automatic Press-fit Machine. Real-time monitoring provides immediate feedback on the pressing process, allowing operators to make informed decisions. Maintaining tight tolerances results in higher quality assemblies with fewer defects. Investing in this state-of-the-art press-fit solution leads to substantial cost savings while strengthening competitive advantages in the market.

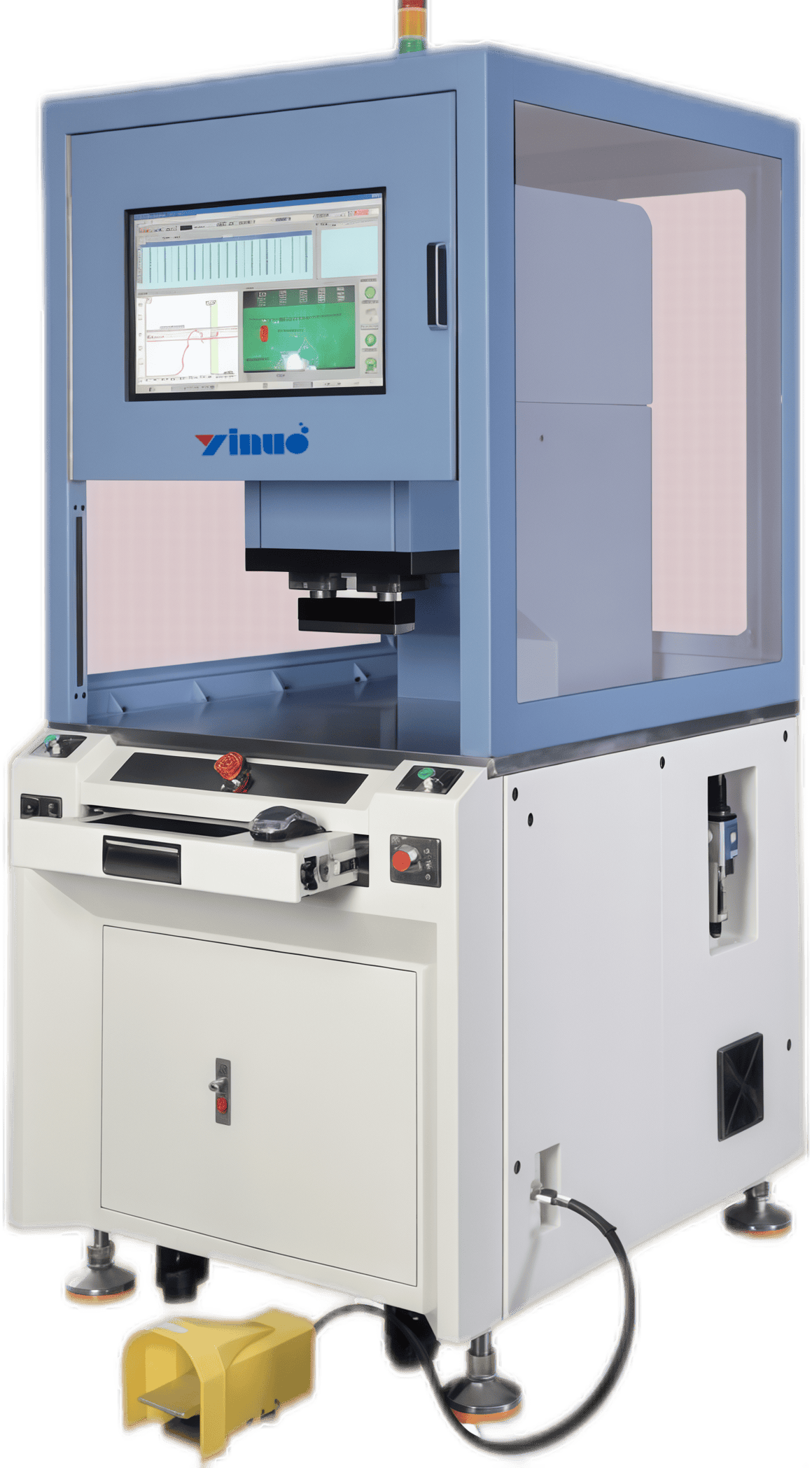

Servo Semi-automatic Press-fit Machine
How the Servo Semi-automatic Press-fit Machine Performs PCB Connector Press-Fit Assembly
In the realm of modern electronics manufacturing, the Servo Semi-automatic Press-fit Machine stands out for its exceptional capability to assemble PCB connectors with unmatched precision. Utilizing advanced servo motor technology, this machine ensures that the pressing force is applied uniformly across the connector, resulting in optimal seating and electrical connectivity. The ability to monitor and adjust the force in real-time not only enhances the quality of the connections but also reduces the likelihood of damaging sensitive PCB components during the assembly process.
Additionally, the versatility of the Servo Semi-automatic Press-fit Machine allows it to accommodate a wide range of PCB connector sizes and configurations. This adaptability is essential for manufacturers looking to maintain efficiency across diverse product lines. With streamlined setup processes and quick changeovers, the machine minimizes downtime, enabling manufacturers to maximize production output. The combination of high precision, flexibility, and reliability makes the Servo Semi-automatic Press-fit Machine an invaluable asset for any organization aiming to achieve excellence in PCB connector assembly and overall product quality.
ข้อกำหนด
|
แบบอย่าง |
YT-1025B |
|
Max force |
2.5T |
|
Effective press stroke |
100 mm |
|
Control method |
Industrial PC+Servo motor |
|
Press speed |
0.05-30 mm/s |
|
Positional accuracy |
±0.01 mm |
|
Press force accuracy |
Fulfill: 1% of full scale, ±5% of target value, and CPK ≥ 1.67 |
|
Control logic |
Press force, displacement, speed, sampling, angle, delay time, etc. |
| Press block size |
150 x 50 mm |
| Worktable size |
550×750 mm |
| Throat depth |
300 mm |
| Air floatation support |
Yes |
| Safety protection device |
Light curtain |
| Positioning method |
Laser light |
| Power supply |
AC220V, 1000W |
| Size |
1000×750×1600 mm |

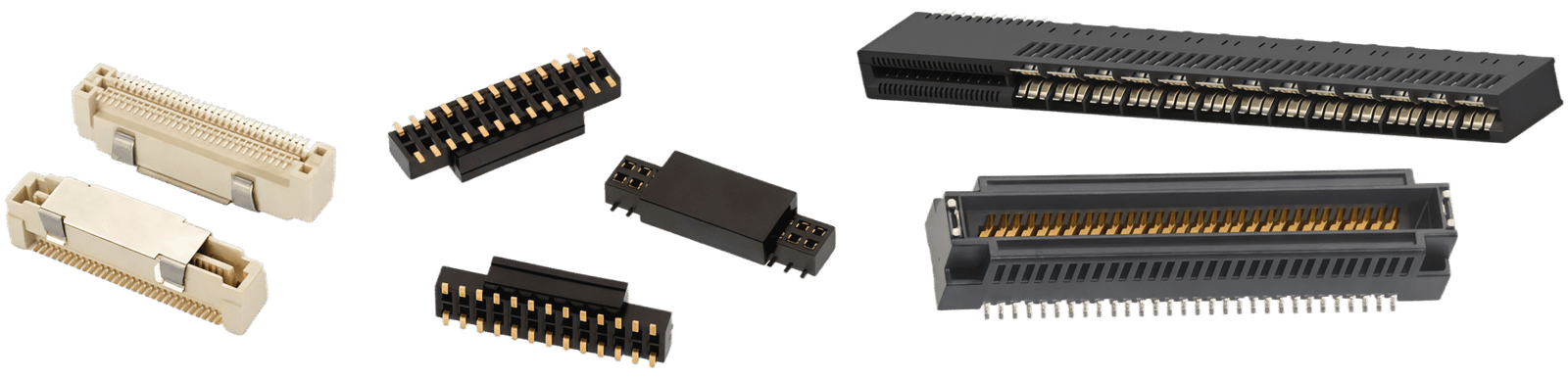

PCB Connectors
https://www.youtube.com/@allaismt
For more information about the Servo Semi-automatic Press-fit Machine, โปรดส่งอีเมลไปที่
เราจะตอบข้อสอบถามของคุณอย่างรวดเร็วและให้ข้อมูลโดยละเอียดเกี่ยวกับผลิตภัณฑ์และบริการของเรา.
