What sets the JUKI RS-1R Label Feeder apart is not just that it applies labels—it does so with the same positional repeatability expected of precision component feeding. The crepe tape disk subsystem operates on a calibrated torque-limiting clutch that prevents tape stretching during abrupt starts and stops, a failure mode that gradually throws off label indexing accuracy on budget feeder alternatives.
Facilities with lean manufacturing and limited floor space gain value by consolidating labeling into the JUKI RS-1R Label Feeder platform. Power supply builders stamping output rating labels, IoT gateway producers applying MAC address stickers, and home appliance PCB lines encoding model and date codes all eliminate the need for separate labeling stations, reducing labor costs and floor space. The feeder accepts standard label reels with core diameters from 38 mm to 76 mm without adapters. Its forward-reverse jog function allows quick recovery from feed misalignment, preventing label waste and downtime. This streamlined solution improves efficiency across various industries while maintaining high production throughput.
Yinuo Electronics is China’s largest custom feeder exporter and manufacturer, with highly competitive pricing, fast delivery, and very reliable quality. Our website is: www.esmte.com | Contact email: info@allaismt.com | Video channel: https://www.youtube.com/@allaismt/videos | WhatsApp: +8613760481664

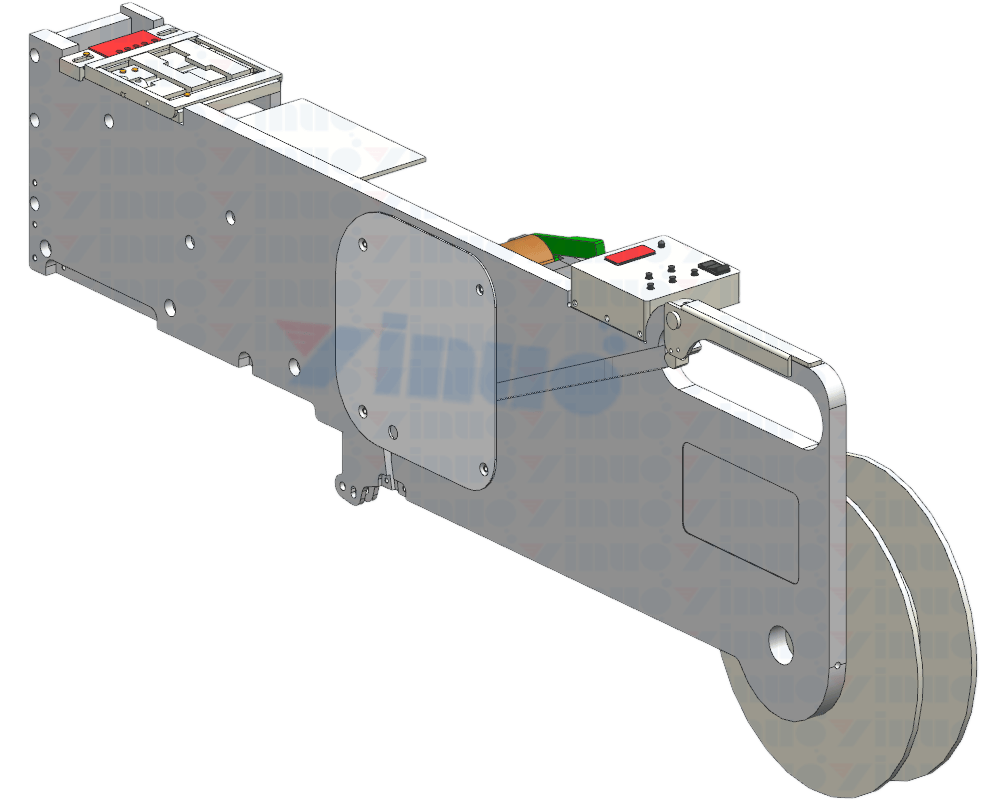

JUKI RS-1R-1 Label Feeder
How Crepe Tape Disks Are Applied in the JUKI RS-1R Label Feeder
Every label feeder faces one core task: separate the label from its carrier and deliver it accurately to the nozzle. The JUKI RS-1R Label Feeder solves this by building its mechanism around crepe tape disk technology. The key is crepe paper’s directional flexibility—it bends across its grain but resists stretching along it. The RS-1R orients its peel edge parallel to this axis, so the carrier conforms around the edge while the label stays rigid and lifts cleanly. Feeders calibrated for smooth tapes cannot replicate this dynamic, which is why retrofitted solutions underperform. That co-optimization from day one delivers repeatable feeding across every label format on the machine.
This material-aware design reveals its value when production demands change. An operation running consumer electronics boards one week and industrial control assemblies the next will typically use different label suppliers with different face stocks and adhesive formulations. On the JUKI RS-1R Label Feeder, both product lines feed through the same machine configuration because the crepe carrier—not the face stock—dominates the mechanical behavior that the feeder responds to. The tape’s textured surface acts as a buffer layer, normalizing small differences between label types before they can affect registration accuracy.
Static electricity presents one notable challenge inherent to crepe paper: more surface texture against metal guides means more frictional charge generation per unit of travel. The JUKI RS-1R Label Feeder counters this by embedding dissipation directly into the surfaces that contact the crepe tape from reel to peel exit. Rather than applying a generic ESD solution, the feeder targets exact points where charge accumulates and neutralizes it locally. Operators on battery management systems, LED lighting modules, and home appliance PCBs report that seasonal humidity swings no longer produce noticeable changes in feed reliability experienced with previous equipment.
Crepe Tape
Application Scenarios of Crepe Tape Disks in PCB Assembly
| Application Scene | คำอธิบาย |
|---|---|
| SMT Inline Labeling | Labels applied during pick-and-place cycle on the same machine as component placement, eliminating offline labeling stations |
| Pre-Reflow Labeling | Labels placed before reflow oven; must withstand soldering temperatures without lifting, discoloring or adhesive degradation |
| Post-AOI Inspection Marking | Pass/fail traceability tags applied after automated optical inspection for quality documentation and defect tracking |
| Traceability & Serialization | Unique serial numbers, QR codes, or data matrix labels assigned to each board unit for full lifecycle tracking from assembly to field service |
| WIP Progress Tracking | Work-in-process status labels indicating which assembly stages a PCB has completed in multi-station production lines |
| Inventory Management | Barcode labels scanned at each material handling point for real-time stock visibility and logistics coordination |
| Regulatory Compliance Marking | UL, CE, FCC, RoHS certification labels required before product shipment to meet regional market entry standards |
| Anti-Counterfeiting / Security | Tamper-evident, void-pattern, or holographic labels preventing unauthorized board replacement or warranty fraud |
| ESD Protection Identification | Static-sensitive warning labels marking boards containing components vulnerable to electrostatic discharge during handling |
| Brand & Model Identification | OEM logos, model numbers, and product branding visible through enclosure windows or during servicing |
| Test & Calibration Recording | Write-on or printed labels capturing factory test values, calibration dates, and pass-fail results at final QC stage |
| Conformal Coating Masking | Temporary mask labels protecting connectors, test points, and keep-out areas during conformal coating application |
| RMA & Field Service Support | Service labels with repair history, part number references, and return authorization info for aftermarket maintenance |
| High-Mix Low-Volume Production | Quick label format changeover between different product batches without hardware reconfiguration on the feeder |
Crepe Tape
