Он Pneumatic Semi-automatic Press-fit Machine combines industrial-grade durability with operator-friendly controls to maximize throughput. The high-strength pneumatic cylinder delivers consistent insertion force cycle after cycle, while hardened steel guide rails maintain perfect vertical alignment to eliminate off-angle pressing. With a rapid cycle time and minimal maintenance requirements, this machine keeps production lines moving.
Safety and ease of use are core to the design. Dual-hand start buttons prevent accidental activation, and the transparent safety shield provides clear visibility without compromising protection. A digital pressure readout enables precise monitoring, and the modular tooling plate accepts custom fixtures for specialized applications, ensuring flexibility across diverse production requirements.
The semi-automatic workflow accelerates assembly compared to fully manual methods while retaining the control that fully automated systems lack. This practical balance makes the machine an ideal choice for electronics manufacturers seeking to improve insertion quality and operator efficiency without a complex integration process.

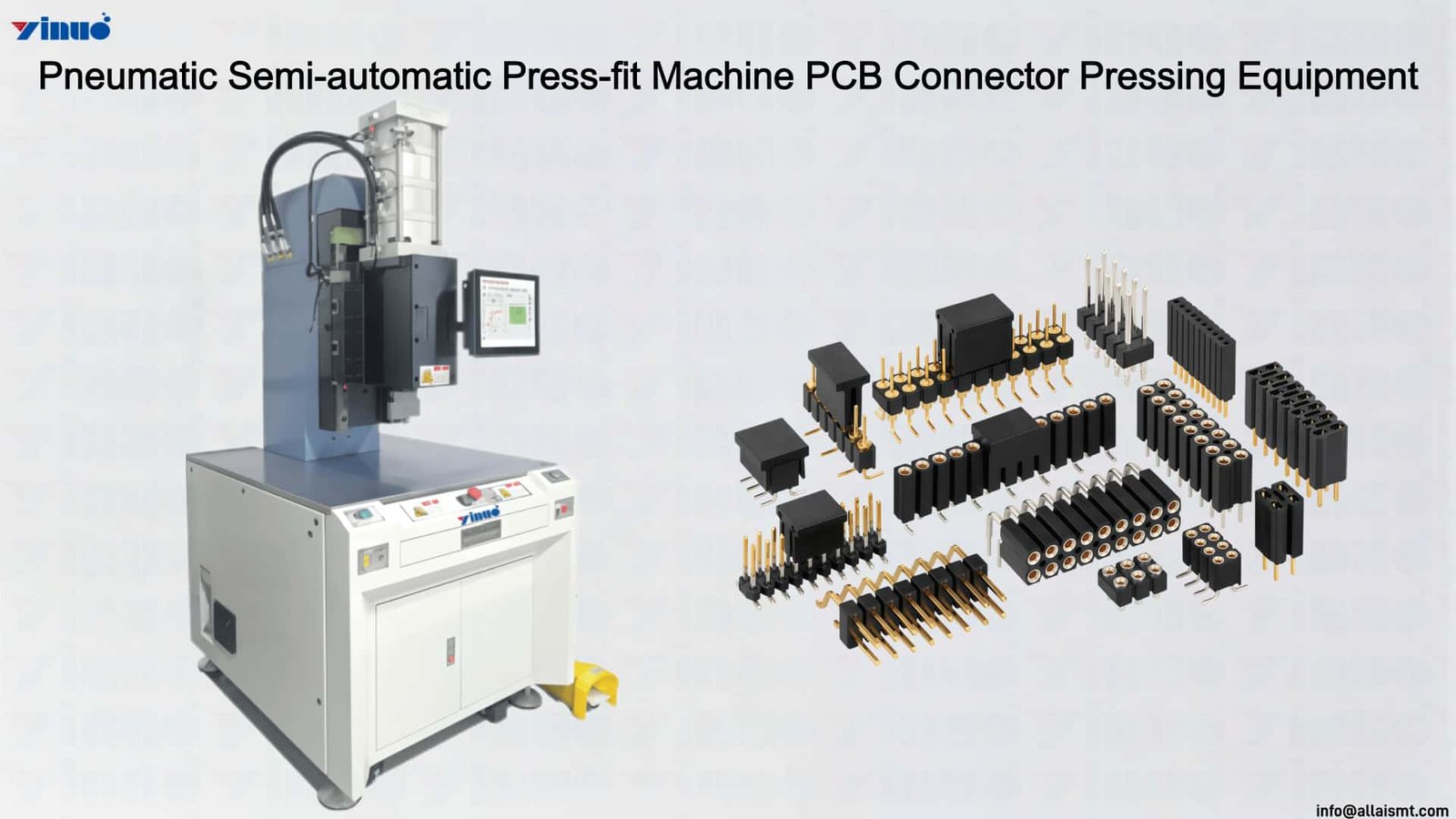

Pneumatic Semi-automatic Press-fit Machine
How to Press-Fit PCB Connectors with a Pneumatic Semi-automatic Press-fit Machine
Он Pneumatic Semi-automatic Press-fit Machine revolutionizes the assembly of PCB connectors through its advanced pneumatic technology, which ensures consistent and precise pressure application. When fitting connectors onto printed circuit boards, the machine utilizes a controlled pneumatic force that guarantees accurate alignment and secure attachment. This precise mechanism minimizes the risk of damage to sensitive electronic components, making it especially suitable for high-stakes applications where reliability is critical.
Additionally, the machine’s semi-automatic operation enhances productivity by significantly reducing cycle times. Operators can efficiently set parameters for different connector types, allowing for quick changeovers between production runs. This adaptability is crucial in today’s fast-paced manufacturing environments where flexibility and speed are essential. The Pneumatic Semi-automatic Press-fit Machine not only offers exceptional performance but also elevates the overall quality of PCB assemblies, ensuring that each connection meets the highest standards of reliability and excellence.
PCB Connectors2
Технические характеристики
|
Модель |
YT-1025A |
|
Max. press force |
2.5T |
|
Control method |
All-in-one PC+PLC+Cylinder |
|
Effective press stroke |
15 mm |
|
Height control |
Servo motor |
|
Press speed |
0.1~9.9 s |
|
Positional accuracy |
±0.01 mm |
|
Press force accuracy |
±5% |
| Control logic |
Press force, displacement, speed, sampling, angle, delay time, etc. |
| Press block size |
80*25 mm |
| Worktable size |
860×750 mm |
| Air floatation support |
Yes |
| Safety device |
Emergency stop button |
| Positioning method |
Manual positioning |
| Power supply |
AC220V,500W |
| Размер |
750x930x1600 mm |

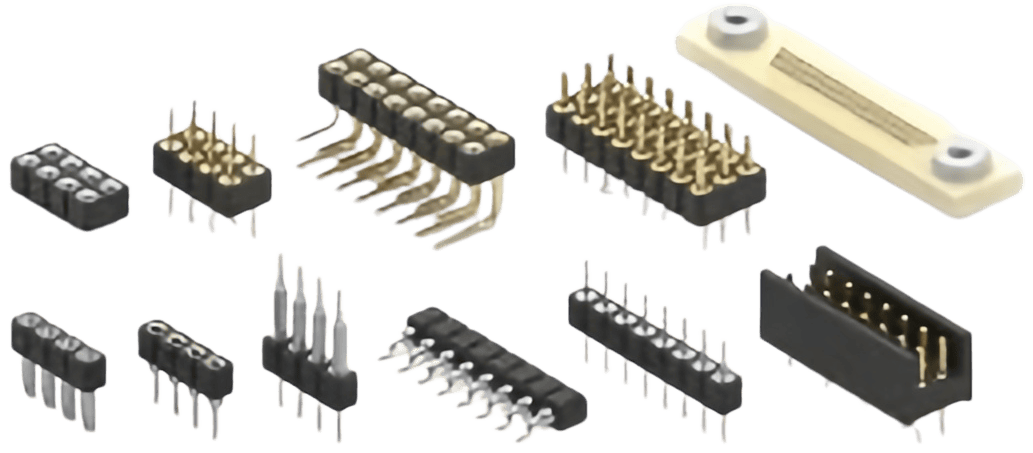

PCB Connectors1
https://www.youtube.com/@allaismt
For more information about the Pneumatic Semi-automatic Press-fit Machine, Пожалуйста, отправьте электронное письмо по адресу:
Мы оперативно ответим на ваш запрос и предоставим вам подробную информацию о наших продуктах и услугах.
