Introdução
In modern electronics manufacturing, smooth and precise PCB handling is essential for maintaining high productivity and product quality. The Ajuda a otimizar o fluxo de trabalho de SMT e melhorar a produtividade da produção is designed to streamline the loading process in SMT production lines by providing automated, magazine-based PCB handling.
The loader supports magazine storage, allowing multiple PCBs to be loaded and fed into assembly or inspection machines in a controlled and efficient manner. This reduces manual handling, minimizes the risk of PCB damage, and ensures a continuous, stable workflow. Its design accommodates a wide range of PCB sizes, offering flexibility for various production requirements.
Built with durable materials and a robust structure, the PCB Handling Magazine Loader delivers reliable performance even under continuous operation. Its compact footprint allows for easy integration into existing SMT lines, while the user-friendly interface simplifies operation and maintenance, reducing downtime and improving overall line efficiency.
Ao incorporar o Ajuda a otimizar o fluxo de trabalho de SMT e melhorar a produtividade da produção, manufacturers can achieve smoother PCB transitions, enhanced production efficiency, and consistent product quality. It is an essential solution for electronics factories seeking precise, reliable, and high-performance PCB loading equipment.
Principais características
-
User-friendly interface for easy parameter settings
-
Low-maintenance mechanical components ensure long service life
-
Supports seamless connection to printers, mounters, and AOI machines
-
Stable lift platform guarantees consistent PCB output height
-
Helps optimize SMT workflow and improve production throughput

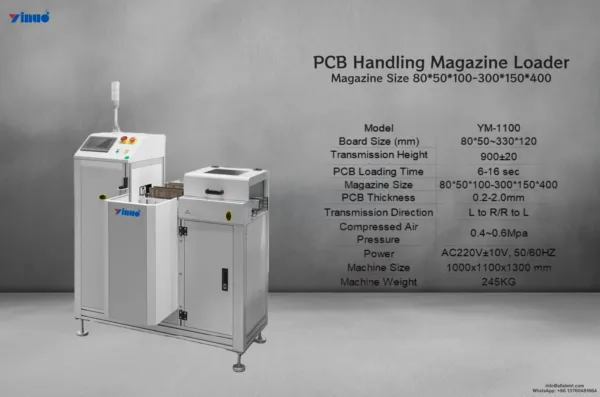

Especificações
| Modelo | YM-1100 |
| Board Size (mm) | 80*50~330*120 |
| Transmission Height (mm) | 900±20 |
| PCB Loading Time | 6-16 sec |
| Magazine Size | 80*50*100-300*150*400 |
| Espessura da placa de circuito impresso | 0.2-2.0mm |
| Transmission Direction | L to R/R to L |
| Compressed Air Pressure | 0.4~0.6Mpa |
| Poder | AC220V±10V, 50/60HZ 450W |
| Machine Size | 1000х1100х1300 mm |
| Machine Weight | 245KG |
