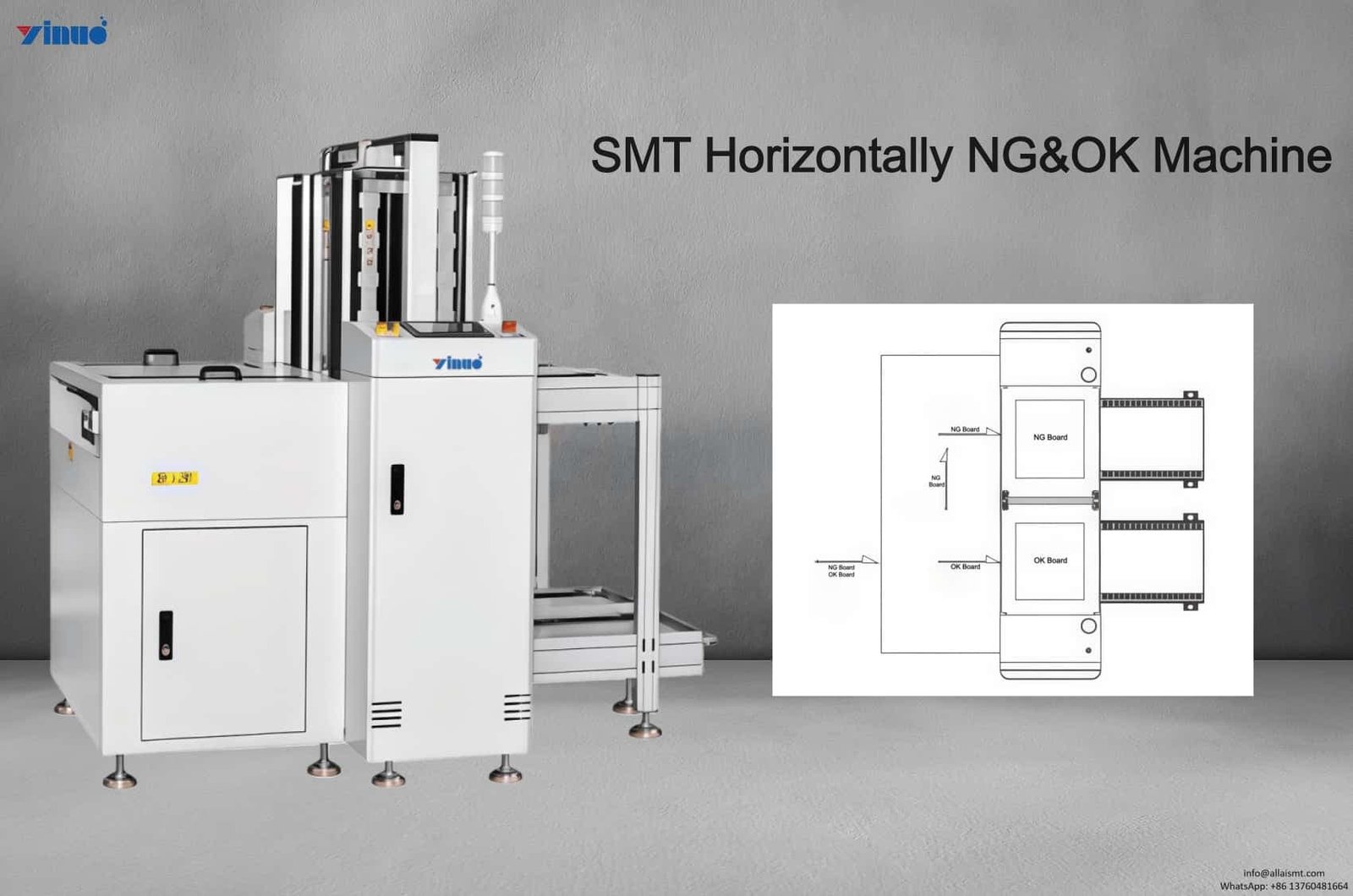

SMT Poziomo Maszyna NG&OK YNO-460
Opis: SMT Horizontally NG & OK Machine is a compact and efficient automation solution designed for PCB quality sorting in electronics manufacturing environments, including medical electronics factories. Installed after inspection or testing processes, it automatically separates NG and OK boards through a horizontal transfer mechanism, ensuring accurate classification and stable board handling. By reducing manual intervention and preventing mixing of qualified and defective PCBs, the machine improves production efficiency, strengthens quality control, and supports the high reliability and traceability requirements of medical electronics manufacturing lines.
Minimalna ilość zamówienia: 1 szt.
Czas realizacji zamówienia: 15 dni
Wstęp
Ten SMT Horizontally NG & OK Machine is an automation solution designed for accurate PCB sorting and quality control in electronics manufacturing, especially in medical electronics factories where reliability and traceability are essential. It is installed after AOI, SPI, or functional testing stations to automatically separate NG and OK boards without interrupting production flow.
Using a stable horizontal transfer mechanism, the SMT Horizontally NG & OK Machine ensures smooth and precise board movement during sorting. This controlled handling reduces vibration and mechanical stress, protecting sensitive components and densely populated PCBs commonly used in medical electronics products.
By replacing manual sorting, the system lowers labor requirements and minimizes human error. Automated NG and OK separation prevents board mixing, improves process consistency, and strengthens overall quality assurance.
With flexible interfaces and easy integration into SMT lines and inspection equipment, the SMT Horizontally NG & OK Machine supports efficient workflow optimization. Its compact design and stable performance help medical electronics factories improve productivity while maintaining strict manufacturing and compliance standards.
How the SMT Horizontally NG & OK Machine Is Applied in Medical Electronics Factories
-
Post-Inspection PCB Sorting
Installed after AOI, SPI, or functional testing to automatically classify PCBs as NG or OK in medical electronics factories. -
Horizontal Board Separation
Uses a stable horizontal transfer mechanism to direct OK boards forward and separate NG boards efficiently. -
Smooth and Controlled Handling
Minimizes vibration and mechanical stress, protecting sensitive and densely populated medical PCBs. -
Reduced Manual Intervention
Replaces manual sorting to lower labor dependency and reduce human error. -
Prevention of Board Mixing
Ensures clear NG and OK separation, improving process consistency and product reliability. -
Support for Quality and Traceability
Enhances quality control and traceability, helping medical electronics factories meet strict manufacturing and compliance standards.
Specyfikacje
| Model | YNO-250 | YNO-330 | YNO-390 | YNO-460 |
| Wymiary (mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1 magazine; Lower Conveyor:1 mazagine | |||
| Magazine Replacement Time | Approx.30 seconds or specify | |||
| Indexing Pitch | 10.20.30.40mm or specify | |||
| Zasilacz | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar,10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 310 | 340 | 370 | 400 |
