Wstęp
Ten ASM Radial Feeder is a high-efficiency solution tailored for the transportation and handling of vertical components in PCB assembly lines. Featuring a radial movement system, it ensures precise and gentle handling of components, significantly reducing the risk of damage or misalignment. The ASM Radial Feeder is engineered to streamline material flow, supporting faster production speeds while maintaining high accuracy. Its durable construction ensures long-lasting performance even in demanding, high-volume production environments, making it an invaluable tool for PCB manufacturers looking to optimize their workflows.
Yinuo Electronics, China’s leading custom feeder exporter and manufacturer, provides the ASM Radial Feeder with excellent value for money. Known for their fast delivery, competitive prices, and outstanding quality, Yinuo Electronics stands as a trusted partner for companies in the PCB manufacturing industry. With years of experience in supplying top-tier feeders, they ensure that the ASM Radial Feeder meets all necessary industry standards while providing unmatched reliability in high-volume operations.
For more details about the ASM Radial Feeder, visit Yinuo Electronics at www.esmte.com, email info@allaismt.com, or connect via WhatsApp at +8613760481664. You can also check out their product videos on YouTubefor a closer look at the ASM Radial Feeder in action.

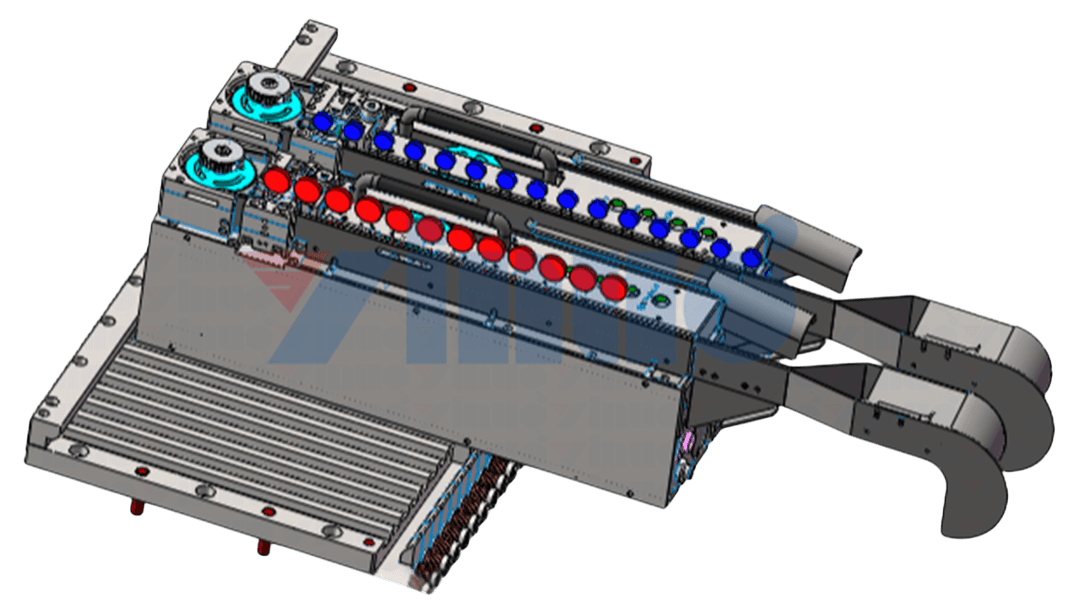

SMT Radial Feeder
ASM Radial Feeder – Compatible Machine Types
The ASM Radial Feeder is an essential addition to various PCB assembly machines, offering precise and efficient vertical component transfer. It is optimized for use with ASM Siplace pick-and-place machines, including the Siplace X and SX Series, which are known for their flexibility and high-speed performance. The ASM Radial Feeder feeds vertical components directly into these machines, ensuring minimal misalignment and smooth integration into the assembly line. This integration streamlines the PCB manufacturing process, improving the overall throughput and reducing downtime.
Beyond ASM Siplace machines, the ASM Radial Feeder is also compatible with other feeder types like the ASM Feeder Bank and ASM Tube Feeder, commonly used in high-volume and automated PCB production environments. These systems, when paired with the ASM Radial Feeder, benefit from precise, consistent, and rapid component delivery. Whether handling small or large components, the feeder adapts to various sizes and configurations, making it an ideal choice for PCB manufacturers seeking a reliable and efficient material handling solution.

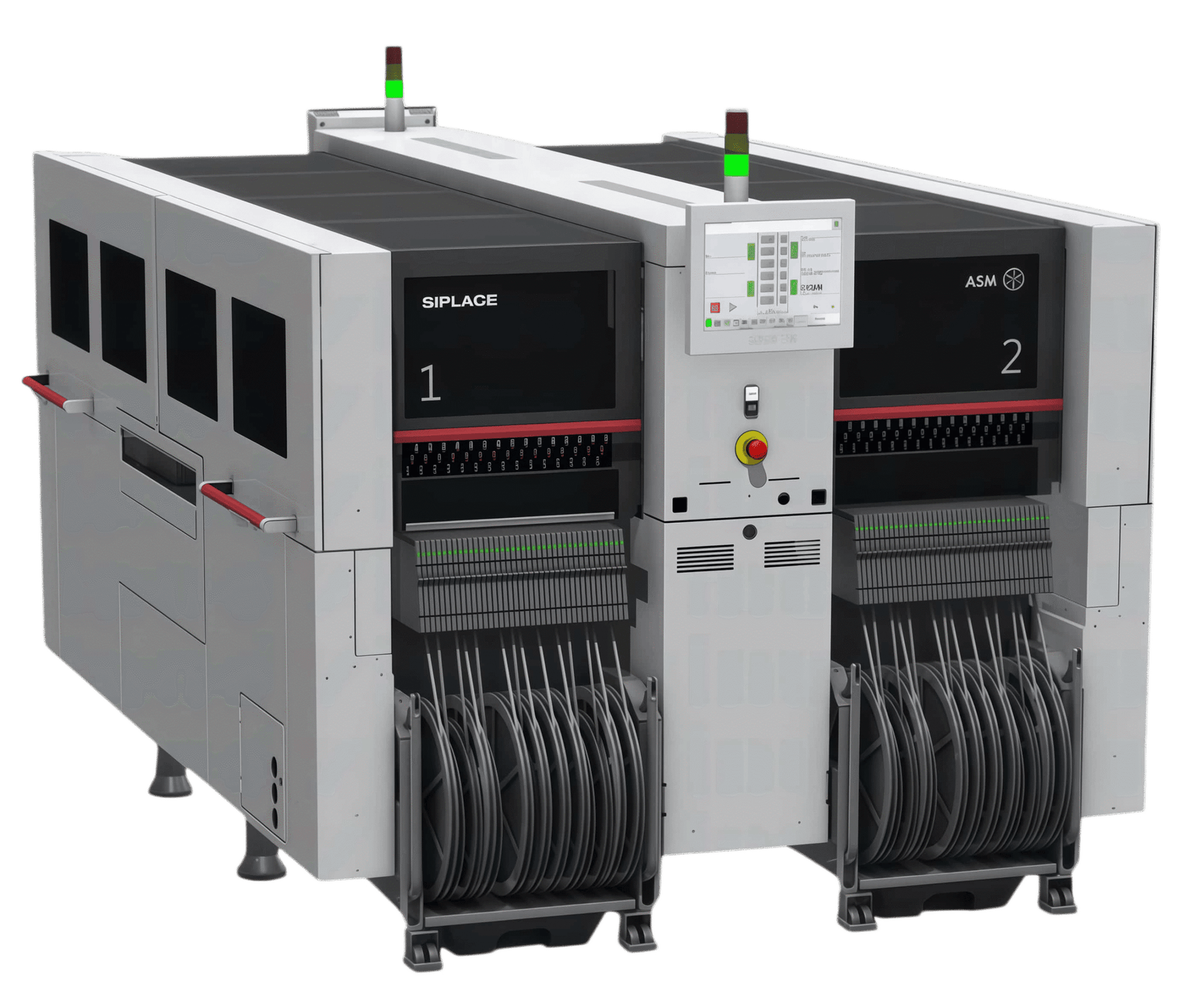

ASM Machine
ASM Radial Feeder – Compatible Radial Components

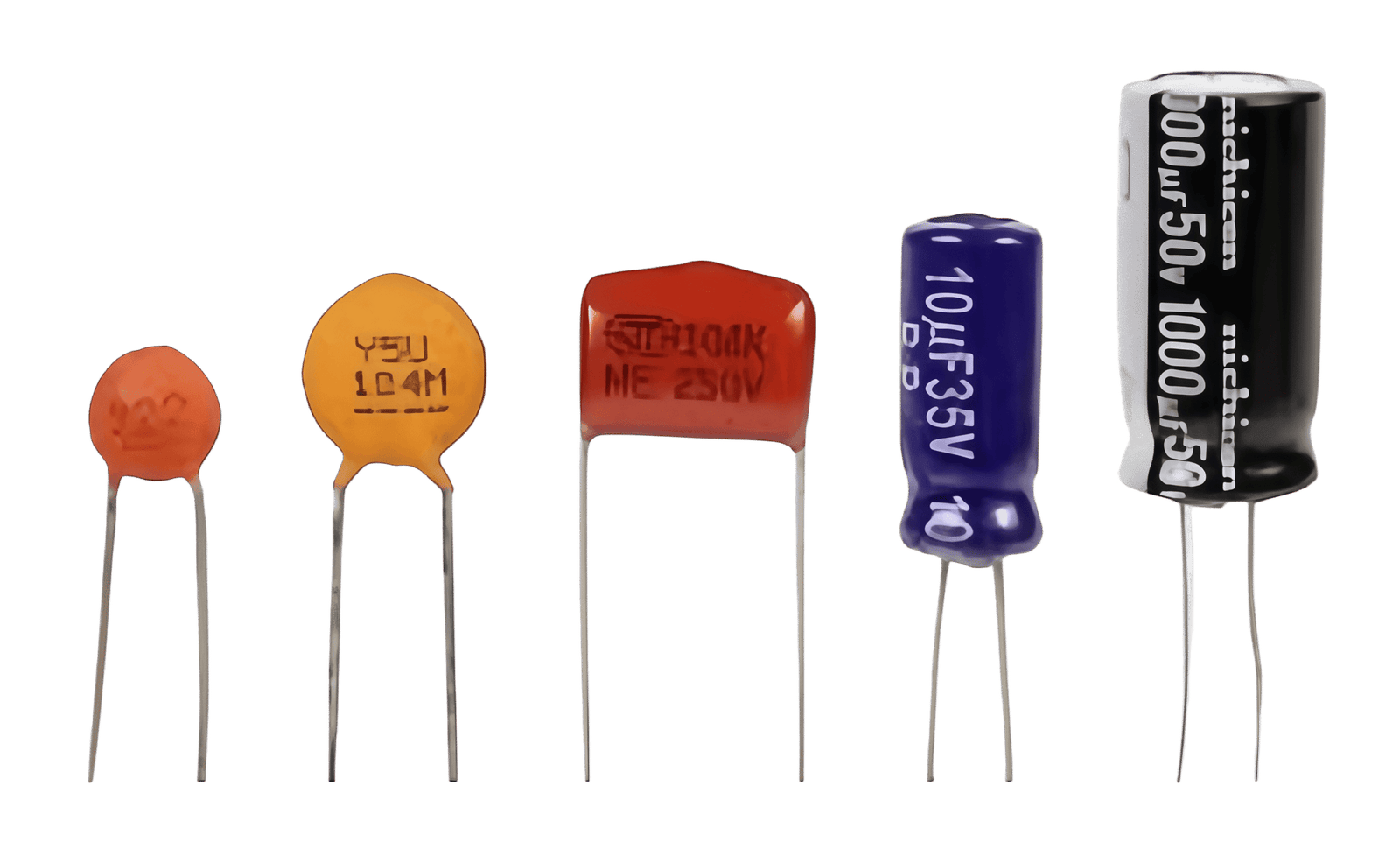

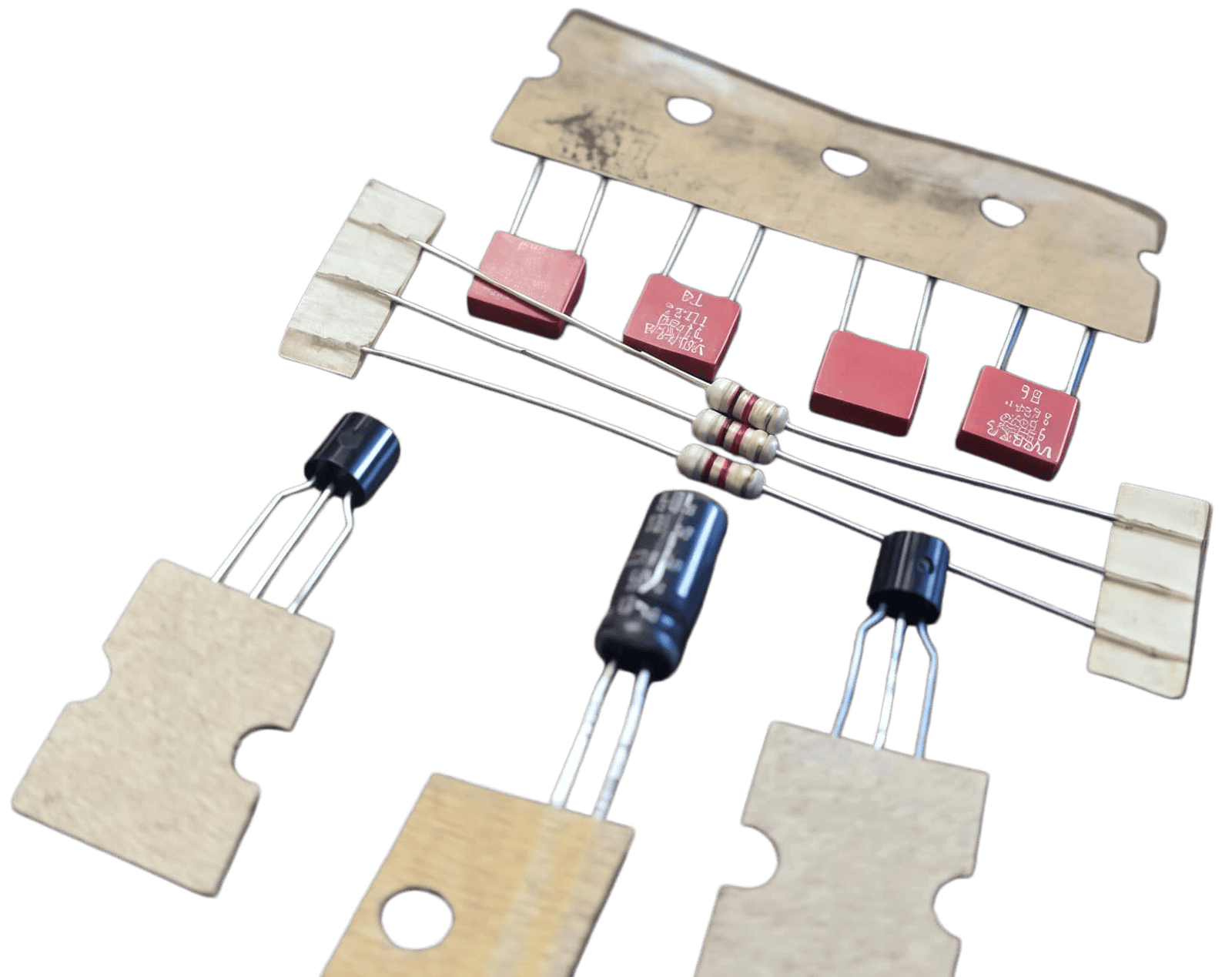

ASM Radial Feeders are primarily designed to handle vertical, radial-leaded electronic components, which are typically used in through-hole technology (THT) assembly processes. Common types include various forms of resistors, such as carbon film or metal film resistors, used for limiting current and dividing voltage; capacitors, including ceramic, electrolytic, and film types, which store electrical energy and filter signals; and diodes, which allow current to flow in one direction and are used for rectification or signal clipping. These components are characterized by their two or more leads extending radially from the component body, allowing them to be inserted vertically into a PCB.
The materials used in these vertical components vary depending on their function. Resistors often consist of a ceramic core with a resistive material like carbon or metal film, protected by an insulating coating, and feature tinned copper leads for soldering. Electrolytic capacitors typically use aluminum foils and a liquid electrolyte or polymer, encased in a metal can, while ceramic capacitors utilize ceramic dielectric materials. Diodes are fabricated from semiconductor materials, predominantly silicon, with metal leads for electrical connection. The choice of materials ensures the desired electrical properties, durability, and solderability required for reliable circuit operation.
Streszczenie
Ten ASM Radial Feeder is a vital tool in automated electronics manufacturing, specifically designed to handle vertical, radial-leaded components used in through-hole technology (THT) assembly processes. This feeder is compatible with various ASM pick-and-place machines, ensuring efficient and precise placement of components such as resistors, capacitors, inductors, diodes, and transistors. These components play crucial roles in electronic circuits, serving functions from current limiting and energy storage to signal amplification and rectification.
The materials used in these vertical components are selected for their electrical properties and mechanical durability. For instance, resistors may be made from carbon or metal film with ceramic cores, while capacitors often utilize aluminum or ceramic materials. Additionally, inductors are typically constructed with copper wire wound around magnetic cores, and semiconductor devices like transistors are predominantly made from silicon. The choice of materials not only enhances the performance and reliability of these components but also ensures compatibility with the soldering processes employed during PCB assembly. Overall, the ASM Radial Feeder significantly contributes to the efficiency and quality of electronic manufacturing by streamlining the handling and placement of essential vertical components.
https://www.youtube.com/@allaismt
For more information about the ASM Radial Feeder, proszę wysłać e-mail na adres
Szybko odpowiemy na Twoje zapytanie i udzielimy Ci szczegółowych informacji o naszych produktach i usługach.
