소개

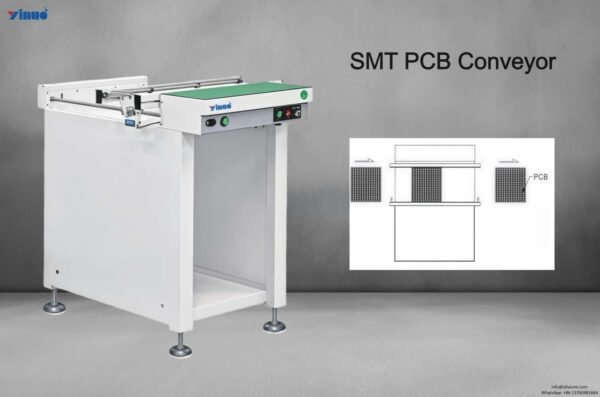

그만큼 SMT PCB Conveyor is a key automation solution for smartphone electronics factories, ensuring reliable and continuous transfer of PCBs across SMT production lines. Positioned between processes such as solder paste printing, component placement, reflow soldering, and inspection, it maintains smooth board flow, minimizing disruptions in high-speed assembly operations.
Its guided rail system and controlled drive mechanisms reduce vibration and positional deviation, protecting sensitive components including processors, camera connectors, and fine-pitch ICs. Adjustable rail widths and configurable speed settings accommodate multiple PCB sizes and smartphone models, supporting high-mix production lines with frequent changeovers.
By integrating with upstream storage and downstream assembly equipment, the SMT PCB Conveyor synchronizes line operations, preventing bottlenecks and idle time. Designed for long-duty cycles, it provides smartphone factories with a dependable, stable, and high-throughput solution for automated PCB handling.
How SMT PCB Conveyors Are Applied in Smartphone Electronics Factories
-
Line Connectivity
SMT PCB conveyors link solder paste, component placement, reflow, and inspection processes, ensuring smooth, continuous PCB flow in smartphone production. -
Controlled Board Transport
Guided rails and stable drive systems reduce vibration and deviation, protecting delicate components like processors, connectors, and fine-pitch ICs. -
Component Protection
Minimized mechanical impact preserves solder joints and assembly accuracy, essential for densely populated, high-reliability smartphone PCBs. -
Flexible Model Adaptation
Adjustable rails and configurable parameters accommodate different PCB sizes and smartphone models, supporting high-mix, fast-change production lines. -
Automated Workflow Integration
Conveyors synchronize with upstream and downstream equipment, preventing bottlenecks, idle time, and enabling efficient, continuous SMT operations.
명세서
| 모델 | YC-500 | YC-600 | YC-800 | YC-1000 | YC-1200 | YC-1500 | YC-2000 | YC-2500 |
| 치수(mm) | 500*850*920 | 600*850*920 | 800*850*920 | 1000*850*920 | 1200*850*920 | 1500*850*920 | 2000*850*920 | 2500*850*920 |
| PCB Size(mm) | 50*50-445*460 | |||||||
| Belt Type | Round Belt or Oblate Belt | |||||||
| Conveying Speed | 0.5-20M/min or customer specified | |||||||
| Power Supply | AC 1P 110V/220V; Max 100VA | |||||||
| Transport Height | 900±20mm(or customized) | |||||||
| Transport Direction | From left to right or right to left | |||||||
| Weight(KG) | 80 | 85 | 90 | 95 | 105 | 110 | 240 | 260 |
