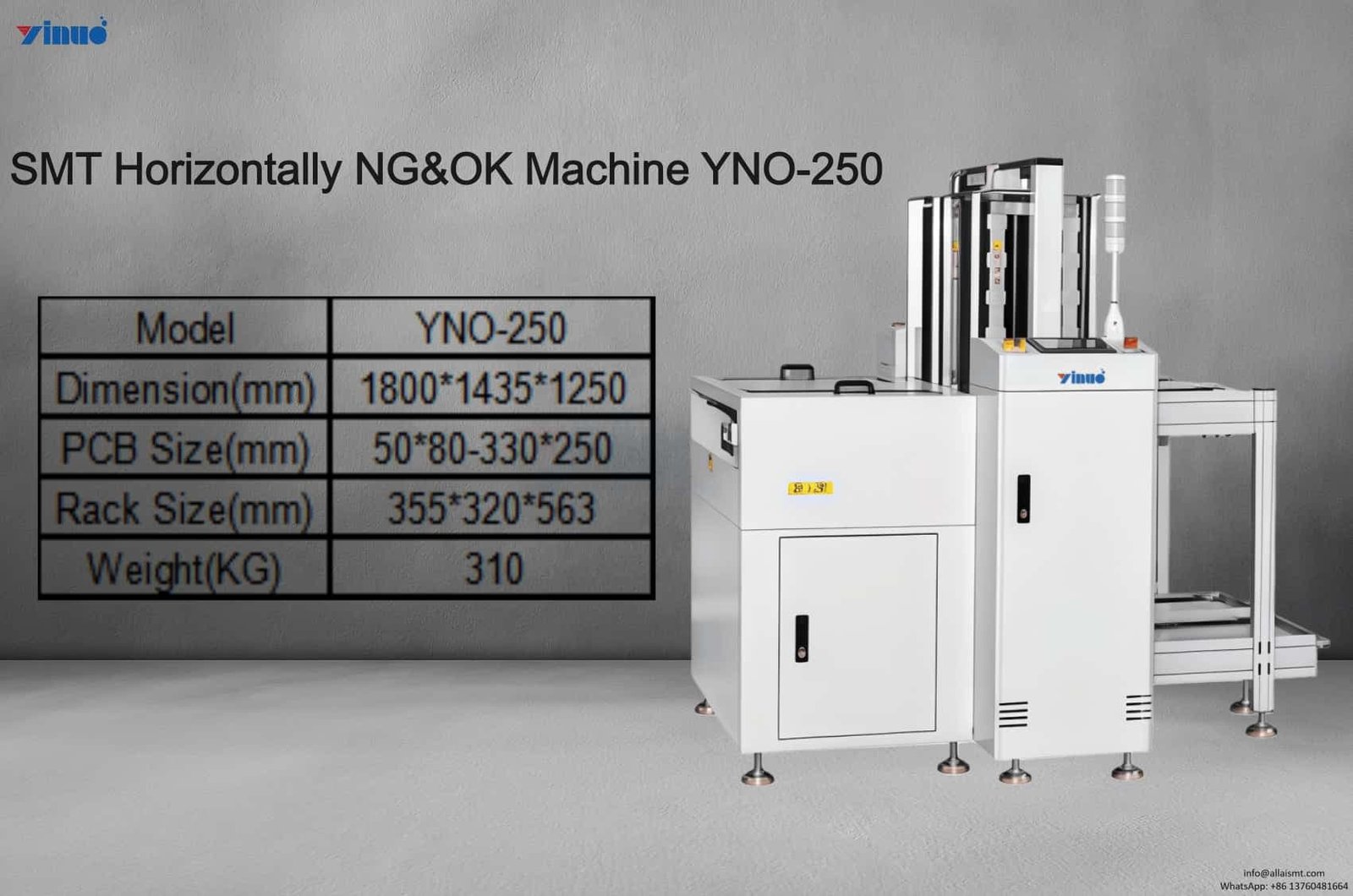

SMT Horizontally NG&OK Machine YNO-250
설명: SMT Horizontally NG & OK Machine YNO-250 is an automated solution designed for efficient PCB sorting and collection in electronics factories. Installed after inspection or testing stations, it automatically separates NG and OK boards using a horizontal transfer mechanism, ensuring smooth workflow and accurate classification. By reducing manual handling, the machine improves production efficiency, prevents board mixing, and protects sensitive components, making it ideal for high-reliability electronics manufacturing environments.
최소 주문 수량: 1개
소요 기간: 15일
소개
그만큼 SMT Horizontally NG & OK Machine YNO-250 is an advanced automation system for PCB sorting and collection in electronics factories. Installed after AOI, SPI, or functional testing stations, it automatically separates NG and OK boards using a stable horizontal transfer mechanism, ensuring accurate classification and smooth production flow.
Designed with controlled motion and guided transfer structures, the SMT Horizontally NG & OK Machine YNO-250 minimizes vibration and mechanical stress, protecting sensitive and densely populated PCBs. This gentle handling is essential for electronics manufacturing environments that require high reliability and component integrity.
By replacing manual sorting, the machine reduces labor and human error, prevents board mixing, and improves process consistency. With flexible integration into SMT lines, compact design, and precise operation, the SMT Horizontally NG & OK Machine YNO-250 enhances workflow efficiency, safeguards PCB quality, and supports reliable production outcomes.
어떻게 SMT Horizontally NG & OK Machine YNO-250 Is Applied in Mobile Phone Electronics Factories
-
Post-Inspection PCB Sorting
Installed after AOI, SPI, or functional testing, the Horizontally NG & OK Machine YNO-250 automatically separates OK and NG PCBs from mobile phone assembly lines, ensuring accurate classification. -
Stable Horizontal Transfer
The machine uses a horizontal conveying mechanism to guide OK boards to the next production stage while directing NG boards to a dedicated output, maintaining smooth and orderly workflow. -
Protection of Sensitive Components
Gentle handling minimizes vibration and mechanical stress, protecting delicate mobile phone PCBs with densely populated ICs, connectors, and surface-mount devices. -
Reduced Manual Labor
Automating NG and OK separation lowers labor dependency, reduces human error, and prevents misclassification or cross-mixing of boards. -
Enhanced Process Consistency
Continuous automatic sorting improves production stability, ensuring uniform handling and reliable workflow across mobile phone PCB lines. -
Support for Quality Control and Traceability
Automated classification enhances traceability of defective boards, helping mobile phone factories meet strict quality and regulatory standards.
명세서
| 모델 | YNO-250 | YNO-330 | YNO-390 | YNO-460 |
| 치수(mm) | 1800*1435*1250 | 2065*1690*1250 | 2330*1810*1250 | 2330*1950*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1 magazine; Lower Conveyor:1 mazagine | |||
| Magazine Replacement Time | Approx.30 seconds or specify | |||
| Indexing Pitch | 10.20.30.40mm or specify | |||
| Power Supply | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar,10ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 310 | 340 | 370 | 400 |
