What sets the FUJI NXT Label Feeder apart is its ability to deliver consistent, high-speed label placement without sacrificing accuracy. Designed for inline integration with the FUJI NXT platform, the feeder operates as a fully automated component of the SMT line, applying labels to PCBs at programmed positions with tight repeatability. Its reel-based feeding system maintains steady label advance throughout each cycle, ensuring every placement lands exactly where it should on every board that passes through.
The feeder’s performance profile is built for demanding production environments. Its closed-loop drive control regulates label tension continuously, reducing feed errors that can lead to skewed or missed placements. The placement head operates with high positional accuracy, and the feeder supports rapid cycle times suitable for high-volume assembly operations. Compatibility with aluminum foil labels is a standard feature — the feeder’s mechanics accommodate the rigidity of foil substrates without requiring special tooling or parameter adjustments.
For manufacturers running FUJI NXT lines, the label feeder adds reliable automated labeling capability without disrupting existing workflow. We are Yinuo Electronics, China’s largest custom feeder exporter and manufacturer, offering this feeder with competitive pricing and fast delivery. Reach us at www.esmte.com, info@allaismt.com, or WhatsApp: +8613760481664.

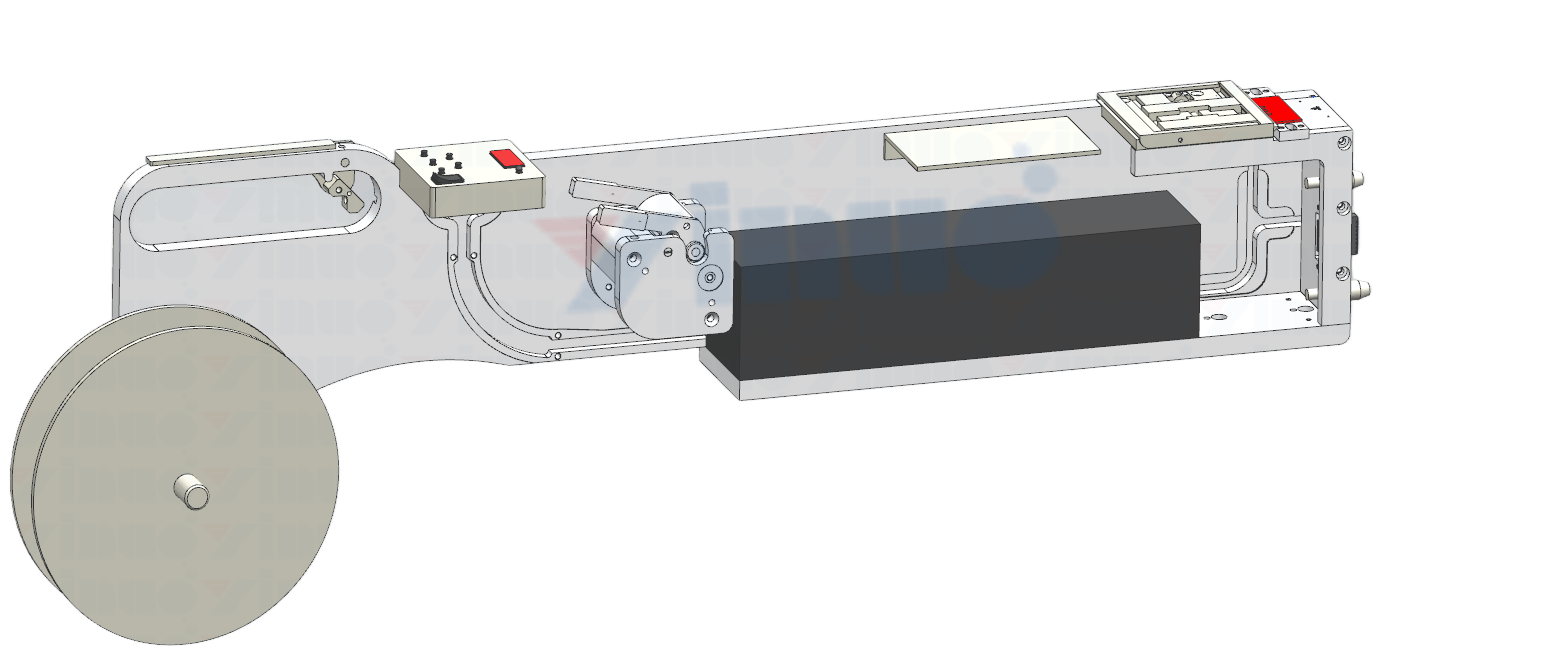

FUJI NXT Label Feeder
FUJI NXT Label Feeder Application of Aluminum Foil Labels
| Application Scenario | 전기 (폐쇄 루프 제어 스테퍼 모터) |
|---|---|
| PCB Serial Number Marking | Aluminum foil labels are widely used to mark unique serial numbers on PCBs for product identification and traceability. The FUJI NXT Label Feeder feeds each label from the reel and places it precisely at the designated location on the board, ensuring every serial number lands in the correct position for accurate tracking throughout the manufacturing and assembly process. |
| Batch Code & Lot Marking | Batch codes and lot numbers are essential for production tracking and quality control in SMT facilities. Applied via the FUJI NXT Label Feeder, aluminum foil labels are placed cleanly and durably on each PCB, surviving subsequent assembly processes without peeling or smearing, supporting reliable lot追溯 throughout the production chain. |
| Compliance & Certification Labeling | PCBs that require CE, UL, RoHS, or other regulatory certification marks benefit from the permanent marking provided by aluminum foil labels. The FUJI NXT Label Feeder applies these labels with high positional accuracy, ensuring compliance markings appear uniformly across all boards and meet the visual and placement standards demanded by regulatory audits. |
| Product Revision Identification | As PCB designs evolve through multiple revisions, aluminum foil labels carry revision codes to prevent assembly errors and ensure the correct version is used at every stage. The FUJI NXT Label Feeder places these labels at consistent coordinates on each board, making revision identification clear, fast, and reliable for operators on the production floor. |
| High-Temperature Process Labeling | Aluminum foil labels are engineered to withstand reflow soldering, wave soldering, and other high-temperature SMT processes. The FUJI NXT Label Feeder handles these heat-resistant labels with stable feeding mechanics, placing them on boards before or during thermal processing without causing label warping, discoloration, or adhesion failure. |
| Chemical Exposure Labeling | PCBs that undergo cleaning, conformal coating, or chemical flux treatment require labels that resist solvent and moisture damage. Aluminum foil labels applied by the FUJI NXT Label Feeder maintain their legibility and adhesion even when exposed to harsh chemicals, making them a durable marking solution for boards in demanding manufacturing environments. |
| Permanent Product Identification | For PCBs used in automotive, aerospace, and industrial applications, permanent identification is a critical requirement. Aluminum foil labels deliver long-term durability that outlasts the board itself. The FUJI NXT Label Feeder ensures each label is placed with precision and permanent adhesion, providing identification that holds throughout the product’s operational lifetime. |
| Warehouse & Logistics Labeling | Before PCBs leave the SMT line, they need clear identification for inventory management and logistics tracking. The FUJI NXT Label Feeder applies aluminum foil labels carrying barcodes, QR codes, or part numbers directly on the board surface. These labels remain securely attached through packaging, shipping, and storage, ensuring information remains readable at every stage of the supply chain. |
| Repair & Rework Tracking | During PCB repair or rework operations, aluminum foil labels help identify repaired boards and track which units have been serviced. The FUJI NXT Label Feeder can be used to place identification labels on repaired boards with the same accuracy and reliability as on new production, supporting clear documentation of the rework process. |
| Anti-Counterfeit Marking | Aluminum foil labels serve as an effective anti-counterfeit measure by providing permanent, tamper-resistant identification on PCBs. The FUJI NXT Label Feeder applies these labels with exact placement accuracy, making it difficult to remove or replicate markings without detection, protecting brand integrity and product authenticity throughout the market. |

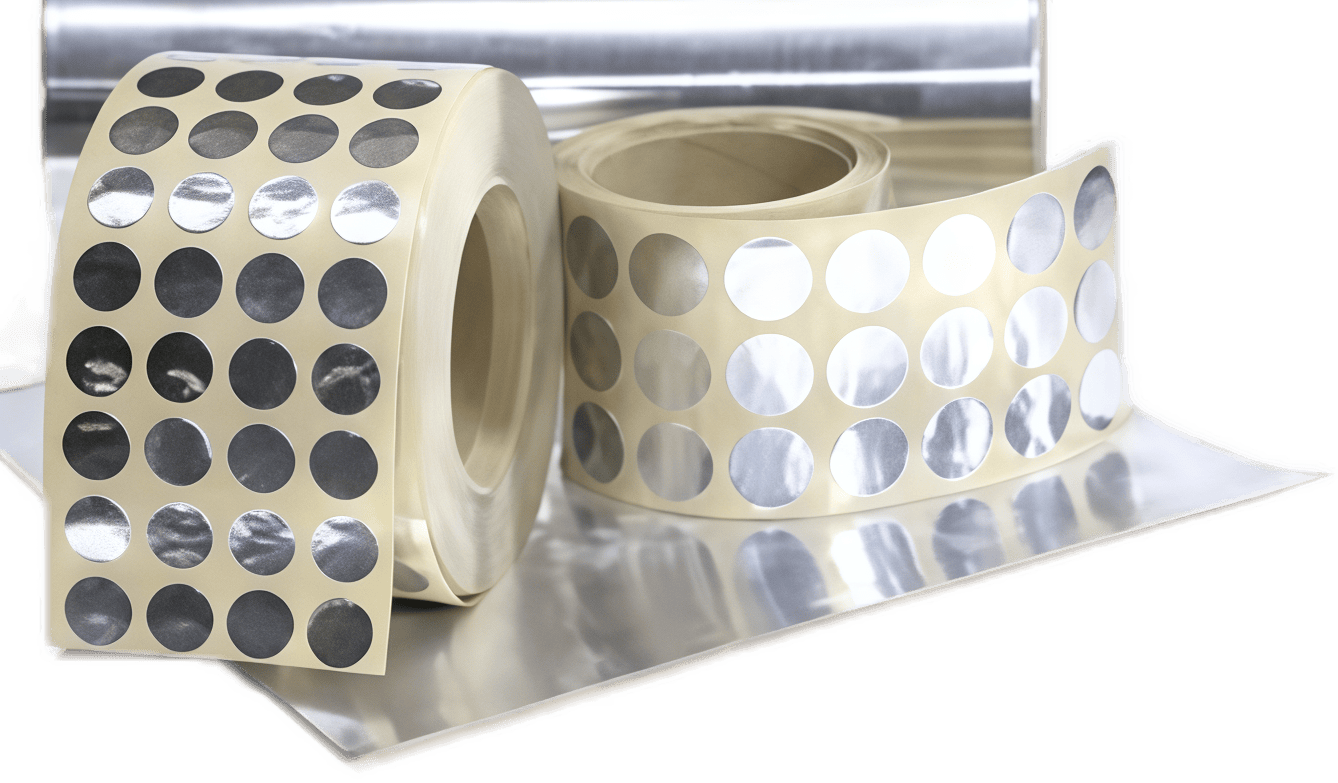

Aluminum Foil Labels
Aluminum Foil Labels for PCB Applications
| 유형 | 설명 | Primary Use in SMT PCB |
|---|---|---|
| Reflow-Safe Aluminum Foil Labels | Heat-resistant labels designed to survive reflow soldering temperatures (260°C+) without peeling, discoloration, or deformation | Marking PCBs before or after reflow; surviving full SMT assembly process |
| Wave Soldering Aluminum Foil Labels | Thicker foil construction with high-tack adhesive to withstand molten solder spray and wave temperatures | Identifying PCBs going through wave soldering processes |
| ESD-Safe Aluminum Foil Labels | Anti-static treated foil to prevent electrostatic discharge during handling and assembly | Labeling ESD-sensitive PCB assemblies and components |
| Kapton-Backed Aluminum Foil Labels | Aluminum foil laminated with Kapton (PI) film for superior thermal and chemical resistance | High-reliability electronics, aerospace, automotive PCB assemblies |
| SMT Placement-Compatible Aluminum Foil Labels | Labels supplied on tape reels compatible with standard SMT feeders (FUJI NXT, JUKI, etc.) for automated placement | Automated label placement in high-volume SMT production lines |
| Serial Number Aluminum Foil Labels | Pre-printed or blank labels used to apply unique serial numbers or batch codes to PCBs | Traceability, quality tracking, and product lifecycle management |
| 친환경 PCB 조립, 녹색 제조 규정 준수 | Labels printed with regulatory symbols (CE, UL, RoHS), certification marks, or vendor codes | PCB compliance verification and regulatory adherence |
| Color-Coded Aluminum Foil Labels | Colored coating on foil surface for visual identification of PCB versions, revisions, or product grades | Color-based PCB sorting, version control, and visual distinction |
| Transparent Overlaminate Aluminum Foil Labels | Aluminum foil labels with a transparent protective overlay for print protection | Preserving printed barcode or QR code legibility throughout PCB lifecycle |
| High-Adhesion Aluminum Foil Labels | Labels with enhanced adhesive formulated for low-surface-energy PCB materials, rough textures, or oily surfaces | Application on challenging PCB substrates or after conformal coating |
| Miniature Aluminum Foil Labels | Ultra-small foil labels (as small as 1mm × 2mm) for space-constrained PCB designs | Small-form-factor PCBs, microelectronics, dense component boards |
| Halogen-Free Aluminum Foil Labels | Labels manufactured without halogens to meet environmental and safety standards | Eco-friendly PCB assembly, green manufacturing compliance |

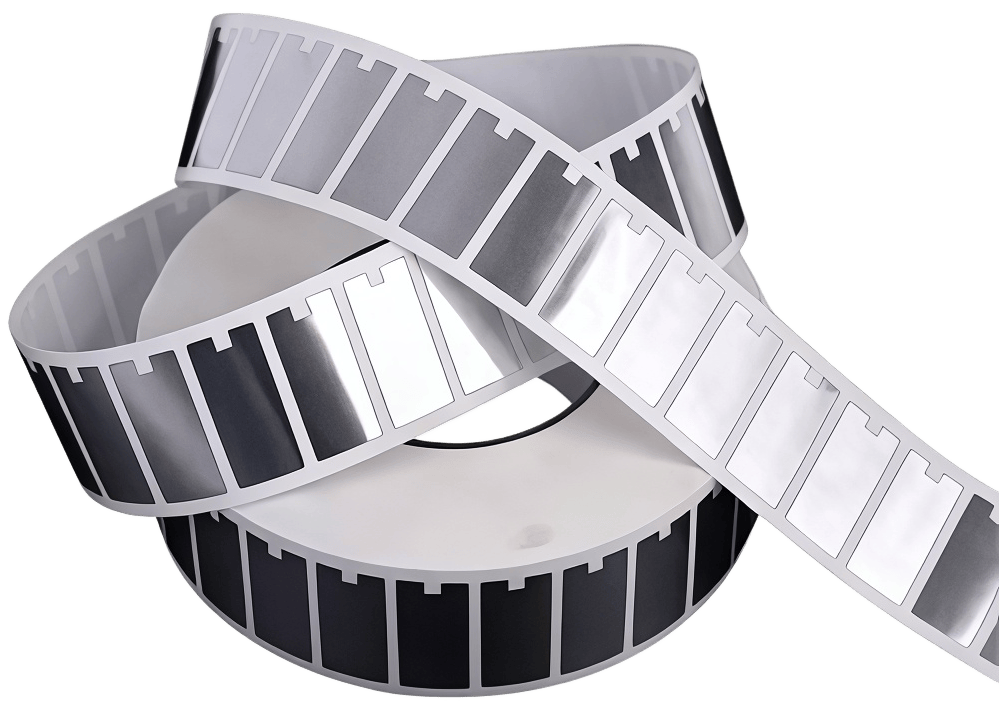

Aluminum Foil Labels
