YB-6000 THT Automatic Push Button Switch Insertion Machine Appliance Panel Assembly Line

導入

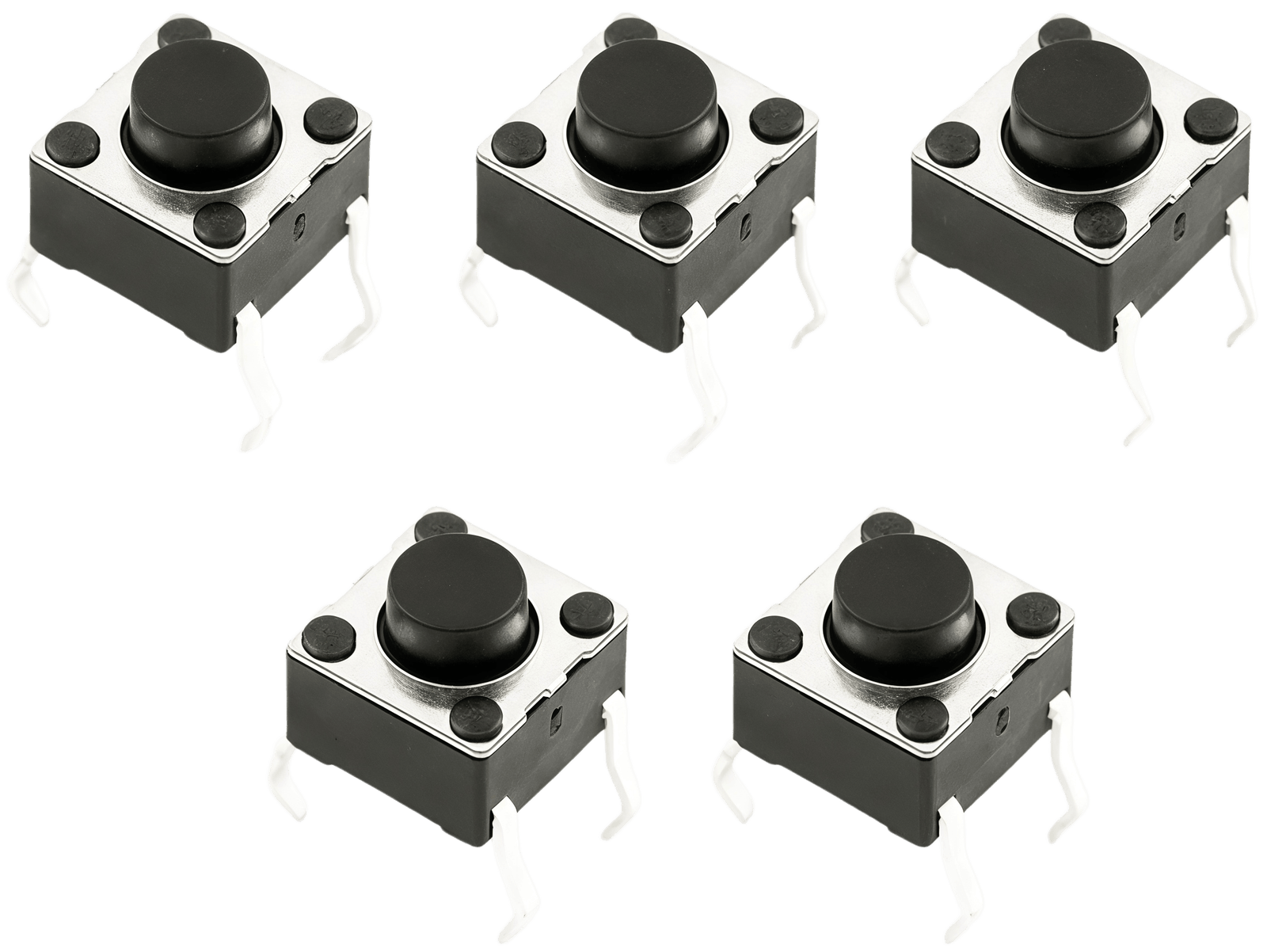

In the Appliance Panel Assembly Line, the YB-6000 Automatic Push Button Switch Insertion Machine is used to automate push button switch placement for a wide range of appliance and electronic panel products. Typical applications include washing machine, microwave, and air conditioner control panels, television and audio operating buttons, kitchen small appliance control boards, and remote control button modules. These assemblies often feature dense button arrangements and strict appearance requirements, making accurate switch insertion an important part of final product quality.

The YB-6000 improves the assembly process through guided switch supply, stable panel clamping, and precise pressing control. It helps ensure that switches are inserted firmly into the required positions while maintaining suitable alignment and consistent seating condition. This reduces defects such as tilted components, poor fitting, inconsistent pressing feel, and panel damage caused by manual operation. For manufacturers producing different panel types, the machine can be equipped with suitable tooling to support product changeover and maintain efficient line operation.

From a market standpoint, the YB-6000 fits the growing need for automation in appliance panel manufacturing. Brands and suppliers are under pressure to deliver products with better interface quality, faster production cycles, and lower defect rates. This machine helps meet those requirements by improving assembly stability and reducing dependence on operator skill. With its targeted function and adaptable design, the YB-6000 gives appliance panel factories a reliable way to enhance production capacity and build more consistent product quality.

Automatic Push Button Switch Insertion Machine

Applying the YB-6000 THT Automatic Push Button Switch Insertion Machine to Appliance Panel Assembly Lines

その YB-6000 THT Automatic Push Button Switch Insertion Machine is built for efficient, accurate insertion of push button switches into PCBs used in appliance panel assembly. Equipped with a servo-driven insertion mechanism, the machine delivers controlled insertion force with repeatable positional accuracy, ensuring each switch is placed at the correct depth and angle without component damage. The feeding system supports multi-channel input, allowing continuous supply of switches with minimal interruption during production runs.

In appliance panel assembly lines, the YB-6000 handles the varied switch formats commonly found in washing machine, air conditioner, and microwave oven control boards. Its programmable PLC control allows operators to store and recall insertion recipes for different panel layouts, reducing changeover time significantly. The vision alignment system verifies PCB positioning before each insertion cycle, eliminating misalignment errors that would otherwise require manual rework.

The machine operates within a compact footprint suitable for integration into existing conveyor-based assembly lines. Throughput rates are maintained at levels that match upstream and downstream equipment, preventing bottlenecks. Built-in diagnostics monitor insertion force, feeder status, and cycle counts in real time, enabling proactive maintenance scheduling. For manufacturers assembling high-volume appliance panels, the YB-6000 reduces per-board labor input while maintaining stable yield rates across extended production shifts.

仕様

https://www.youtube.com/@allaismt

For more information about the YB-6000 THT Automatic Push Button Switch Insertion Machine, 、メールをお送りください
