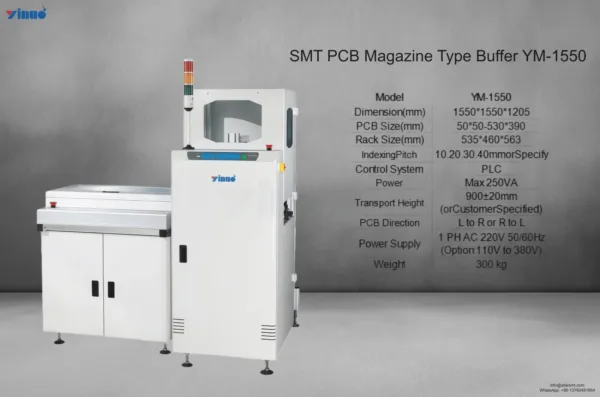

SMT PCB Magazine Type Buffer YM-1550（1）
Descrizione: Il SMT PCB Magazine Type Buffer YM-1550（1） is a high-performance buffering solution designed for efficient PCB handling in SMT production lines. It supports magazine-based PCB storage, allowing temporary accumulation and controlled release to streamline workflow between processes. Compact, durable, and easy to integrate, the YM-1550 prevents PCB congestion, ensures stable operation, and reduces the risk of board damage. It is an ideal choice for electronics manufacturers seeking reliable and efficient PCB buffering solutions.
Quantità minima ordinabile: 1 pezzo
Tempi di consegna: 15 giorni
Introduzione
Efficient PCB handling is essential for modern electronics manufacturing, where smooth workflow and minimal downtime directly impact productivity and product quality. The SMT PCB Magazine Type Buffer YM-1550（1） is designed to address these needs by providing reliable temporary storage and buffering for PCBs within SMT production lines.
The YM-1550 operates using a magazine-based system, allowing multiple PCBs to accumulate temporarily and be released in a controlled manner to match the pace of downstream processes. This ensures a stable and continuous workflow, reduces the risk of line congestion, and minimizes potential damage to boards. Its design accommodates a wide range of PCB sizes, offering flexibility for various production requirements.
Constructed with durable materials and a robust structure, the YM-1550 provides long-lasting performance even under continuous operation. Its compact design facilitates easy integration into existing SMT lines, while the user-friendly interface simplifies operation and maintenance, reducing downtime and improving overall efficiency.
Incorporando il SMT PCB Magazine Type Buffer YM-1550（1） into production lines, manufacturers can achieve smoother PCB transitions, enhance line efficiency, and maintain high standards of product quality. It is an essential solution for electronics factories seeking reliable, precise, and high-performance PCB buffering.
Caratteristiche principali
-
Smart PCB buffering preventing production bottlenecks
-
Rigid frame structure guaranteeing long-term mechanical stability
-
Intelligent sensor system recognizing magazine and PCB presence
-
Optimized insertion force protecting fragile PCBs
-
Modular design enabling fast maintenance
-
Compatible with multi-size PCBs used in SMT processes
Specifiche
| Modello | YM-1150 | YM-1350 | YM-1550 | YM-1780 |
| Dimensioni (mm) | 1150*1150*1205 | 1350*1350*1205 | 1550*1550*1205 | 1550*1780*1250 |
| Dimensioni PCB (mm) | 50*50-330*250 | 50*50-445*330 | 50*50-530*390 | 50*80-530*460 |
| Dimensioni del rack (mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*570 |
| IndexingPitch | 10.20.30.40mmorSpecify | |||
| Sistema di controllo | PLC | |||
| Energia | Max 250VA | |||
| Altezza di trasporto | 900±20mm(orCustomerSpecified) | |||
| Direzione PCB | Da sinistra a destra o da destra a sinistra | |||
| Alimentazione elettrica | 1 PH AC 220V 50/60Hz (Opzionale: da 110V a 380V) | |||
| Peso | 160 kg | 240 kg | 300 kg | 320 kg |
