Introduzione
IL JUKI Label Feeder is engineered to simplify and optimize the SMT process, offering precise and efficient label placement for a variety of applications, including Kapton tape dots used for conformal masking, EMI shielding, and component hold-down. The feeder works seamlessly with JUKI’s pick-and-place systems, integrating into the standard workflow without requiring complex setup or configuration. It advances the carrier tape in exact increments, ensuring every label or dot is positioned accurately, even at high speeds.
IL JUKI Label Feeder excels in environments requiring consistent, high-speed labeling. Its tape advance mechanism minimizes positional deviation, ensuring that every dot or label is placed correctly on each PCB, while its advanced tension control eliminates tape lift or dot shifting. Additionally, the feeder can handle high-temperature Kapton materials without risk of deformation, ensuring long-term reliability for even the most demanding applications. The quick-load reel design and tool-free tape threading significantly reduce changeover time, enhancing overall production efficiency.
As China’s largest exporter and manufacturer of custom feeders, Yinuo Electronics offers the JUKI Label Feeder at competitive prices, backed by exceptional quality and fast delivery. With a reputation for reliable products and tailored solutions, Yinuo ensures your SMT operations run smoothly and efficiently. Visit www.esmte.com for more information, or contact us directly via email at info@allaismt.com or WhatsApp at +8613760481664.
JUKI RX-6 Label Feeder
JUKI Label Feeder Compatible JUKI SMT Machine Models
| Machine Model / Series | Machine Type | Primary Function | Label Feeder Compatibility |
|---|---|---|---|
| KE-2050 / KE-2060 | Pick-and-Place Machine | Mid-range SMT component placement, supports ICs down to 0201 | Direct mounting compatible, standard feeder slot interface |
| KE-2070 / KE-2080 | Pick-and-Place Machine | High-speed flexible placement, hybrid head configuration | Full compatibility with original feeder rail system |
| KE-3010 / KE-3020 | High-Speed Placement | Ultra-fast chip shooter for small components (01005 capable) | Supports label feeder in auxiliary feeder bank |
| FX-1 / FX-2 / FX-3 | Flexible Mounter | Multi-functional placement platform, modular turret design | Compatible via standard JUKI FEEDER interface |
| FX-3R / FX-3RA | Flexible Mounter | Refined FX series with improved accuracy and speed | Drop-in replacement support, no adapter required |
| RS-1 / RS-1R | High-Speed Smart Router | Next-gen compact placer with laser alignment and smart vision system | Native label feeder slot support |
| RS-2 / RS-3 | High-Speed Smart Router | Advanced placement with multi-camera recognition | Standard feeder carriage accepts label feeders directly |
| RM-Series (RM-1 / RM-5 / RM-7) | Modular Placement System | Scalable multi-head platform for high-mix production | Label feeder compatible on any feeder station |
| JX-100 / JX-200 / JX-300 | Entry-Level Mounter | Compact desktop pick-and-place for prototyping and low-volume | Feeder slot supports label feeder mounting |
| JM-Series (JM-20 / JM-100 / JM-200) | Desktop Placer | Small-footprint machine for R&D labs and education | Direct-fit label feeder compatibility |
| GL-Line (GL-741 / GL-747) | LED-Specific Mounter | Specialized for LED strip/panel production | Label feeder slot available for board marking |
| TLM (TLM-210 / TLM-220) | Tape-to-Board Line | Dedicated tape-based component transfer system | Custom adapter may be required; consult specs |

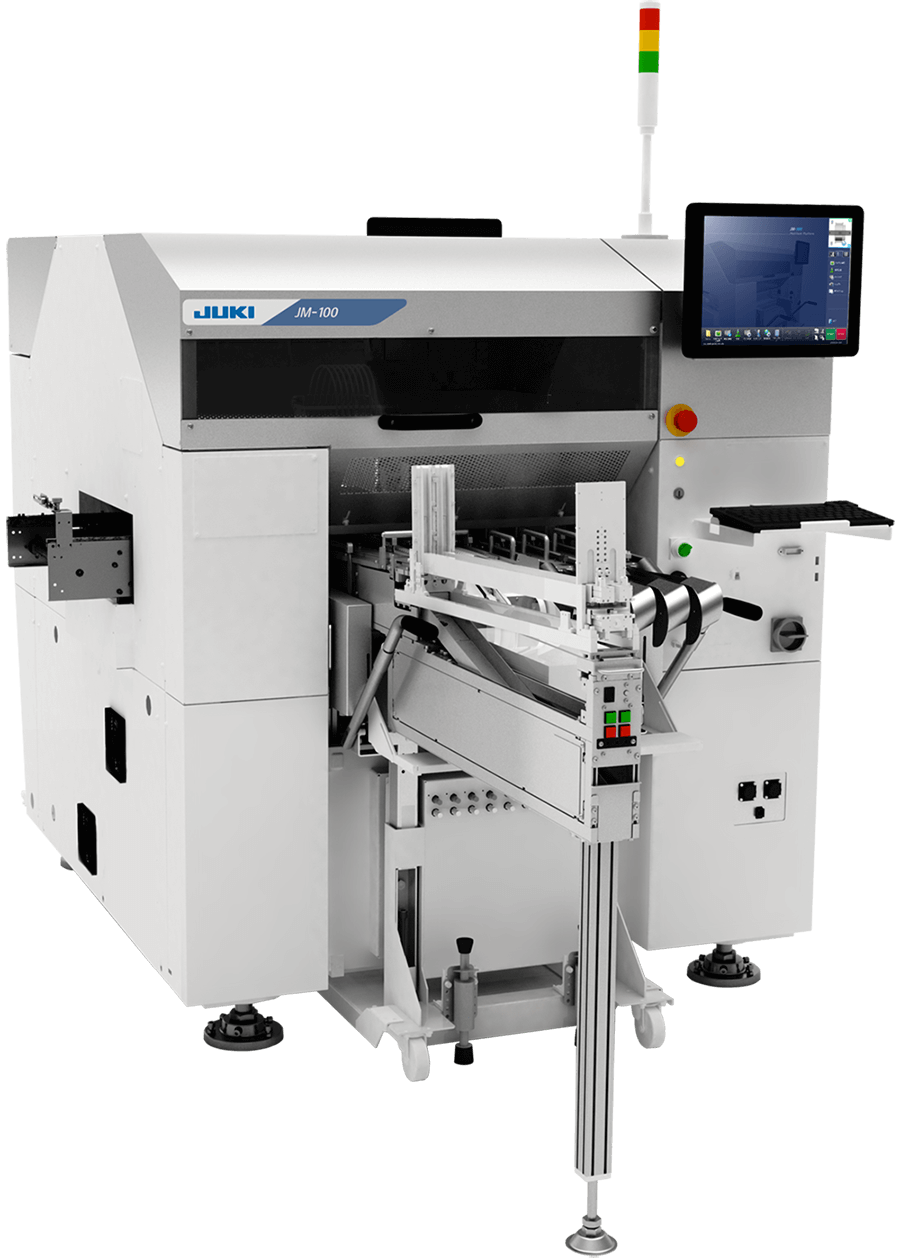

JUKI Label Feeder Machine
Labels for JUKI Label Feeder
| Label Type | Descrizione | Primary Use with JUKI Label Feeder |
|---|---|---|
| Component Identification Labels | Text or number printed labels (part no., revision, date code) | Applied to PCB panels for quick visual component identification during and after assembly |
| Barcode Labels | 1D barcode printed on label stock | Scannable part tracking, WIP inventory management, manual lot identification at assembly stations |
| QR Code Labels | 2D matrix code for higher data density | Compact data encoding for board serialization, model info, and process traceability markers |
| ESD Warning Labels | Pre-printed static sensitivity symbols | Affixed to ESD-sensitive PCB areas to alert operators to proper handling requirements |
| Inspection Pass/Fail Labels | Color-coded quality status markers (green/red) | Placed post-AOI or visual inspection to indicate board approval or rejection status |
| Process Stage Labels | Workflow indicators (solder paste, reflow, test, pack) | Applied between production stages to show current process step and prevent skipped operations |
| Warning / Caution Labels | Pre-printed safety or handling instructions | Attached near high-voltage sections, sharp edges, or fragile areas of the PCB panel |
| Orientation / Alignment Markers | Positional reference arrows, dots, or fiducial patterns | Used to guide manual placement operations or verify correct board orientation downstream |
| Lot / Batch Number Labels | Sequential batch ID labels for inventory grouping | Applied for manual inventory segregation and shipment batch tracking without electronic systems |
| Tamper-Evident Labels | Security seal labels showing visible tampering signs | Placed at final assembly as anti-tamper indicators before product leaves the factory floor |
| Custom Printed Labels | User-defined text, logo, or graphic content | Branding labels, customer-specific markings, or any custom visual identifier applied via feeder |

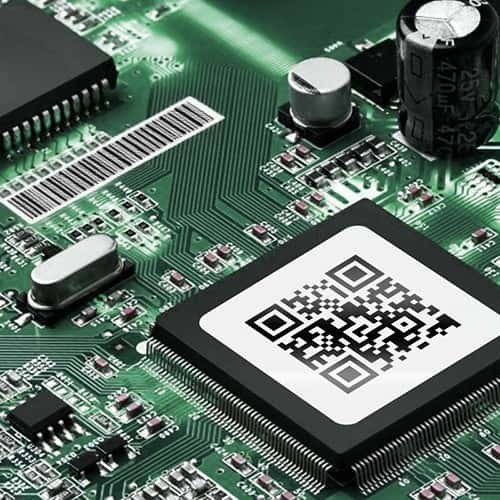

QR Code Label
