Introducción
El Comedero retráctil automático Yinuo introduces a pick-first, peel-after working principle that distinguishes it from conventional strip-and-place feeders. In this approach, a vacuum suction cup at the pickup point first lifts the material from its carrier or release liner, holding it against a flat manifold. Only after the material is secured by suction does the feeder retract the carrier, peeling the material away from the liner. This sequence allows the feeder to handle materials that would otherwise tear, stretch, or shift during a direct peel-from-motion attempt. The result is a clean separation that preserves flatness and structural integrity.
The pick-first step relies on a vacuum manifold at the pickup zone, with adjustable suction matched to the material’s weight and stiffness. For large labels and thin films, a lower suction level holds the part without distorting its surface. For thicker foam and conductive adhesive sheets, a higher suction level overcomes the material’s tendency to spring back from the manifold. Once the material is secured, the feeder’s retractable take-up reel draws the carrier back by a parameterized distance, completing the peel. The retraction speed is also parameterized, allowing the peeling rate to be tuned to the material’s flexibility and adhesive strength.

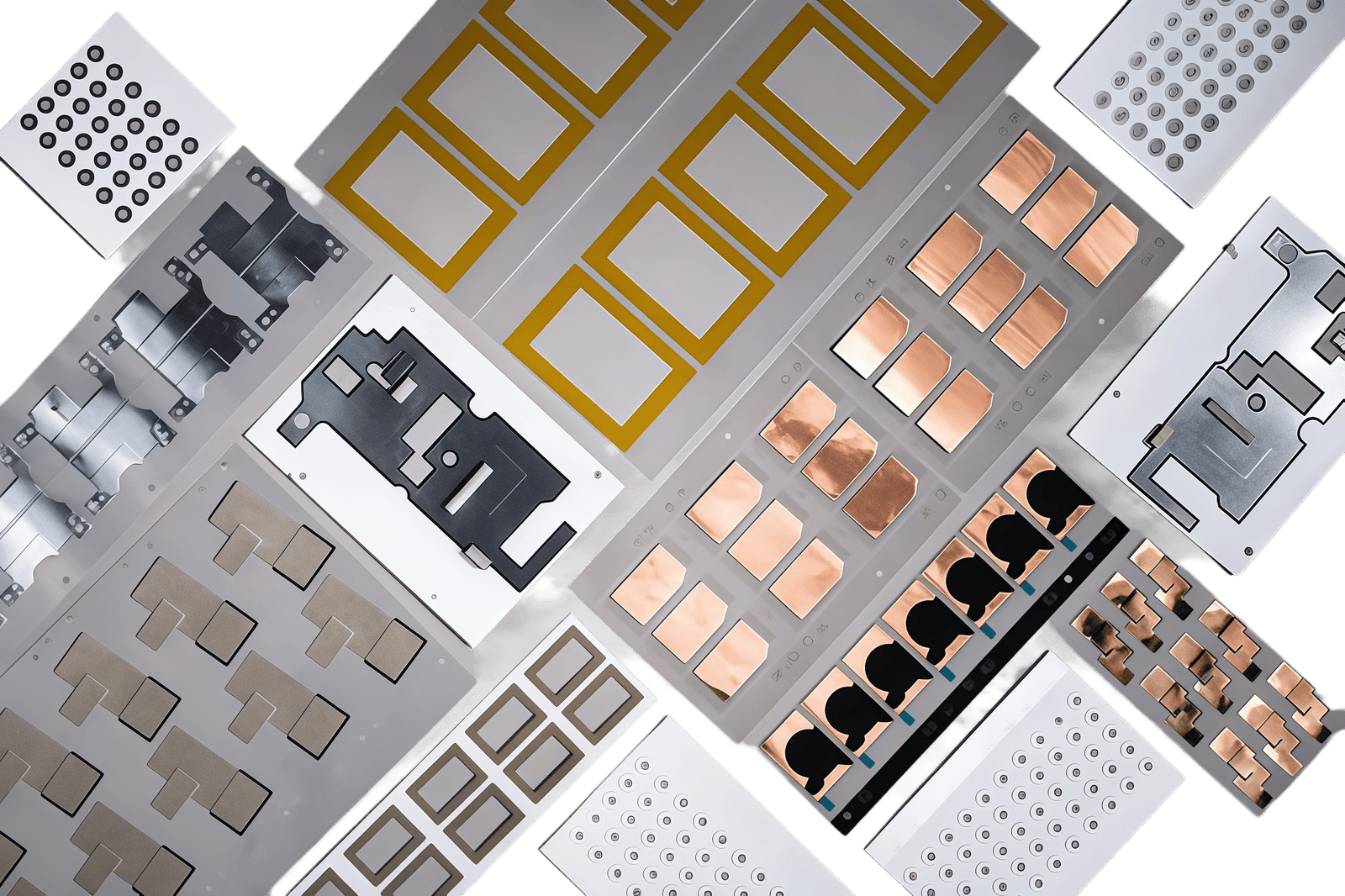

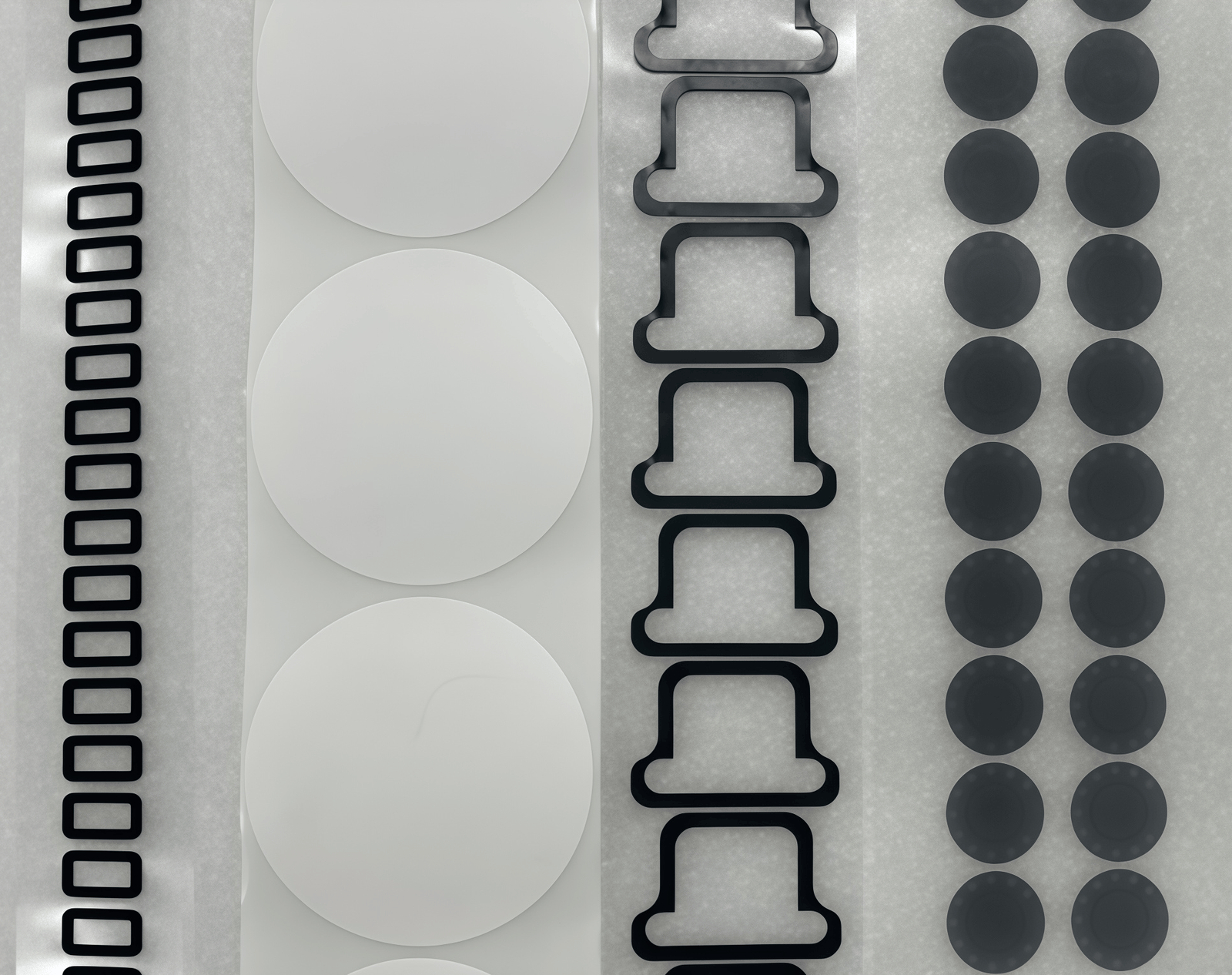

The Yinuo Automatic Retractable Feeder is suitable for the automatic peeling of large labels, Mylar, foam, double-sided adhesive, conductive adhesive, and other reel-packaged materials that are difficult to strip. The parameterized peel speed and peel distance give the unit the flexibility to handle this material variety without mechanical reconfiguration. The combination of pick-first lifting and retractable peeling allows the feeder to manage materials that resist conventional feeding, while keeping the material flat and undamaged as it is presented to the placement head. The Yinuo Automatic Retractable Feeder is suitable for electronics manufacturing applications.

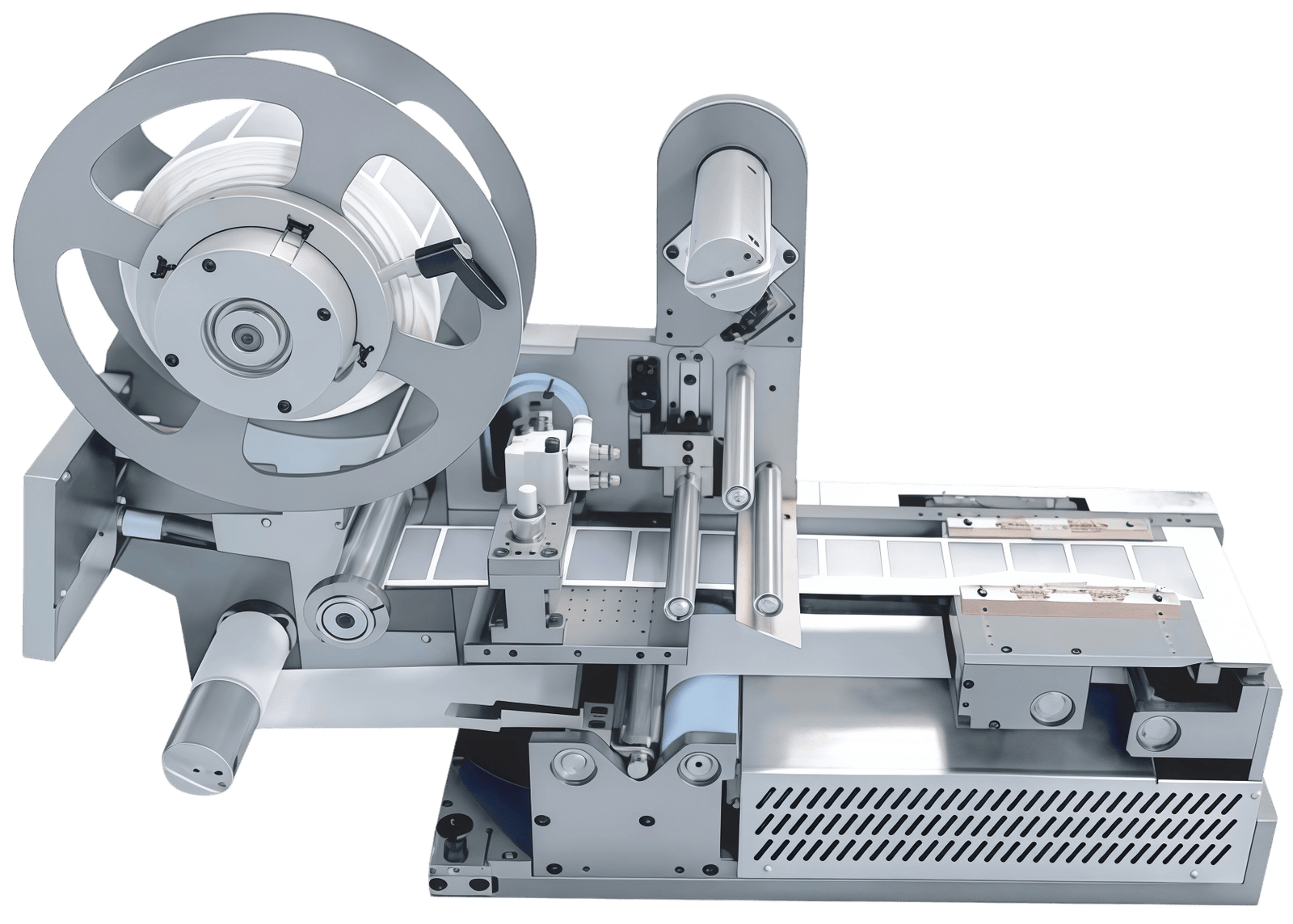

Comedero retráctil automático Yinuo

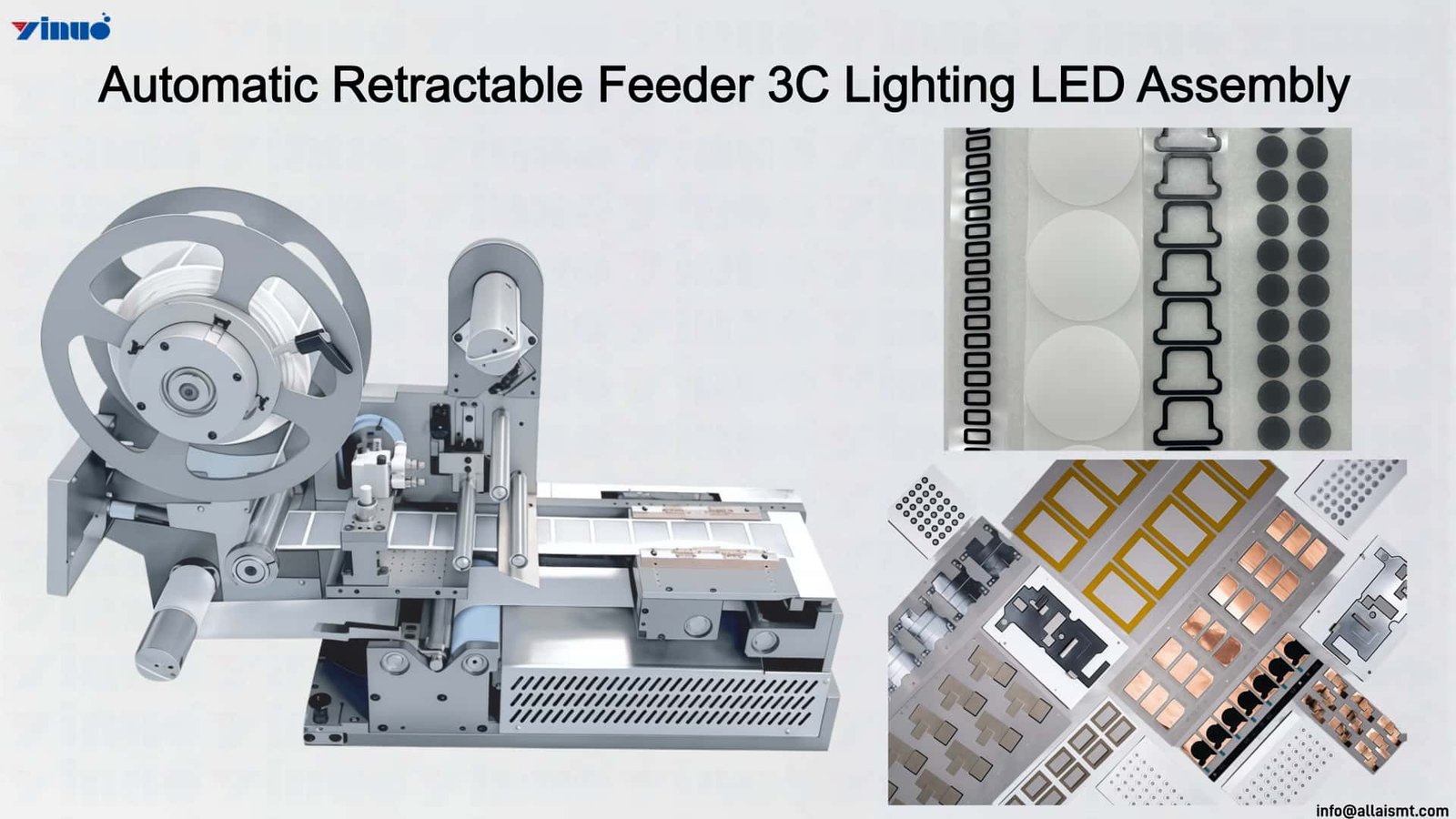

Yinuo Automatic Retractable Feeder for 3C Lighting LED Assembly
In 3C lighting LED assembly, a single production line may handle LED chips, phosphor films, reflective sheets, diffuser layers, thermal pads, and adhesive gaskets, each supplied in reel-packaged carrier tapes of different widths and pitches. The Yinuo Automatic Retractable Feeder is applied in these lines as a label-feeder-equivalent material placement tool, dedicated to the handling of sheet-like auxiliary materials rather than through-hole components. Its function is to separate the material from its carrier or release liner and present it to the placement head in a clean, flat state. The feeder’s pick-first, peel-after mechanism allows it to handle materials that would tear or distort if peeled directly from a moving carrier.
El Comedero retráctil automático Yinuo is built around several core features that make it suitable for this variety of LED materials. The retractable take-up system maintains constant back-tension on the carrier, keeping it taut throughout the indexing cycle and ensuring the material stays in its pocket until retrieval. A dancer arm measures real-time tension and feeds back to the controller, which adjusts the take-up reel speed to hold tension within a defined band. The idler rollers along the tape path are precision-balanced and crowned slightly, centering the tape on the track and reducing the need for manual alignment during setup.
Yinuo Electronics has refined the Yinuo Automatic Retractable Feeder to support the operational requirements of LED manufacturing. The tool-free track width adjustment allows operators to switch between LED chip tape and wider reflective film tape without removing the feeder from the placement machine. The quick-connect rear interface combines electrical signals and pneumatic supply into a single coupling, allowing the feeder to be installed or swapped out in minutes. The control board supports standard communication protocols used in surface mount and LED assembly equipment. The Yinuo Automatic Retractable Feeder is suitable for 3C lighting LED assembly, where material versatility, clean peeling, and straightforward integration support the production of diverse LED products.
Parámetros
| Artículo | Parameter | Artículo | Parameter |
| Método de alimentación | Coge primero el componente y luego retíralo; admite la retracción en varias etapas | Panel de operaciones | Pantalla TFT en color de 3,5″, 480 × 320 píxeles, pantalla táctil capacitiva |
| Material Type | Cinta en carrete | Velocidad de alimentación | Regulación continua de la velocidad, máx. 100 mm/s |
| Voltaje | 24,0 V CC | Consumo en modo de espera | < 20 W |
| Actual | 5,0 A MÁX. | Operating Temperature | De -20 °C a 65 °C |
| Precisión en la alimentación | ±0,2 | Humedad de funcionamiento | De 20% a 90% de humedad relativa, sin condensación |
| Ajuste de la posición de alimentación | Dirección X: ajuste del límite mecánico; Dirección Y: ajuste mediante software; Dirección Z: ajuste mecánico |
Temperatura de almacenamiento | De -40 °C a 85 °C |
| Presión de aire de entrada | De 0,40 MPa a 0,60 MPa | Humedad de almacenamiento | De 10% a 95% |
| Interfaz de comunicación | GPIO de tipo NPN/PNP | Esperanza de vida | ≥ 20 000 horas (25 °C) |
| Comunicación de hardware | GPIO 232, TCP/IP | Dimensiones | Consulte las especificaciones reales del producto |
| Método de accionamiento | Motor + neumático | Peso | Consulte las especificaciones reales del producto |
