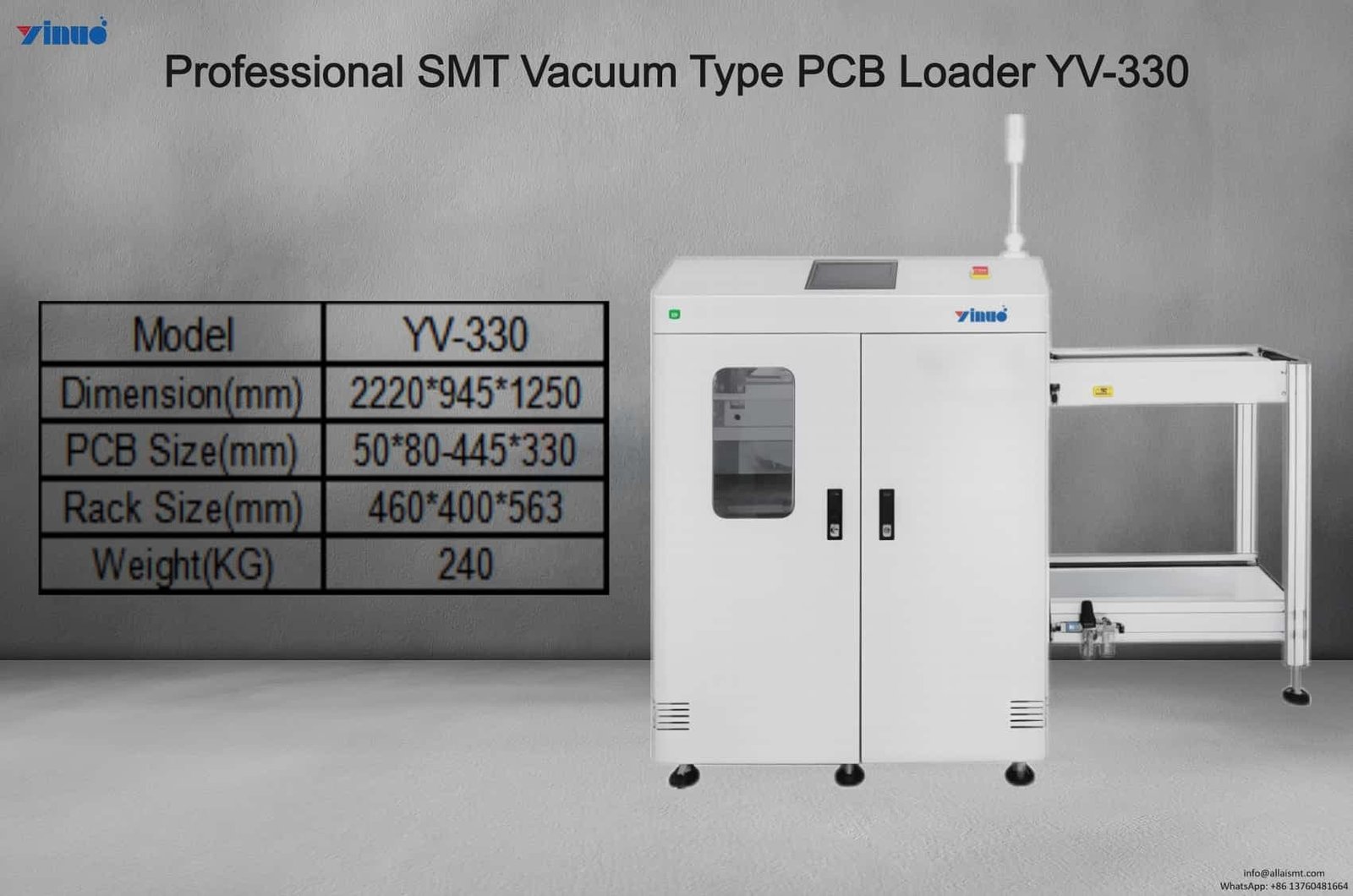

Professional SMT Vacuum Type PCB Loader YV-330
Beschreibung:Professional SMT Vacuum Type PCB Loader YV-330 is designed to deliver smooth, controlled, and repeatable PCB loading for automated SMT assembly lines. By adopting a vacuum pickup mechanism, the loader ensures gentle handling of thin or high-density boards without mechanical stress. The equipment allows fast adjustment for different PCB formats, supporting frequent product changeovers with minimal downtime. Stable operation and precise positioning contribute to improved downstream placement accuracy. YV-330 also reduces labor dependence at the line entrance, helping factories enhance productivity, maintain process consistency, and achieve higher overall manufacturing reliability.
Mindestbestellmenge: 1 Stück
Lieferzeit: 15 Tage
Einführung
Der Professional SMT Vacuum Type PCB Loader YV-330 is built to support continuous and precise PCB loading for demanding SMT production lines. Its vacuum-based transfer system eliminates direct mechanical contact, helping protect sensitive boards during handling. This method is particularly beneficial for applications requiring high surface quality and strict process control.
Stable feeding speed and accurate positioning allow the Professional SMT Vacuum Type PCB Loader YV-330 to maintain smooth line operation even during long production shifts. The system accommodates multiple PCB specifications, enabling fast adaptation to changing production plans. Reduced setup time during product changeovers improves overall responsiveness and helps manufacturers meet tight delivery schedules.
Replacing manual loading with automated operation improves consistency while reducing labor dependency. The robust structure and reliable control performance support long-term use in high-volume manufacturing environments. As part of an automated SMT line, the Professional SMT Vacuum Type PCB Loader YV-330 contributes to improved productivity, enhanced quality stability, and sustainable production growth.
-
Reliable PCB Supply for Mass Appliance Manufacturing
The YV-330 delivers stable PCB loading for large-scale appliance production. It supports continuous operation over long shifts. This reliability is critical for high-output factories. -
Vacuum-Based Protection for Sensitive Circuits
Appliance control boards often include sensitive circuitry. Vacuum handling avoids direct mechanical contact. This reduces the risk of micro-damage during loading. -
Consistent Alignment for Downstream Accuracy
Precise PCB positioning ensures smooth transfer to subsequent SMT equipment. Alignment consistency improves placement accuracy later in the line. Overall assembly quality is enhanced. -
Faster Line Startup and Changeover
Quick setup functions shorten line startup time. Model changeovers become more efficient. This helps appliance manufacturers meet tight delivery schedules. -
Reduced Manual Errors and Operator Fatigue
Automated loading eliminates repetitive manual tasks. Human error at the loading stage is reduced. Operator safety and comfort are improved. -
Scalable Solution for Growing Appliance Demand
YV-330 supports production scaling without increasing manpower. It adapts well to expanding SMT lines. This makes it suitable for long-term factory upgrades.
Spezifikationen
| Modell | YV-250 | YV-330 | YV-390 | YV-460 |
| Abmessung (mm) | 1800*865*1250 | 2220*945*1250 | 2450*1110*1250 | 2450*1250*1250 |
| PCB Size(mm) | 50*80-330*250 | 50*80-445*330 | 50*80-530*390 | 50*80-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*563 | 535*530*563 |
| No. of Magazine | Upper Conveyor:1magazine; Lower Conveyor: 1magazine | |||
| Indexing Pitch | 10 . 20 . 30 . 40mm or specify | |||
| Maximum PCBs Capacity | 400pcs(0.6mm thick PCB) | |||
| Cycle Time | Approx. 12 seconds or specify | |||
| Stromversorgung | AC 1P 110V/220V; Max 300VA | |||
| Air Pressure | 4-6bar, 30ltr/min Max | |||
| Transport Height | 900±20mm(or customized) | |||
| Transport Direction | From left to right or right to left | |||
| Weight(KG) | 200 | 240 | 280 | 320 |
